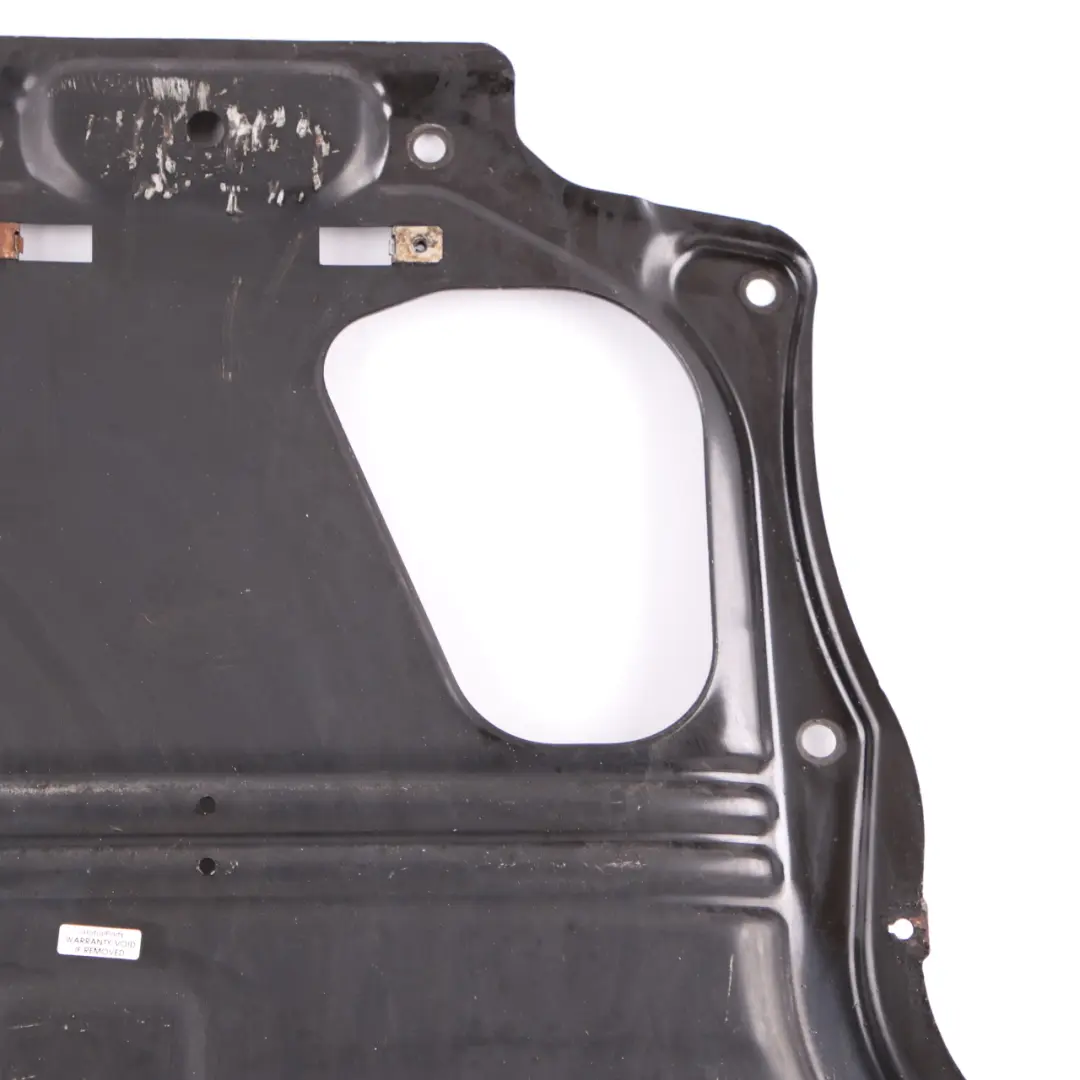

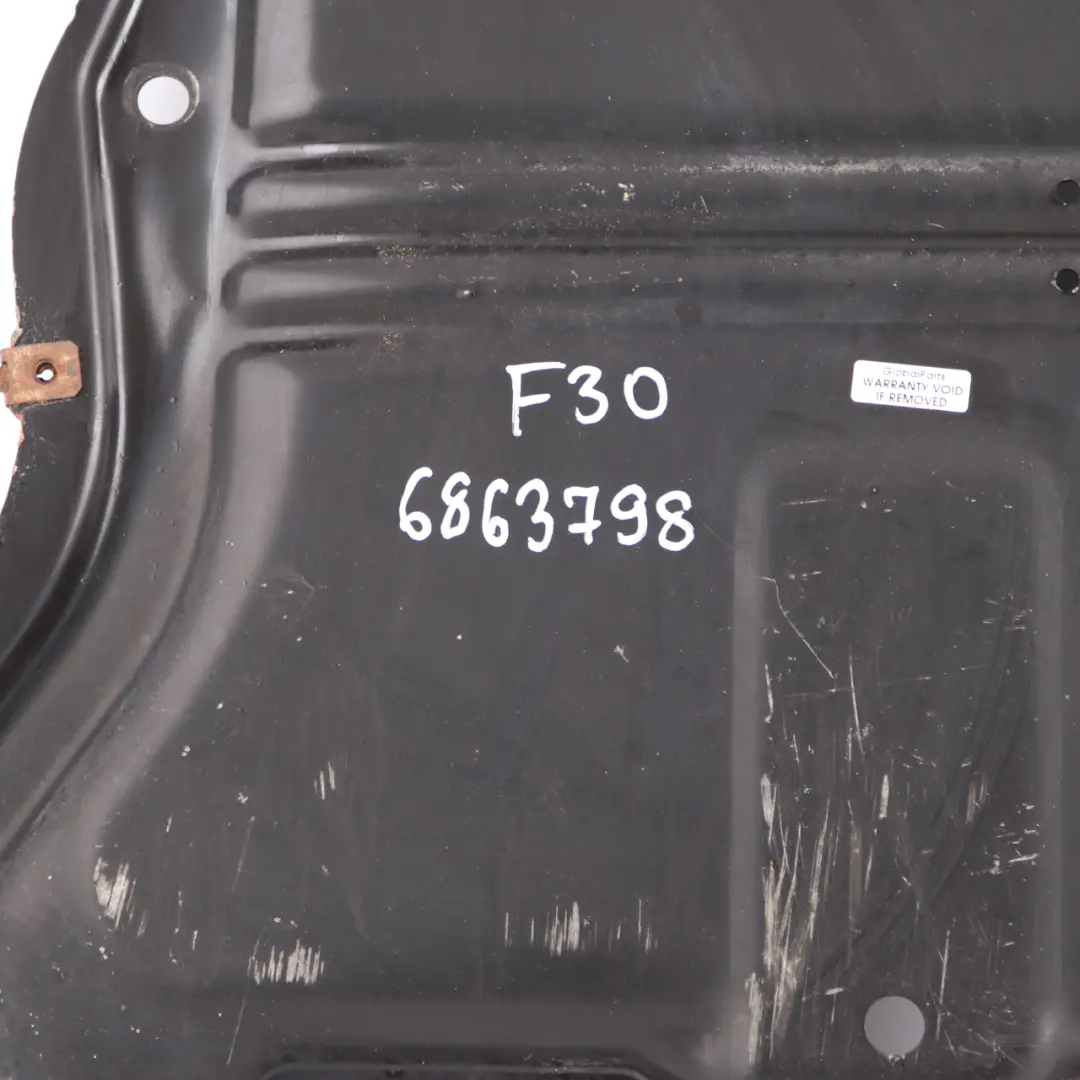

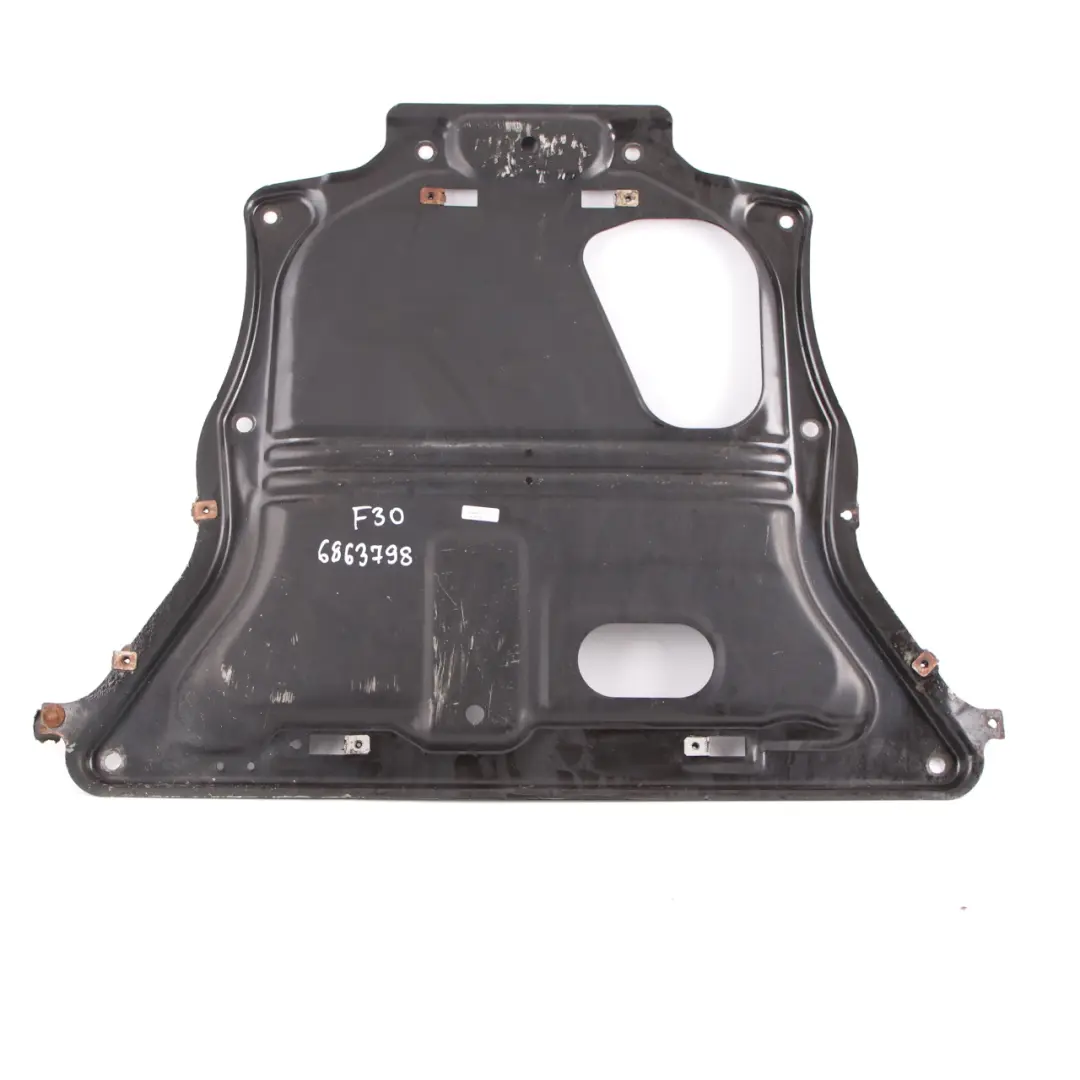

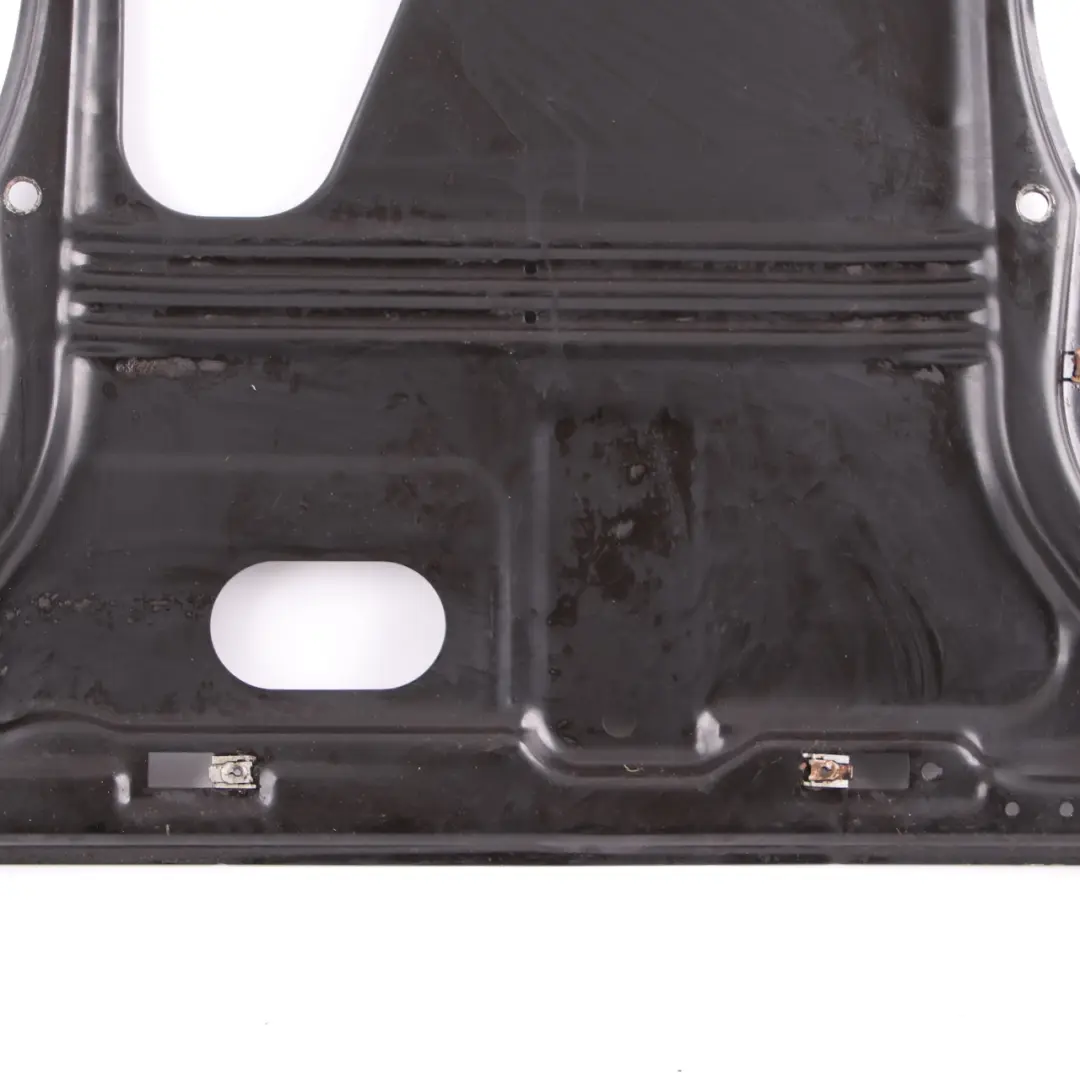

Subframe Carrier BMW F30 xDrive Diesel Front Axle Reinforcement Plate 6863798

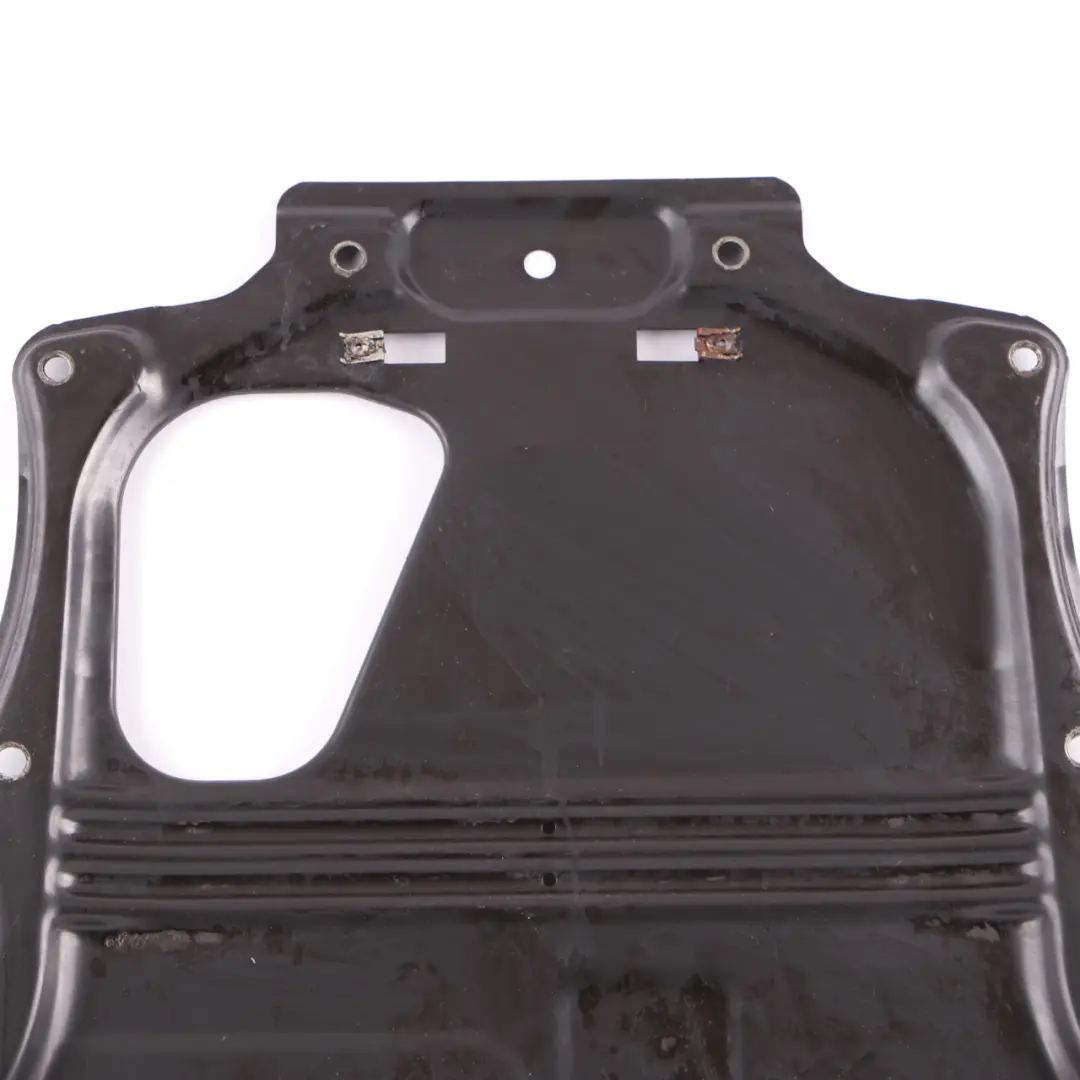

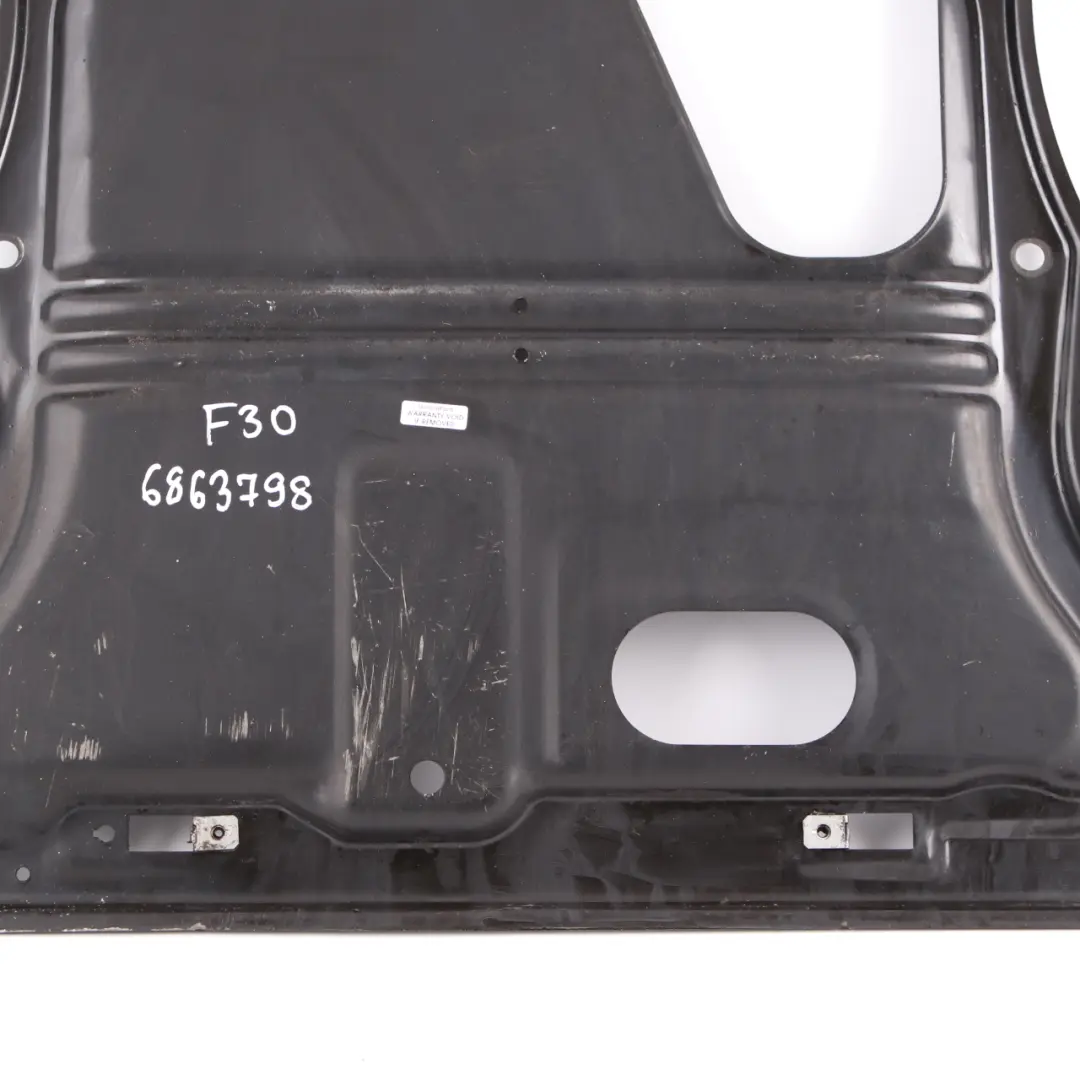

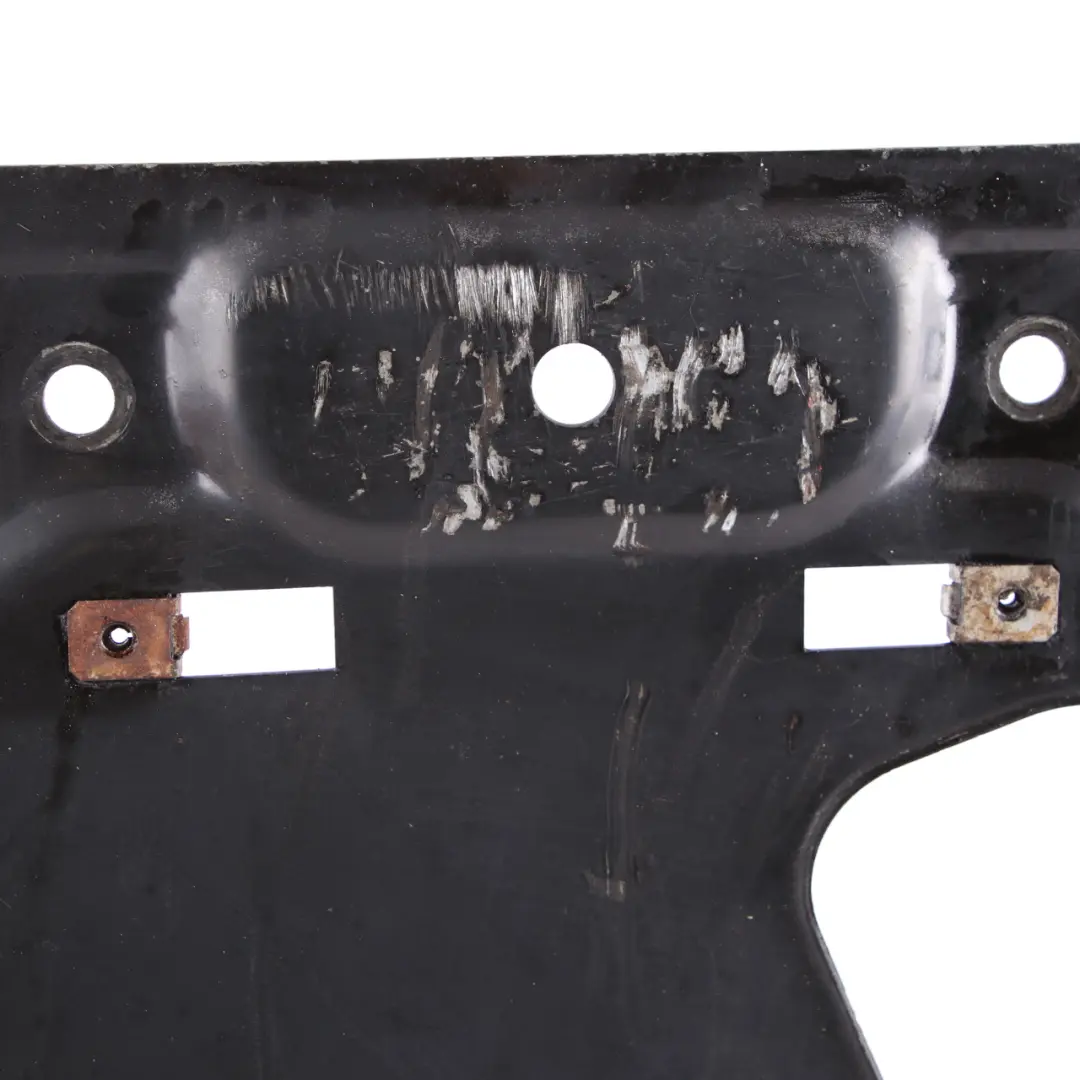

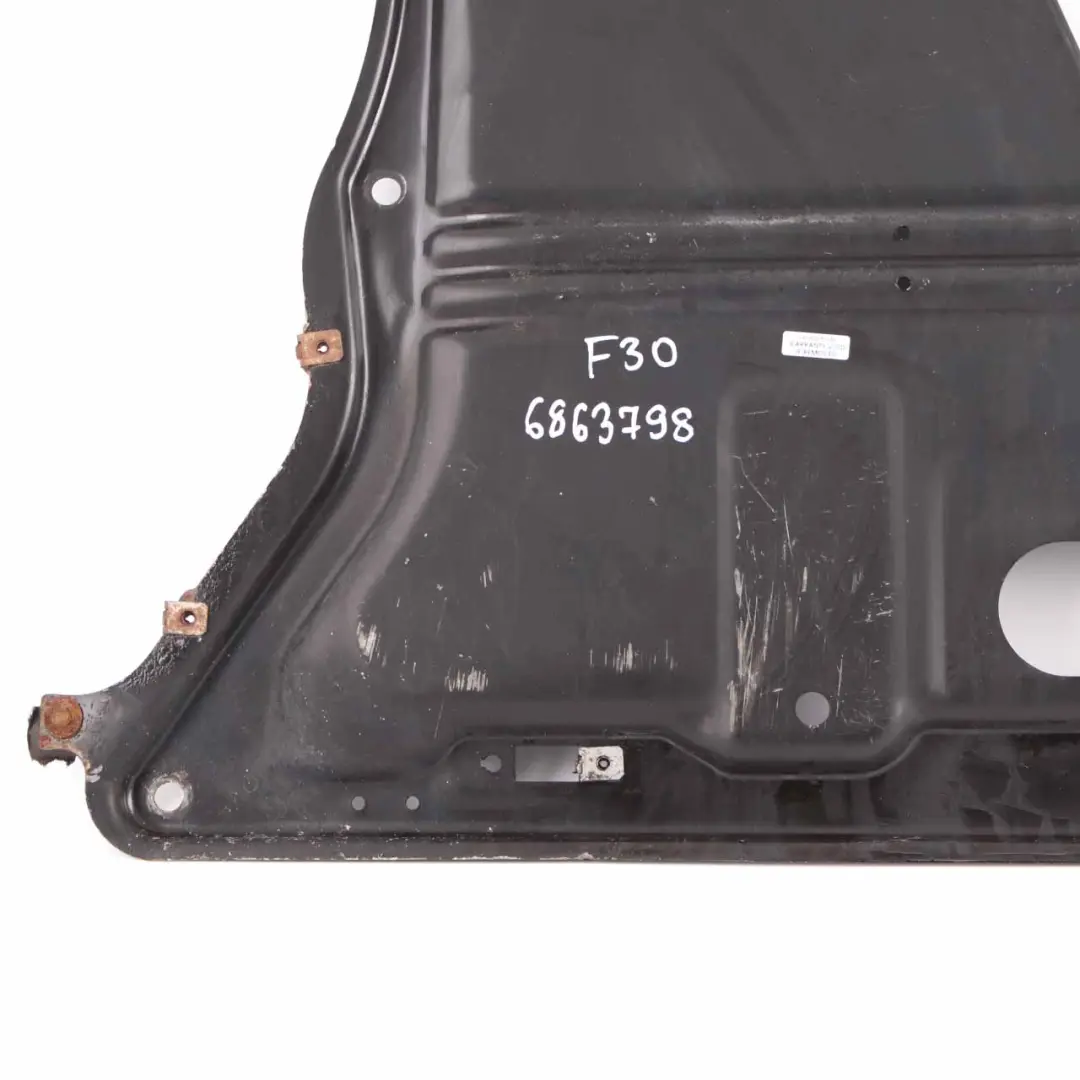

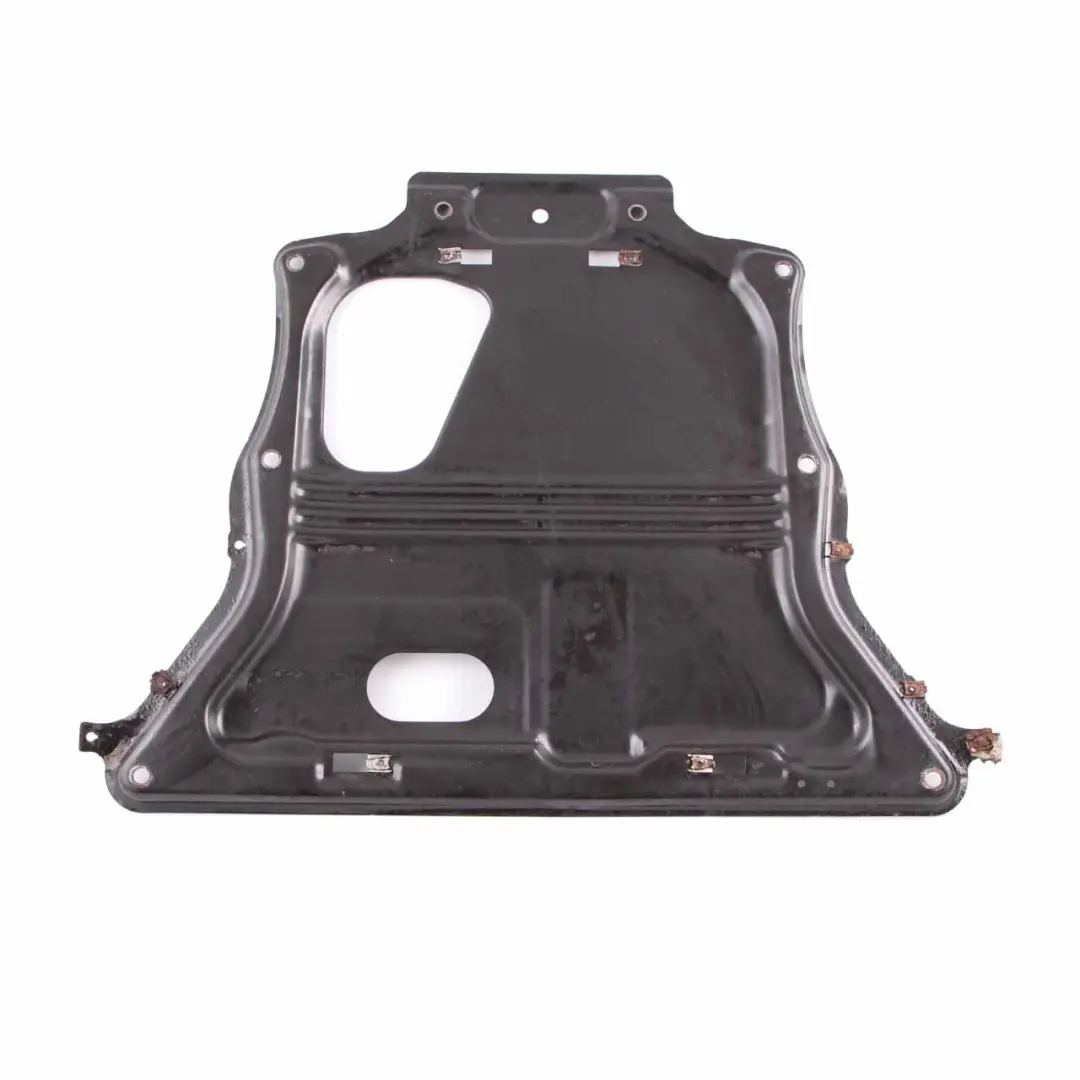

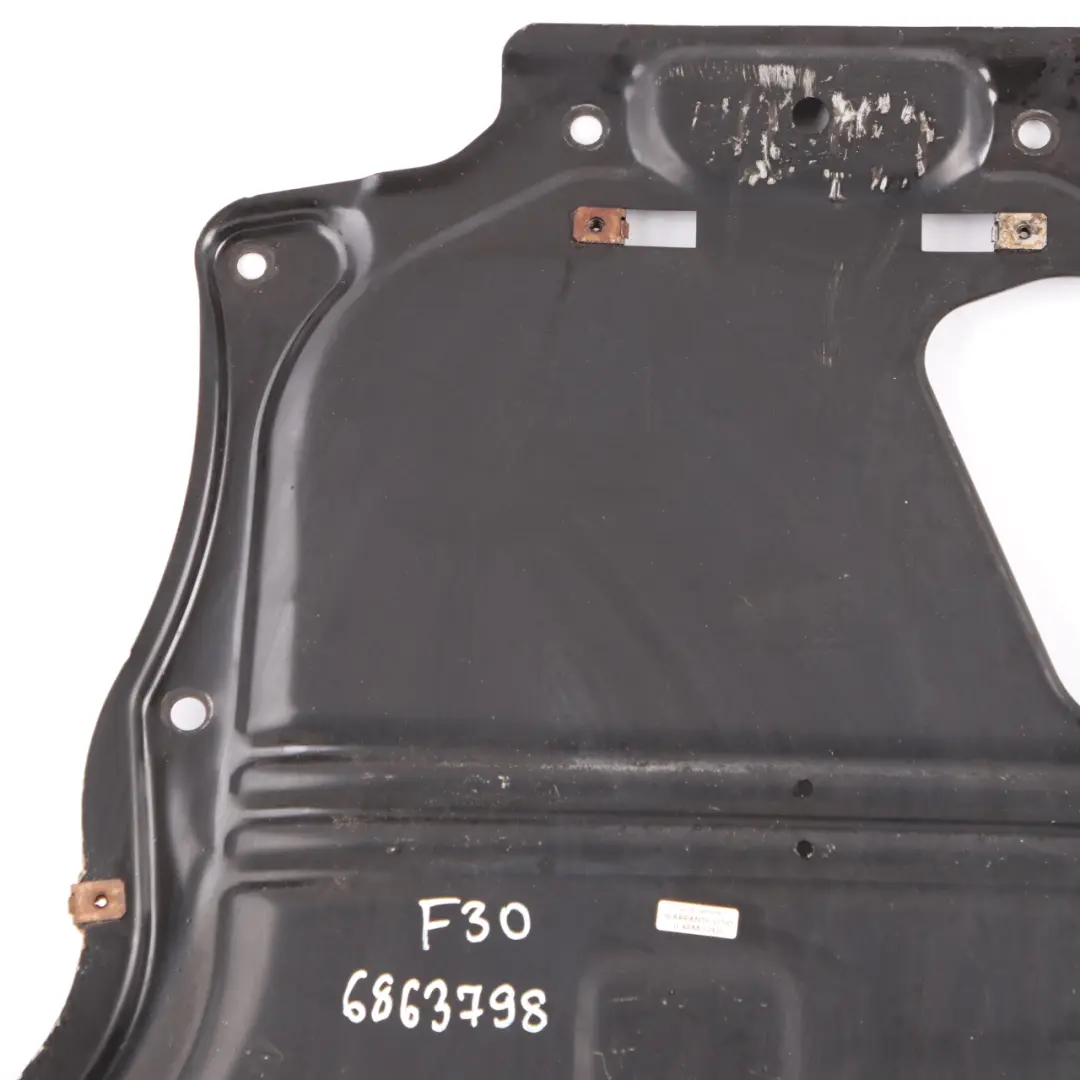

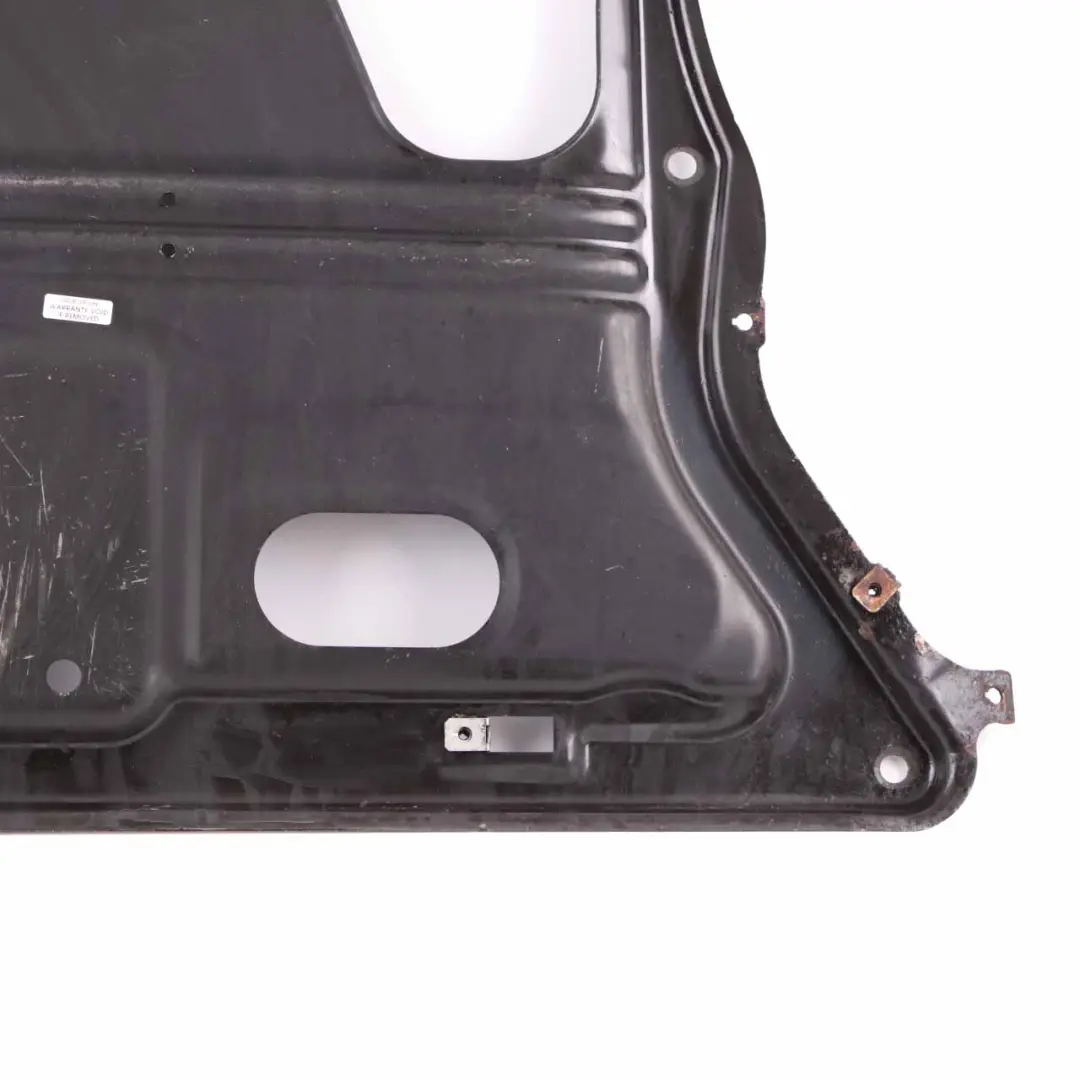

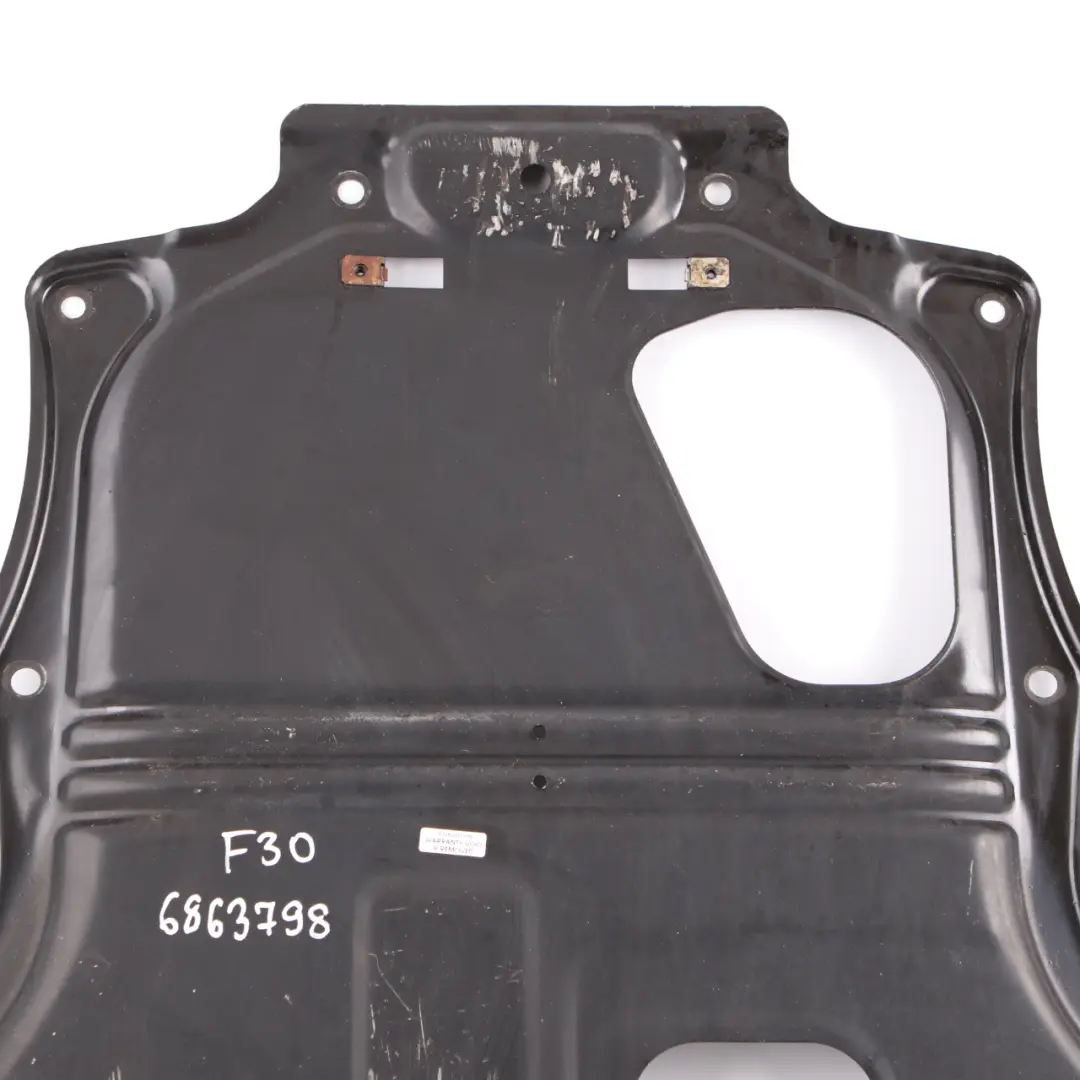

BMW F30 xDrive Diesel Engine Splash Shield Undertray 6863798 is a component from the longitudinal body frame parts and brackets category, designed for the front of BMW vehicles with xDrive and diesel engines. It is responsible for protecting the lower area of the powertrain from water, mud, and road debris, while simultaneously stabilizing airflow under the vehicle.

Specifications and technical data

• SKU: 6863798
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6863798
• Substitutable numbers: 31106863798, 6863798, 31106858620, 6858620
• Location on the vehicle: Front
• Fuel type: Diesel
• Category: Frame Rails & Subframes

Purpose and Function in the BMW F30 xDrive Diesel Construction

The engine splash shield undertray in the BMW F30 with xDrive and diesel engine plays a crucial role in protecting sensitive components located in the front of the body. This element limits direct contact of the powertrain, subframe components, and brackets with water, road salt, and small stones.

Thanks to its design, the shield also supports:

• controlled airflow in the underbody area, which contributes to the thermal stability of the powertrain,
• reduction of air turbulence under the car, which can affect acoustic comfort and aerodynamics,
• protection of longitudinal body frame parts and brackets from accelerated corrosive wear.

Construction and Fitment for the xDrive Powertrain

The component has been designed with the specificities of the xDrive system in the BMW F30 diesel engine in mind, where additional drivetrain components operate in the front underbody area. The shape and mounting points of the shield are adapted to the geometry of the subframe and brackets to:

• provide stable support at factory mounting points,
• not interfere with four-wheel drive components, the exhaust system, or wiring harnesses,
• maintain adequate ground clearance in the front underbody area.

Such precise fitting is particularly important in four-wheel-drive vehicles, where the installation space is more limited than in front-wheel-drive versions.

Benefits of Using an Original Splash Shield

Using the factory engine splash shield undertray in the BMW F30 xDrive Diesel offers tangible operational benefits:

• Protection of the lower engine area from water, mud, and minor impacts from road debris, which reduces the risk of mechanical damage and accelerated corrosion.
• Improved thermal stability due to predictable airflow in the underbody area, promoting even heat dissipation.
• Integration with the body structure – this component from the longitudinal body frame parts and brackets category works in conjunction with the vehicle's front-end factory geometry.
• Reduced dirt accumulation in the engine bay from below, which facilitates subsequent service and diagnostic work.

Condition, Application, and Selection by OEM Numbers

The offered BMW engine splash shield undertray belongs to the category of used body parts, allowing for an economical replacement while maintaining compliance with the factory construction. This solution is particularly beneficial for repairs after mechanical damage to the underbody or after prolonged use in harsh road conditions.

To precisely verify compatibility with a specific version of the BMW F30 xDrive Diesel, it is advisable to use the OEM part number and available interchange numbers. This allows for matching the shield to a specific body variant and drivetrain configuration, minimizing the risk of incompatible mounting points.

If you want to deepen your knowledge about the operation of four-wheel-drive systems in BMW cars and other brands, the article will be useful: xDrive, 4Matic, quattro or 4Motion – comparison of AWD drives from BMW, Mercedes, Audi and VW, which discusses, among other things, the structural characteristics of AWD systems and typical components cooperating with the drive.

How to Safely Select an Engine Undertray Online

When purchasing an engine splash shield undertray for the BMW F30 xDrive Diesel, it is crucial to verify compatibility using the OEM part number and reference numbers. This helps avoid situations where a component from the longitudinal body frame parts and brackets category does not fit a specific body version or drivetrain configuration.

Practical tips for verifying compatibility by numbers can be found in the guide: risk-free online parts shopping – how to check component compatibility by OEM numbers, which describes the step-by-step process of checking parts for BMW and other brands.

Other BMW Longitudinal Body Frame Parts and Brackets

If you also need other components from the longitudinal body frame parts and brackets category for your car, check the available BMW longitudinal body frame parts and brackets to complete the set of components necessary for repairing or reconstructing the front part of the vehicle's structure.
