VW Transporter T5 Gearbox Transmission Oil Sump Tray Aisin TF60-SN 09K325039A

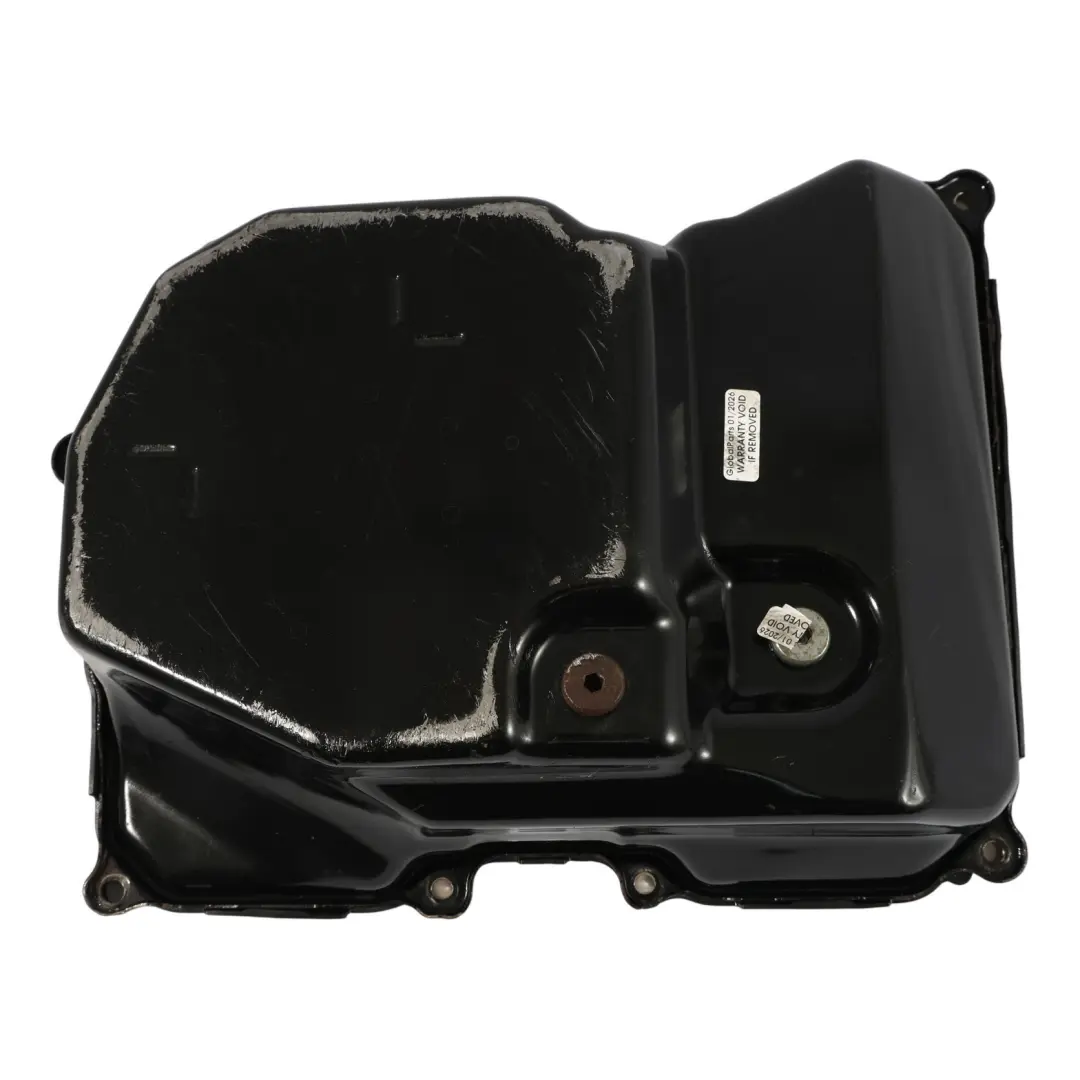

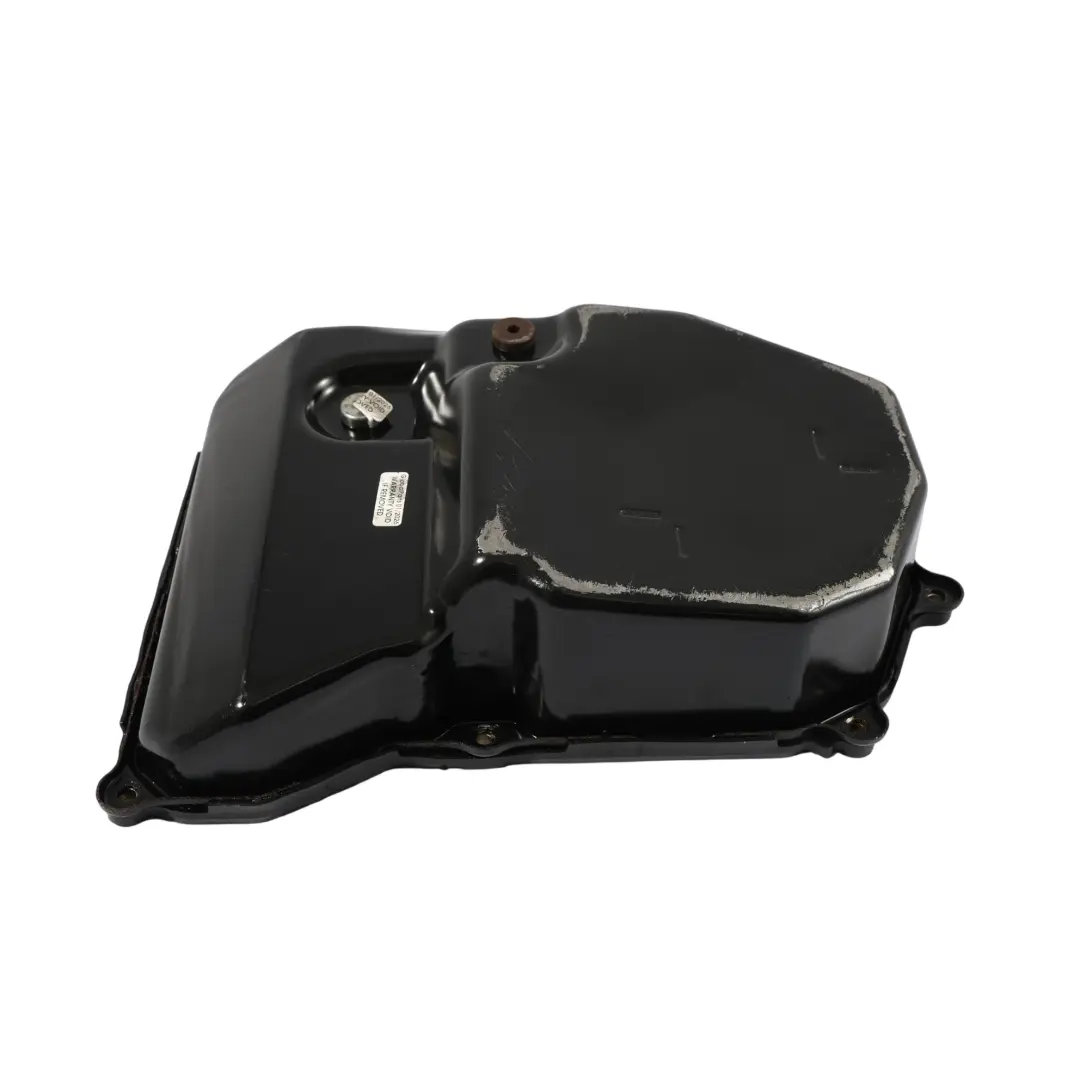

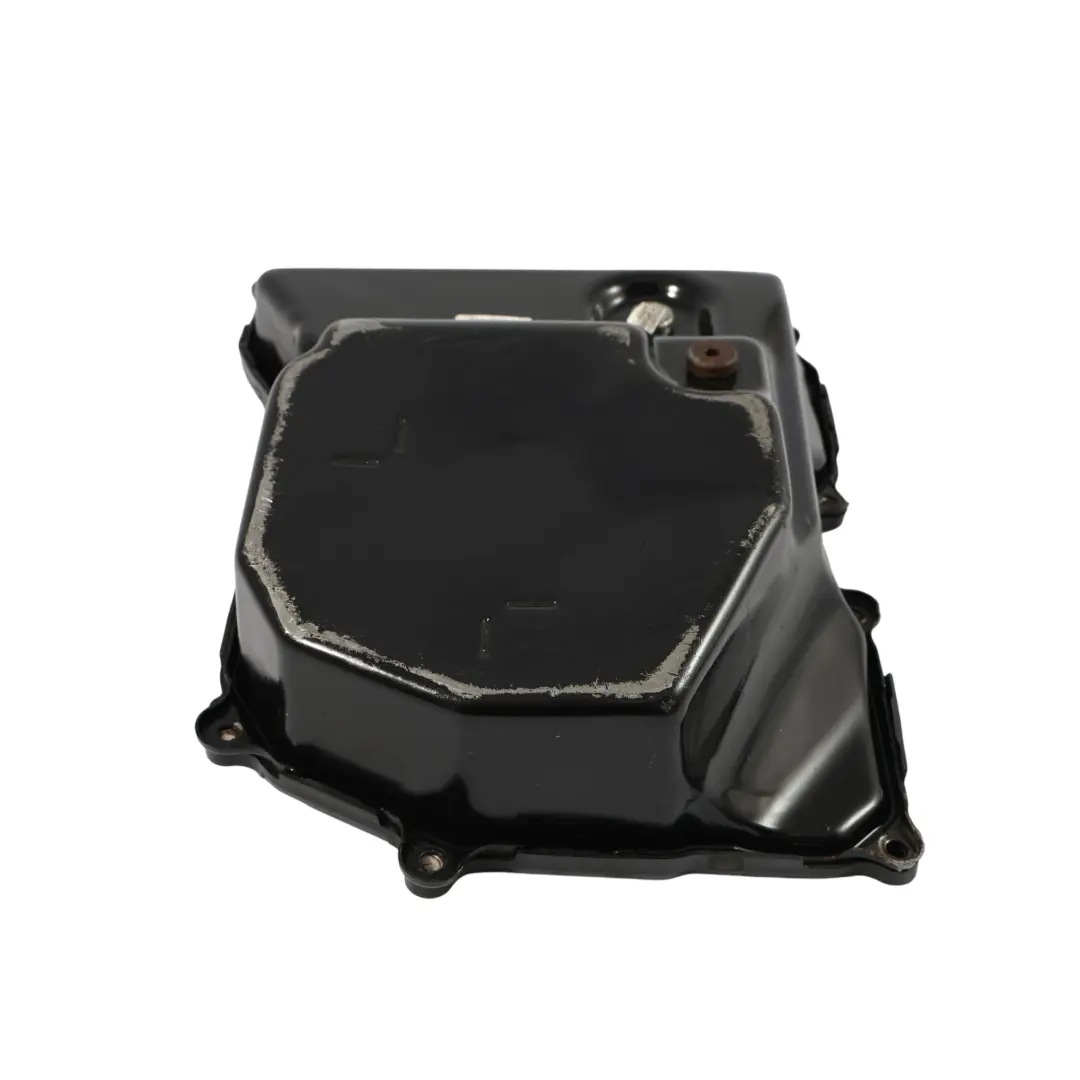

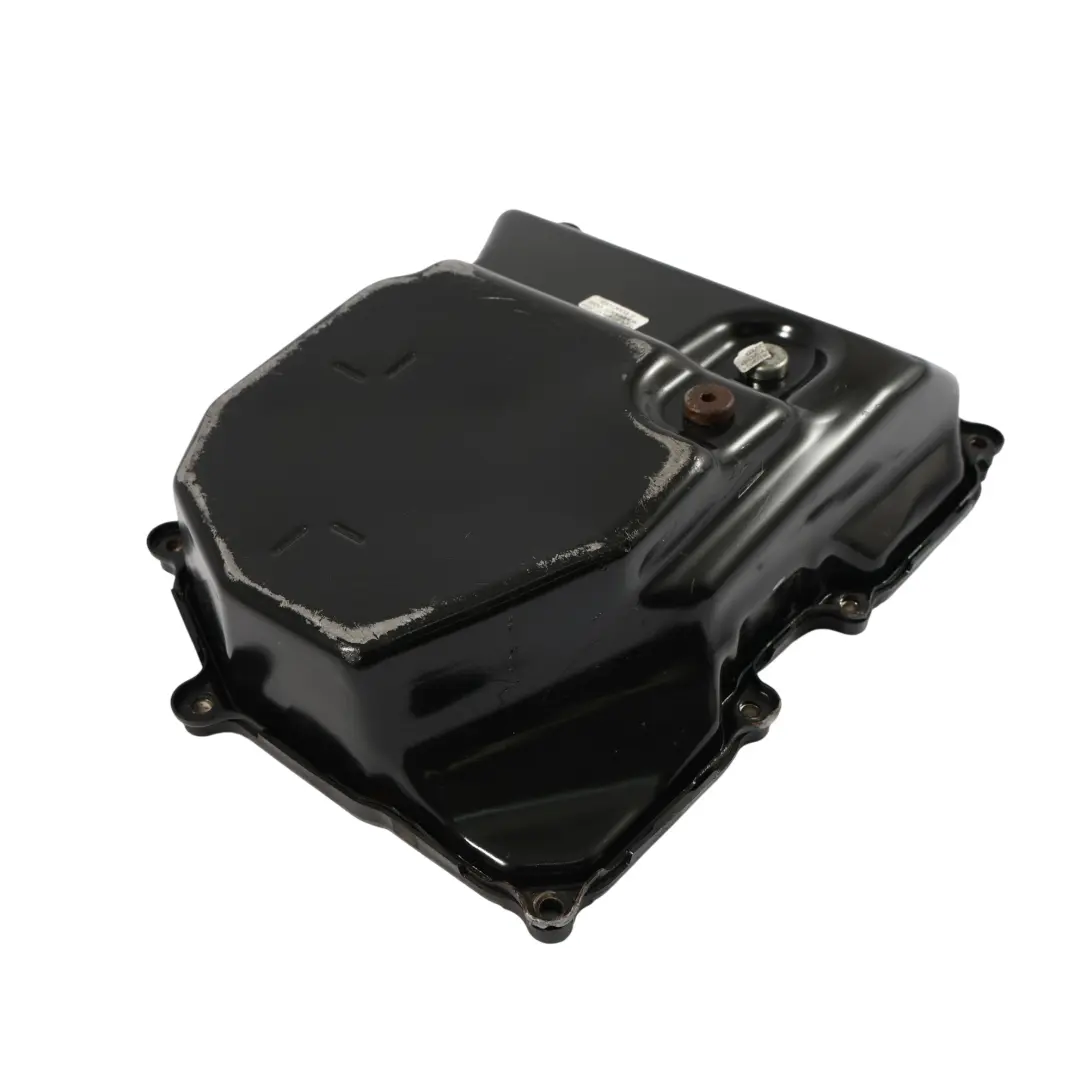

Visual condition of the part

The product shows signs of use visible in the photos.

VW Transporter T5 Gearbox Transmission Oil Sump Tray Aisin TF60-SN is an original component from the Automatic transmission parts group, designed for use in Volkswagen vehicles. It ensures a leak-proof containment of transmission fluid in the automatic gearbox, which directly impacts the stable operation of the drivetrain and the durability of the transmission.

Specifications and technical data

• SKU: 09K325039A-1
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 09K325039A
• Substitutable numbers: 09K325039A, 09K 325 039 A, TF60-SN
• Part type: Oil Sump
• Category: Automatic Transmission Parts

Purpose and technical function

The transmission oil sump tray in the Aisin TF60-SN automatic gearbox is responsible for maintaining the correct oil level, its circulation, and the drainage of contaminants to the filter. In the VW Transporter T5 model, this is a key element for the proper lubrication of planetary gears, clutches, and hydraulic valves, as well as for stabilizing the operating temperature of the gearbox.

A properly selected oil sump tray reduces the risk of leaks, oil pressure drops, and overheating, which translates into smooth gear shifting and less strain on other automatic transmission components.

Benefits of using an original oil sump tray

Using an original component from the Automatic transmission parts group allows you to maintain the factory operating parameters of the transmission. Proper fitment of the shape, mounting points, and sealing surfaces minimizes the risk of leaks after installation and eliminates the need for modifications.

The main advantages of using this oil sump tray in a VW Transporter T5 include:

• secure fitment to the Aisin TF60-SN gearbox housing,
• stable maintenance of the transmission oil level,
• proper cooperation with the oil filtration system,
• preservation of the factory lubrication system geometry.

Condition and installation aspects

The item is offered in used condition, which allows for an economical repair of the gearbox while maintaining the manufacturer's original specifications. Before installation, a standard preparation procedure is recommended: thorough cleaning of the contact surface with the gearbox housing, checking for flatness, and using a new gasket or sealant in accordance with the vehicle manufacturer's recommendations.

Replacing the oil sump tray is a good time for an automatic transmission oil service – combining these tasks allows you to reduce vehicle downtime and optimize maintenance costs.

Part selection by numbers and vehicle compatibility

To ensure full compatibility with a specific version of the VW Transporter T5, it is worth verifying the part by its OEM number or interchangeable numbers using the manufacturer's catalog or a VIN search. This approach minimizes the risk of selecting the wrong oil sump tray variant and speeds up the repair process.
