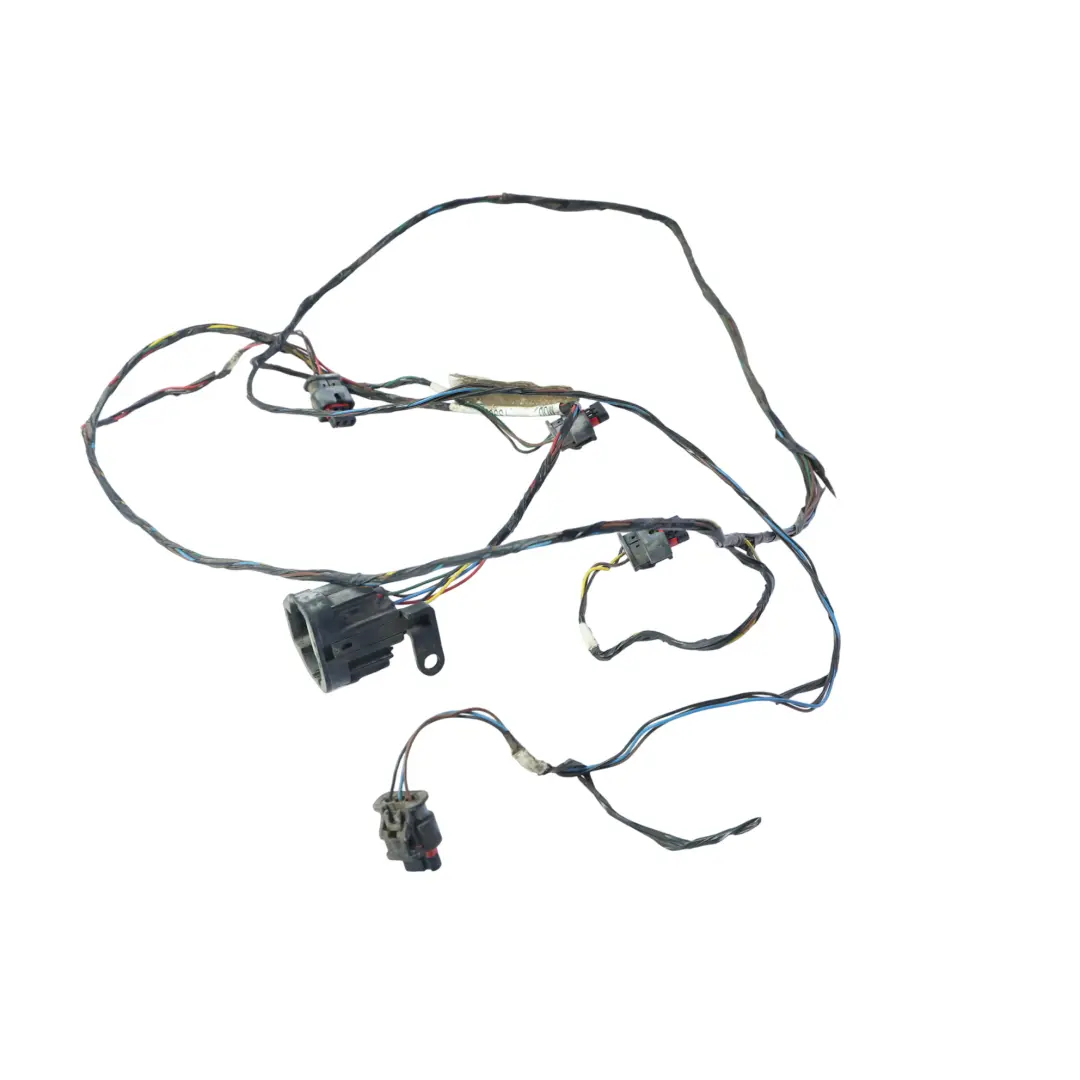

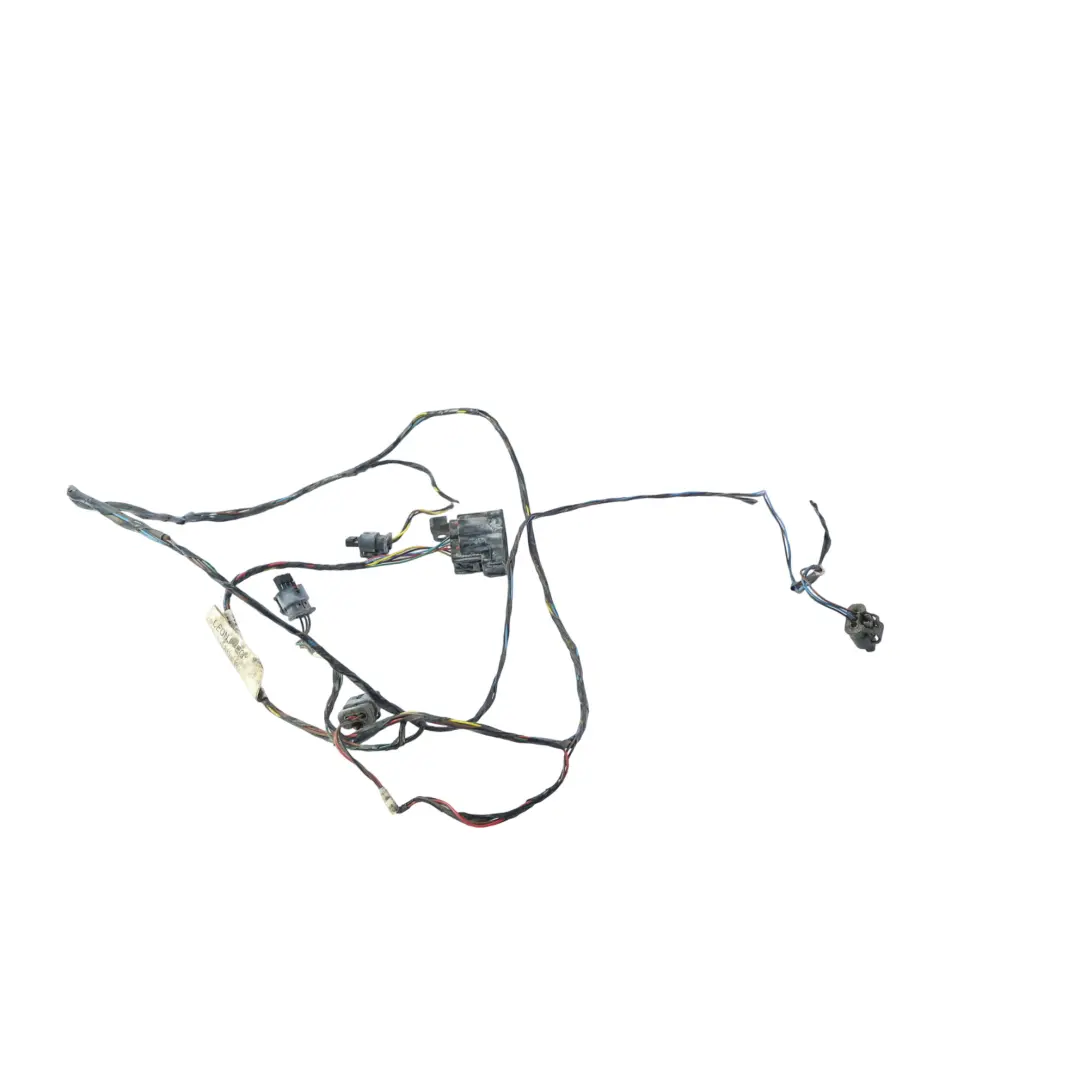

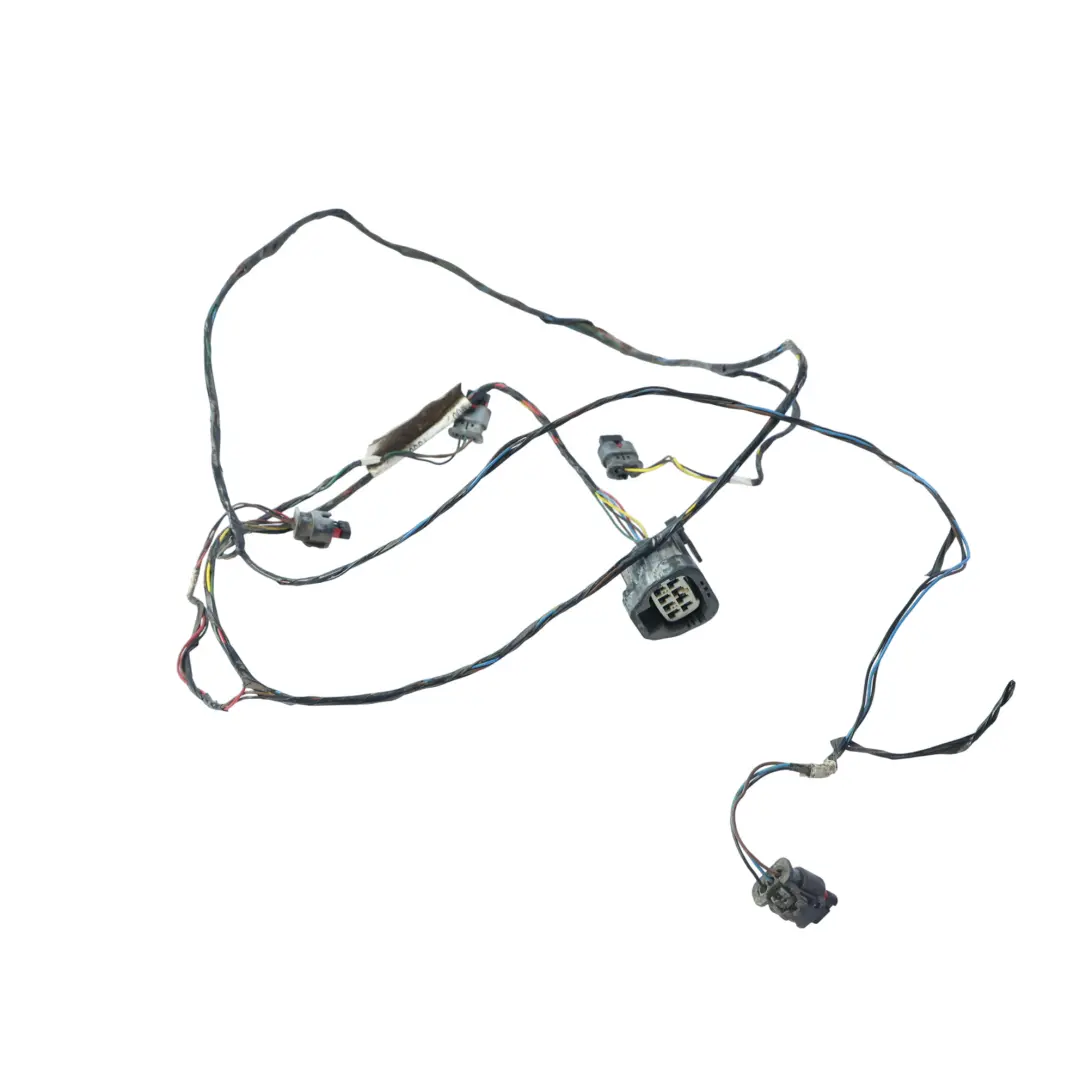

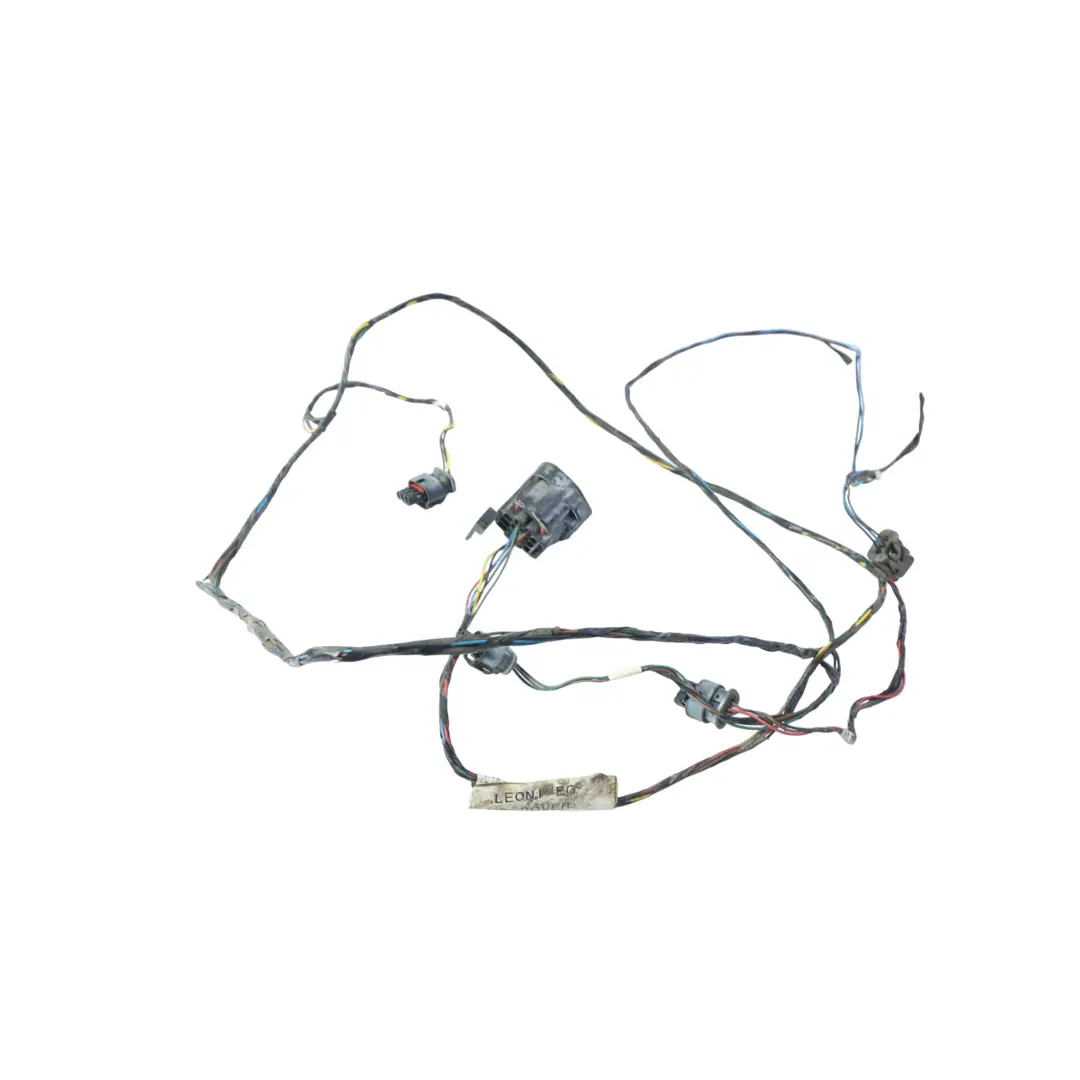

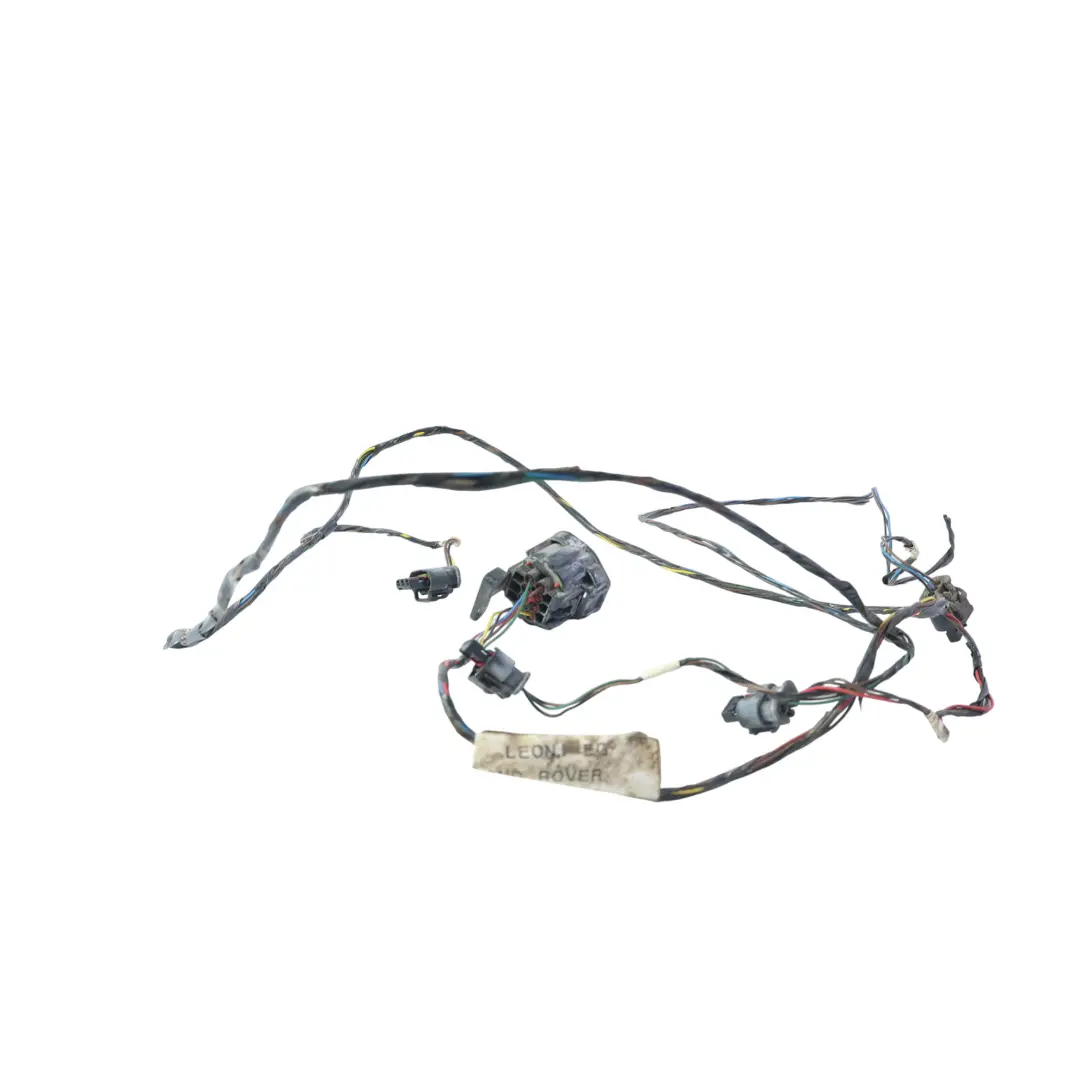

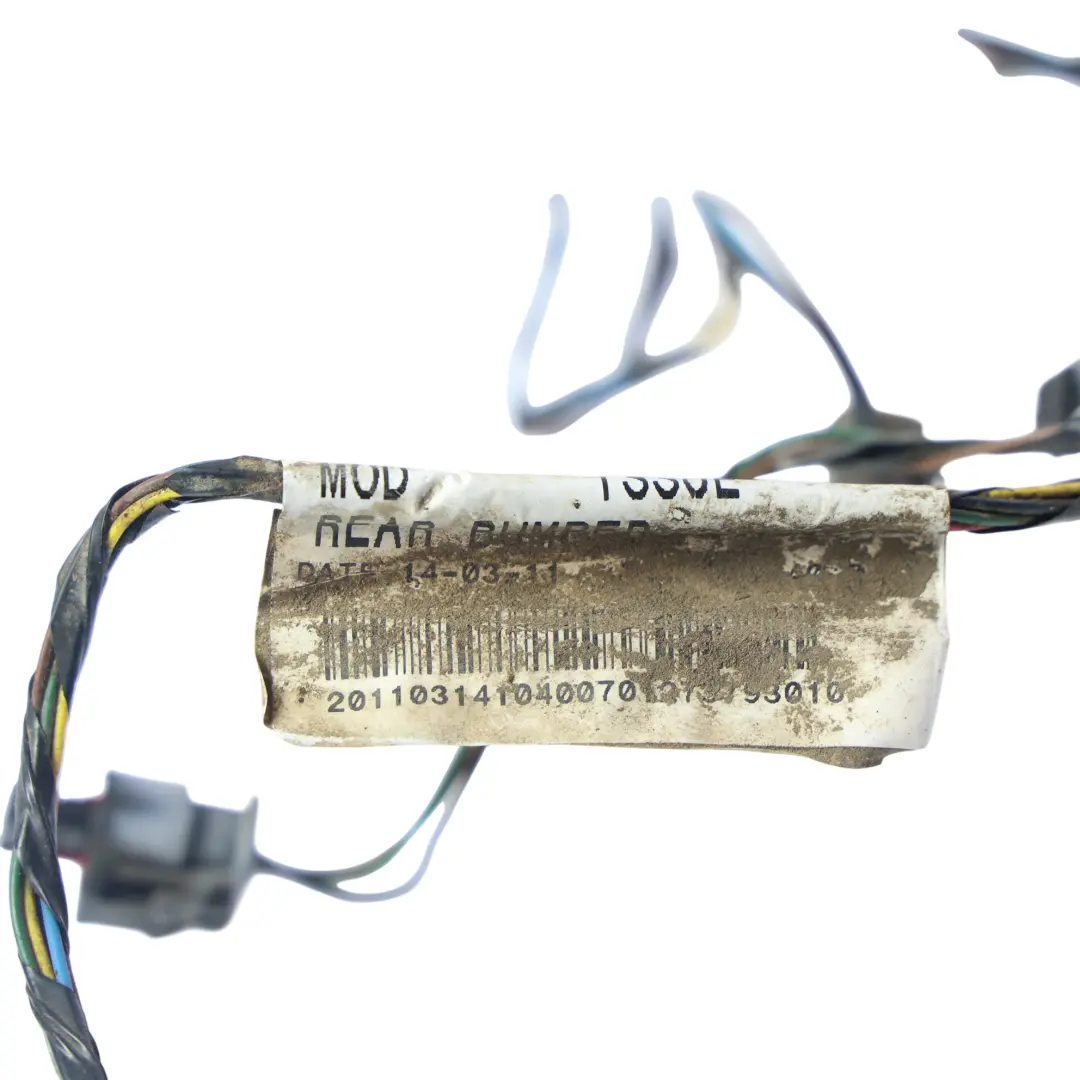

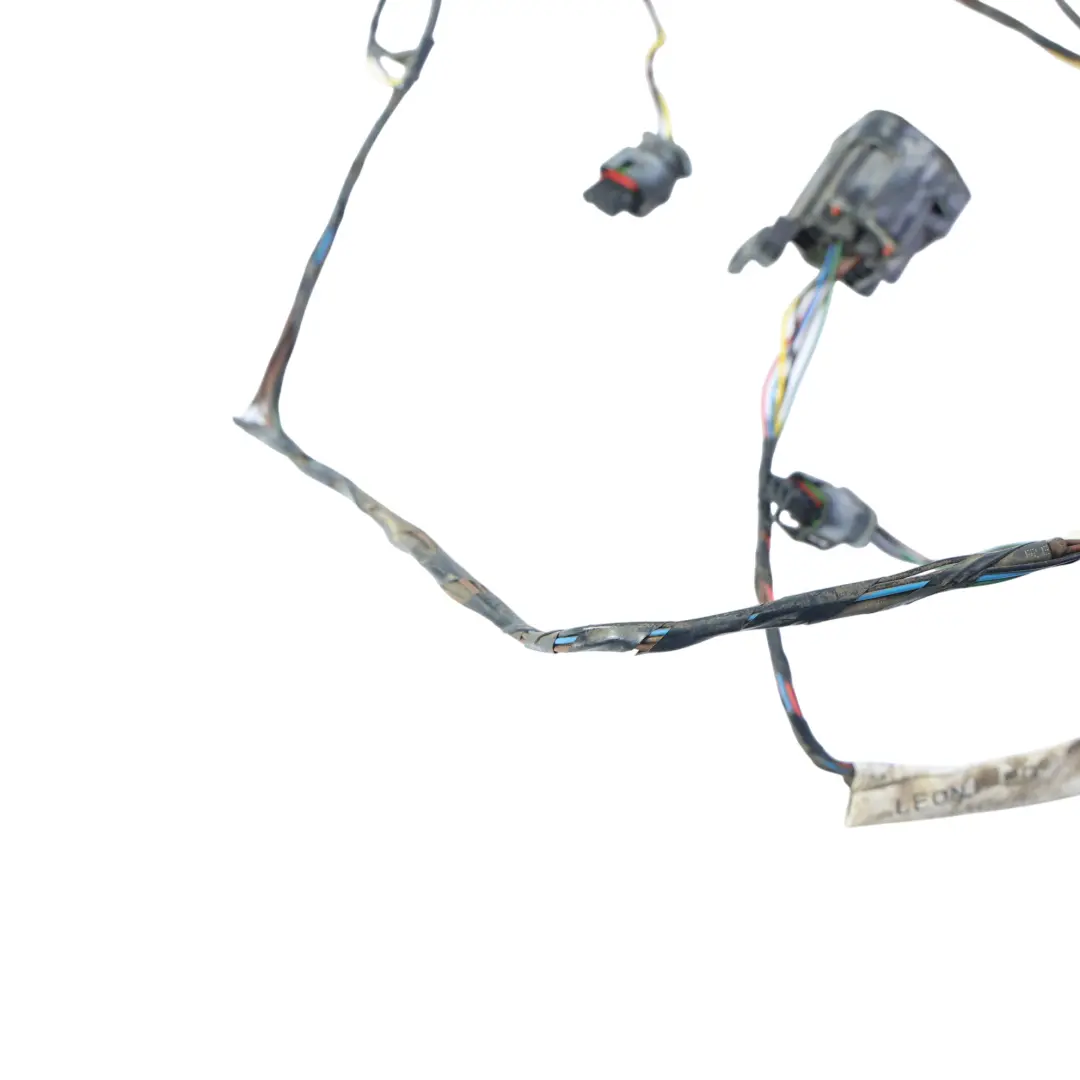

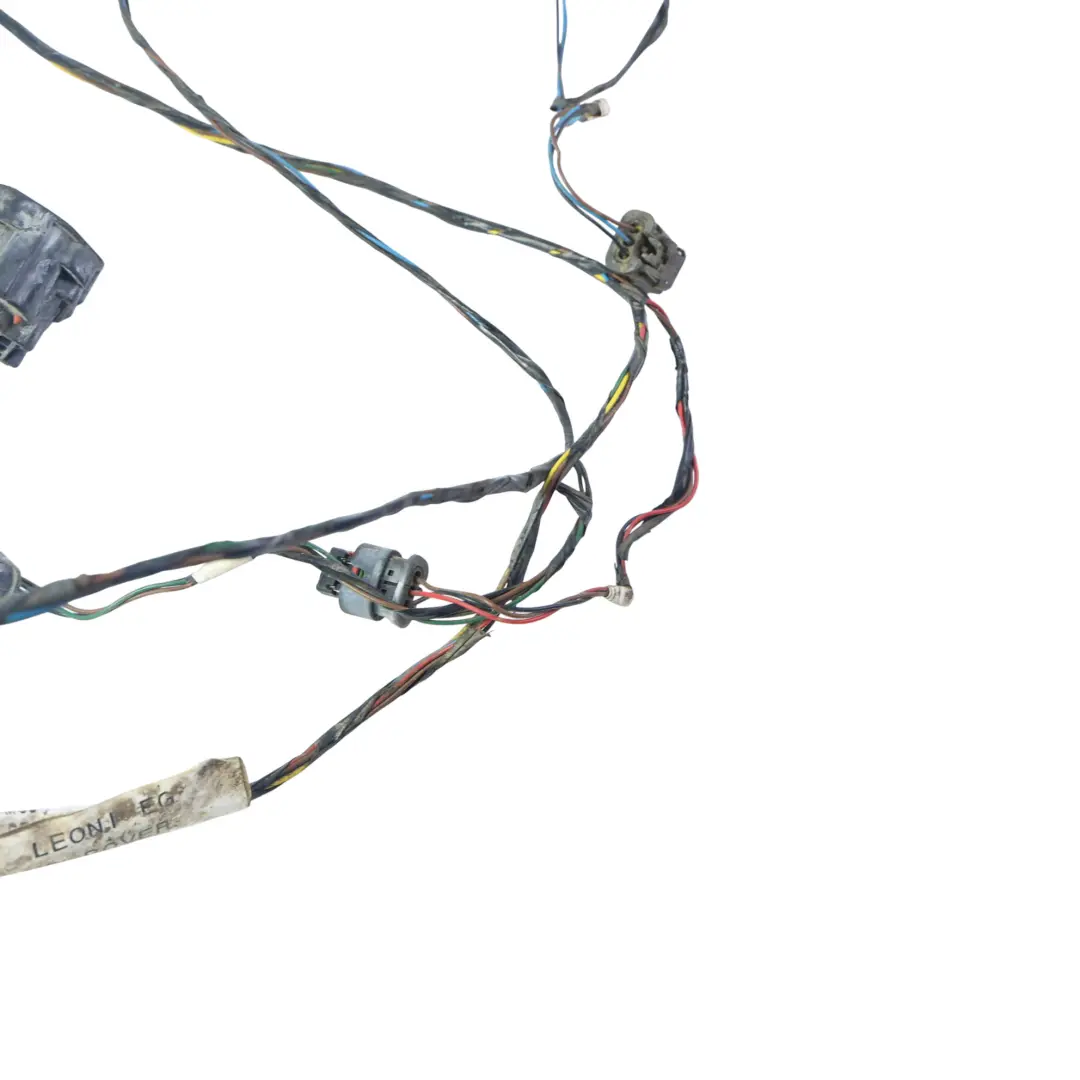

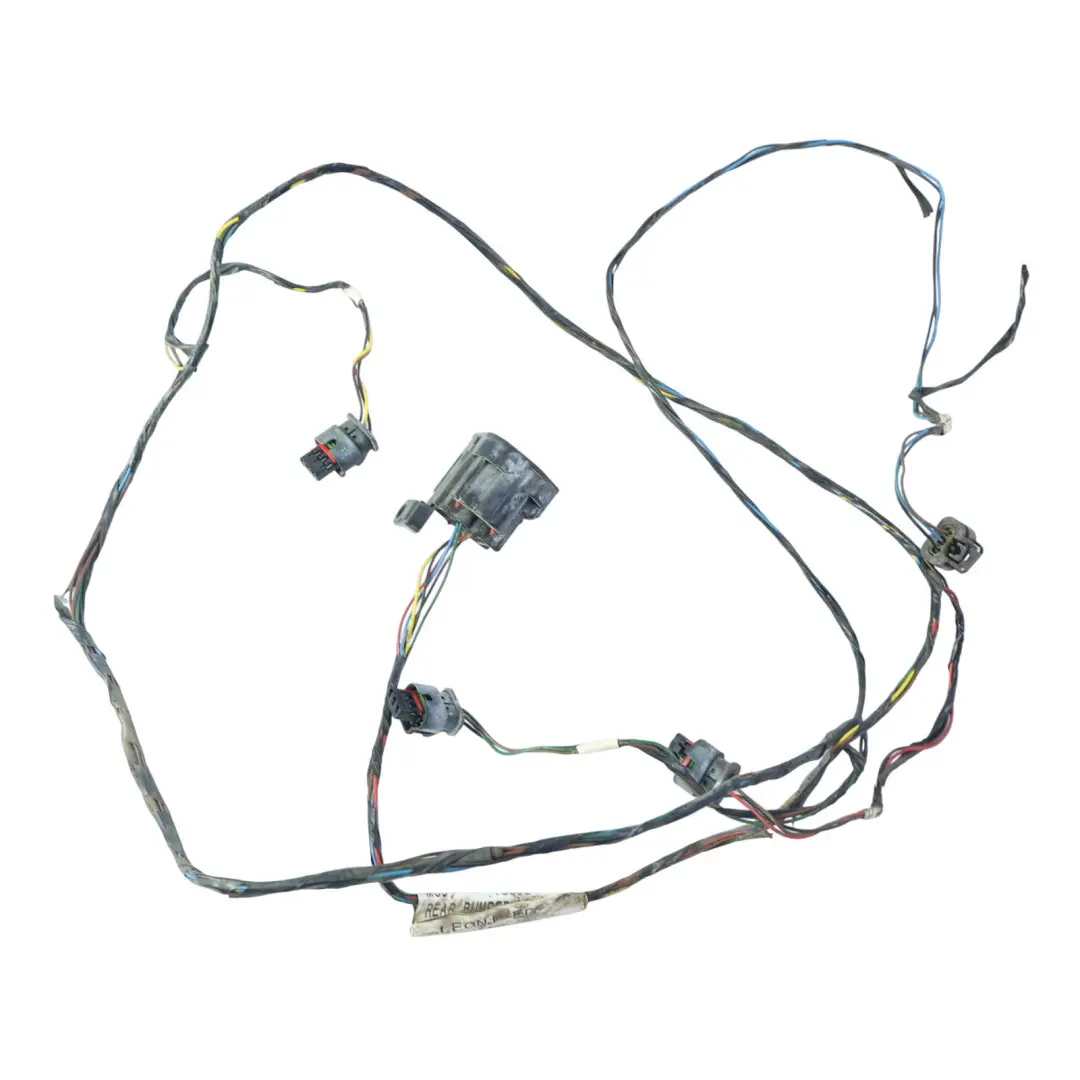

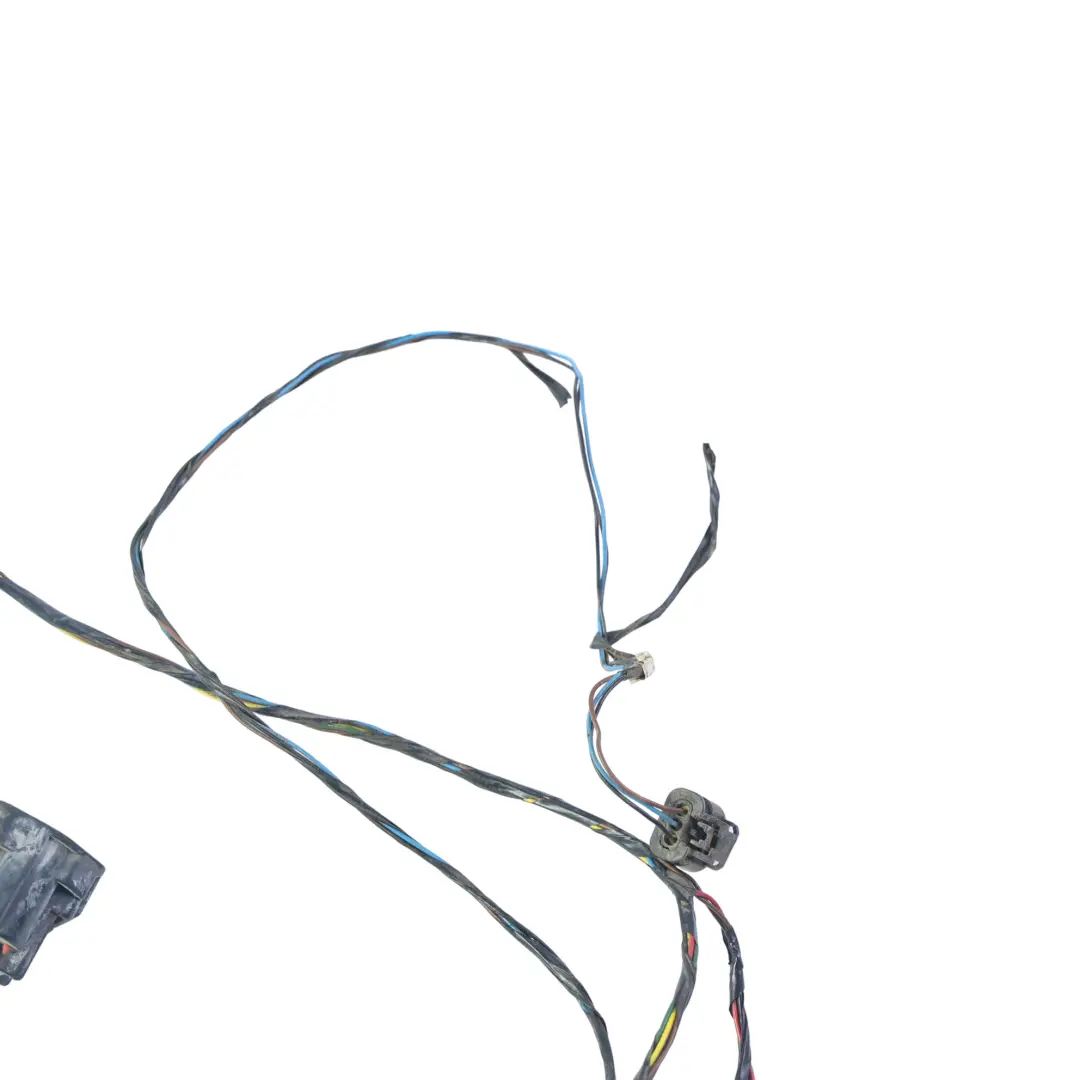

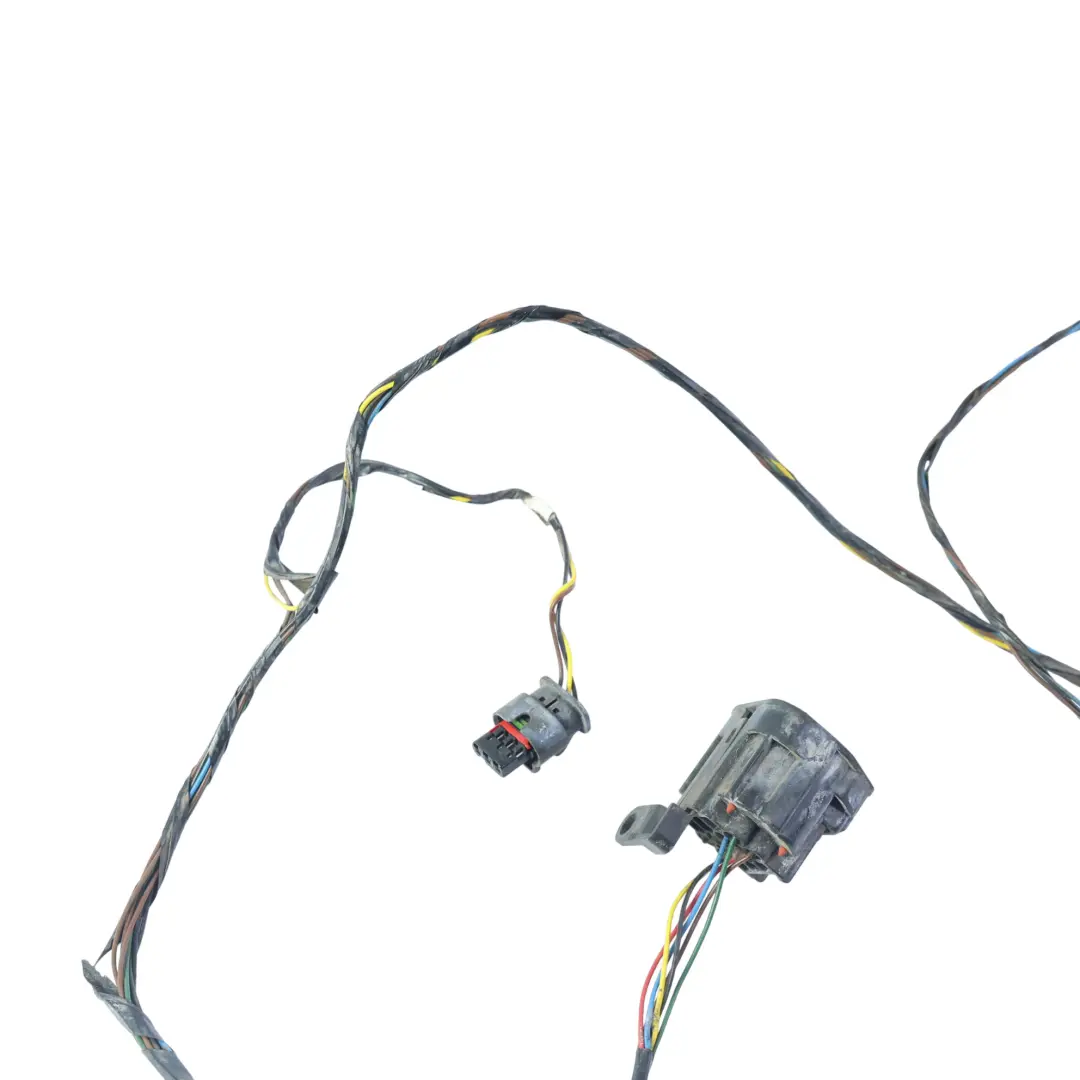

Land Rover Discovery L319 Rear Bumper Parking Sensor Wiring Loom AH22-15B484-CB

Land Rover Discovery L319 Rear Bumper Parking Sensor Wiring Loom is an original component from the Wires, looms and connectors category, designed to support the rear parking system in this model. It ensures a stable electrical connection between the sensors and the control module, which translates into predictable operation of the parking assistant and comfortable maneuvering of this large SUV.

Specifications and technical data

• SKU: AH22-15B484-CB
• Mark: Land Rover
• Condition: Used

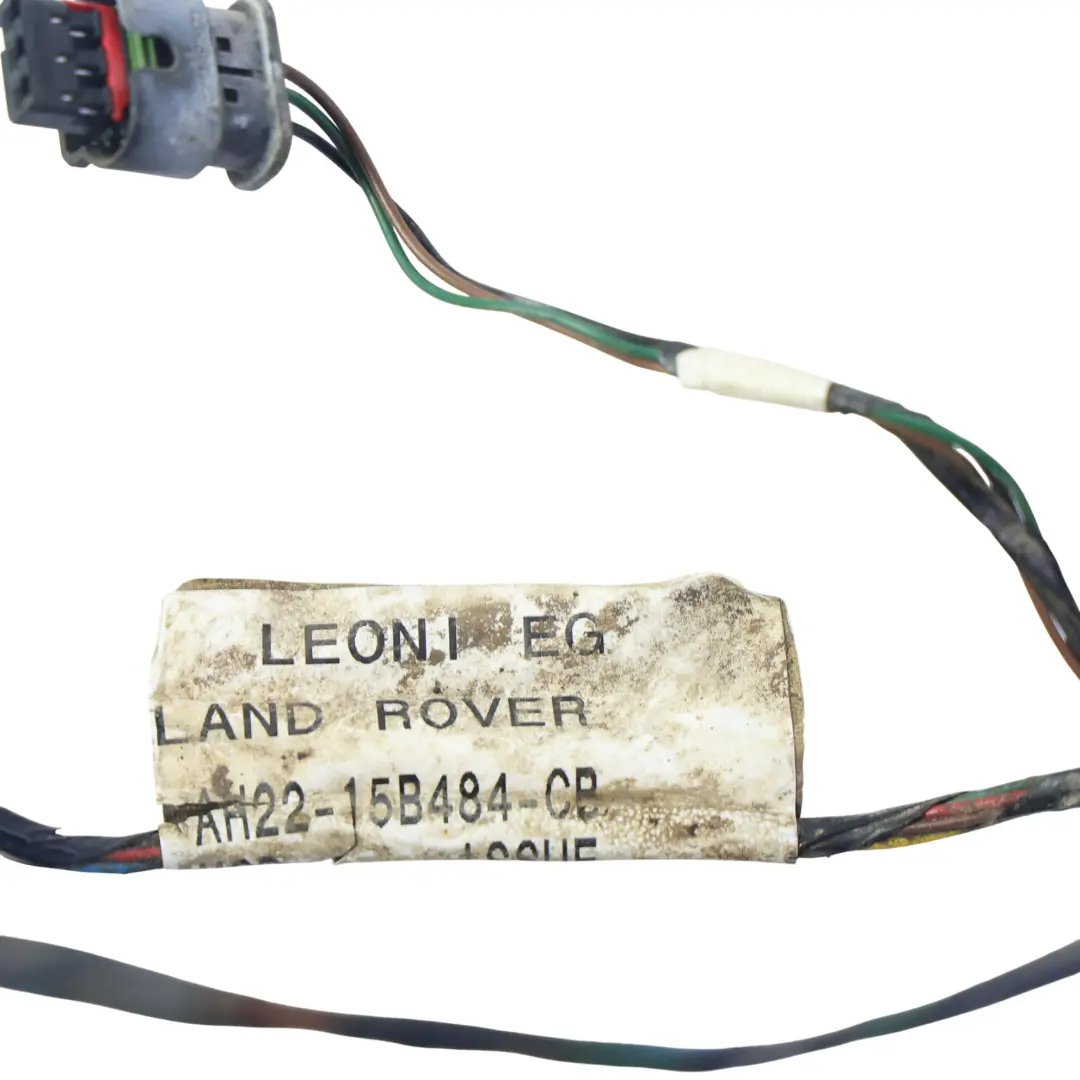

• OEM Part Number: AH22-15B484-CB
• Substitutable numbers: AH22-15B484-CB, AH2215B484CB, LR015501
• Location on the vehicle: Rear
• Part type: Loom
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

The presented wiring loom is dedicated to the rear body section of the Land Rover Discovery L319 and is responsible for transmitting signals from the parking sensors to the vehicle's electronics. Its location at the rear of the vehicle means the component operates in a zone particularly exposed to moisture, dirt, and temperature changes, which is why the correct selection of an original wiring loom is crucial for system reliability. The wiring loom has been designed as a factory installation component, with appropriately selected wire lengths, connector placement, and mounting points. This maintains the correct routing geometry, which reduces the risk of abrasion, looseness, and signal interference during daily operation.

Construction, connectors, and compatibility

As a component from the Wires, looms and connectors category, the product uses dedicated connectors matched to the factory parking sensors and the Land Rover electrical system. The construction includes:

• wires with a selected diameter and insulation adapted for operation in the rear body section,
• connectors compatible with factory parking sensors,
• mounting points allowing the wiring loom to be routed according to the original path. Such a solution facilitates service installation and allows for maintaining the parking system's operating parameters in accordance with the manufacturer's specifications. Using an original wiring loom reduces the risk of communication errors, random warning signals, and diagnostic problems.

Condition, service application, and benefits of installation

The item is offered as a used part, which provides a reasonable compromise between repair costs and maintaining the original electrical system specifications. In practice, this type of wiring loom is most often used for:

• repairs after rear-end collisions,
• mechanical damage to wires or connectors,
• parking sensor malfunctions resulting from circuit breaks. Using an original wiring loom allows for the restoration of proper parking assistant operation without the need for installation modifications, soldering additional wires, or using adapters. This solution is technically consistent with the vehicle's factory design, which facilitates subsequent computer diagnostics and servicing.

Professional selection and integration with the installation

When selecting a wiring loom for the Land Rover Discovery L319, it is crucial to verify compatibility with the specific vehicle configuration and parking sensor system. The product has assigned part numbers and interchangeable numbers, which facilitates unambiguous identification in service catalogs and parts selection systems. This allows for precise matching of the component to a specific equipment version, minimizing the risk of incompatibility with the installation. The wiring loom is intended for installation in the rear body zone; therefore, during installation, it is worth paying attention to proper wire routing, protection against abrasion, and correct fastening of all clips and holders. Careful installation translates into stable operation of the parking system and long-term resistance to operating conditions. If you are planning a comprehensive repair or upgrade of the electrical installation zone in your Land Rover and need other components from the same group, such as additional wiring looms, signal wires, or service connectors, check the available parts in the Land Rover Wires, looms and connectors category. For drivers interested in a broader look at the construction of drive systems and component selection based on driving style, the guide article Dismantled drive axles and differentials – how to choose gear ratios for your driving style may be helpful, as it organizes key technical concepts and facilitates informed planning of service work.
