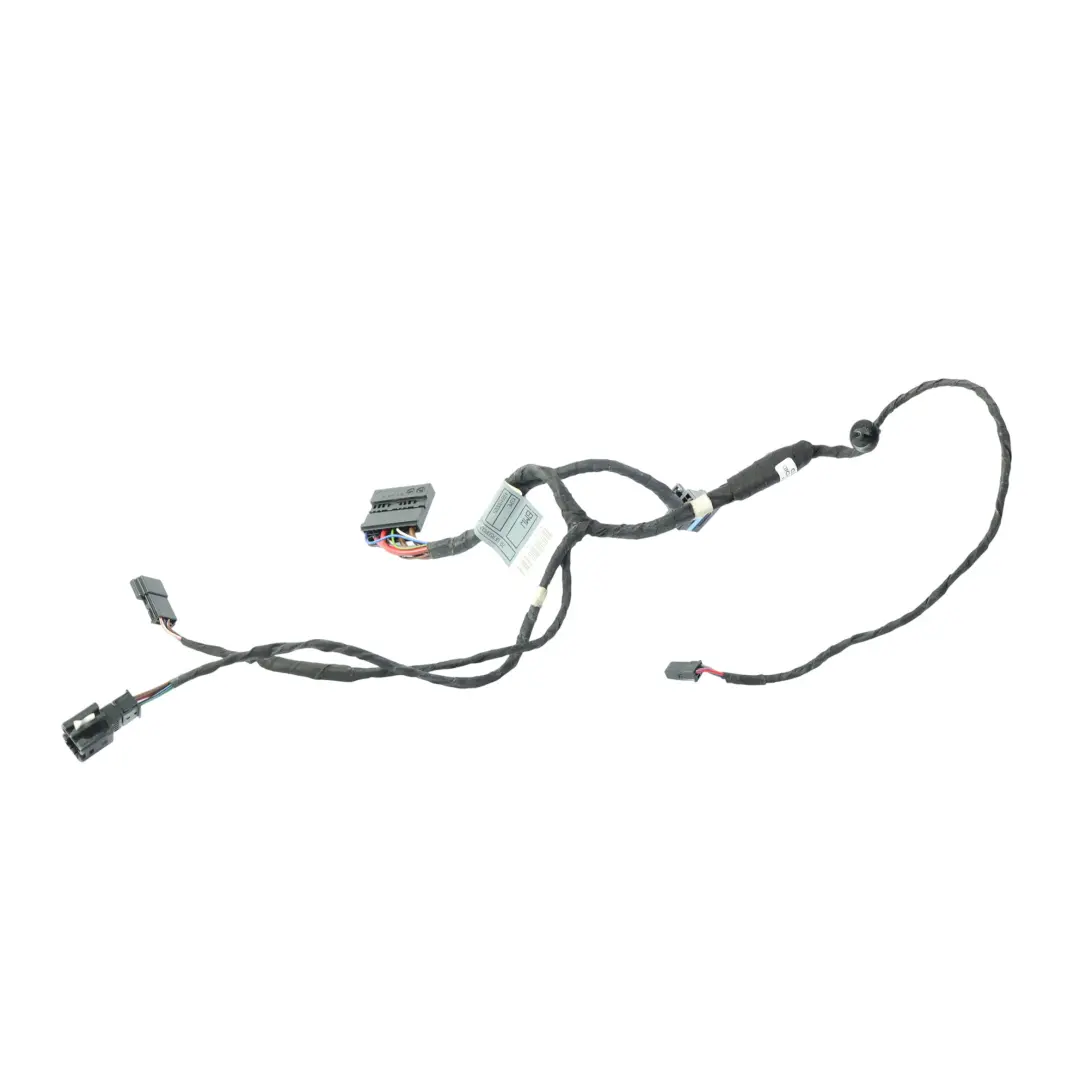

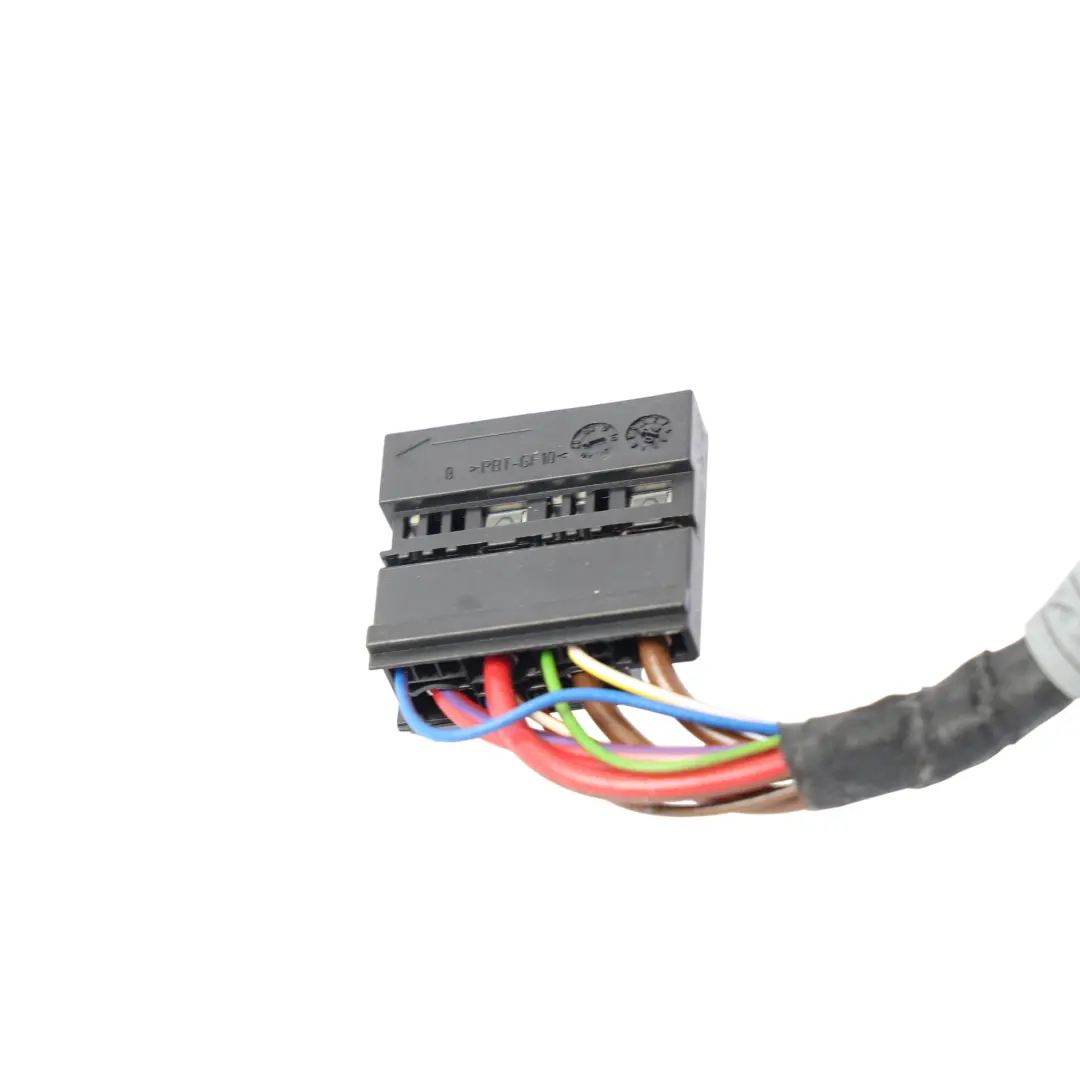

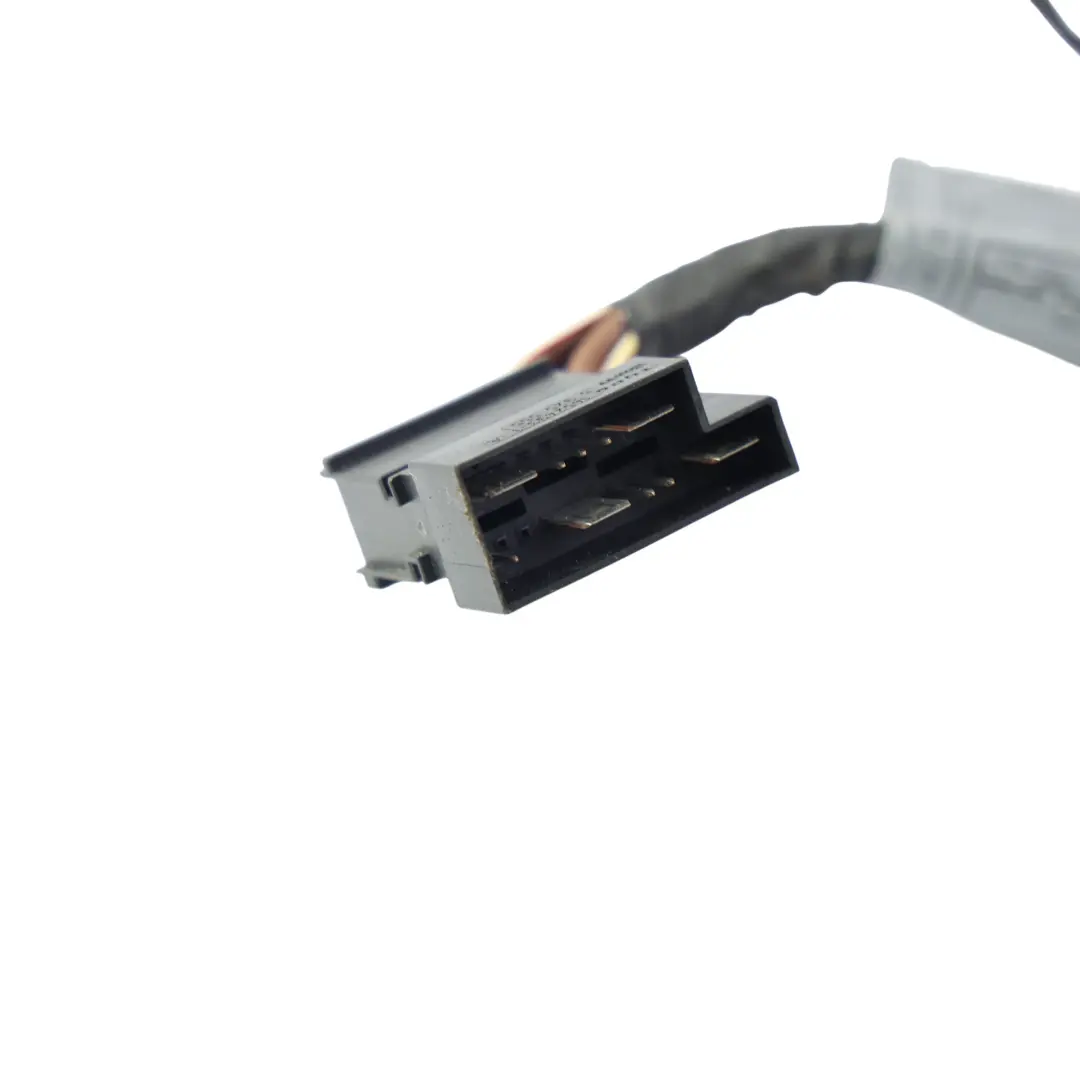

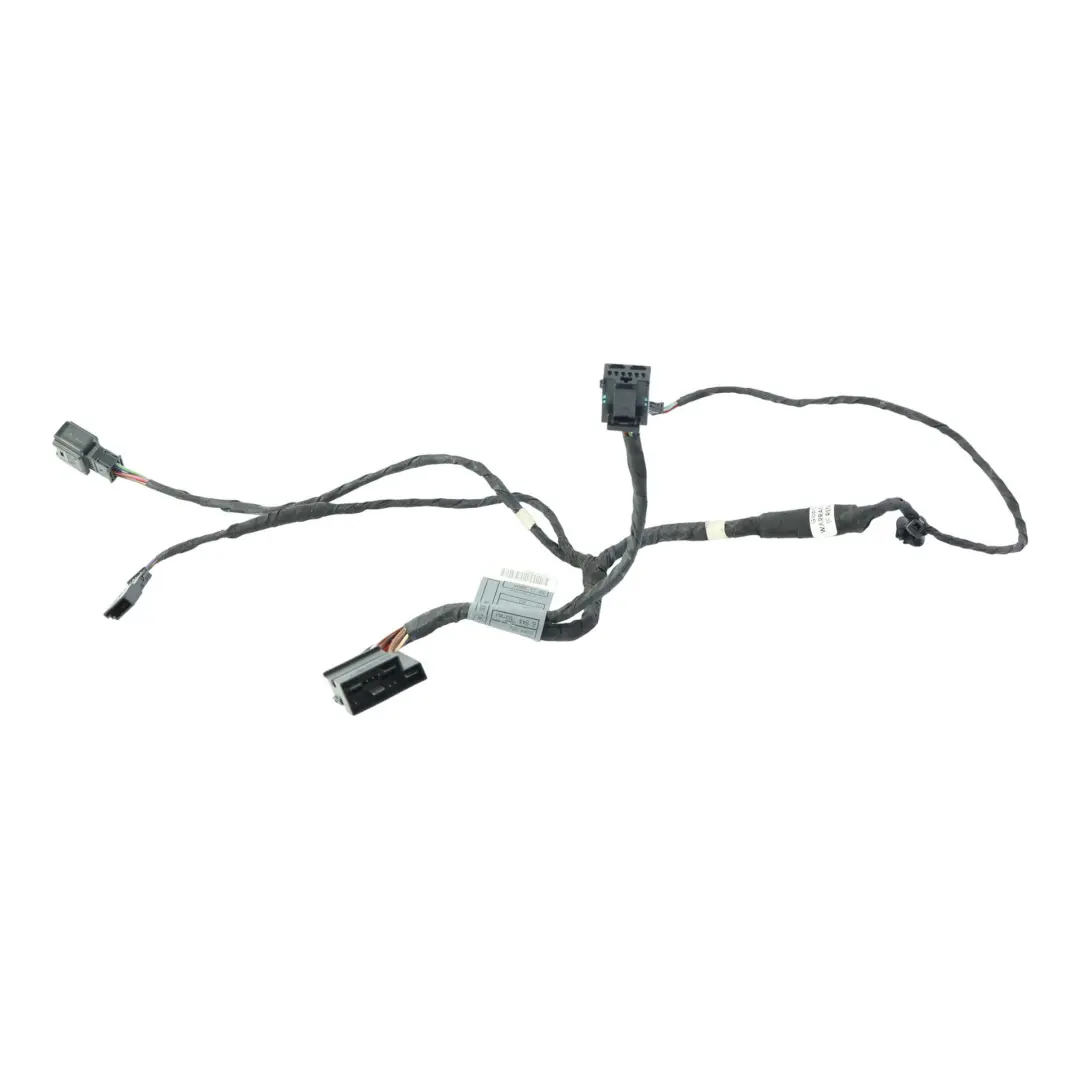

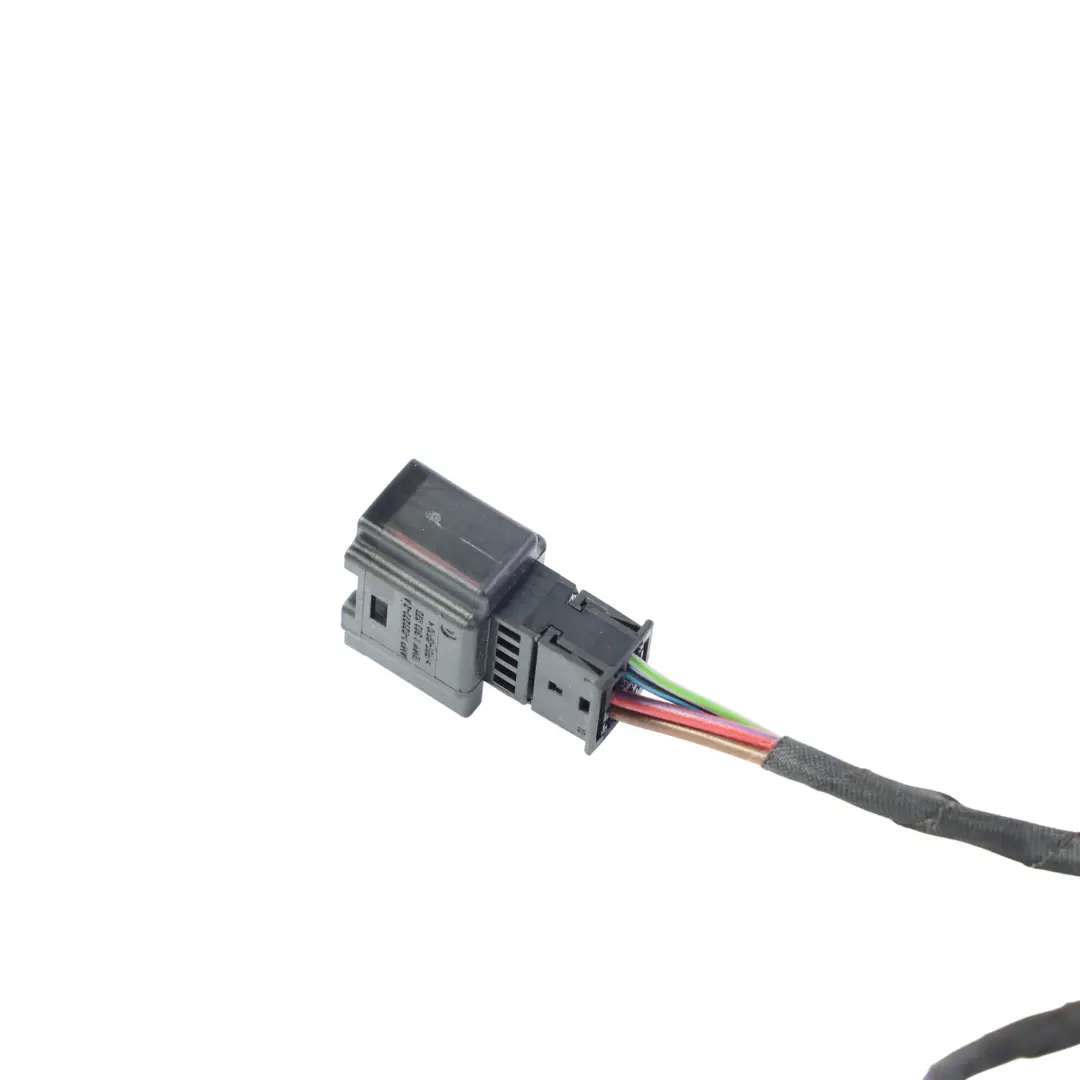

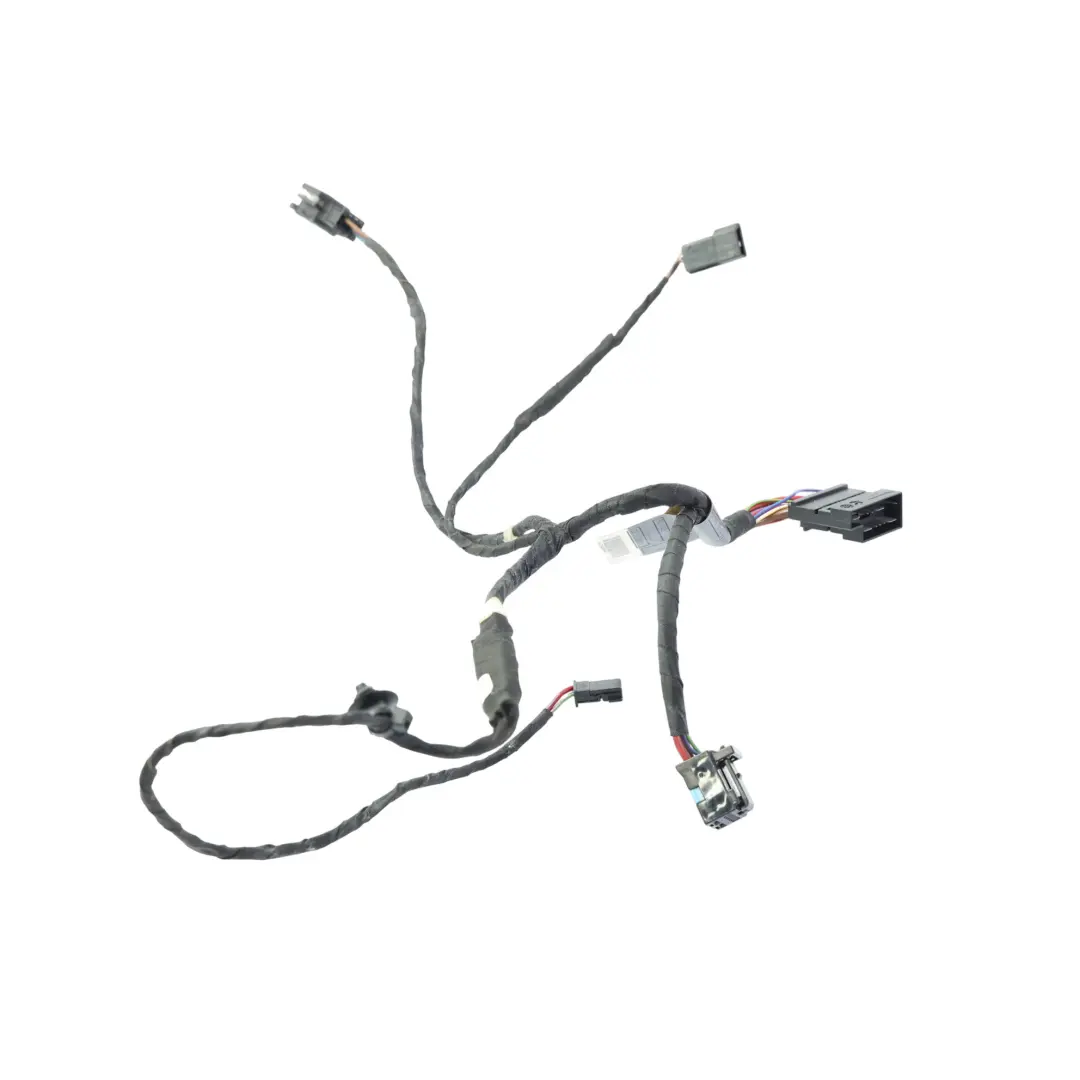

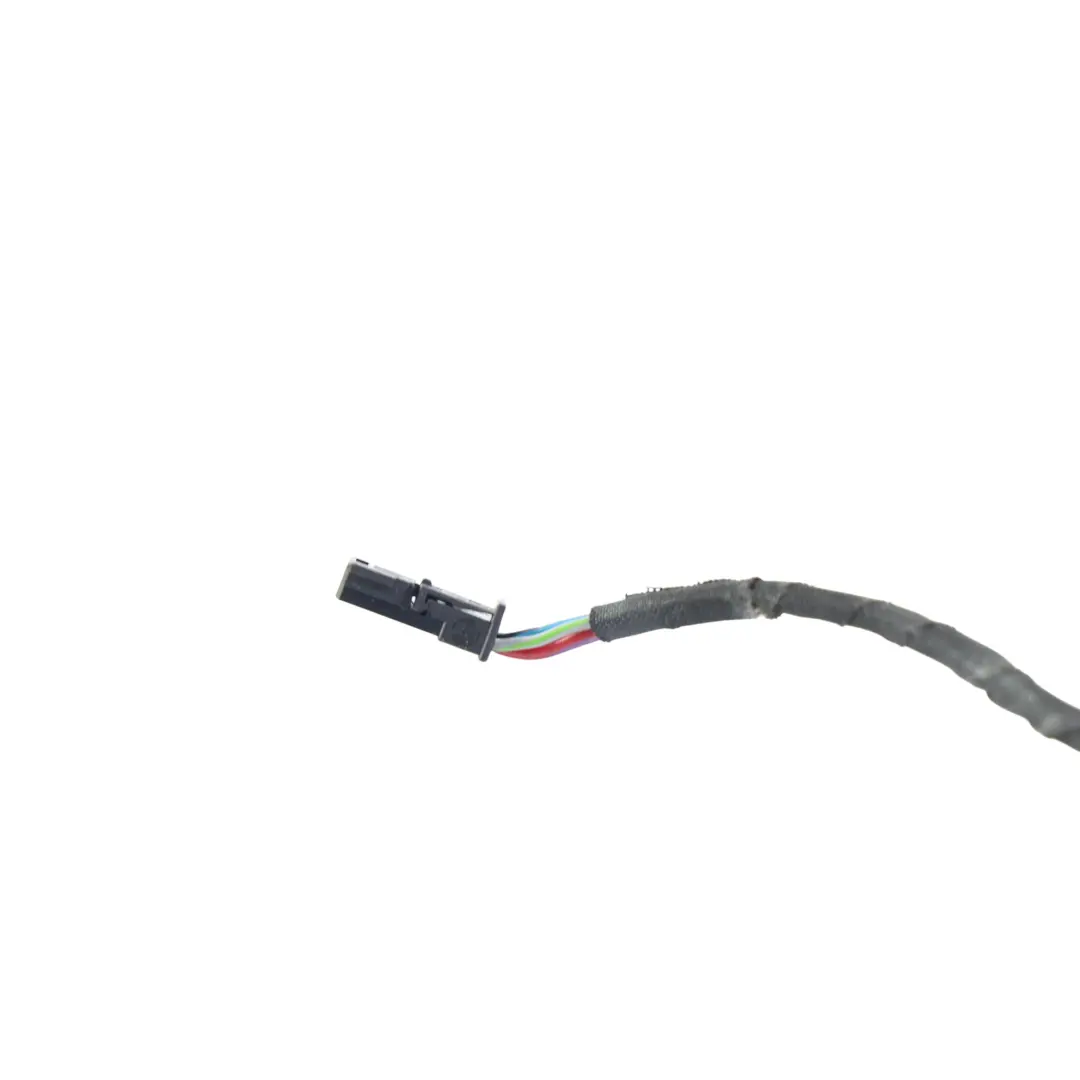

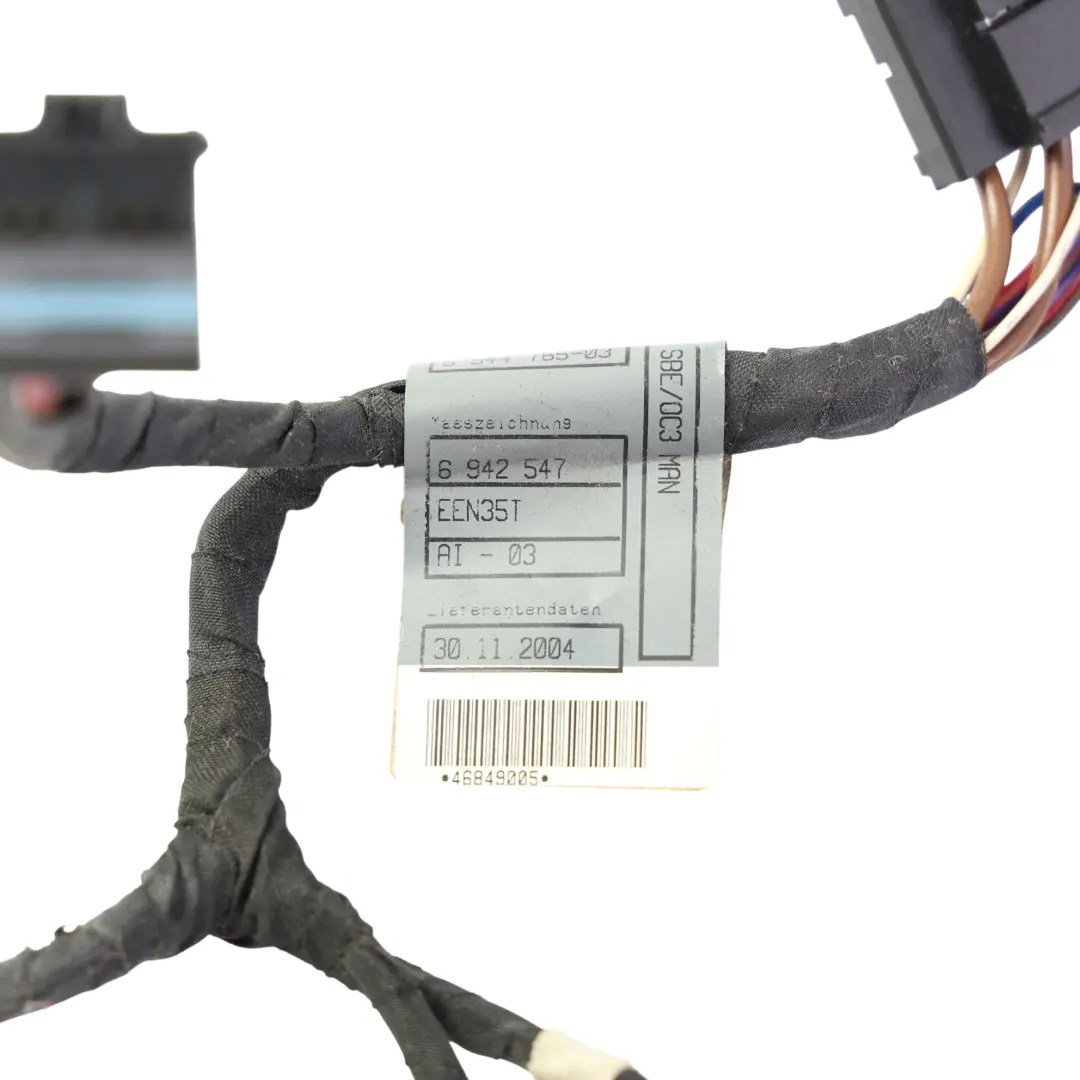

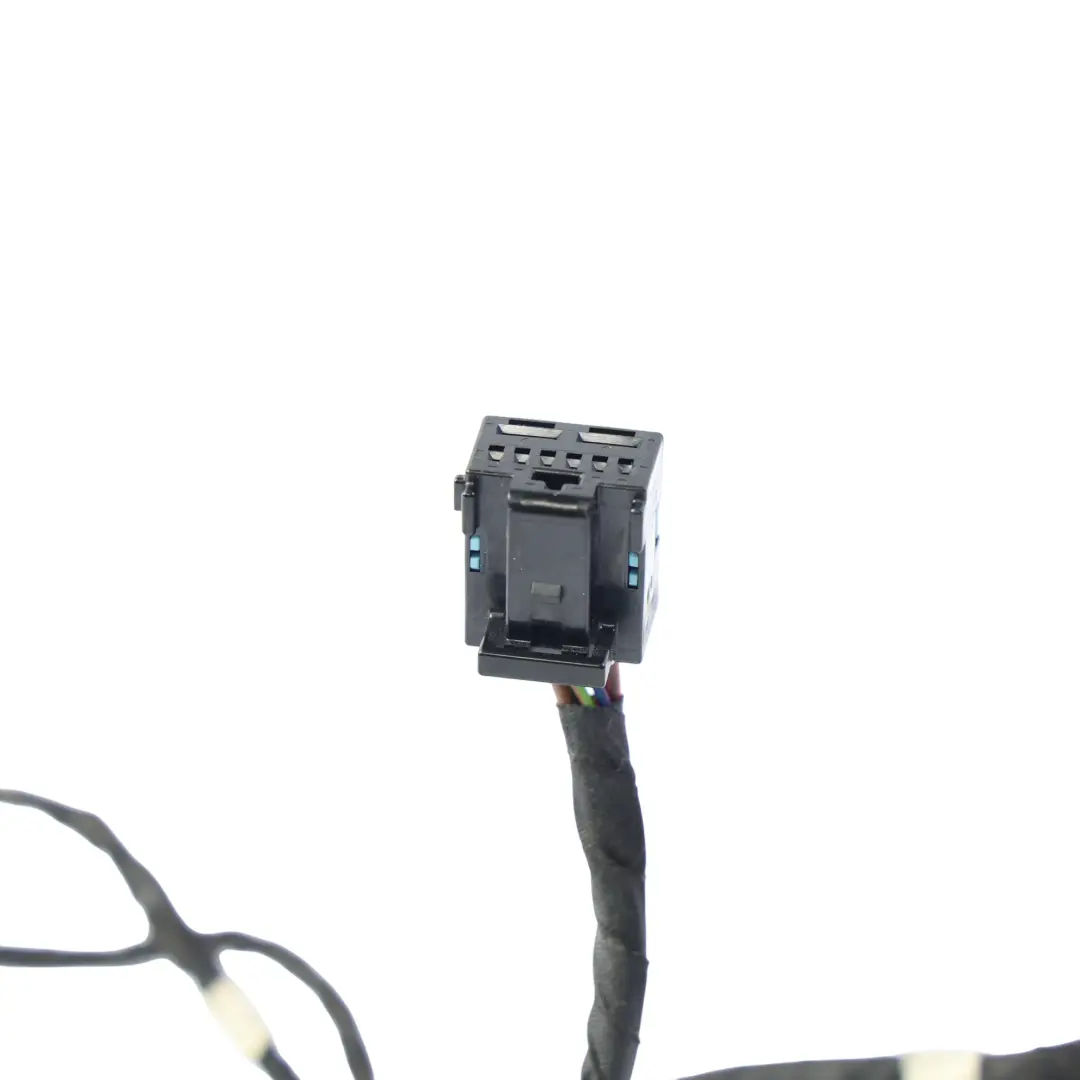

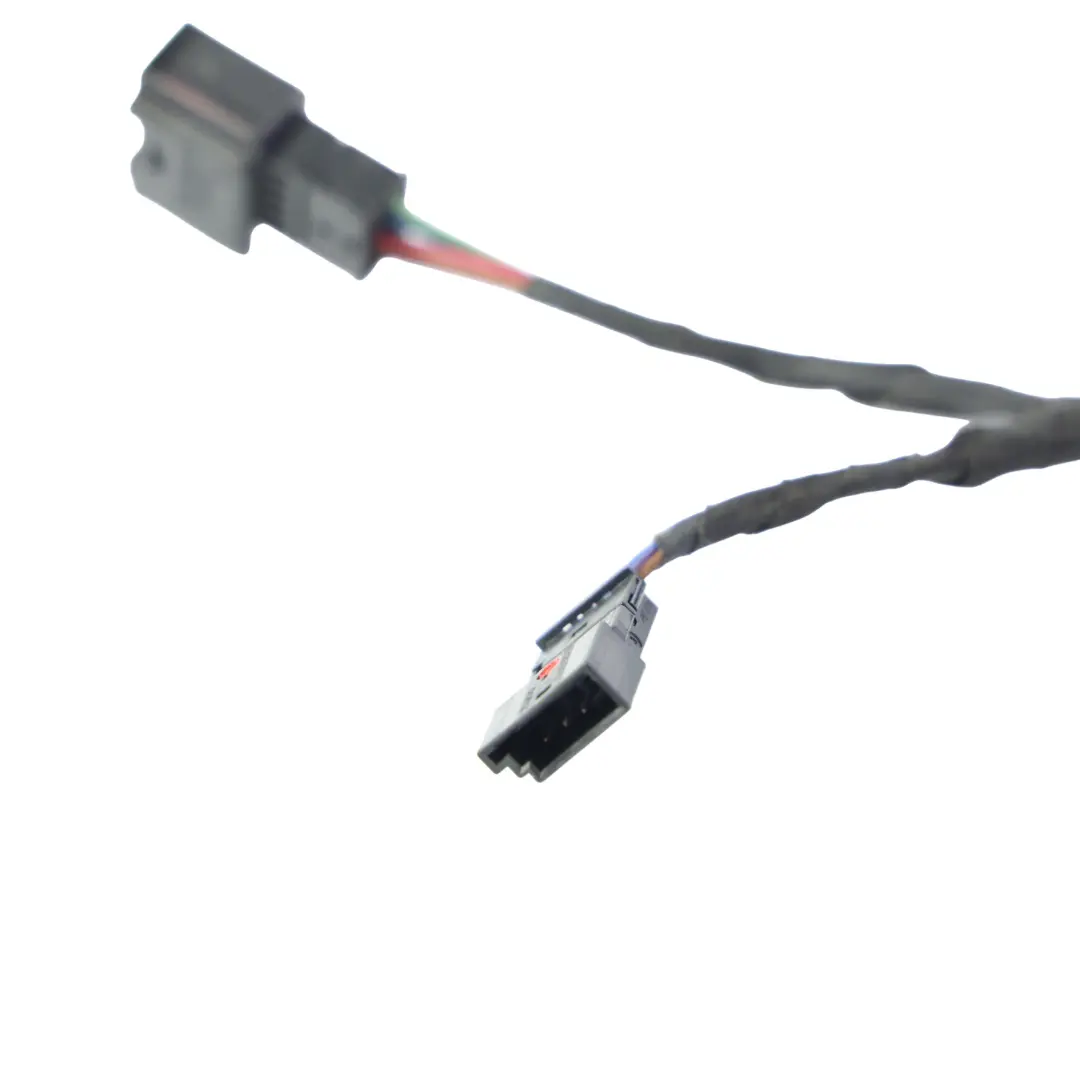

BMW E87 E90 Front Seat Wire Harness Loom Electric Line Passenger Side 6942547

BMW E87 E90 Front Seat Wire Harness Loom Electric Line Passenger Side is an original component from the Wires, harnesses, and connectors group, designed for installation in the front section of the vehicle. It ensures a stable electrical connection between the passenger seat and the vehicle's wiring system, which translates into the safe operation of all seat functions and related comfort and safety systems.

Specifications and technical data

• SKU: 6942547-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6942547
• Substitutable numbers: 61126944767, 6944767, 6942547, 6944763
• Location on the vehicle: Front
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function of the harness

The front passenger seat wire harness in BMW E87 and E90 series models is responsible for transmitting signals and power between the seats and the vehicle's main electrical system. This includes, among other things, wires responsible for controlling seat adjustment, powering modules in the seat base, and communication with onboard systems. Thanks to its factory design, the harness is matched to the electrical architecture of these models, which facilitates installation and reduces the risk of installation errors.

Advantages of using an original BMW harness

Using an original BMW harness from a dismantled vehicle allows you to maintain the consistency of the vehicle's electrical system. The component is prepared to work in a specific passenger seat configuration, which minimizes the need for modifications and soldering additional wires. Factory connectors and properly selected wire cross-sections promote stable connections, reducing the risk of voltage drops, overheating of contacts, or the appearance of errors in diagnostic systems. The harness, as a part from the Wires, harnesses, and connectors group, is designed to work in the demanding conditions of the vehicle interior – near seat rails, moving parts, and potential friction points. Proper wire routing and factory mounts help keep the installation organized and reduce the risk of mechanical damage during daily use.

Vehicle placement and installation aspects

The harness is designed for installation in the front part of the vehicle, in the passenger seat area. This gives the installer clear information on which area of the body the harness should be routed through. Dedicated connectors under the seat and in the center tunnel or sill allow for installation in a configuration similar to the factory one, which is particularly important for repairs after flooding, mechanical damage to seat rails, or replacing the seat with another one compatible with a given equipment version. During installation, it is worth paying attention to the correct positioning of the wires relative to the seat's range of motion to avoid stretching and twisting them. The original design of the harness makes it easier to recreate the original wire routing, which positively affects the durability of the entire system.

Characteristics of the used product

The offered wire harness comes from a dismantled BMW vehicle, which means it is a used component that retains its factory geometry and connector type. This type of solution is often chosen for repairs where matching a specific equipment version and reducing costs compared to purchasing a new component is key. Original BMW components usually work better with the existing installation than universal replacements, which is especially important in the area of electronics and communication between modules.

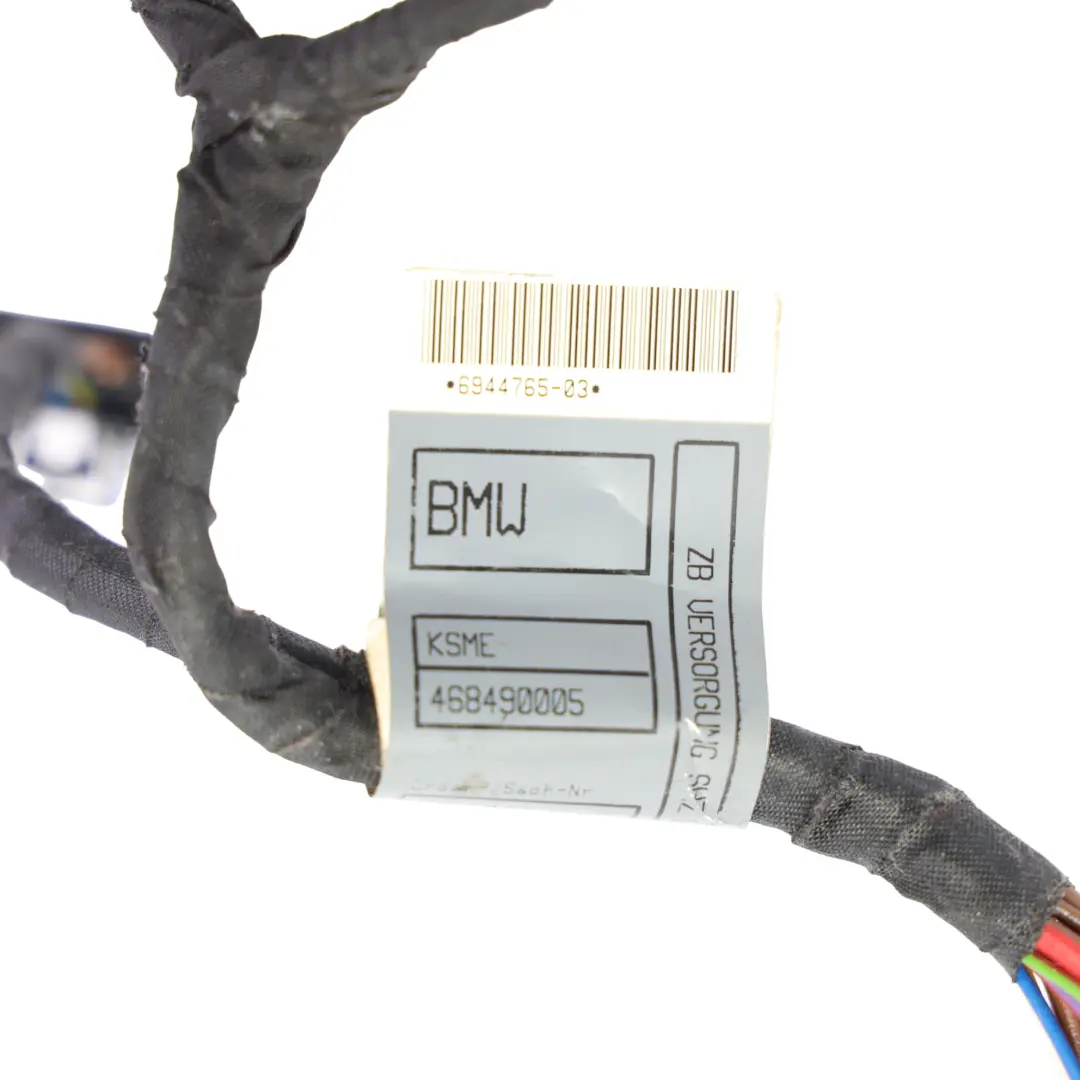

Vehicle fitment and identification

The harness is intended for BMW cars from the E87 and E90 family, in the front passenger seat configuration. Before purchasing, it is worth comparing the connector layout and wire routing with the harness currently installed in the vehicle to confirm version compatibility. Additionally, the product's technical specifications include information about the OEM part number, interchangeable numbers, and manufacturer markings, which facilitate clear identification of the component and matching it to a specific equipment configuration. If you are planning a comprehensive repair or upgrade of the passenger seat area in your BMW and need other elements from the same group, such as additional harnesses, power cables, or service connectors, check out the available parts in the BMW Wires, harnesses, and connectors category. To better understand the impact of the condition of chassis components and the electrical system on driving comfort and steering precision, it is worth reading the guide: Knocking in the suspension? Discover a clever way to restore factory steering precision without spending a fortune at the service center.
