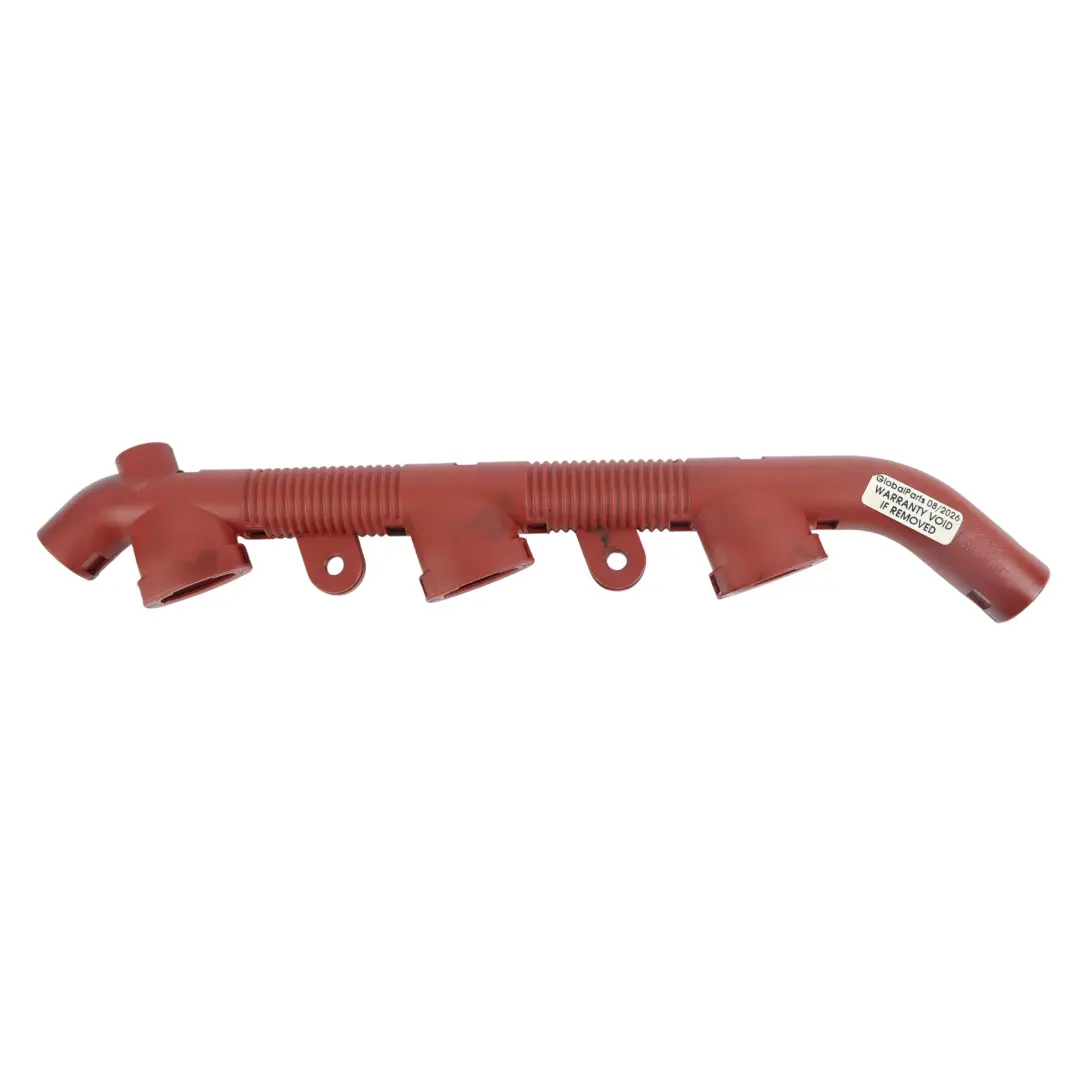

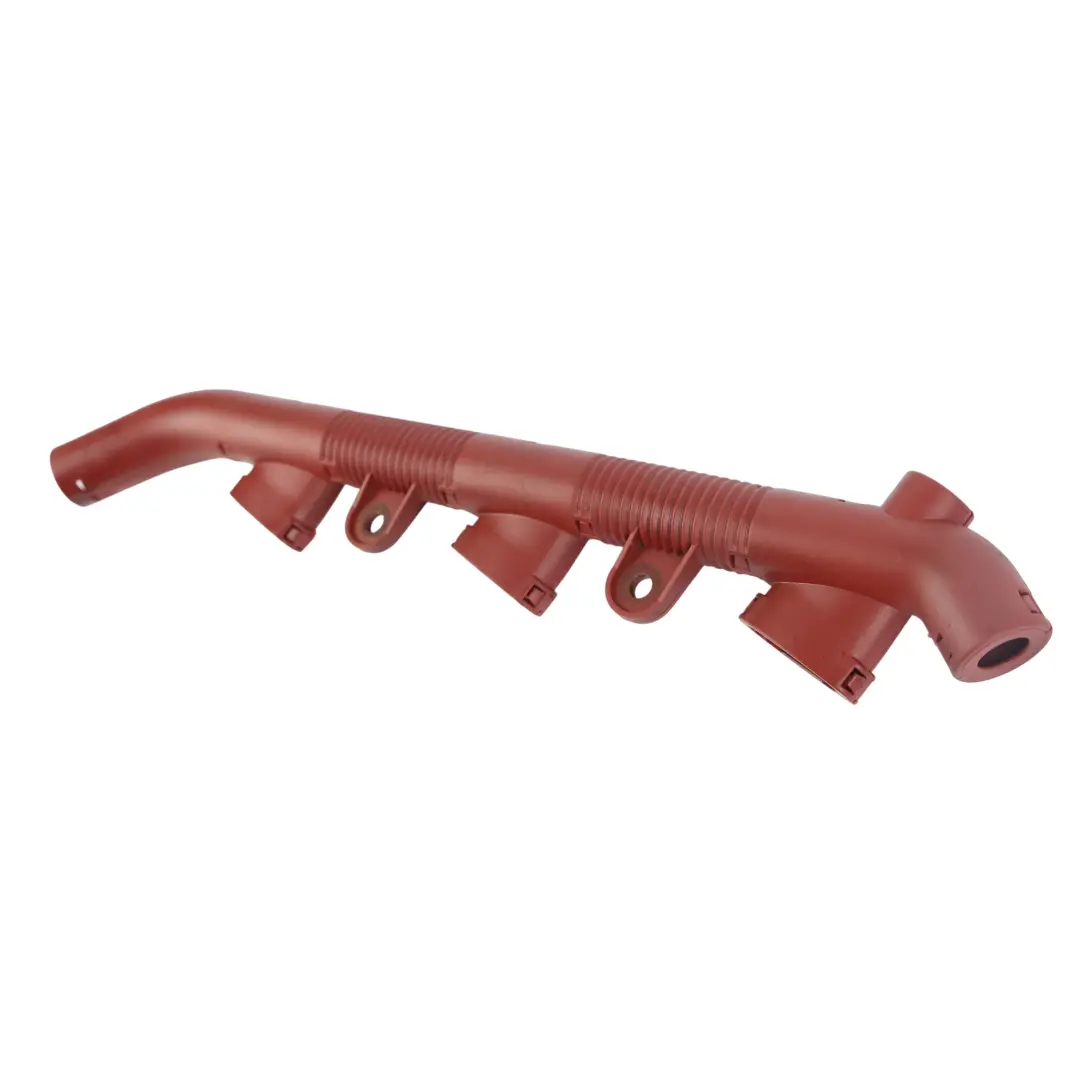

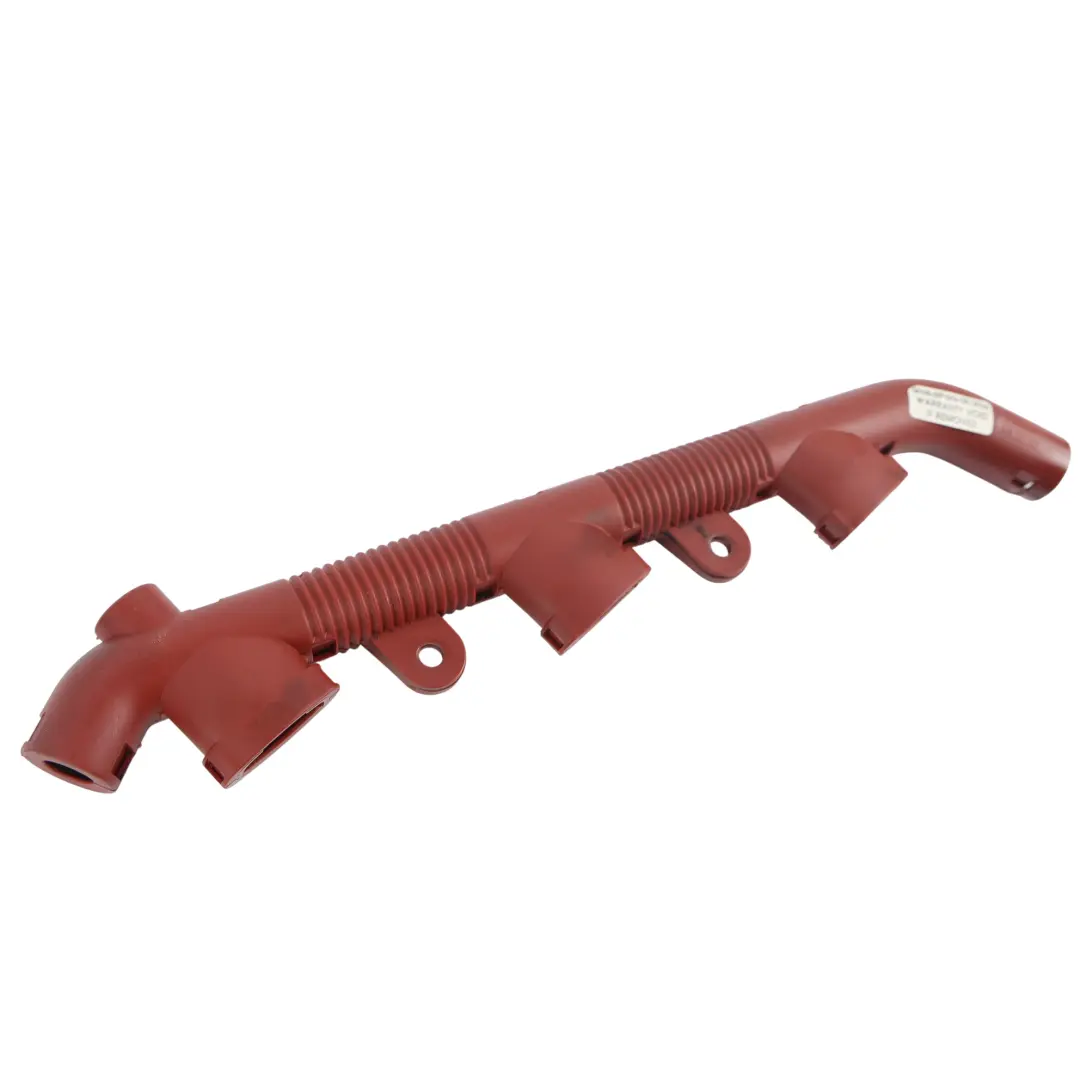

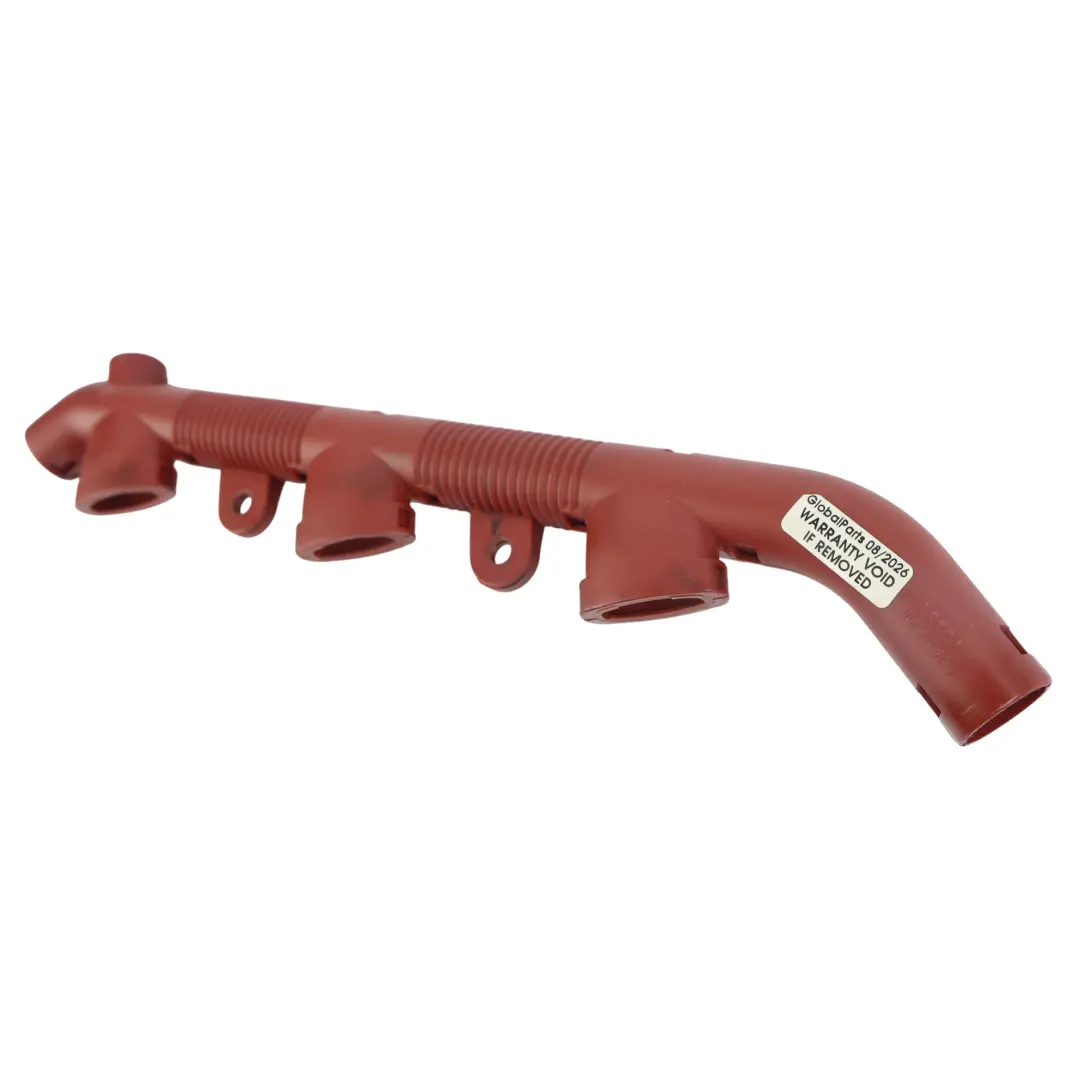

Audi A8 D3 Ignition Wiring Harness Guide Trim 3.2 FSI 06E971821

Audi A8 D3 Ignition Wiring Harness Guide Trim 3.2 FSI is a component from the Wires, harnesses and connectors group, designed for the ignition and injection system of the 3.2 FSI petrol engine in the Audi A8 D3 generation. It enables organized wire routing, stable electrical connections, and effective protection of the fuel rail in the engine compartment.

Specifications and technical data

• SKU: 06E971821-1
• Mark: Audi
• Condition: Used

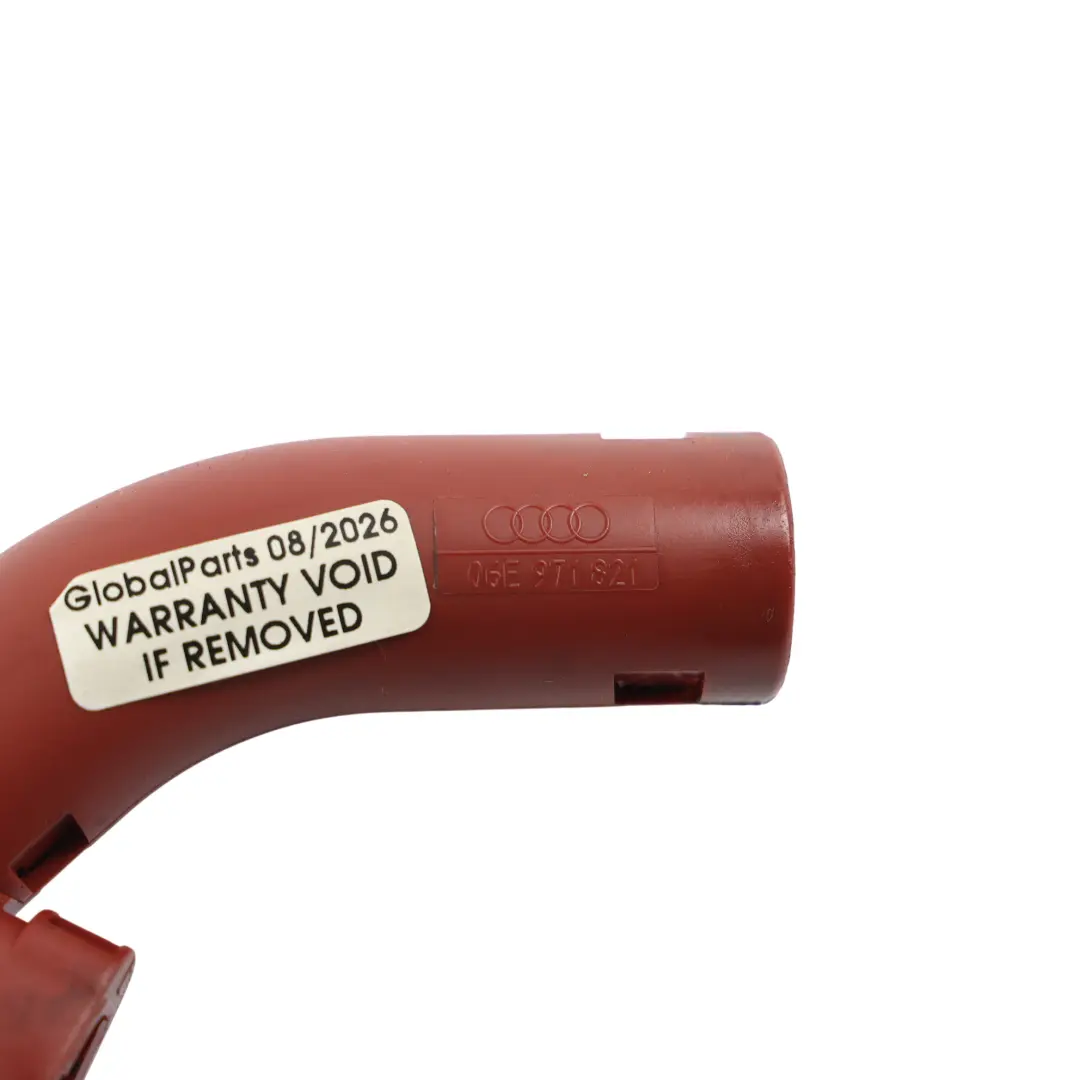

• OEM Part Number: 06E971821
• Substitutable numbers: 06E971821, 06E 971 821, 06E971822, 06E 971 822
• Part type: Wire Harness
• Rim width: 8
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the engine system

The ignition wiring harness with fuel rail trim is responsible for the safe routing of wires in the cylinder head area and for the stable connection of ignition and injection system components. A correctly selected component of this type reduces the risk of insulation abrasion, local overheating, and interference in the operation of injectors and ignition coils. The solution used in the Audi A8 D3 with the 3.2 FSI unit allows for maintaining the proper arrangement of wires relative to the fuel rail, which facilitates service and diagnostics and promotes the maintenance of stable engine operating parameters over a long period of operation.

Construction, wire routing and rail trim

The element combines the function of a harness and a trim, thanks to which the wires are routed in an orderly and repeatable manner, consistent with the factory geometry of the engine compartment. The applied design supports:

• proper wire routing in the fuel rail area,
• protection of connectors against accidental tension during service work,
• reduction of vibrations acting on the wires during the operation of the power unit. The additional fuel rail trim limits the impact of contaminants from the engine compartment and facilitates visual inspection of the condition of wires and connectors during maintenance.

Condition, application and assembly aspects

The product is a used component, sourced from dismantling, which allows for an economical replacement of the harness while maintaining the original Audi specification. This type of solution is particularly beneficial for repairs where matching the factory electrical installation and maintaining the original wire routing geometry is crucial. The ignition wiring harness with fuel rail trim is intended for installation in the engine area, in the immediate vicinity of the injectors and ignition coils. Using an original solution from the same model platform facilitates installation and helps reduce the time required to fit the component during service.

Benefits of using an original Audi harness

Using an original ignition wiring harness with fuel rail trim in the Audi A8 D3 3.2 FSI provides a number of practical benefits:

• Factory fit – the geometry and lengths of the wires are consistent with the manufacturer's design, which promotes the correct arrangement of the installation.
• Consistency with the electrical system – connectors and wire routing are adapted to the specific configuration of the FSI engine.
• Economical repair – a used component allows for cost reduction while maintaining the original design. For vehicles used intensively or with high mileage, replacing the harness in the fuel rail area is often recommended in case of symptoms of unstable engine operation, ignition problems, or after previous repairs interfering with the installation.

Service expansion within the Audi electrical system

If you are planning a comprehensive repair or modernization of the engine area in your Audi and need other elements from the same group, such as additional harnesses, wires, or electrical connectors, check the available parts in the Audi wires, harnesses and connectors category. If you are considering a wider use of parts from professional dismantling and want to better plan your service budget, a guide on the cost-effectiveness of using used components may be helpful – you will find it in the article VW brand cars: economical restoration of full efficiency thanks to parts from professional dismantling, the conclusions of which can also be applied to the operation of cars of other brands from the group.
