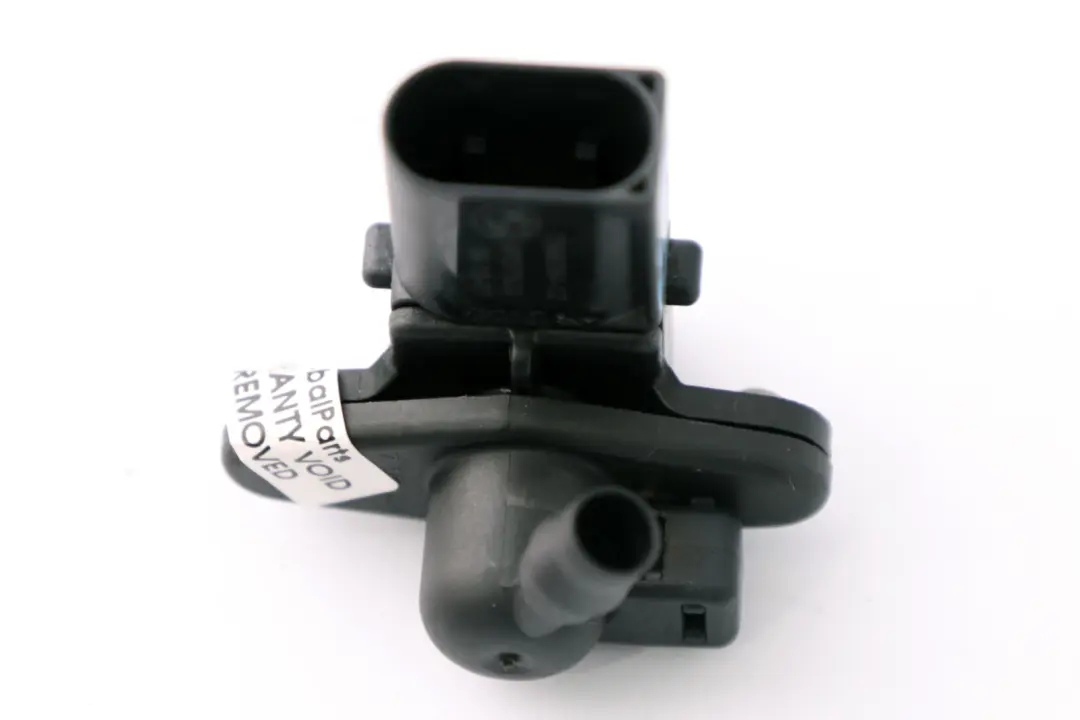

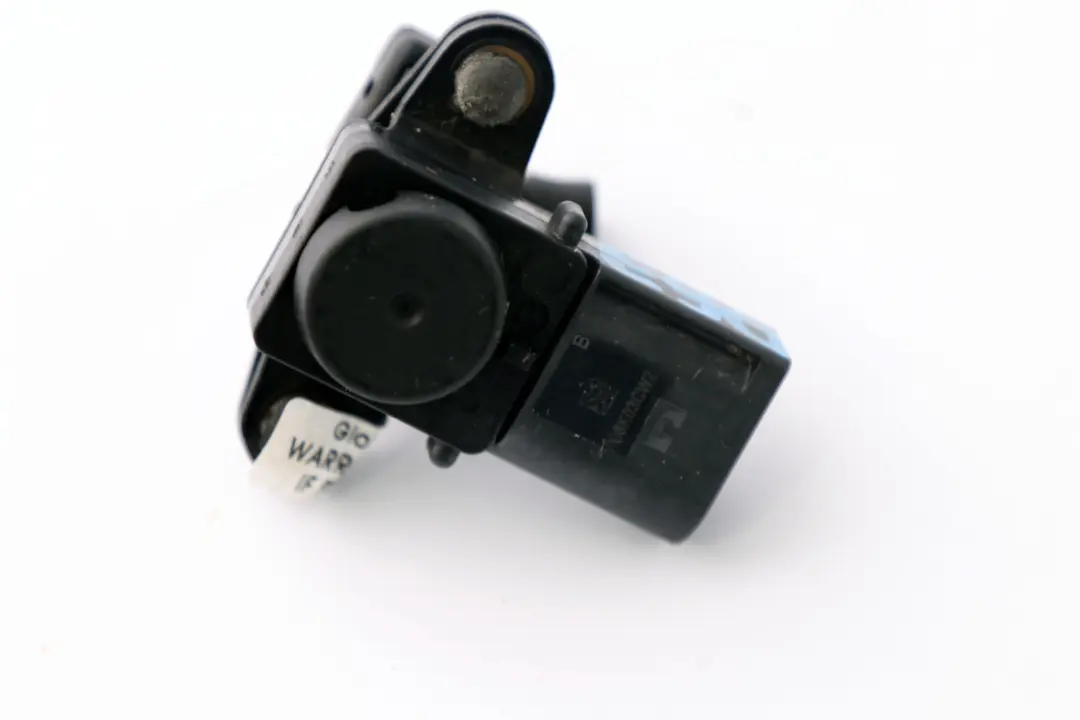

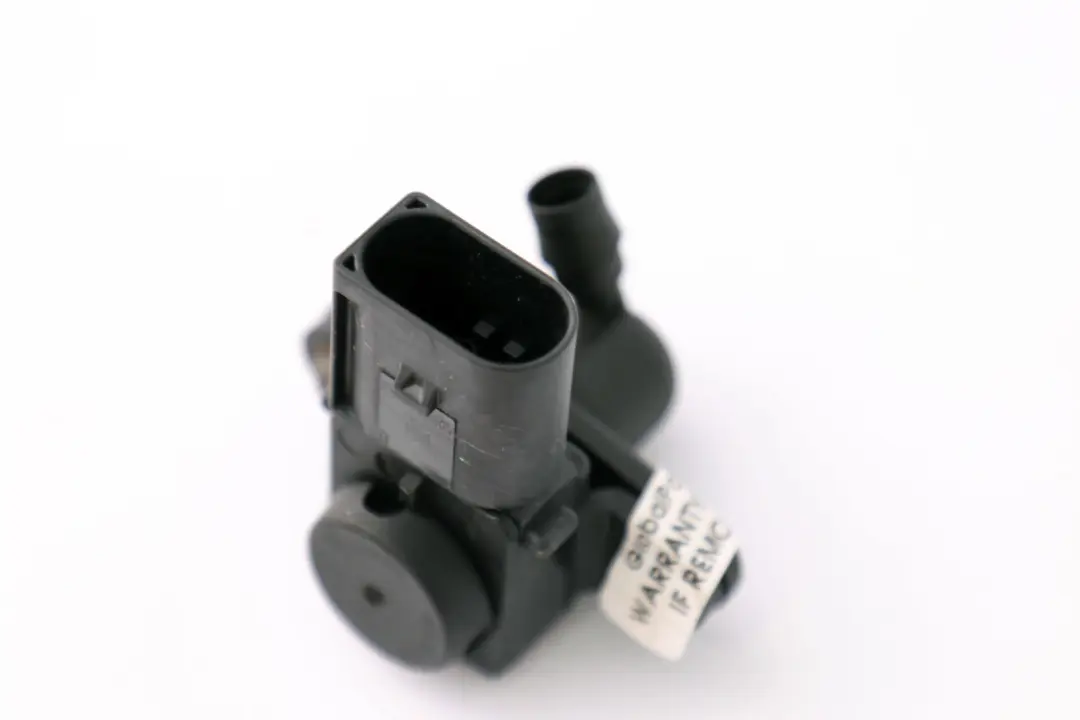

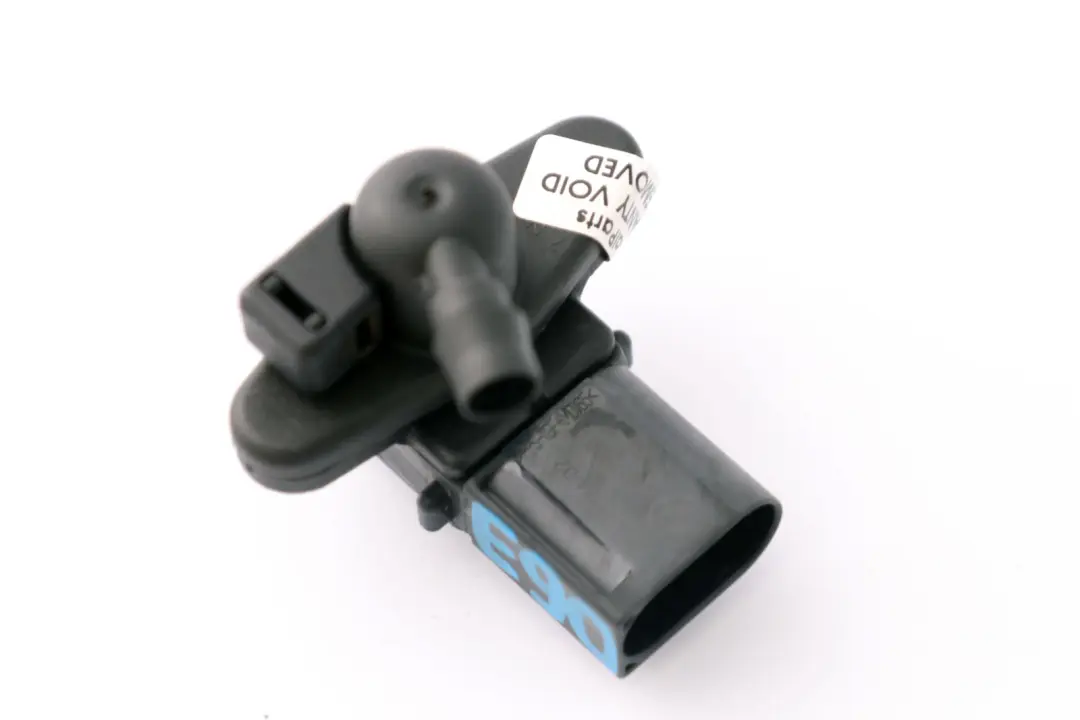

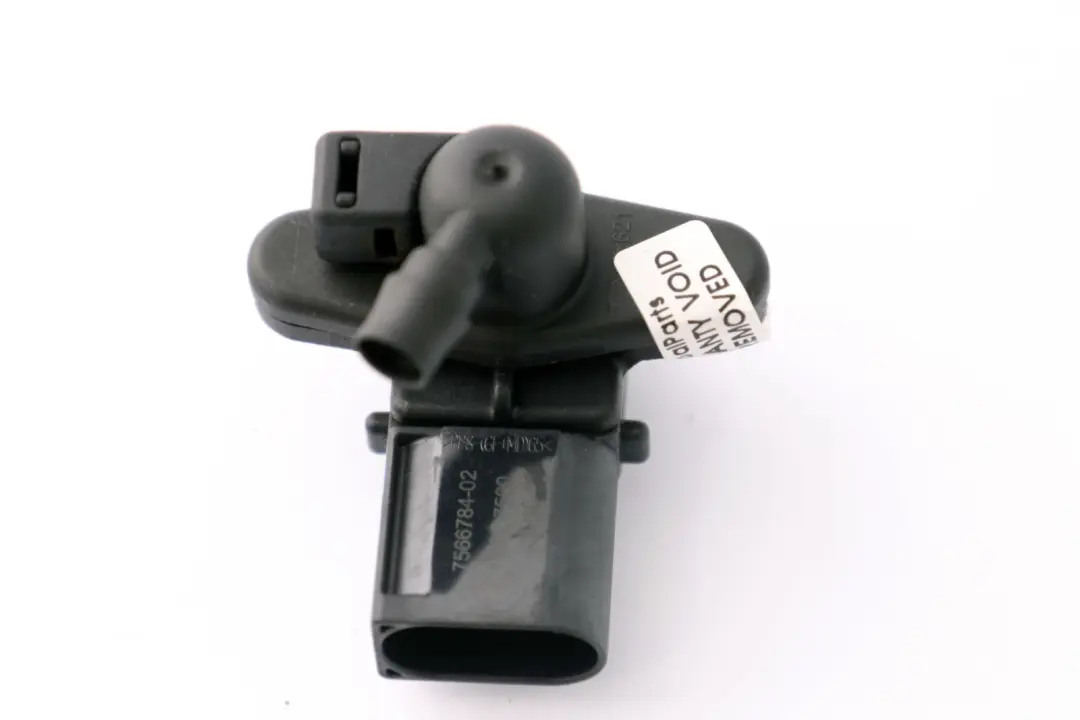

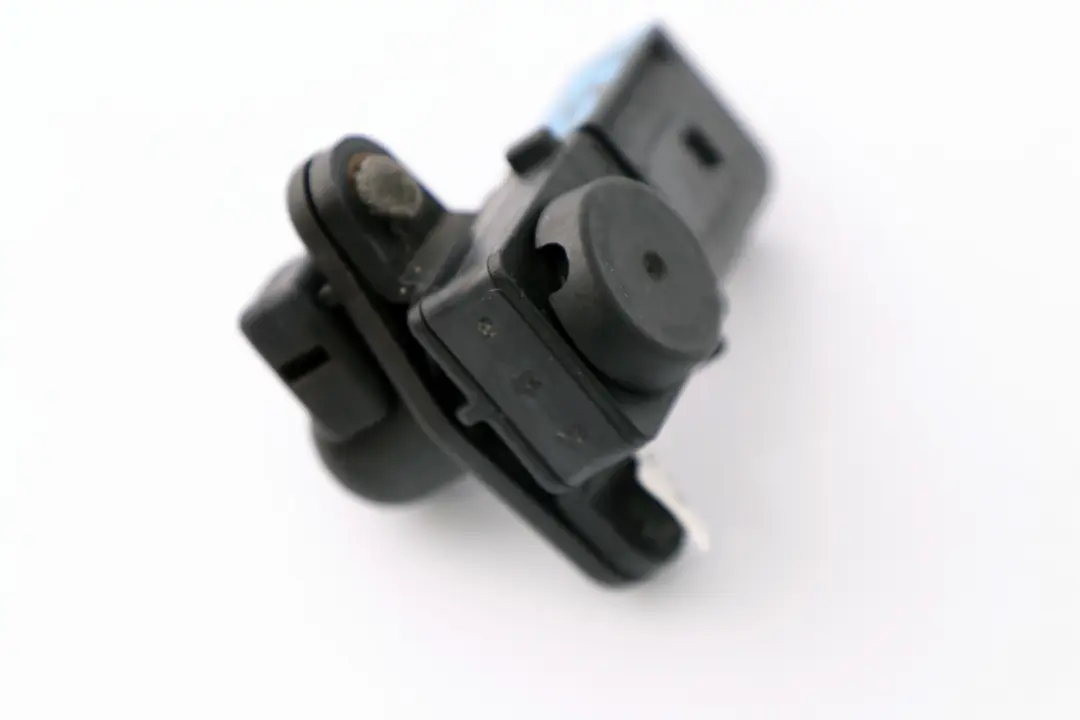

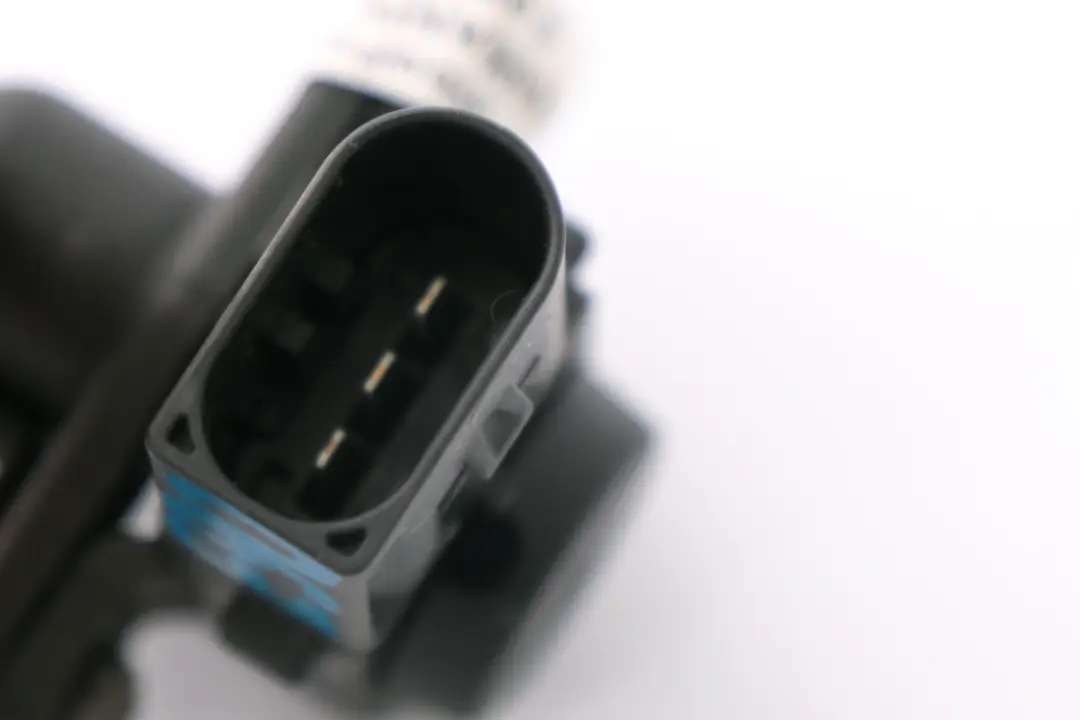

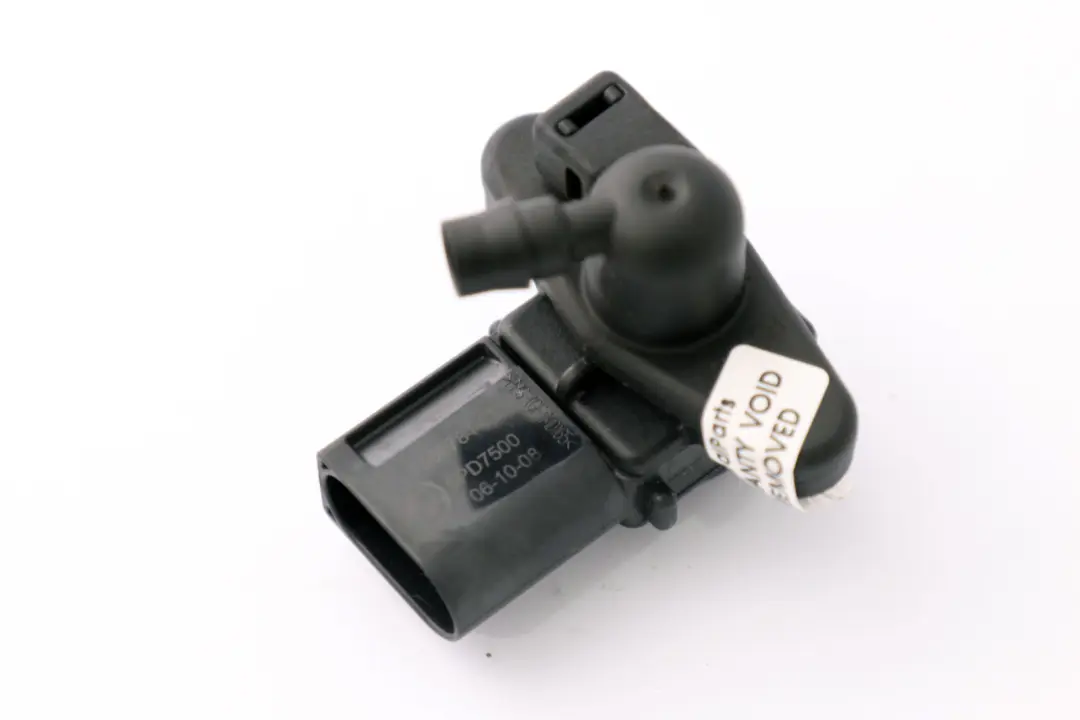

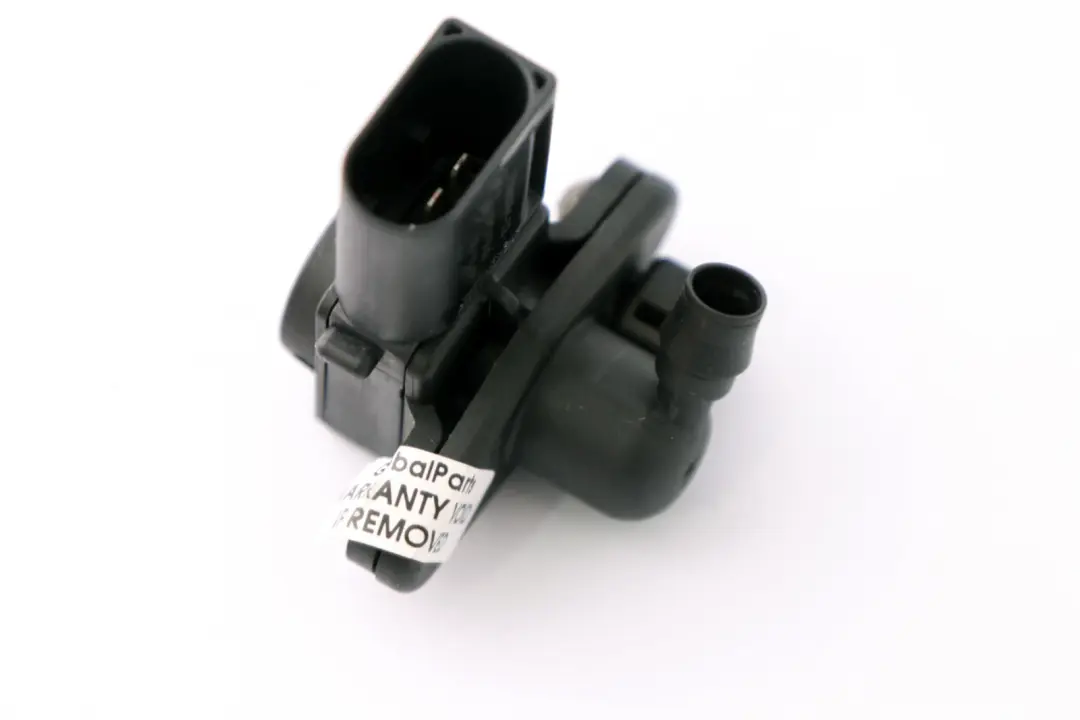

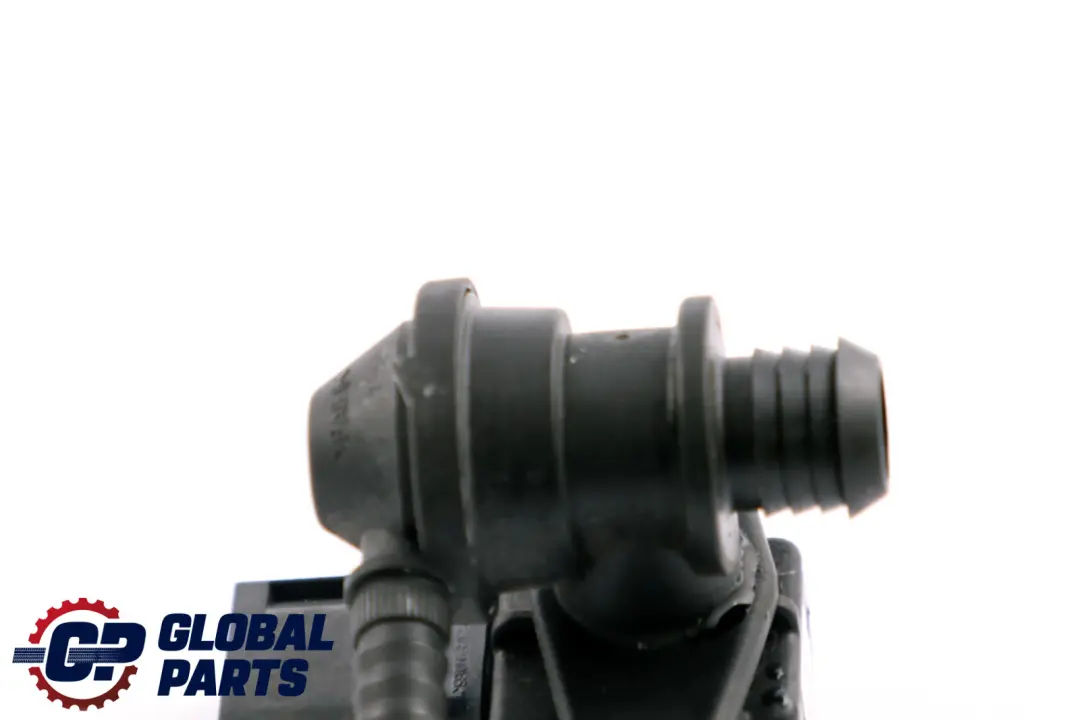

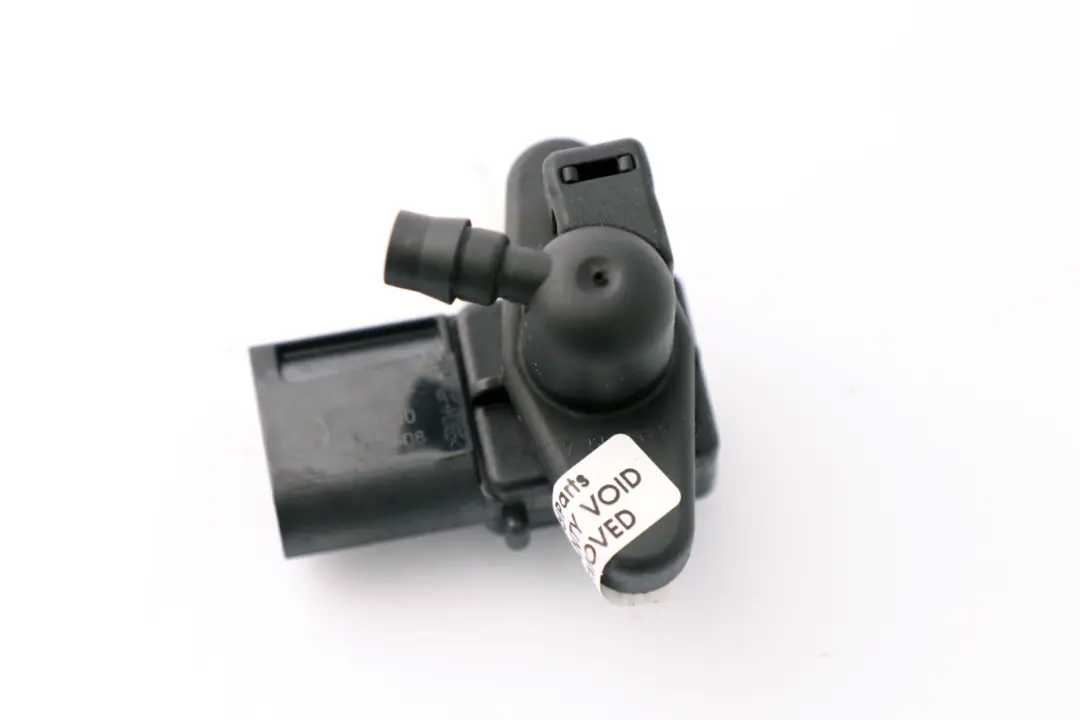

Pressure Sensor BMW E81 E87 LCI E90 E91 Brake Differential 7566784

BMW E81 E87 E90 MAP Differential Pressure Sensor 7566784 is a component from the Switches, Control Elements, and Ignition Switches group, designed for engine control systems in BMW vehicles. It enables precise measurement of differential pressure in the intake manifold, which translates to stable engine operation and correct functioning of the engine control unit.

Specifications and technical data

• SKU: 7566784-1
• Mark: BMW (Genuine OE)
• Condition: Used

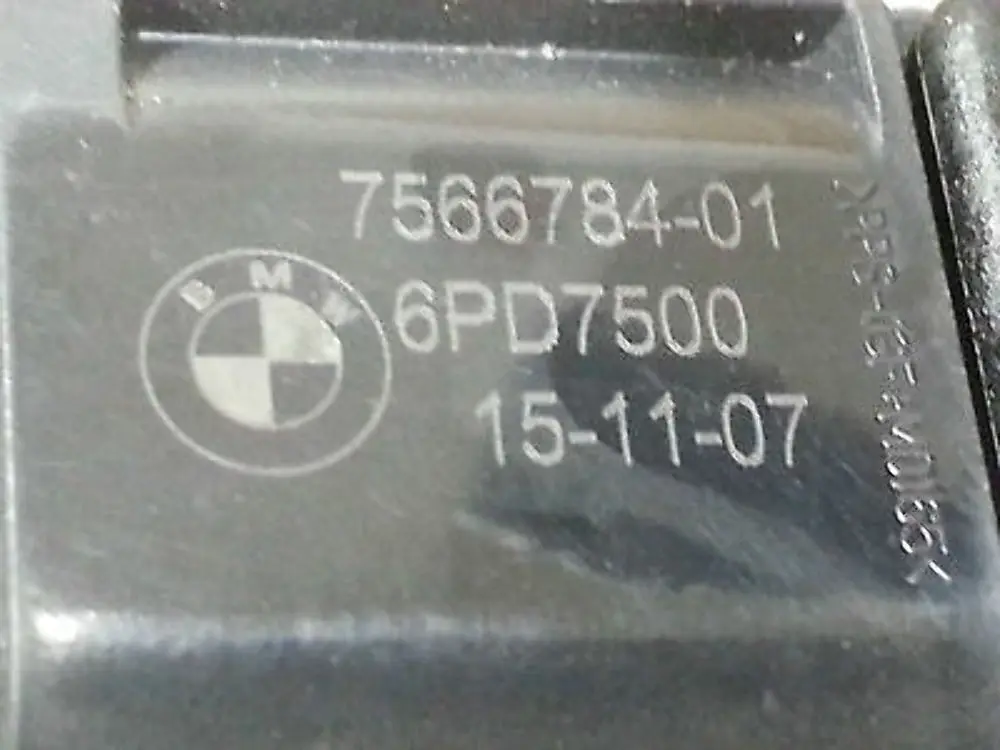

• OEM Part Number: 7566784
• Substitutable numbers: 7566784, 11667556621, 7556621
• Category: Switches & Controls

MAP Sensor Purpose and Function

The MAP differential pressure sensor in BMW models from the E81, E87, and E90 series is responsible for transmitting information about the current engine load to the engine control unit. Based on this data, the computer selects the fuel dosage, ignition timing, and operating parameters of other components, which affects engine smoothness, throttle response, and fuel consumption.

Using a functional MAP sensor is particularly important in vehicles equipped with advanced control systems, where even minor signal deviations can cause diagnostic errors, power loss, or rough idling.

Benefits of Using an Original BMW Part

The offered sensor is an original BMW component, meaning it maintains factory operating parameters and is fully compatible with the electrical system and engine control unit. In practice, this translates to:

• stable measurement signal across the full engine load range,
• correct cooperation with the factory control unit software,
• proper fit of connectors and mountings without the need for installation modifications,
• reduced risk of control unit memory errors related to the intake system.

By adhering to manufacturer specifications, installing such a sensor is the preferred solution for vehicles where parameter consistency and compliance with service documentation are crucial.

Condition, Verification, and Service Application

The component is offered as a used BMW part, allowing for economical repair of the engine control system while maintaining original manufacturing quality. These types of sensors are frequently used in professional workshops specializing in the BMW brand, especially when diagnosing faults related to the fuel-air mixture, power loss, or limp mode.

Replacing the MAP differential pressure sensor is a typical service procedure when errors related to intake manifold pressure occur. A correctly selected part allows for the restoration of nominal engine operating parameters without the need for intervention in the control unit software.

Integration with Control System and Diagnostics

As part of the Switches, Control Elements, and Ignition Switches group, the MAP sensor works with other electronic components responsible for engine control. In computer diagnostics, its operation can be monitored by reading live data, which facilitates signal verification and quick identification of irregularities.

When selecting a sensor for a specific BMW model, it is recommended to compare the markings of the removed part and consult the vehicle's service documentation to ensure full compatibility with the specific engine version and year.
