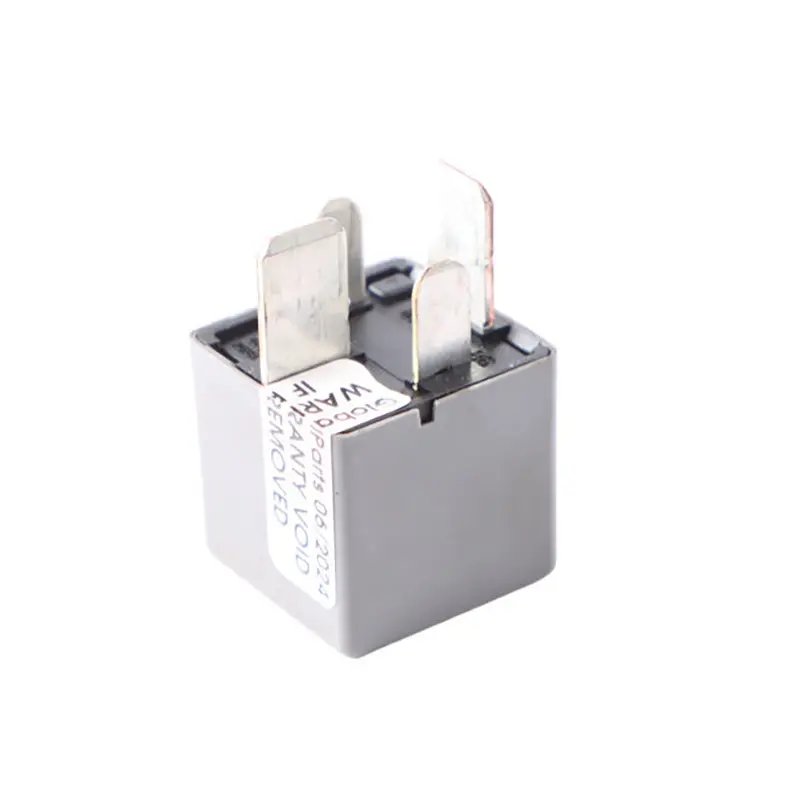

Mercedes W177 W205 W247 Relay Fuse Unit Module 4 Pins Grey A0009822923

Mercedes W177 W205 W247 Relay Grey 4 Pins is an original part from the relays group, designed for use in Mercedes vehicle electrical systems. The grey housing and four-pin configuration ensure clear identification for the correct socket, and the used nature of the part allows for an economical yet functional repair of the system.

Specifications and technical data

• SKU: A0009822923
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A0009822923
• Substitutable numbers: A0009822923, A 000 982 29 23
• Color: Grey
• Category: Relays

Application and Function of the Relay

The grey 4-pin relay acts as an electrically operated switch controlled by a low current, which activates or deactivates higher load circuits in Mercedes vehicles. In typical applications, it is responsible for stable power supply to selected components, such as comfort modules, lighting elements, or other receivers requiring circuit separation.

Thanks to its design tailored for platforms like W177, W205, or W247, the relay works with the factory wiring harness, maintaining proper operating parameters and compatibility with the vehicle's electrical system architecture.

Construction, Color, and Compatibility

The grey housing facilitates identification of the component in the fuse box or relay panel, which is important for diagnostics and service. The four pins ensure simple, unambiguous orientation during installation and reduce the risk of incorrect insertion into the wrong socket.

As a part from the Relays category, it is designed to operate in an automotive environment, considering typical loads, vibrations, and temperature changes. It is always advisable to verify the correct fit for a specific vehicle model with the service documentation or part number in the technical specifications.

Benefits of Using an Original Relay

Using an original relay in the vehicle's electrical system offers a number of practical benefits:

• maintaining the factory operating parameters of the electrical system,
• compatibility with the existing wiring harness and relay sockets,
• reducing the risk of malfunction of receivers powered by the relay,
• easier future diagnostics due to compliance with manufacturer documentation.

A used part allows for a lower repair cost while maintaining proper operating characteristics, which is particularly important for more complex electrical systems.

Practical Installation and Diagnostic Tips

Before installation, it is recommended to check the relay socket for signs of overheating, corrosion, or loose contacts. Replacement should be performed with the vehicle's power disconnected, ensuring correct pin orientation. After installation, it is advisable to test the operation of the circuit controlled by the relay to confirm the system is working correctly.

For extensive powertrain repairs or electrical system upgrades, expert materials such as a guide on diagnosing clutches, dual-mass flywheels, and selecting powertrain parts can be helpful, facilitating a comprehensive approach to vehicle servicing.

Why Choose This Relay

The Mercedes W177 W205 W247 Relay Grey 4 Pins is a solution designed for users who expect compatibility with the factory installation and predictable electrical system behavior. A properly selected relay minimizes the risk of secondary failures, and its design allows for quick installation without electrical system modifications.

Additional information about similar components can be found in the category relays and control elements in vehicle electrical systems, which will facilitate the selection of other components for comprehensive electrical system servicing.
