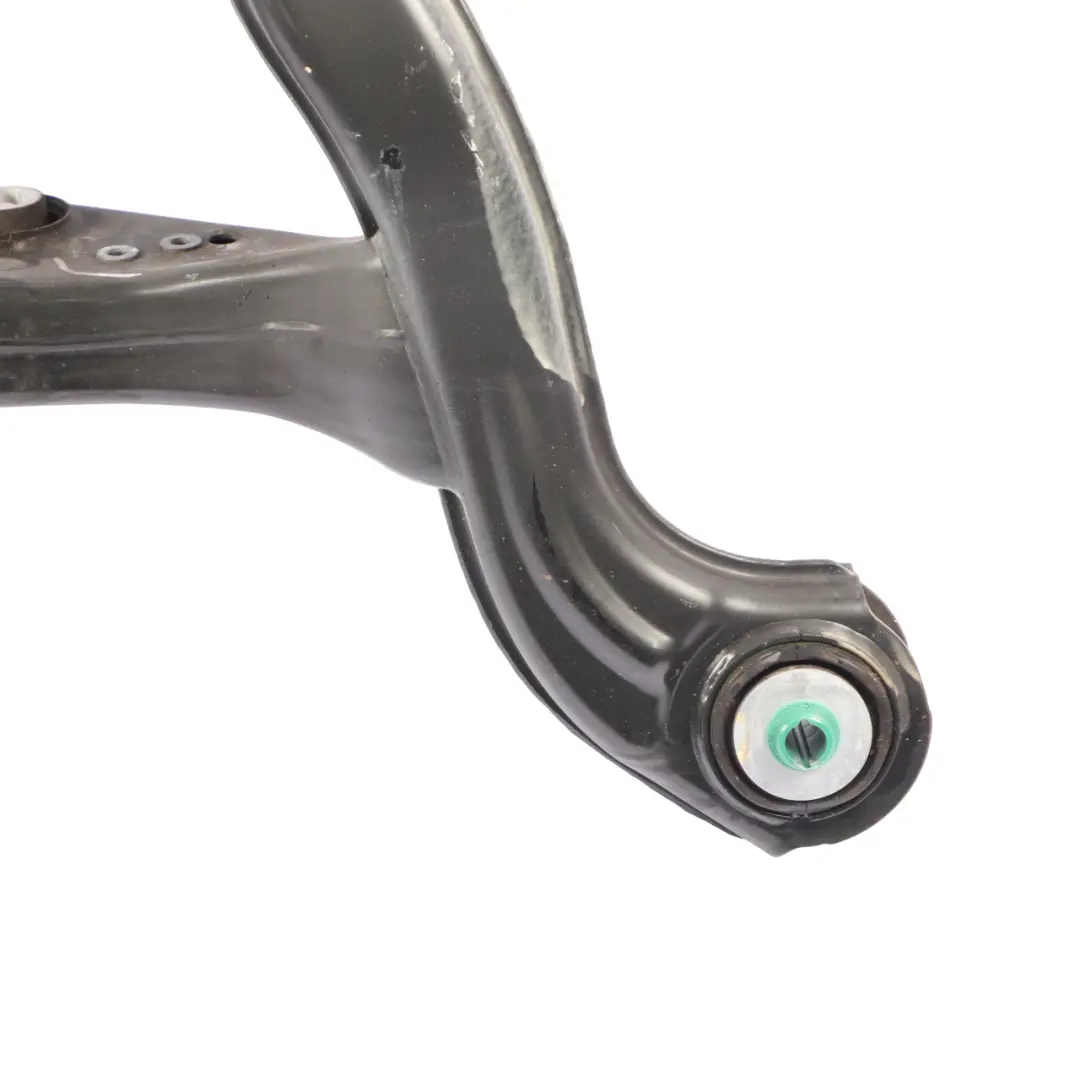

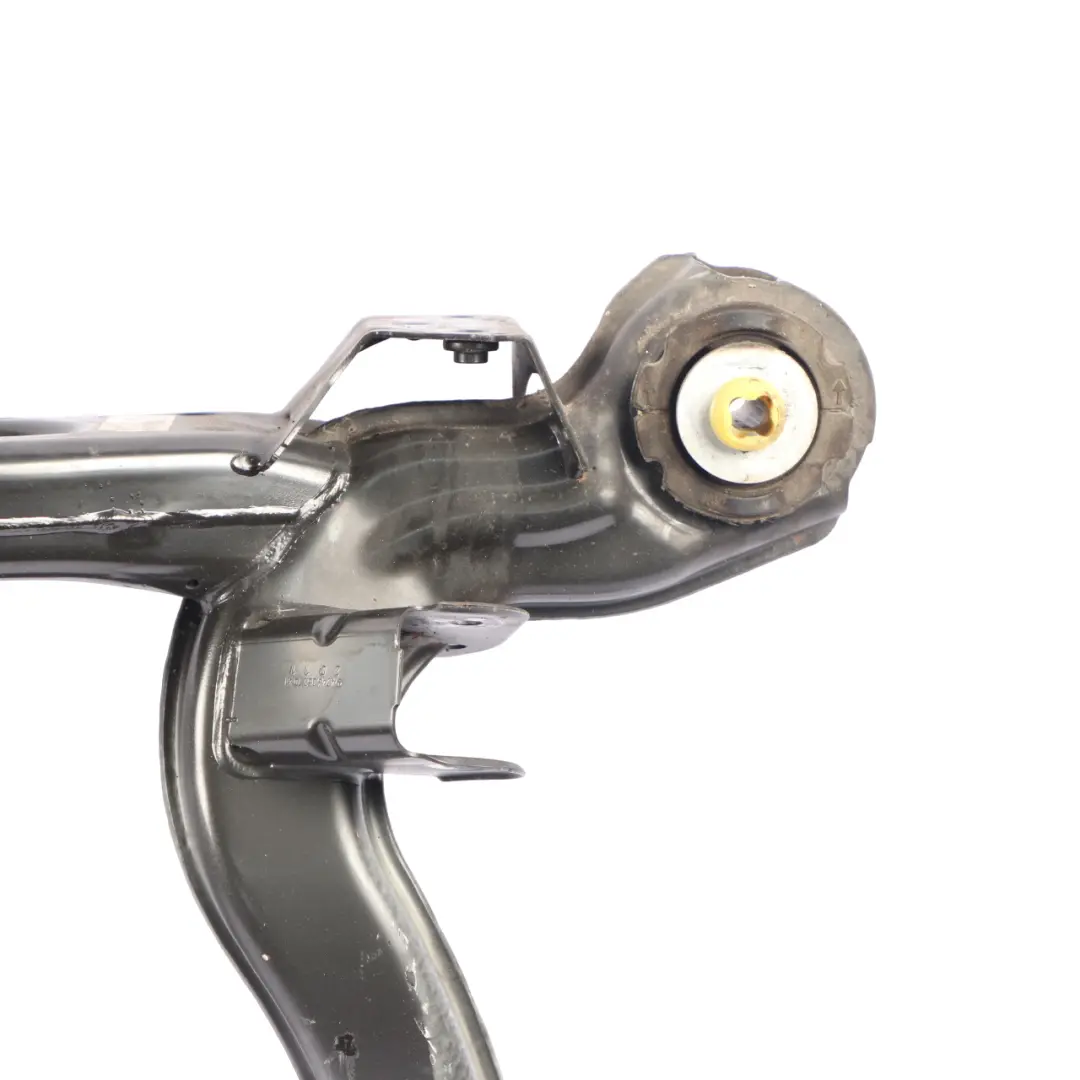

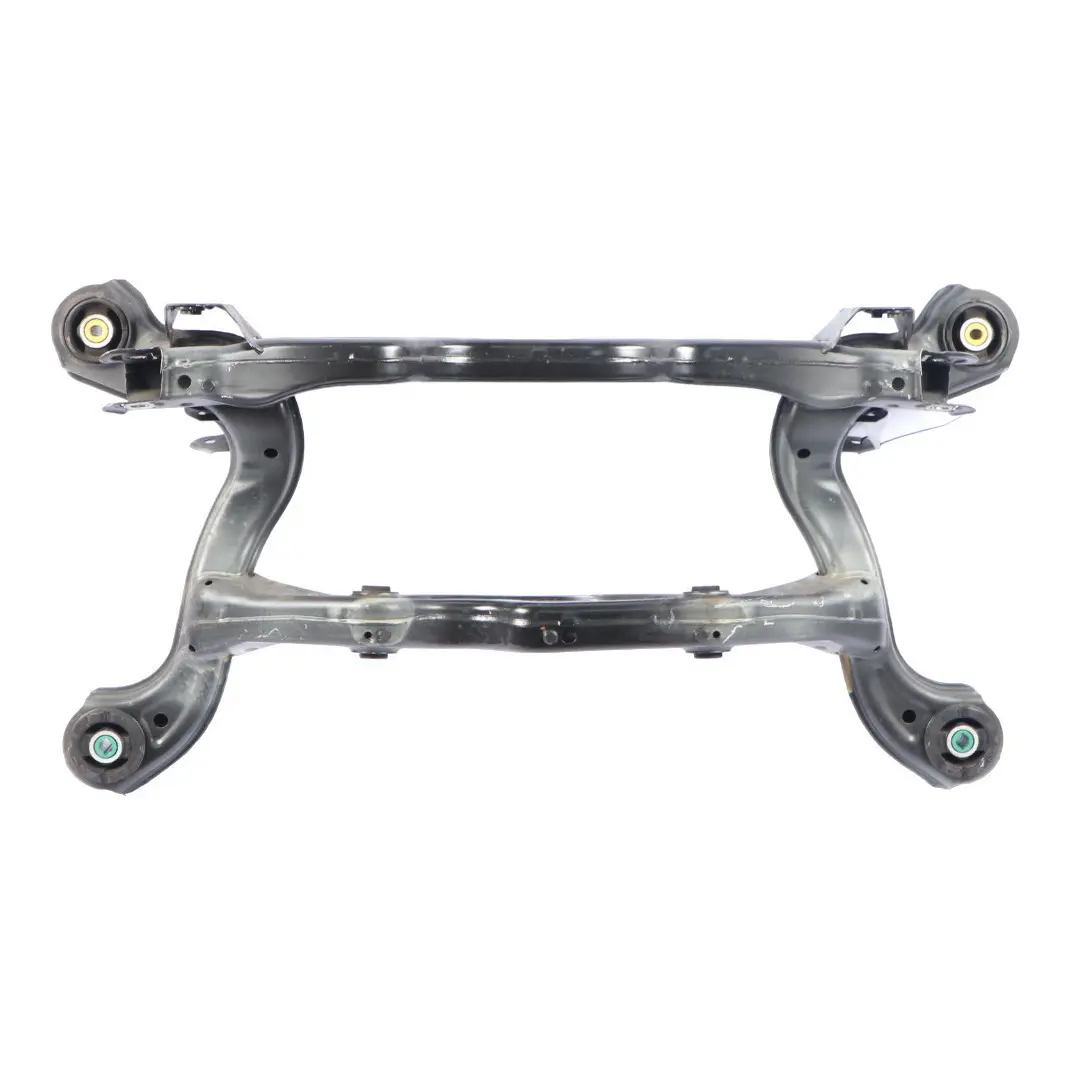

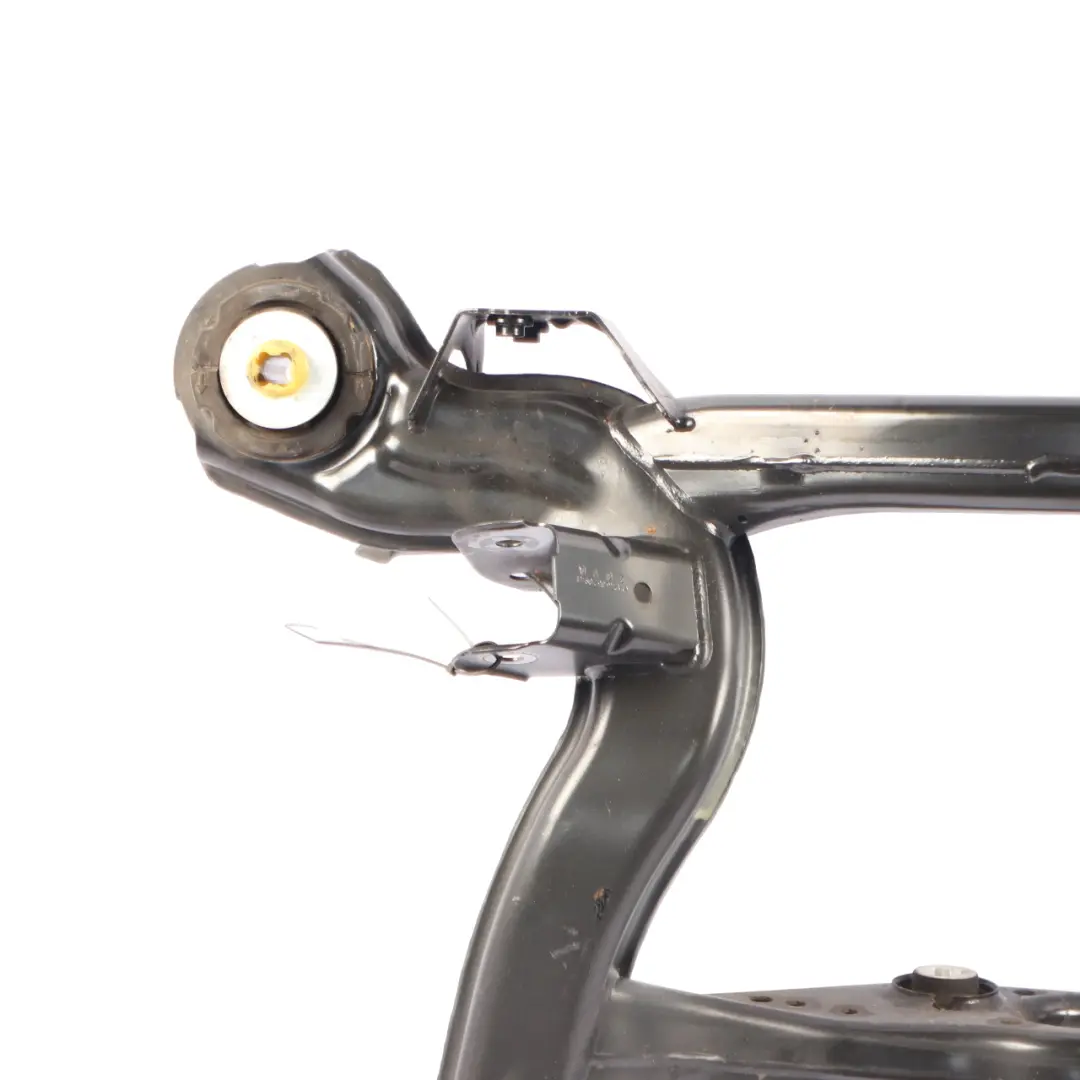

Mercedes V177 W247 Rear Axle Cradle Subframe Carrier Suspension A2473502802

Mercedes V177 W247 Rear Axle Cradle Subframe Carrier Suspension is an original rear suspension structural component designed for Mercedes V177/W247 family models. Thanks to its factory geometry and robust construction, it provides a stable base for other suspension components, supporting precise vehicle handling and predictable road behavior. This is a solution for users who expect reliable fitment, correct geometry, and compliance with factory standards.

Specifications and technical data

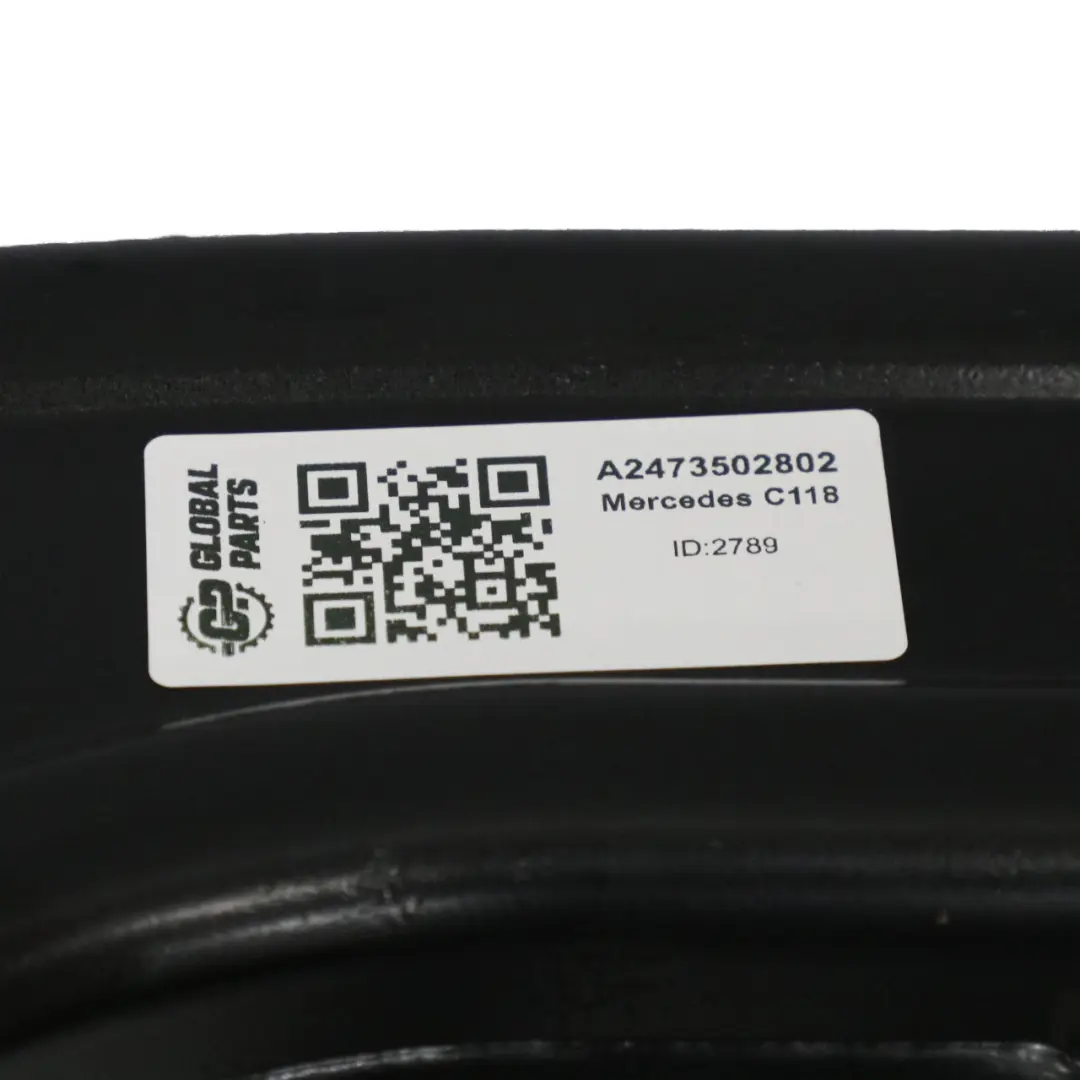

• SKU: A2473502802
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A2473502802
• Substitutable numbers: A2473502802, A 247 350 28 02
• Location on the vehicle: Rear
• Category: Other Transmission & Drivetrain

Purpose and function in the suspension system

The rear suspension cradle in the Mercedes V177/W247 acts as a load-bearing element for key chassis components. It supports the control arms, mounting elements, and sub-assemblies responsible for transferring loads from the wheels to the body. A properly selected cradle allows for maintaining correct wheel geometry, which translates into:

• stable vehicle handling at higher speeds,
• even tire wear,
• repeatable car behavior during braking and acceleration,
• improved performance of assistance systems, such as traction control or ESP.

Its location on the rear axle means this component has a significant impact on passenger ride comfort and how the car reacts to road surface irregularities.

Construction and fitment for Mercedes V177 / W247

The rear suspension cradle, subframe, or carrier in this model has been designed specifically for the chassis architecture of the Mercedes V177/W247 family. This means that the mounting points, hole spacing, and structural shape are factory-matched to the body and other chassis components. As a result:

• installation is predictable, without the need for structural modifications,
• compatibility with original mounts and equipment is maintained,
• it is easier to restore wheel alignment and camber settings to the values specified by the manufacturer.

The original Mercedes origin helps maintain the consistency of the entire suspension system and minimizes the risk of fitment issues that can occur with aftermarket parts of uncertain origin.

Characteristics of the used component

The presented rear suspension cradle is a used component, which in practice means it comes from vehicle dismantling and has been previously in service. Such components are often chosen when maintaining the original construction while optimizing repair costs is a priority. In the case of load-bearing suspension elements, it is particularly important to:

• pay attention to the condition of the surface at mounting points,
• check for the absence of significant structural deformations,
• perform a professional wheel alignment after installation.

Choosing an original, used cradle allows you to maintain factory suspension performance parameters while reducing costs compared to purchasing a new part.

Application in repairs and upgrades of the rear suspension

The rear cradle in the Mercedes V177/W247 is most often replaced after mechanical damage (e.g., collision, hitting an obstacle) or due to advanced corrosion. Its replacement is crucial when problems with geometry settings, uneven tire wear, or noticeable vehicle axle misalignment occur. Installation of this component is particularly recommended when:

• diagnostics have shown permanent deformation of the suspension load-bearing structure,
• body repair does not restore full rigidity and geometry,
• you are planning a comprehensive rebuild of the rear chassis after a collision.

By maintaining the original chassis design, it is possible to keep predictable vehicle handling and proper cooperation with active safety systems.
