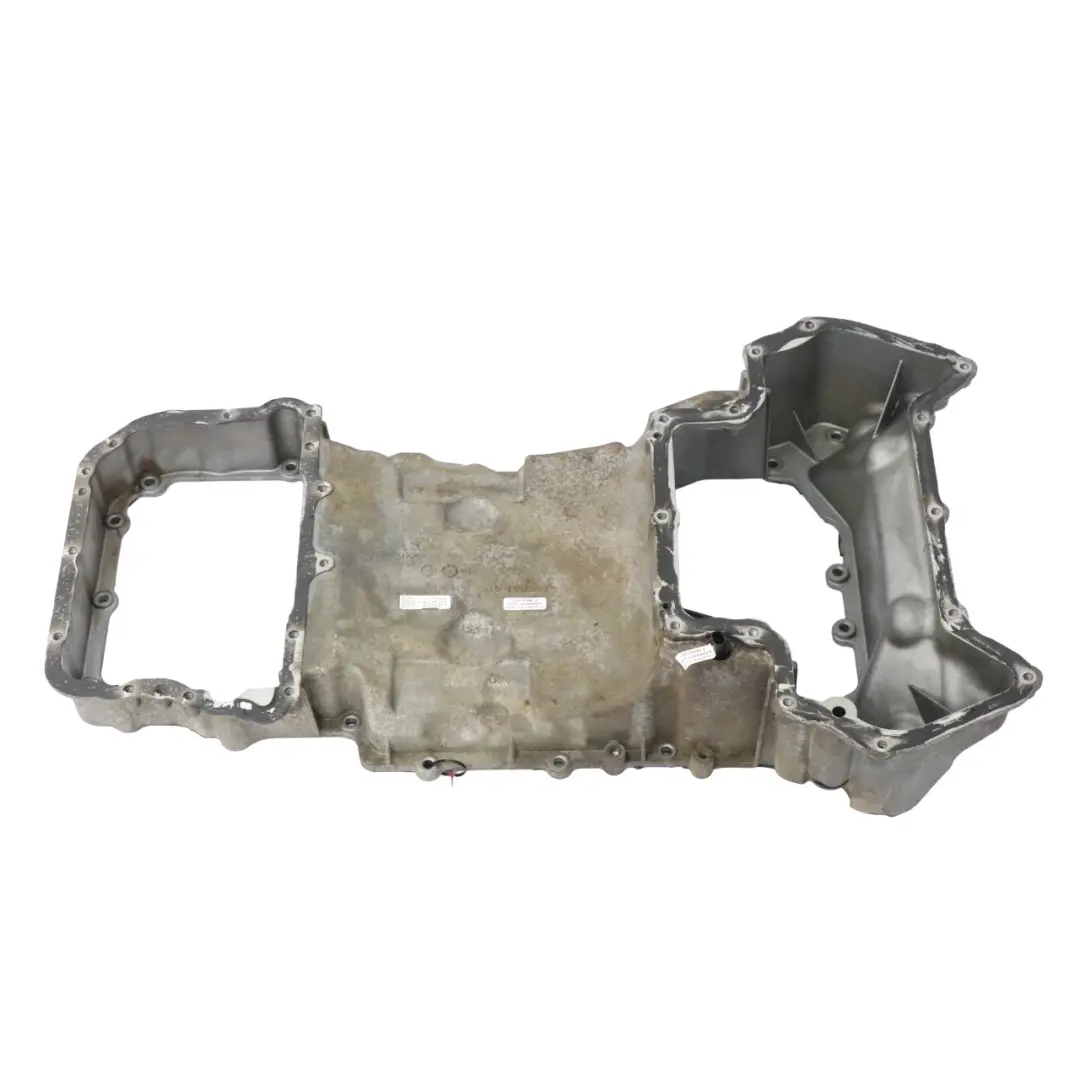

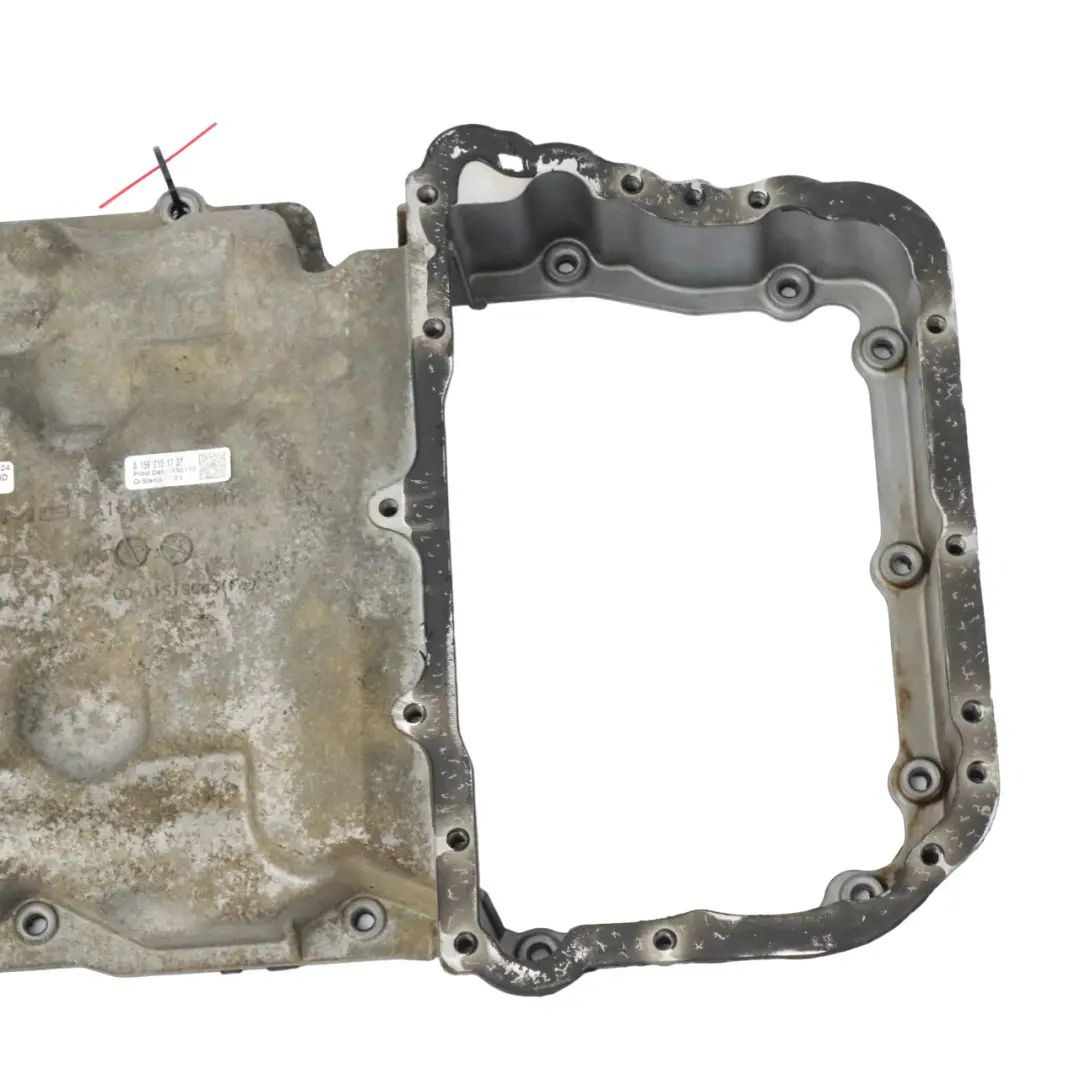

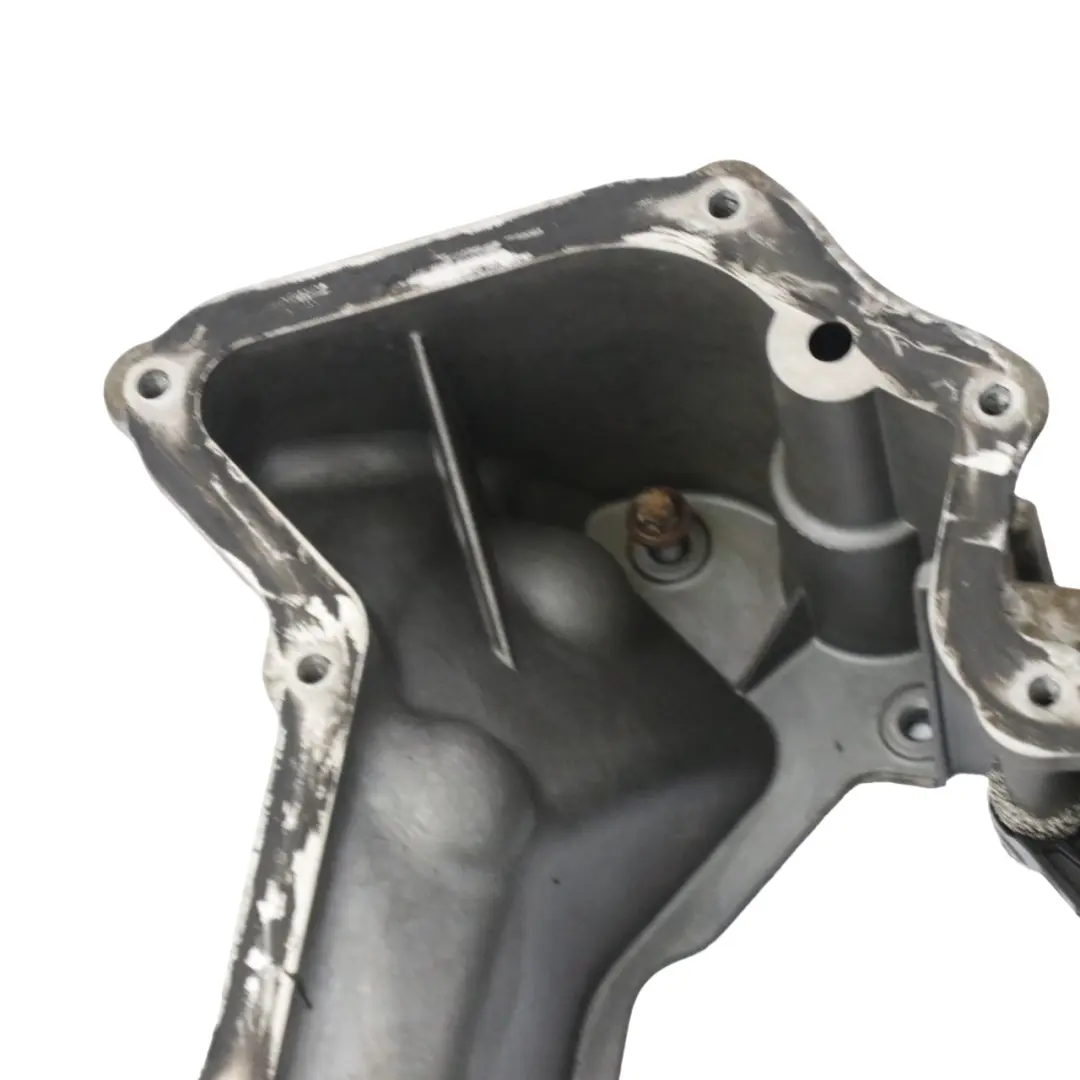

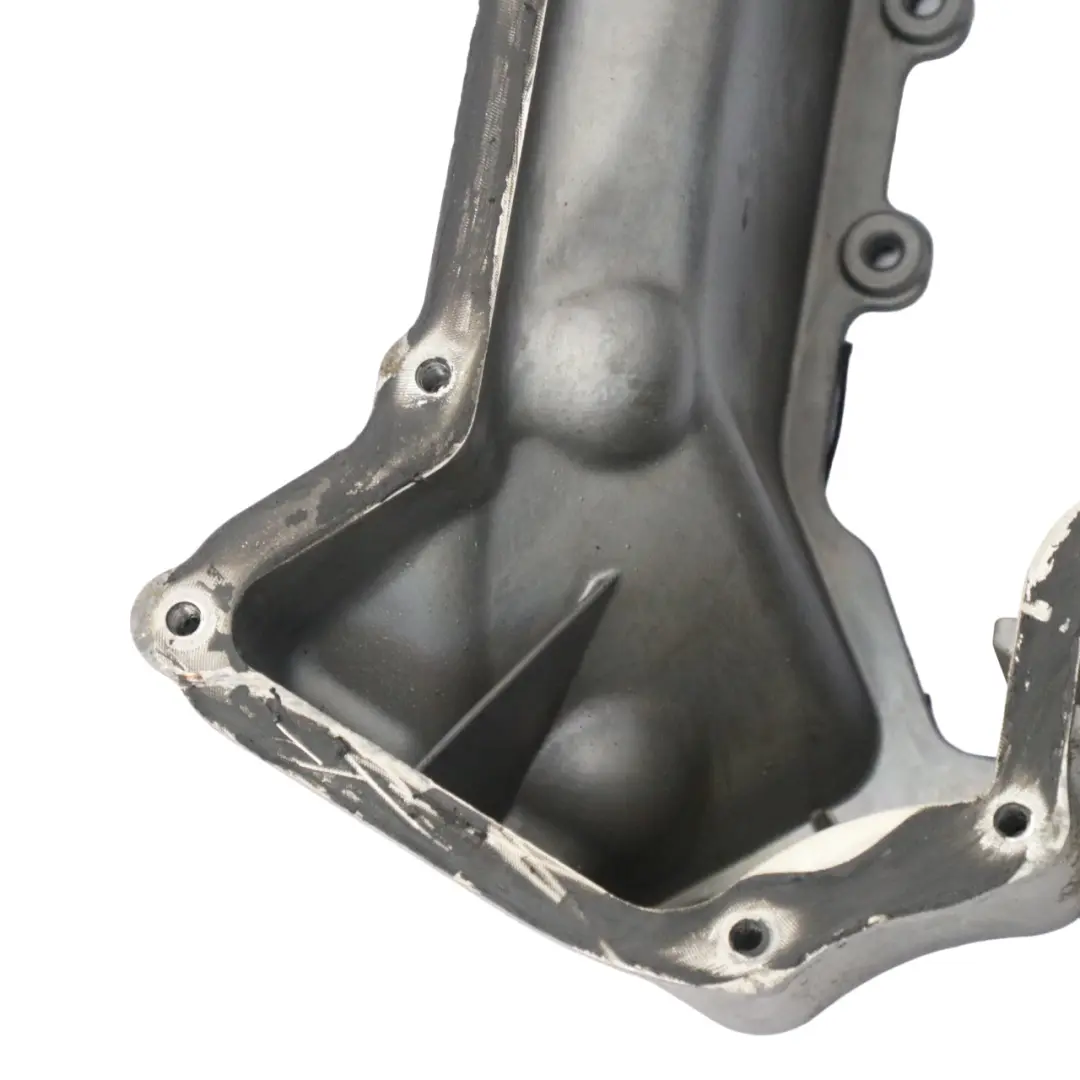

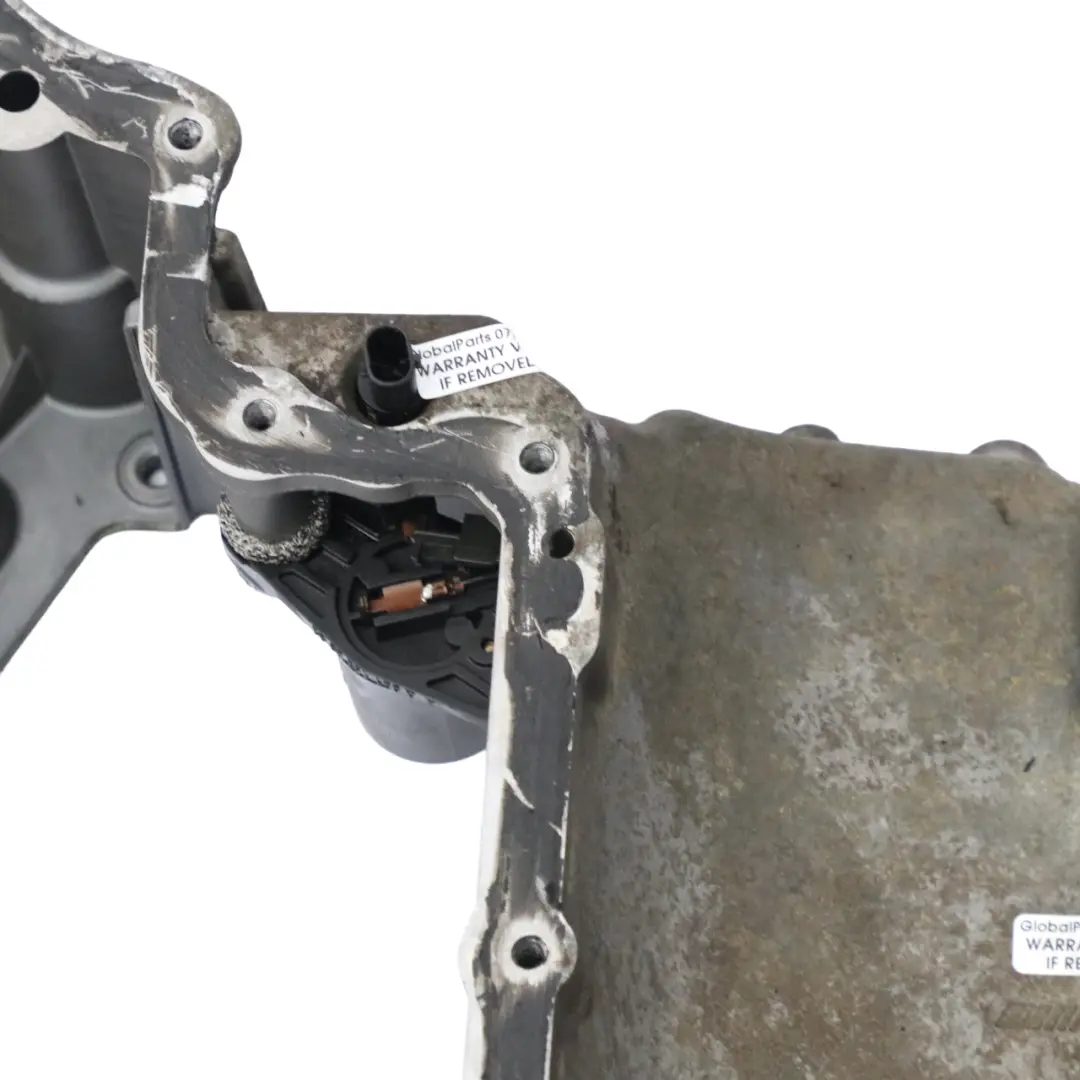

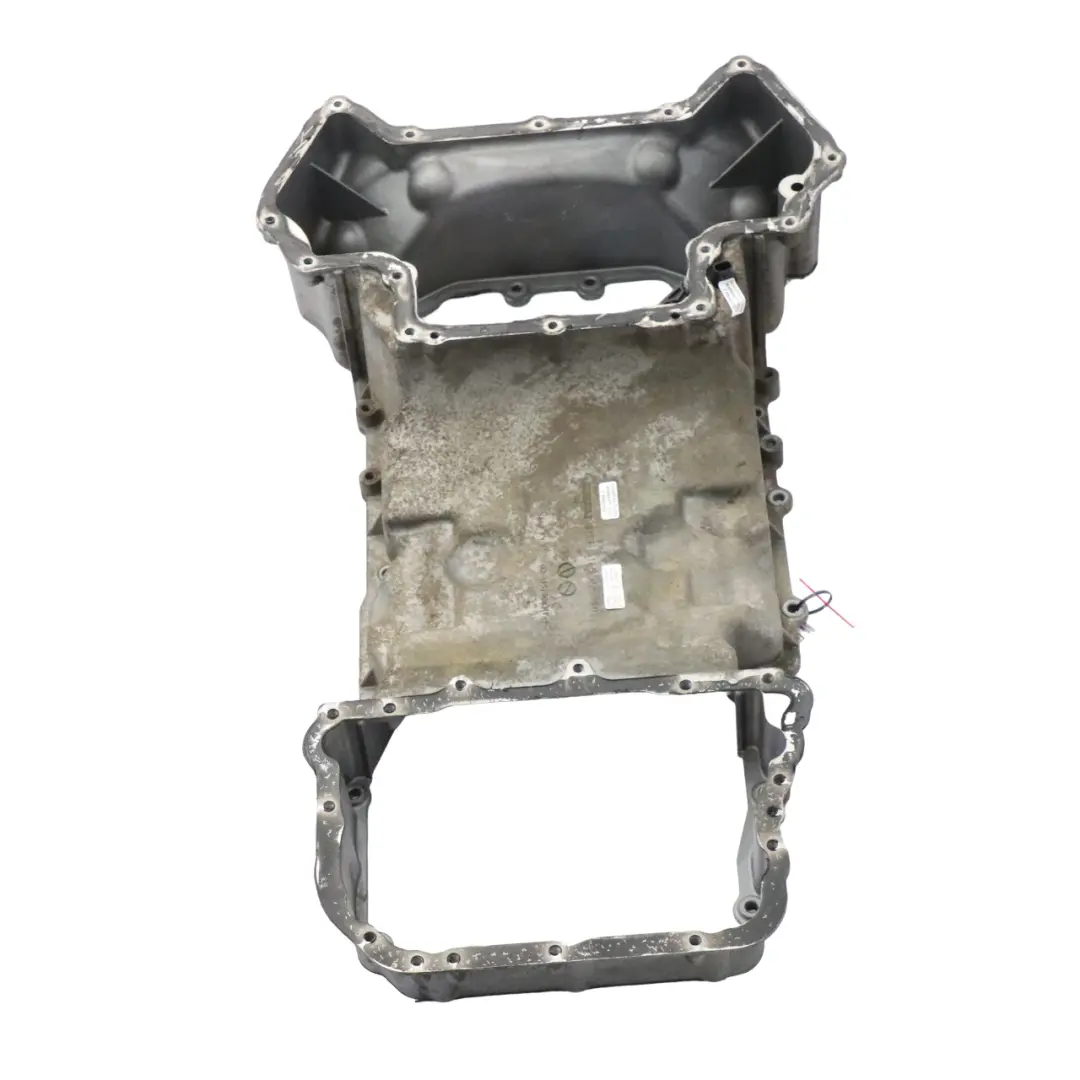

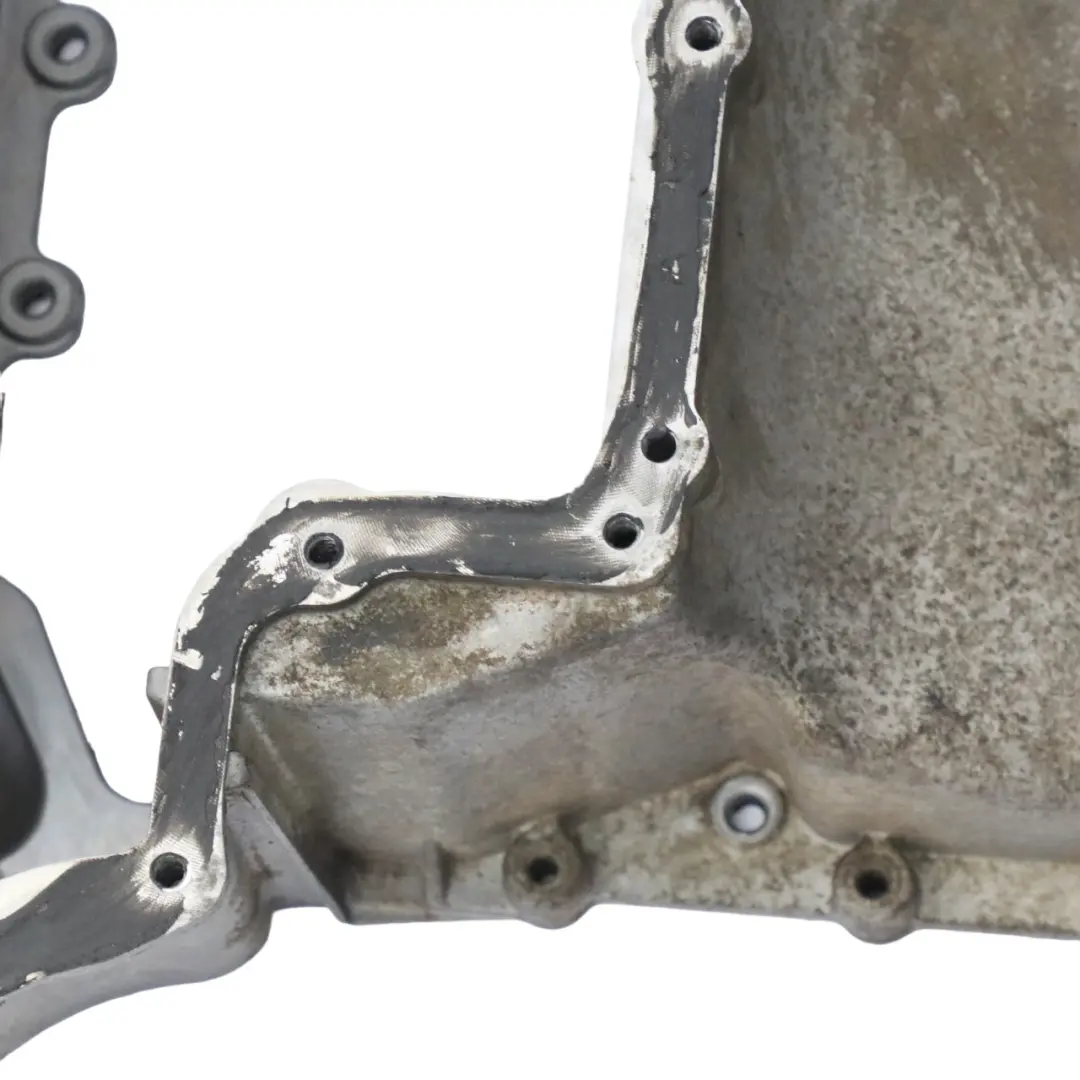

Mercedes W204 W211 W212 63 AMG M156 Engine Oil Sump Pan Upper Part A1560101727

Mercedes W204 W211 W212 63 AMG M156 Engine Oil Sump Pan Upper Part is an original lubrication system component designed for the M156 engine unit in 63 AMG sports versions. The upper part of the oil sump is a key structural element responsible for the stable routing of engine oil and proper sealing of the lower part of the engine block. Thanks to its factory geometry and precise fit for specific Mercedes models, this component allows for a precise, trouble-free replacement as part of a professional repair.

Specifications and technical data

• SKU: A1560101727
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1560101727

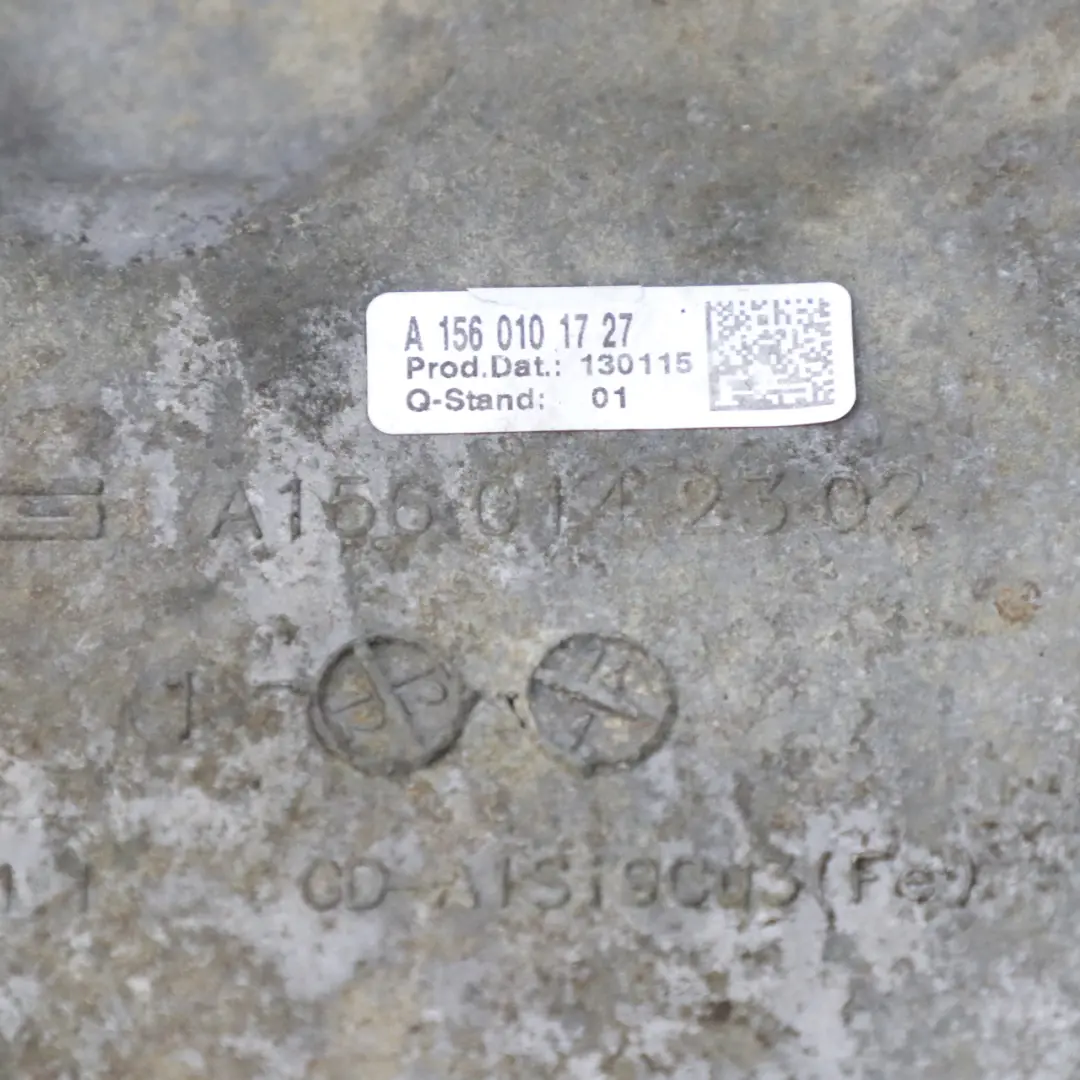

• Substitutable numbers: A1560101727, A 156 010 17 27
• Category: Oil Sumps

Purpose and function in the lubrication system

The upper part of the oil sump in the M156 engine is responsible for stable oil routing between the block and the lower part of the sump, as well as maintaining the proper rigidity of the entire lower engine zone. In 63 AMG units, which operate under higher thermal and mechanical loads, a correctly selected oil sump is crucial for:

• maintaining the proper oil level under various driving conditions,
• ensuring correct oil suction by the pump,
• reducing the risk of cavitation and temporary pressure drops,
• maintaining a tight seal with the engine block.

By using an original upper oil sump part, you maintain the factory operating parameters of the lubrication system, which is particularly important in high-performance AMG units.

Compatibility with the M156 unit and body styles

The described oil sump has been designed for the M156 engine used in Mercedes C-Class W204, E-Class W211, and E-Class W212 in 63 AMG versions. This means that the geometry, mounting points, and sealing surfaces are adapted to the factory design solutions of these body styles and this engine unit.

As a result, this element can be used both for standard replacement of a damaged sump and for comprehensive engine rebuilding, where compliance with the manufacturer's original design is required.

Characteristics of the used element

The product belongs to the Oil Sumps category and is a used item, which allows for economical repair while maintaining the original design specifications. A used upper oil sump part is a good solution in situations where:

• mechanical damage to the existing sump has occurred (e.g., impact from underneath),
• leaks occur in the area of the connection with the block,
• replacement is necessary as part of an M156 unit overhaul.

By choosing an original used element, you gain factory fitment and preserve the construction intended by the manufacturer, which is important for the durability and proper operation of the engine.

Benefits of using an original Mercedes oil sump

Using an original upper oil sump part in the M156 engine brings a number of practical benefits:

• Precise fit with the engine block and other lubrication system components,
• preservation of the factory rigidity of the lower engine unit structure,
• reduction of leak risk due to proper contact surfaces,
• compatibility with equipment intended for 63 AMG versions.

For workshops specializing in Mercedes AMG service and for conscious users who want to keep their car in a configuration close to factory specifications, choosing an original oil sump is a technically sound solution.

Support in choosing used elements

When selecting a used oil sump for the M156 engine, it is worth paying attention to compatibility with the specific version of the unit and body style. Manufacturer markings and reference numbers are helpful, as they allow you to confirm the correct fit for a given vehicle. If you want to better understand how to safely use the second-hand parts market and what to look for when purchasing, read the article Used car parts: Myths and facts you need to know.

If you are planning a comprehensive repair or upgrade of the engine area in your Mercedes and need other elements from the same group, such as additional housings, covers, or other lubrication system components, check the available parts in the Mercedes Oil Sumps category.
