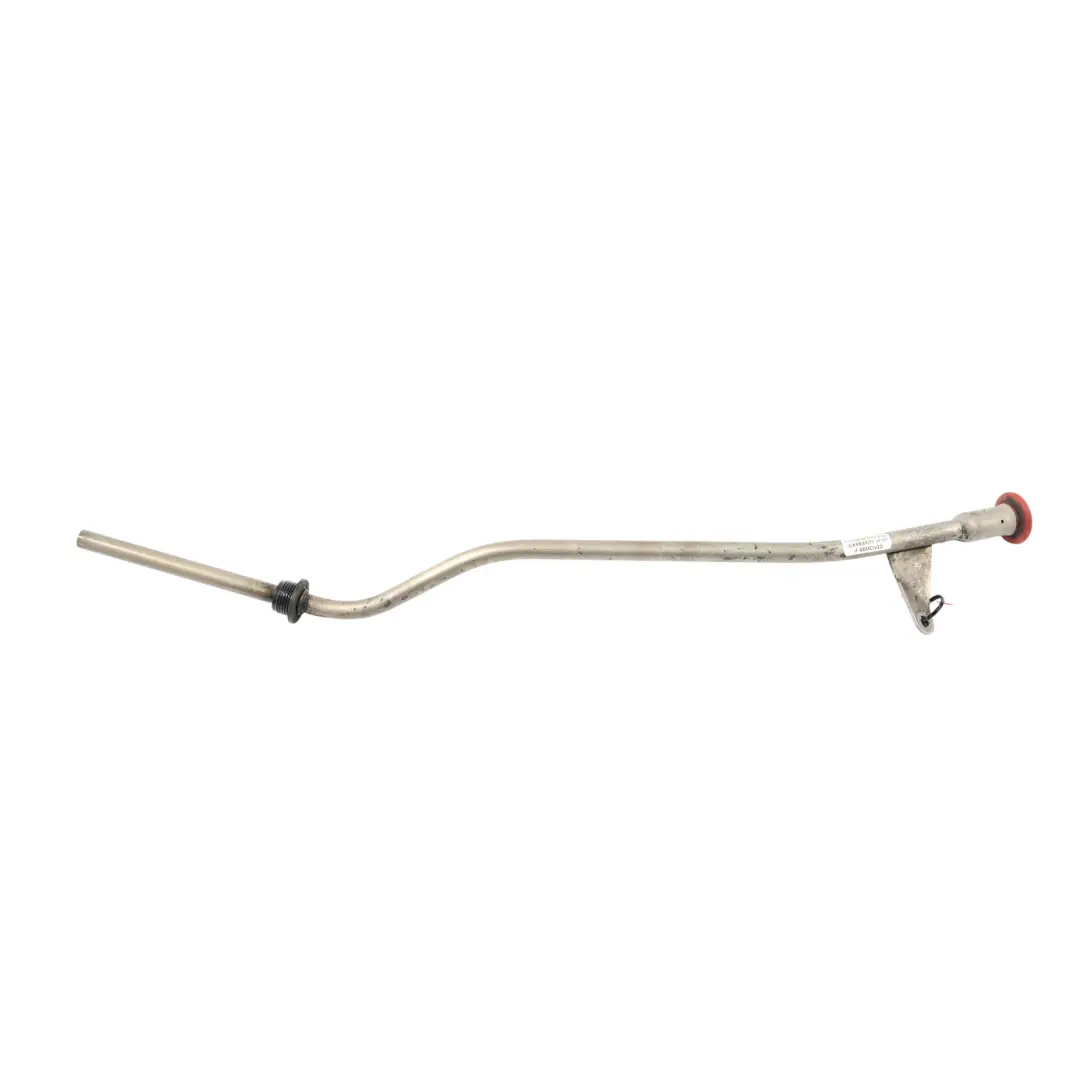

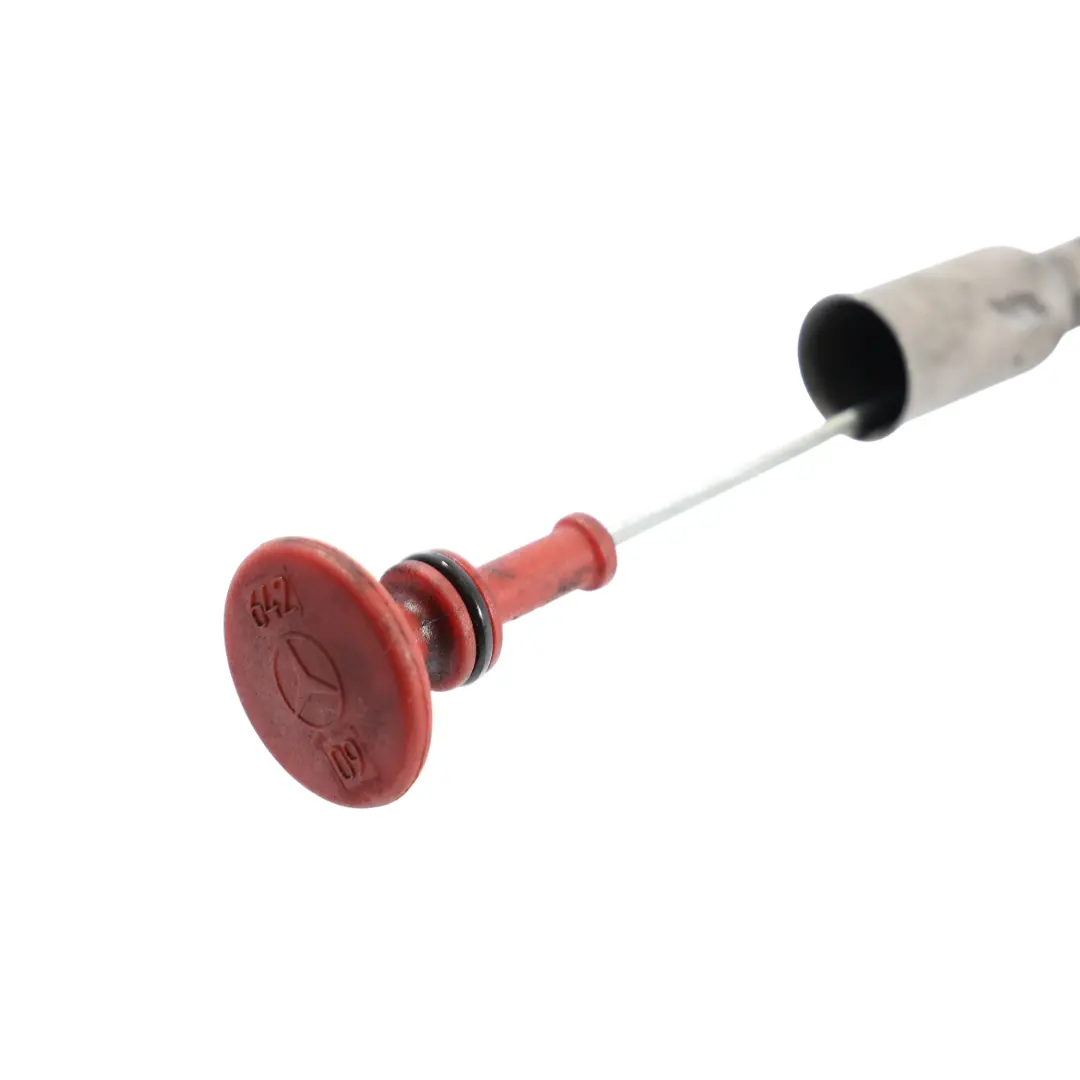

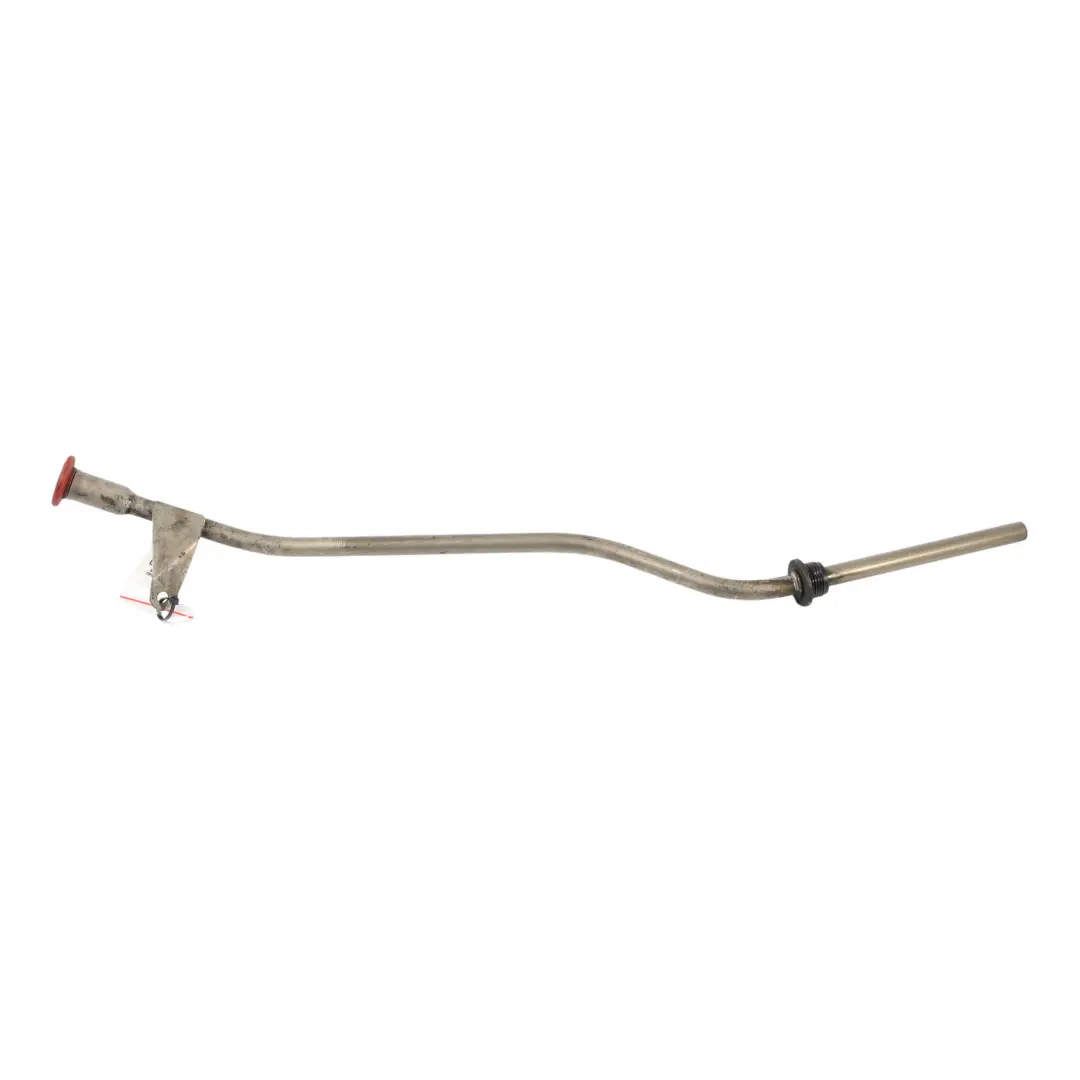

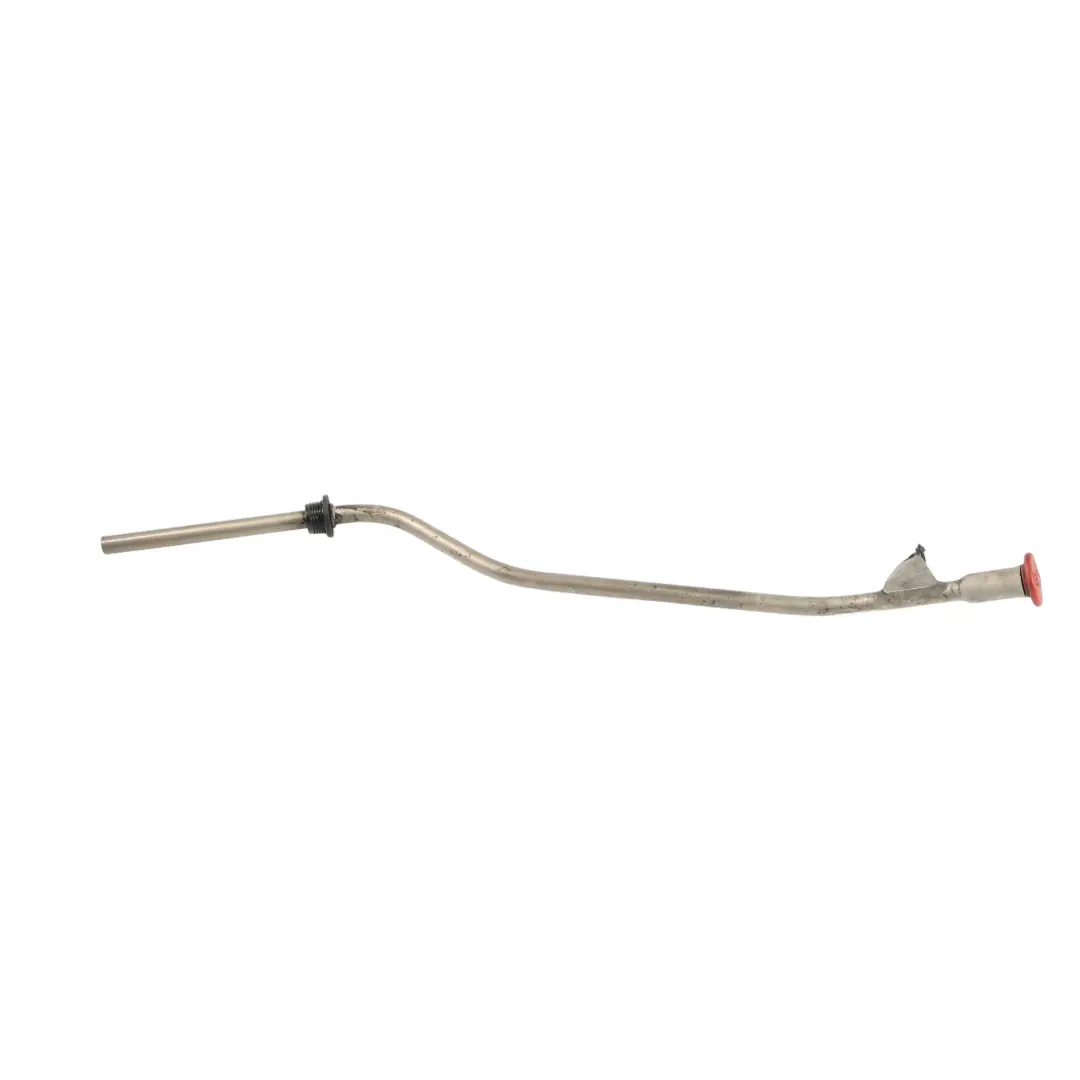

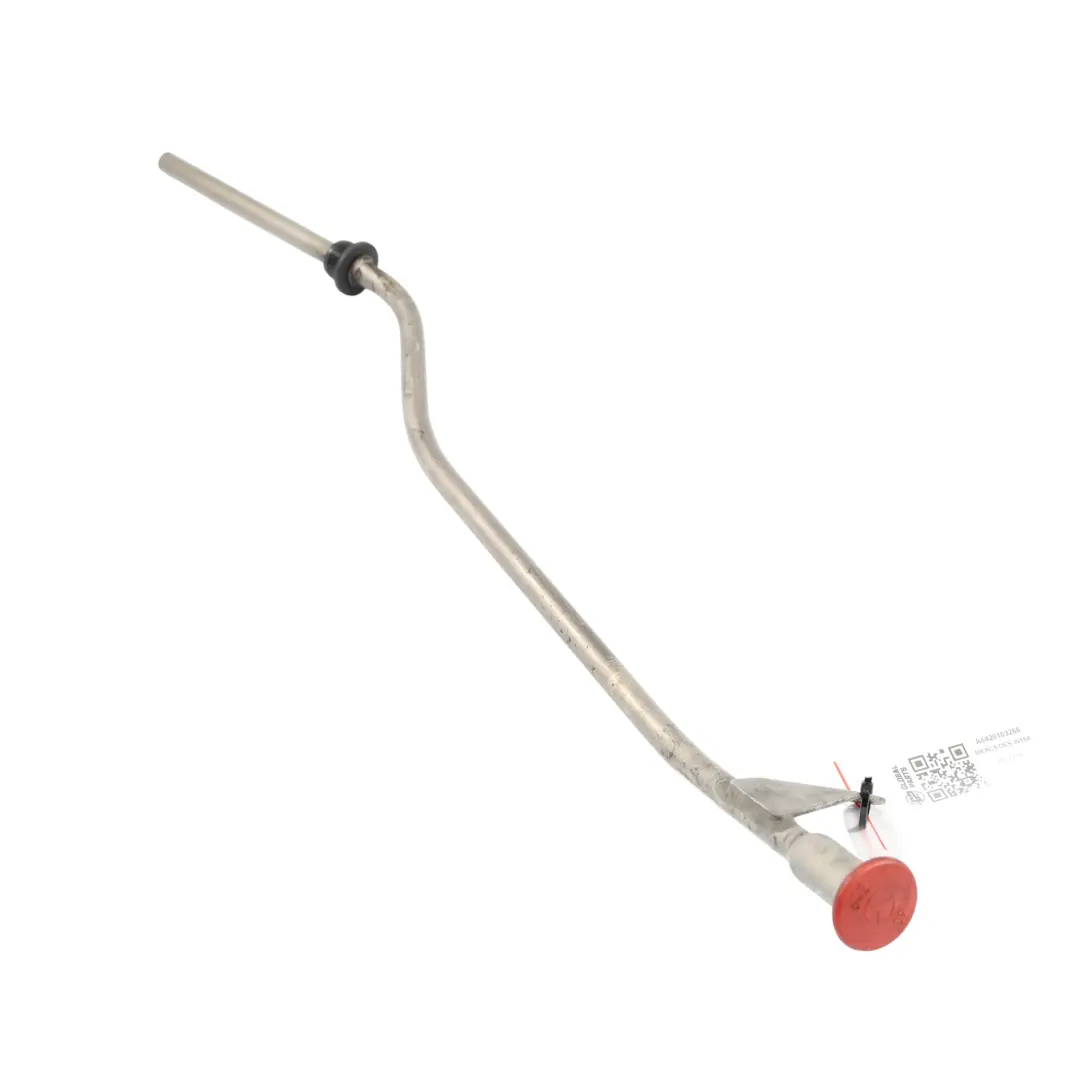

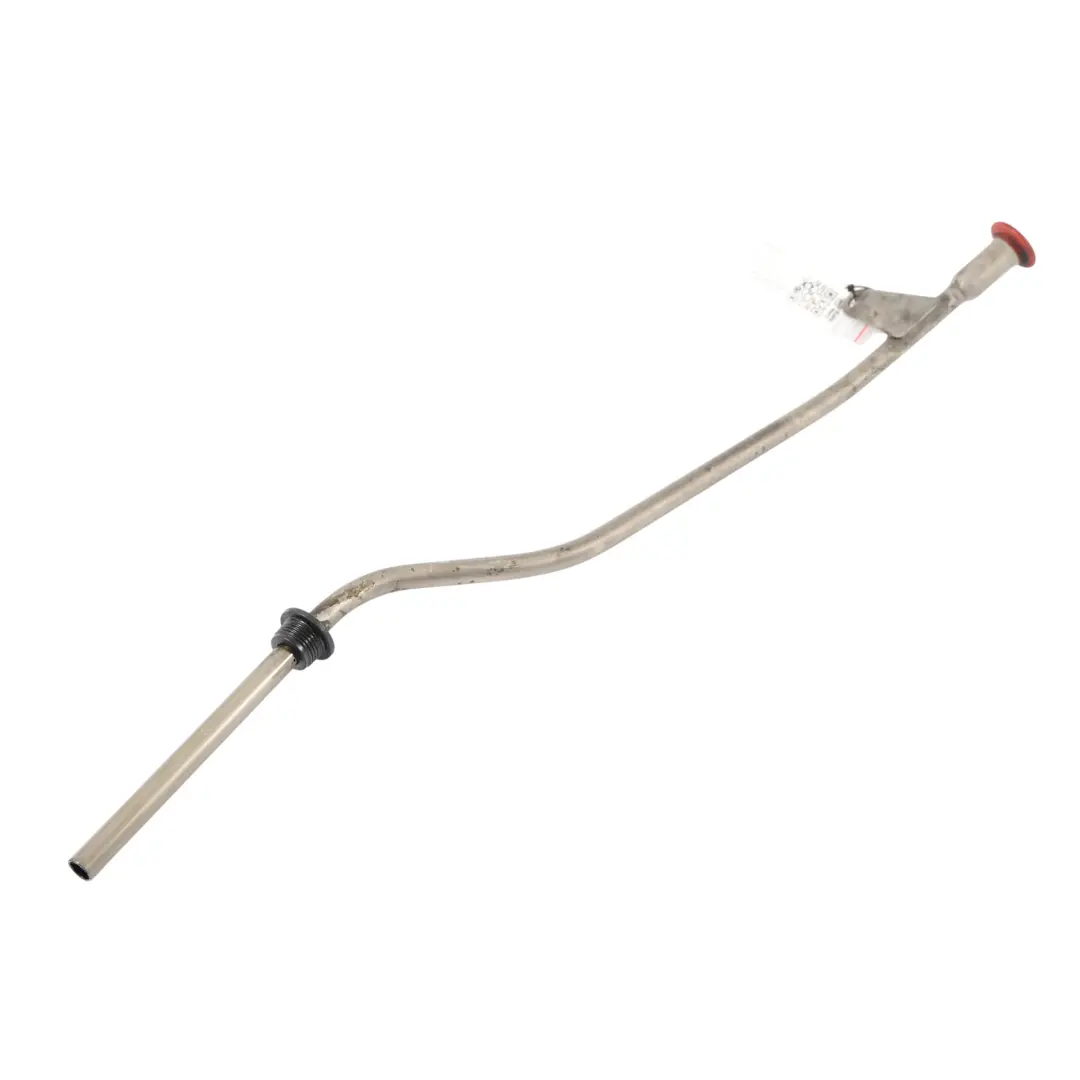

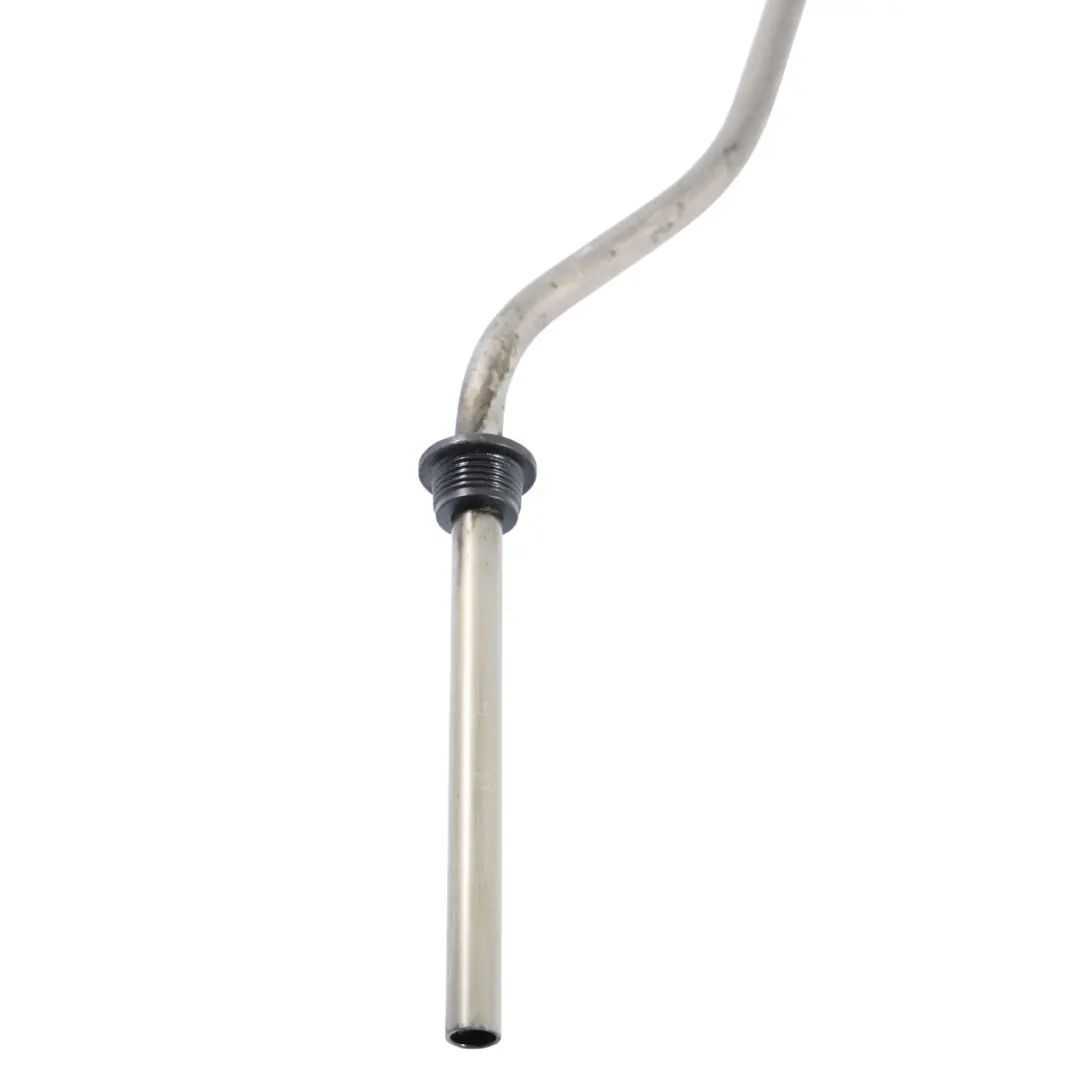

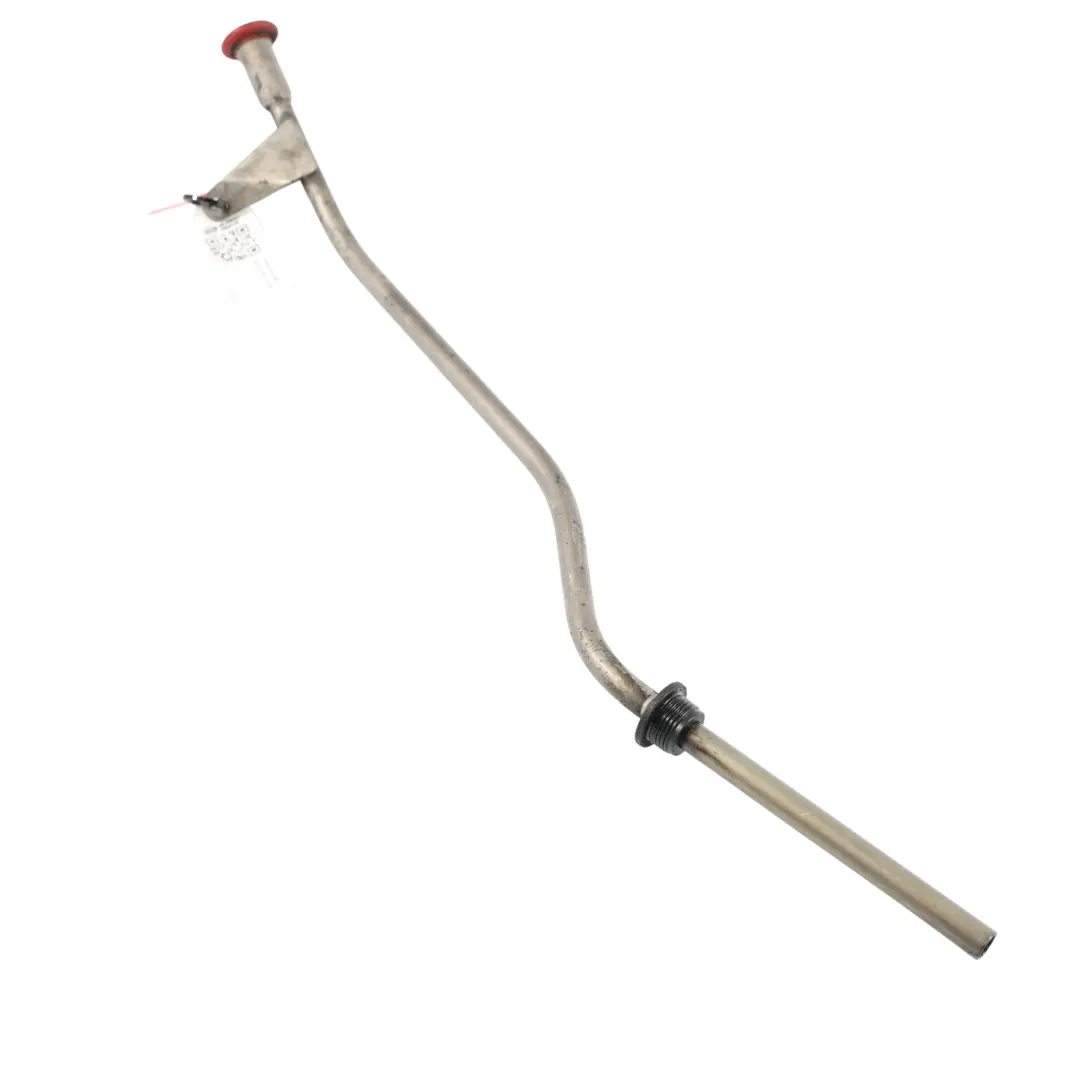

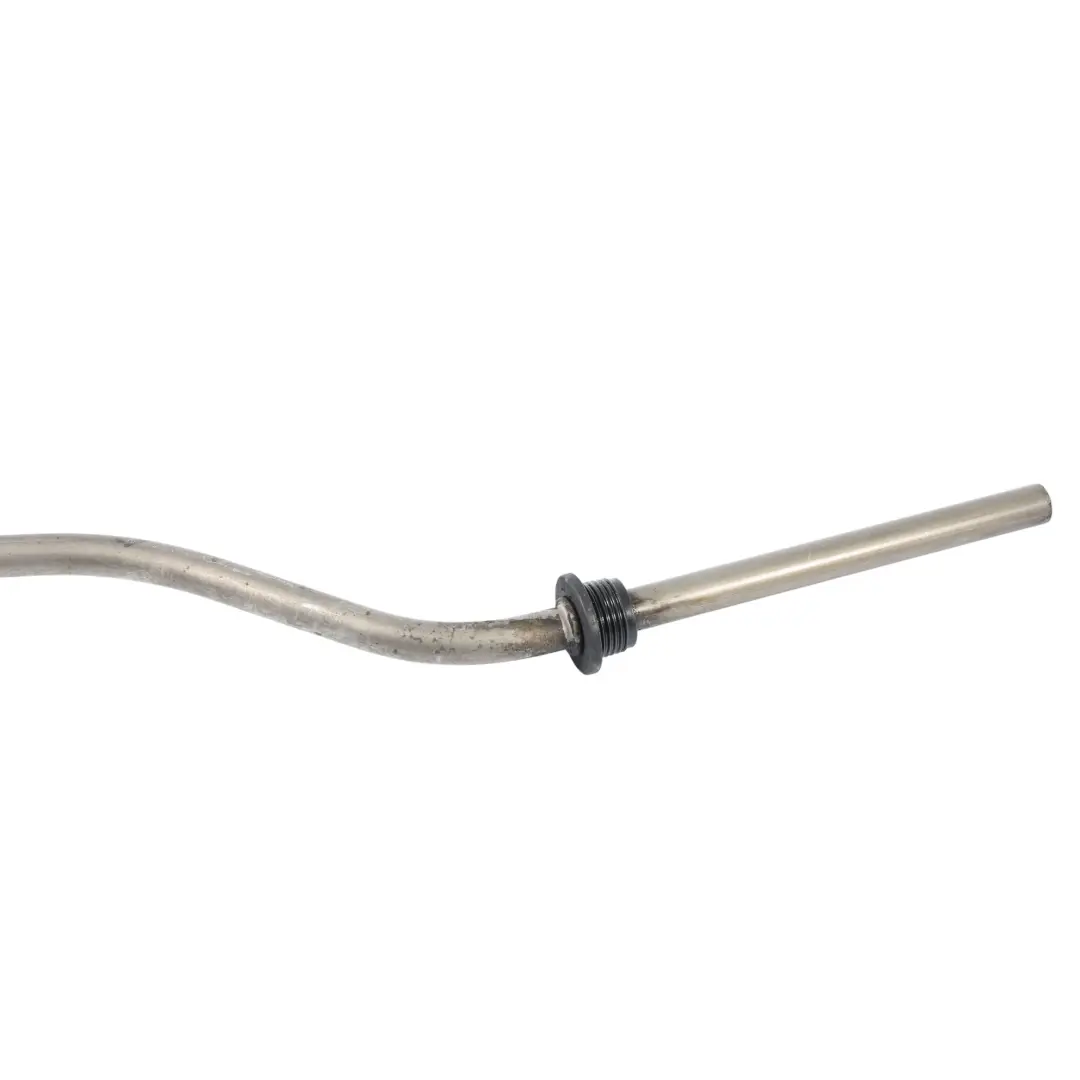

Mercedes W164 OM642.820 Diesel Engine Dipstick Oil Guide Tube A6420103266

Mercedes W164 OM642.820 Diesel Engine Dipstick Oil Guide Tube is a precision lubrication system component designed for this series of diesel engines. It allows for quick and reliable oil level checks, which is crucial for the safe operation of the power unit. Thanks to its factory-fit design for Mercedes, it ensures convenient access for measurement and stable guidance of the dipstick within the tube.

Specifications and technical data

• SKU: A6420103266
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A6420103266
• Substitutable numbers: A6420103266, A 642 010 32 66
• Fuel type: Diesel
• Category: Oil Drain Plugs, Filler Caps & Dipsticks

Purpose and function in the lubrication system

The dipstick and guide tube in the OM642.820 diesel engine are responsible for monitoring the operating oil level in the oil pan. A correct reading is essential to maintain proper lubrication pressure, reduce wear on moving parts, and minimize the risk of engine overheating. The design, tailored to the Mercedes W164, guarantees the correct positioning of the measuring tip relative to the oil pan, which translates into repeatable and clear readings.

This element belongs to the Oil drain plugs, filler caps, and dipsticks group, which are components responsible for the maintenance of the oil system – from checking levels and topping up to changing the lubricant. A properly selected dipstick and guide tube facilitate regular inspections and allow for the quick detection of potential irregularities, such as excessive oil consumption or foaming.

Benefits of using an original component

Using a dedicated dipstick and guide tube in a diesel engine offers a number of practical benefits:

• Reliable oil level reading – the measurement scale and guide length are adapted to the specific configuration of the power unit.
• Stable guidance of the dipstick in the tube – reduces the risk of bending and damage during frequent service checks.
• Proper sealing in the socket – reduces the possibility of contaminants entering the measurement channel.
• Consistency with the factory engine bay architecture – ergonomics of access and operation are maintained.

In the case of diesel units, regular oil level checks are particularly important due to higher thermal and mechanical loads. A properly selected dipstick and guide tube helps maintain stable engine operating conditions and supports the long service life of components.

Operation in a diesel engine

Diesel-powered engines operate under higher pressure and generate greater loads on the lubrication system than many gasoline units. For this reason, components responsible for oil monitoring must ensure:

• adequate resistance to the oil's operating temperature,
• dimensional stability during long-term operation,
• readability of indications even during frequent heating and cooling cycles.

The dipstick and guide tube designed for the OM642.820 diesel engine meet these requirements, allowing the user to quickly check the lubricant level after every start-up, long trip, or service. It is a practical solution that supports the safe and predictable operation of the diesel power unit.

Component condition and service application

The offered component comes from the secondary market, making it an attractive choice for maintenance repairs, replacing a damaged dipstick, or completing missing lubrication system elements. A used element of this type allows for the restoration of full oil level measurement functionality without the need to invest in a new part, while maintaining the factory fit for the Mercedes design.

It works well both during standard inspections and more extensive service work, such as replacing the oil pan, seals, or engine accessory components. Precise oil level control after every such operation is crucial, and the correct dipstick and guide tube significantly facilitate it.

If you are planning a comprehensive repair or upgrade of the engine area in your Mercedes and need other elements from the same group, such as oil drain plugs, filler caps, or additional dipsticks, check the available parts in the Mercedes oil drain plugs, filler caps, and dipsticks category.

Related technical issues

Oil level monitoring is closely related to the operating temperature of the power unit. An incorrect amount of lubricant can accelerate overheating and thus strain the cooling system. It is therefore worth looking at the lubrication and cooling systems as cooperating systems that together determine the durability of the engine. You can find more practical information on this topic in the article Engine cooling system – overheating, repair, and used radiators, where the impact of operating temperature on the service life of the power unit is discussed.
