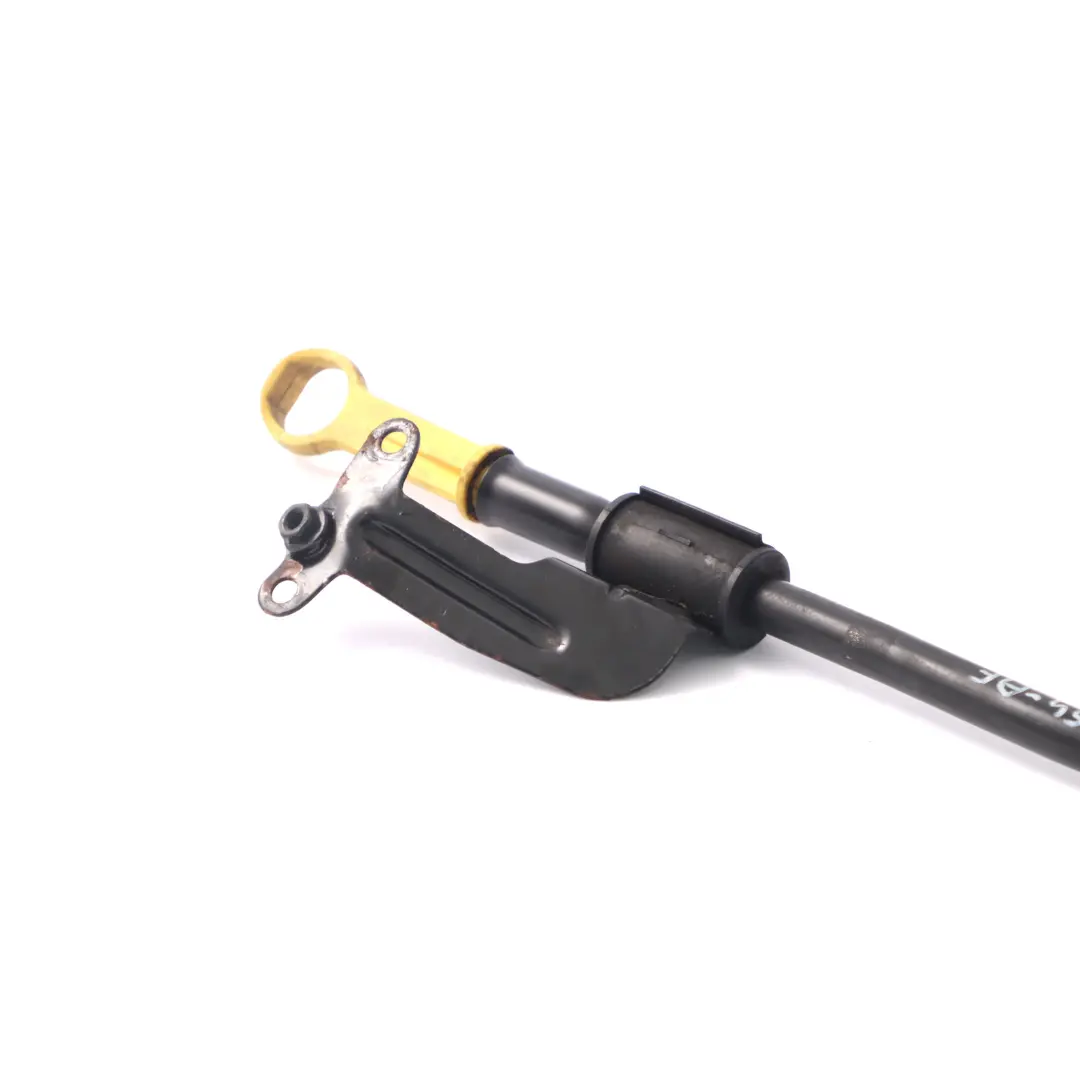

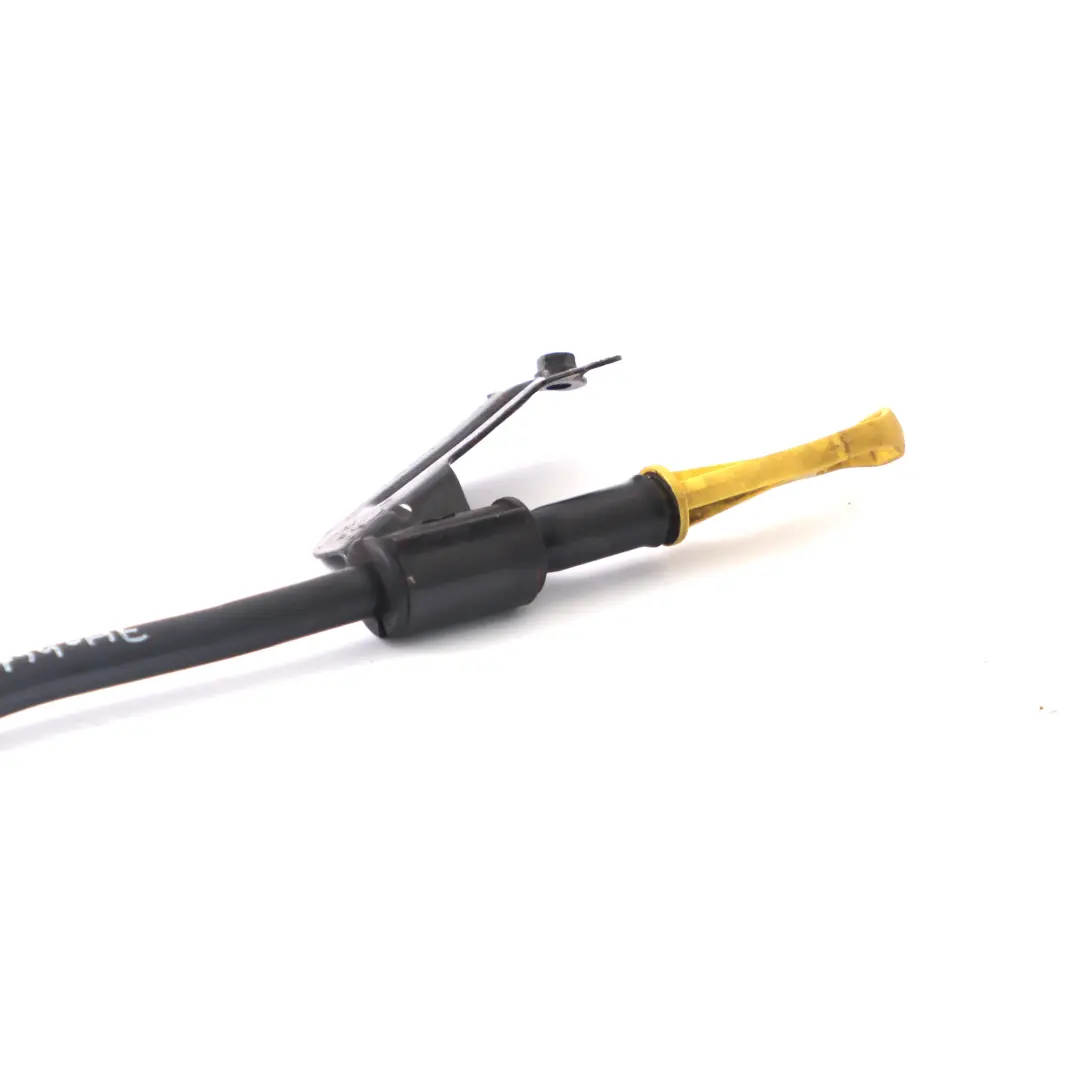

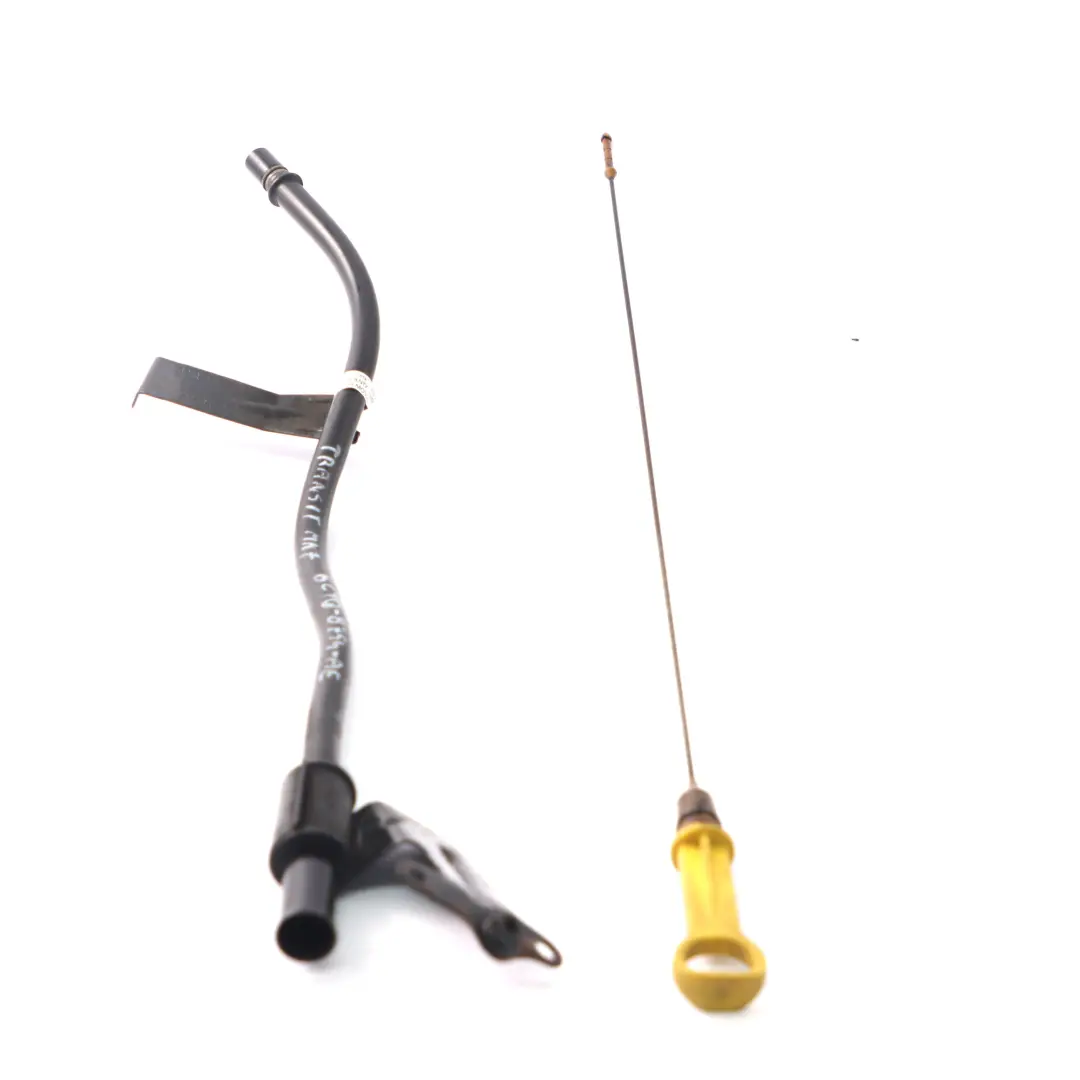

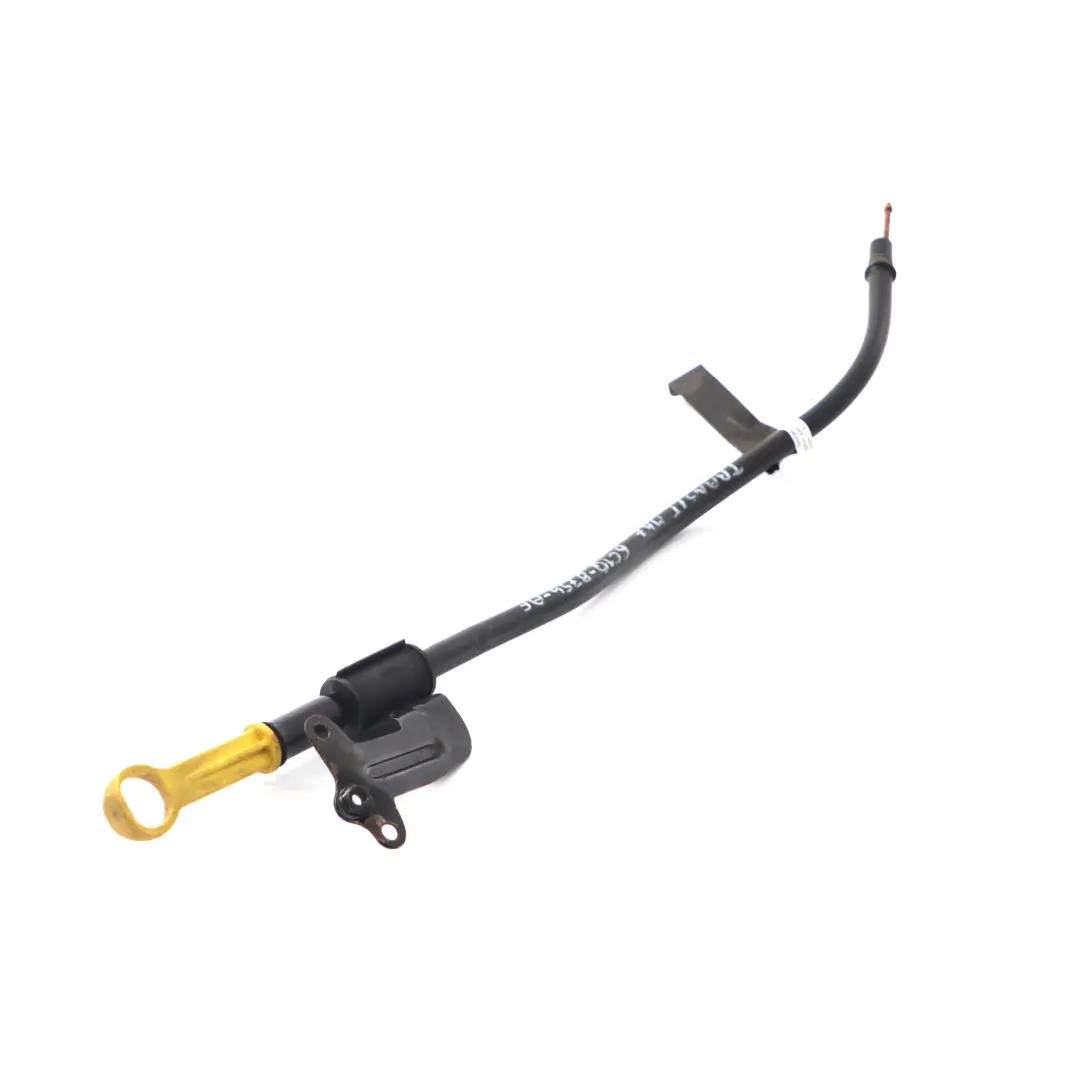

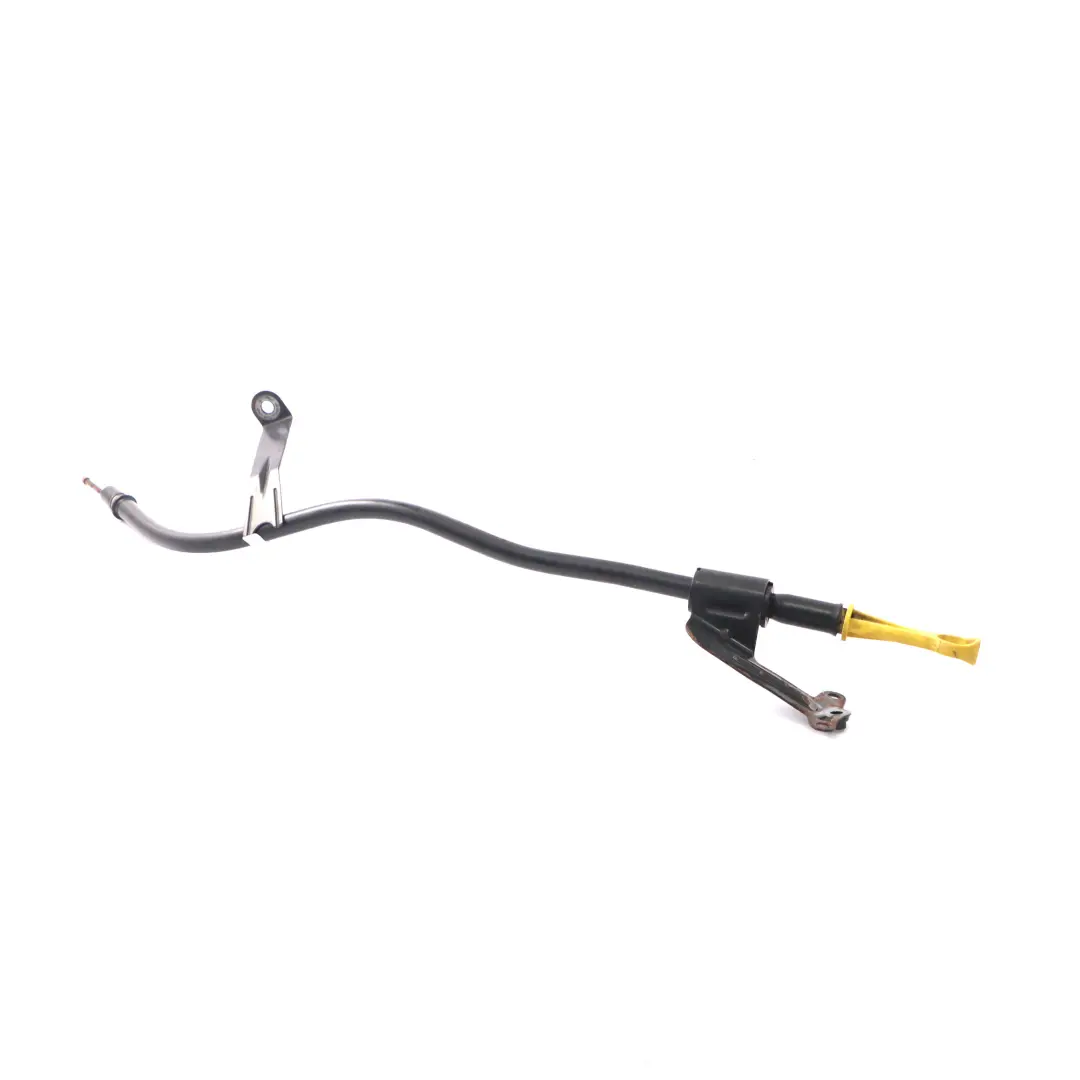

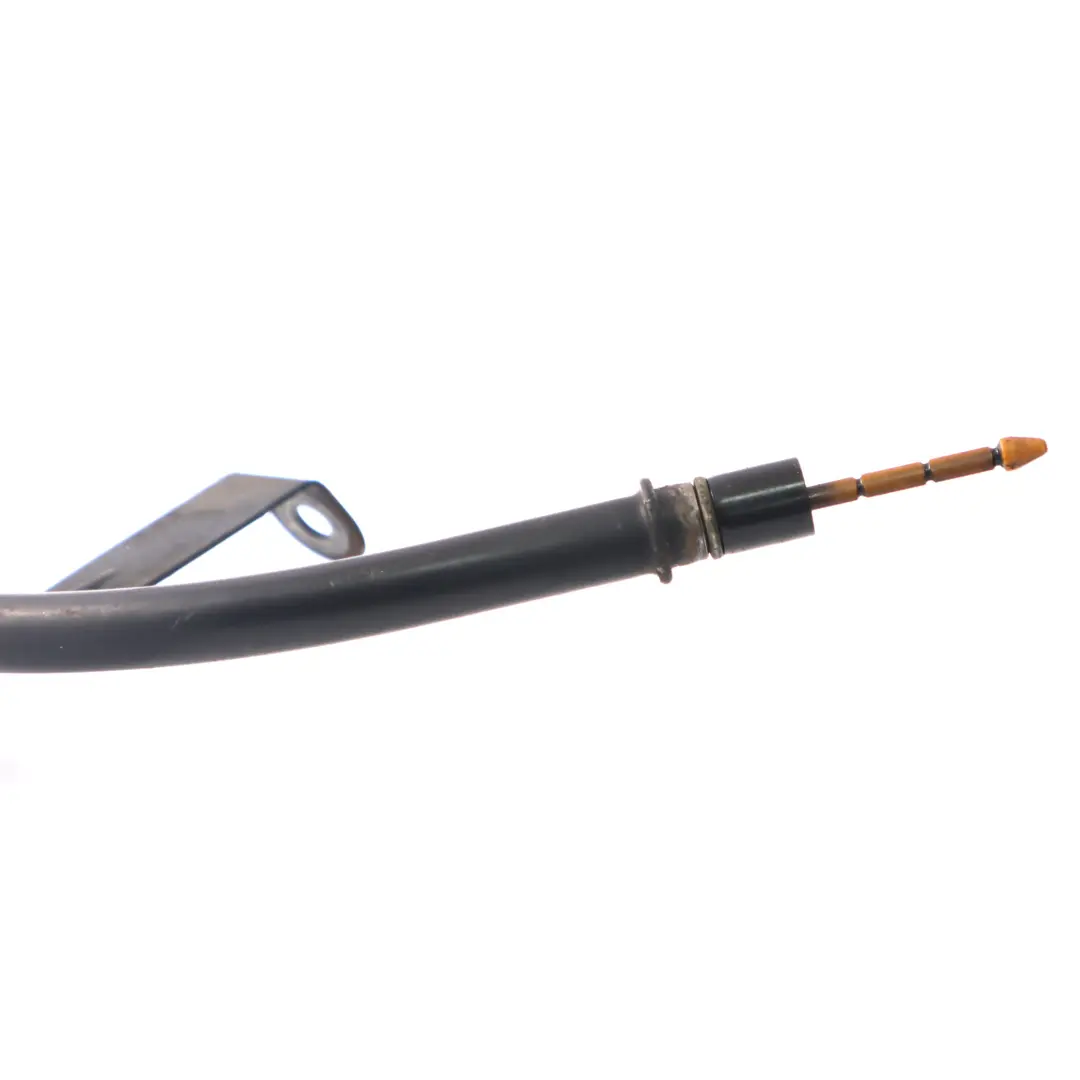

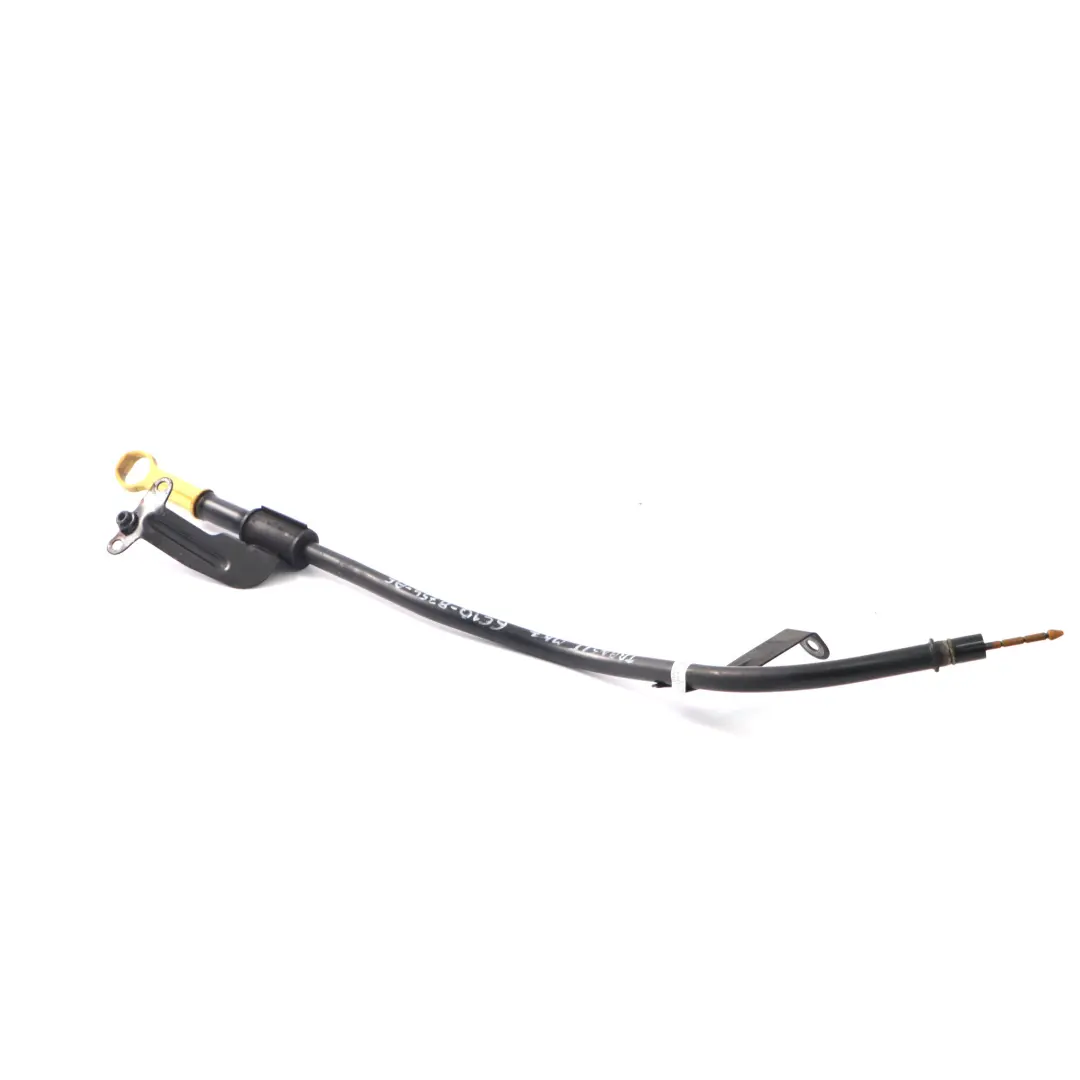

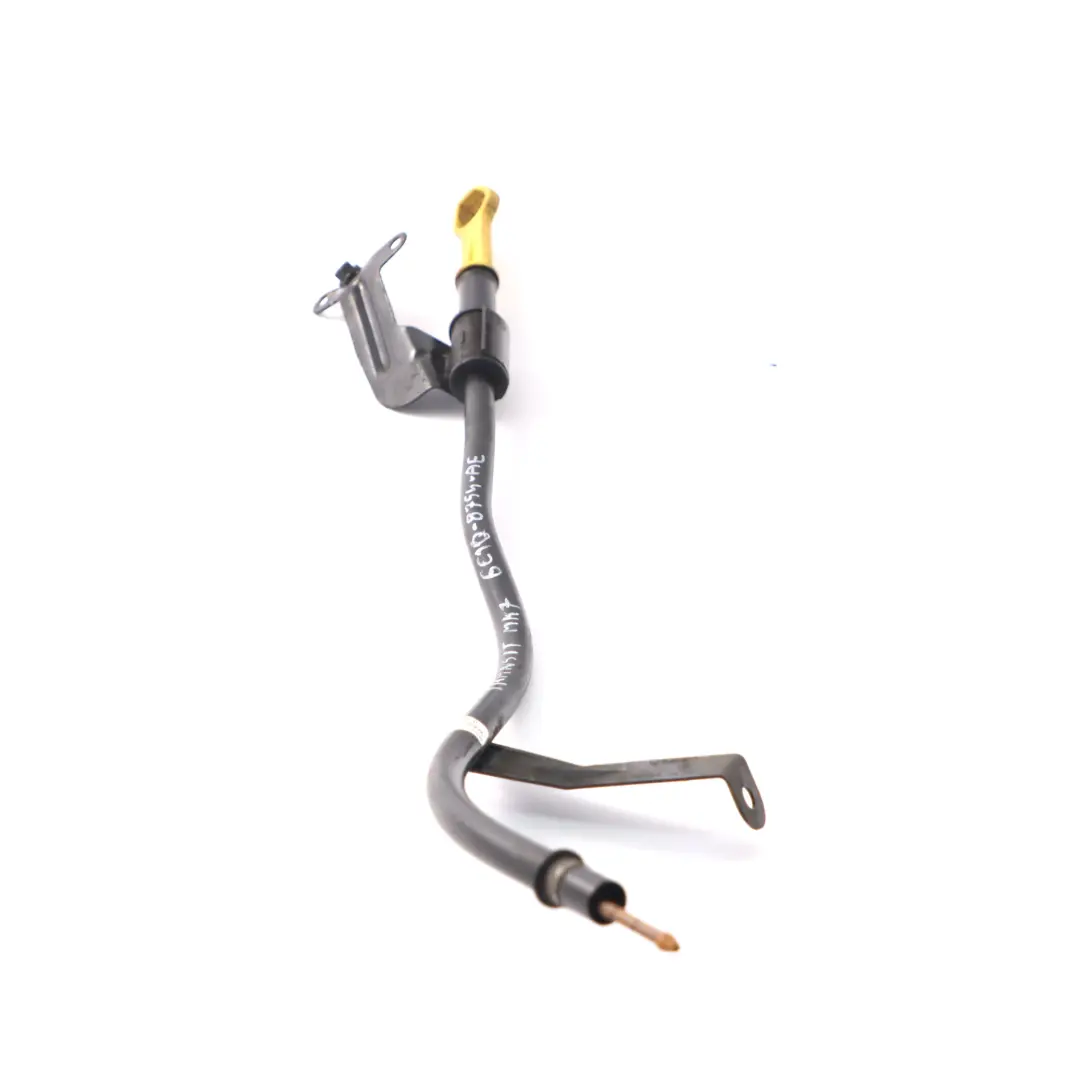

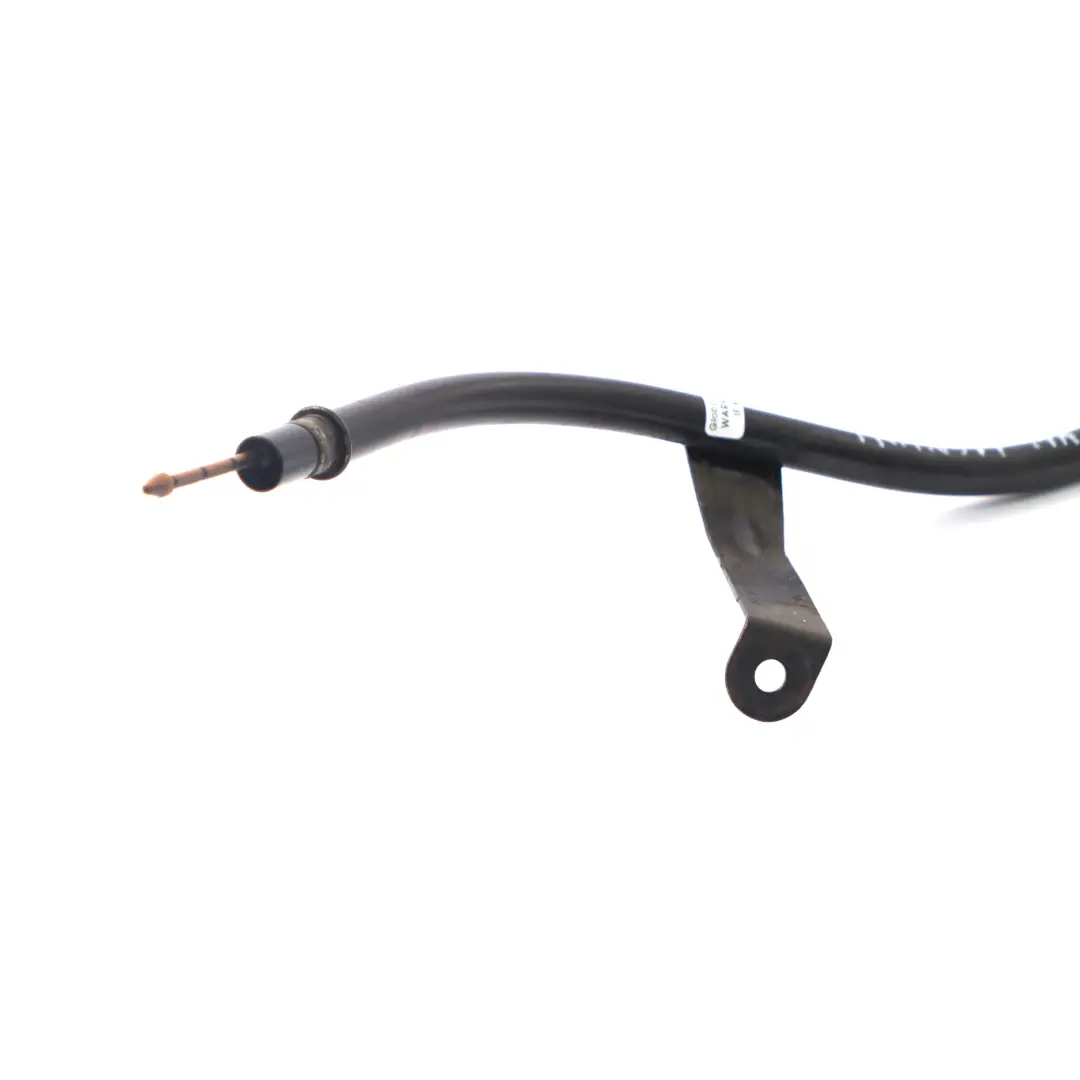

Ford Transit MK7 Diesel Oil Dipstick Level Engine Guide Tube 6C1Q-8754-AE

Ford Transit MK7 Diesel Oil Dipstick Level Engine Guide Tube is a precision control component of the lubrication system, designed for TDCi diesel engines. It allows for quick and clear checking of the oil level, which is crucial for the durability of the power unit. By using a solution that complies with the factory standards of the Ford brand, the dipstick ensures a proper fit into the guide tube and a secure seat in the oil pan.

Specifications and technical data

• SKU: 6C1Q8754AE
• Mark: Ford
• Condition: Used
• OEM Part Number: 6C1Q8754AE
• Substitutable numbers: 6C1Q8754AE, 6C1Q-8754-AE
• Fuel type: Diesel
• Category: Oil Drain Plugs, Filler Caps & Dipsticks

Purpose and function in the TDCi diesel engine

The Ford Transit MK7 Diesel Oil Dipstick Level Engine Guide Tube operates within the lubrication system of a diesel engine, where monitoring the oil level is particularly important due to high thermal and mechanical loads. Correct oil level reading allows you to:

• maintain proper pressure in the lubrication system,
• minimize the risk of bearing and turbocharger seizure,
• detect excessive oil consumption or leaks,
• prevent the engine from running with an oil level that is too low or too high.

The component is adapted to the specifics of diesel units, where oil operates at elevated temperatures and must maintain stable lubricating properties.

Construction and fit to the lubrication system

The dipstick has been designed to provide a repeatable, clear reading of the oil level in the pan. The properly shaped working tip works with the measurement scale, which facilitates level assessment on both cold and warm engines. The design provides the appropriate stiffness and flexibility of the rod, thanks to which the dipstick moves freely in the guide tube, does not jam, and does not cause damage to seals.

The original origin from the Oil drain and filler plugs and dipsticks group means that the factory working dimensions are maintained, which is important for the correct position of the dipstick tip relative to the oil level in the pan.

Benefits of using an original Ford dipstick

Using the correct oil dipstick in a Ford Transit MK7 TDCi translates into a number of practical operational benefits:

• Reliable oil level reading – the measurement scale corresponds to the factory minimum and maximum values for a given engine.
• Stable seating in the guide tube – reduces the risk of slipping out or leaks around the oil filler.
• Compatibility with the diesel engine – the length and geometry of the rod are adapted to the specific design of the TDCi unit.
• Trouble-free service – easy removal and insertion of the dipstick, which speeds up routine checks.

Thanks to this, the dipstick is a practical solution for users who want to keep the lubrication system within the parameters specified by the vehicle manufacturer.

Condition of the component and use in service practice

The offered oil dipstick comes from a group of used parts, which makes it an attractive cost alternative while maintaining the functionality required in daily operation. This is particularly important in commercial vehicles, such as the Transit, where both reliability and optimization of service expenses count.

The dipstick will prove useful for:

• replacing a damaged or lost oil dipstick,
• restoring the completeness of the lubrication system after engine repairs,
• fleet service, where the repeatability of oil level check procedures is important.

Related lubrication and cooling system components

Oil level monitoring is closely related to the operating temperature of the power unit. In case of problems with overheating or incorrect oil temperature, it is worth analyzing the condition of the entire cooling and lubrication system. A detailed discussion of the impact of the liquid cooler and oil cooler on engine life can be found in the article: Engine cooling system – overheating, repair and used radiators.

If you are planning a comprehensive repair or upgrade of the engine area in your Ford and need other components from the same group, such as oil drain plugs, filler caps, or additional dipsticks, check the available parts in the category Ford oil drain and filler plugs and dipsticks.
