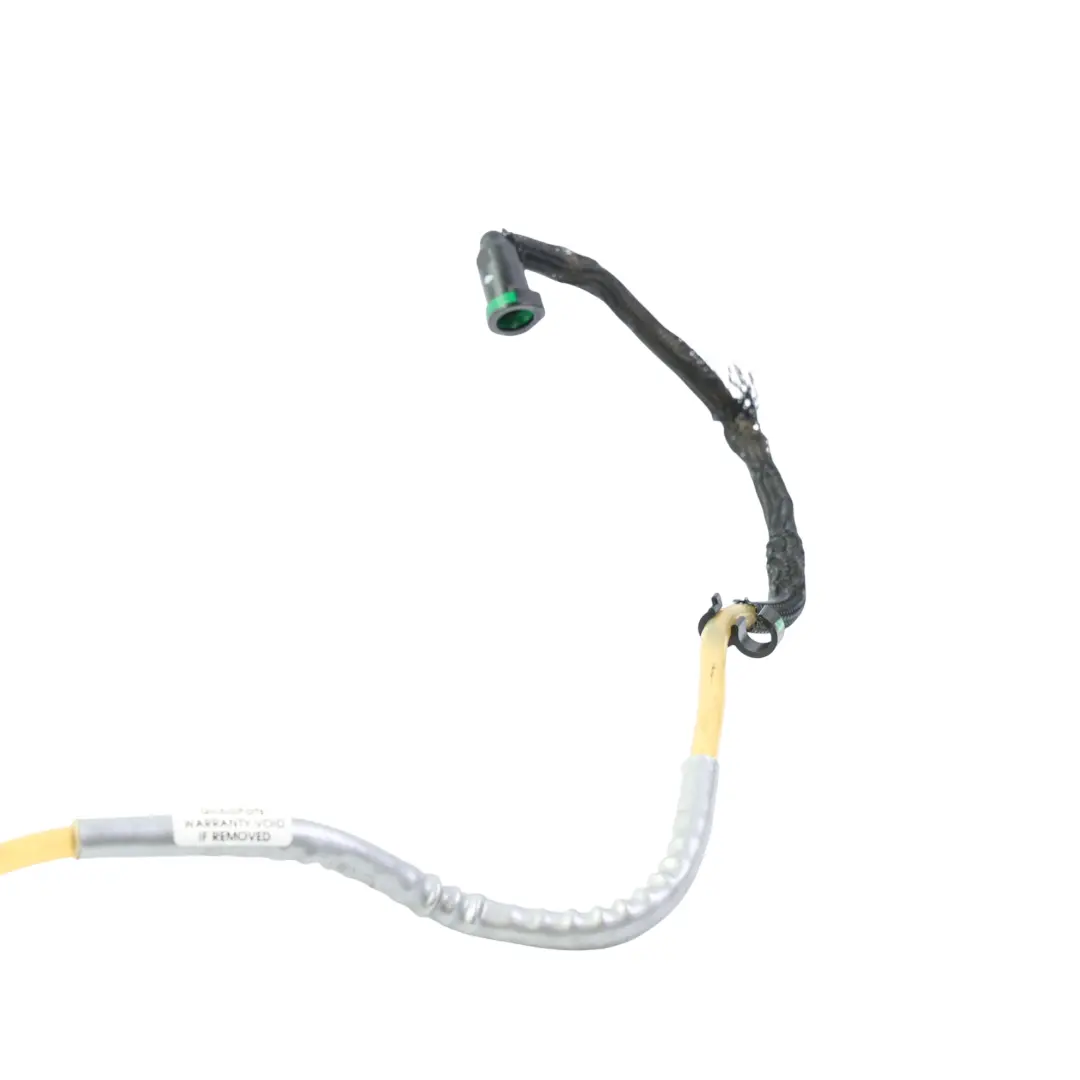

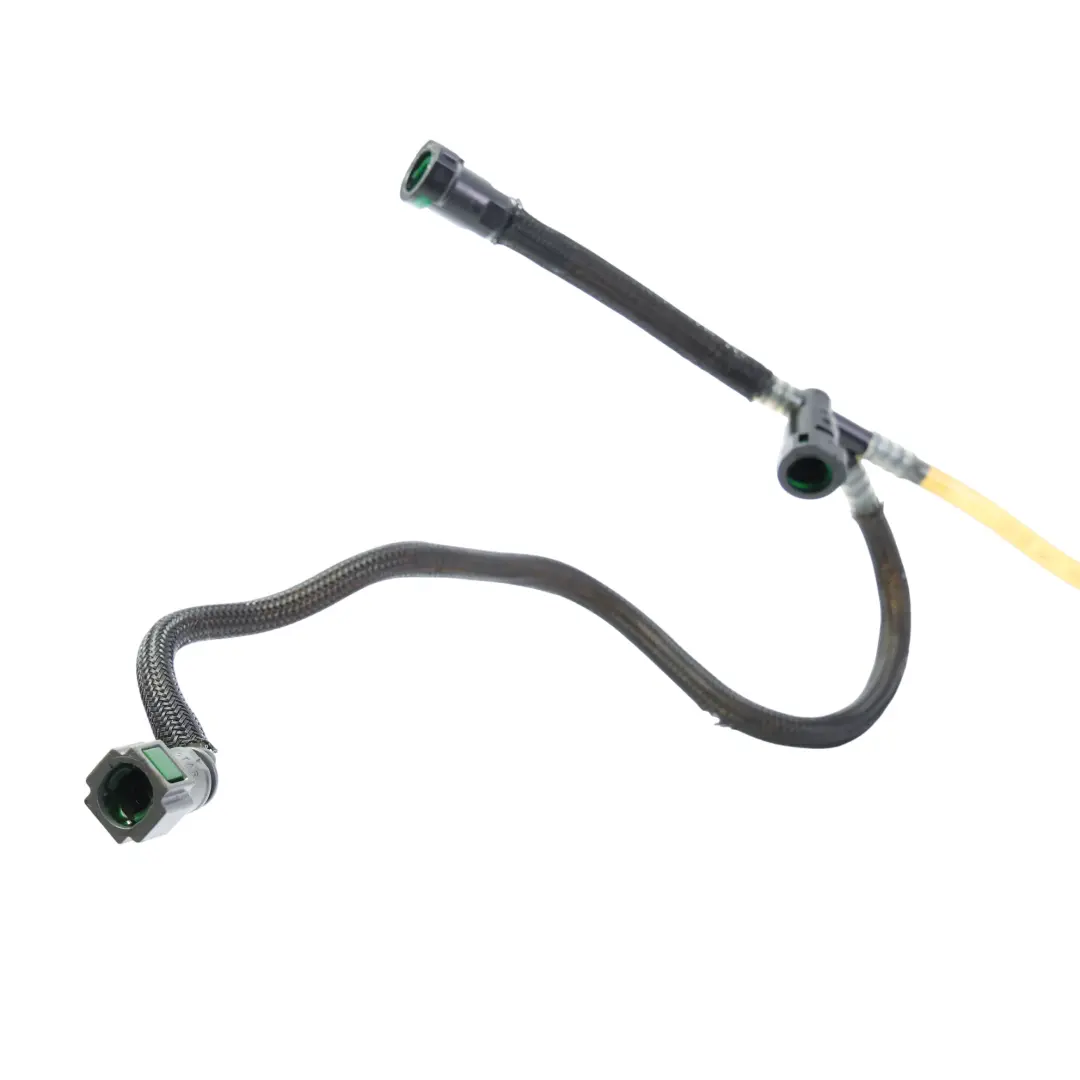

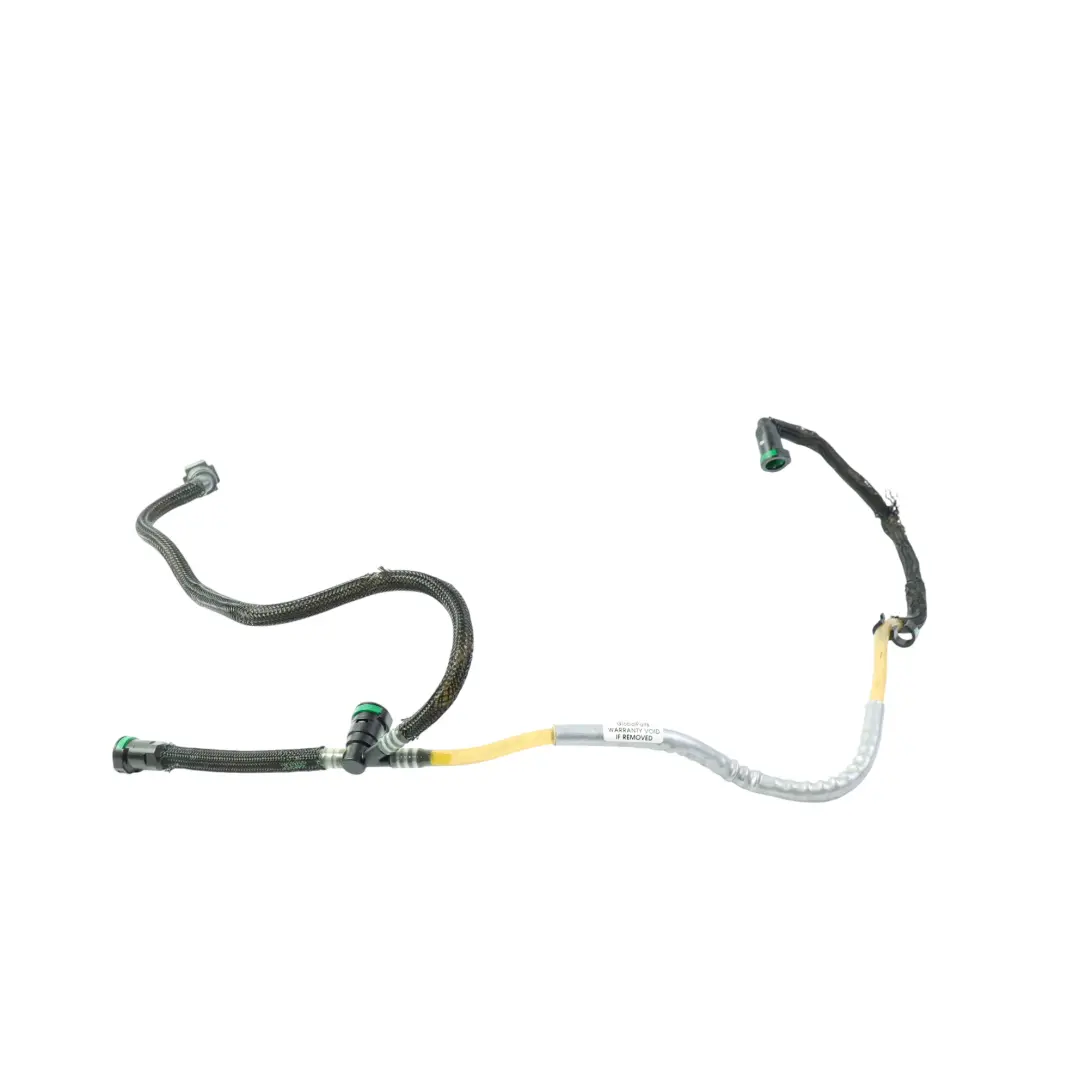

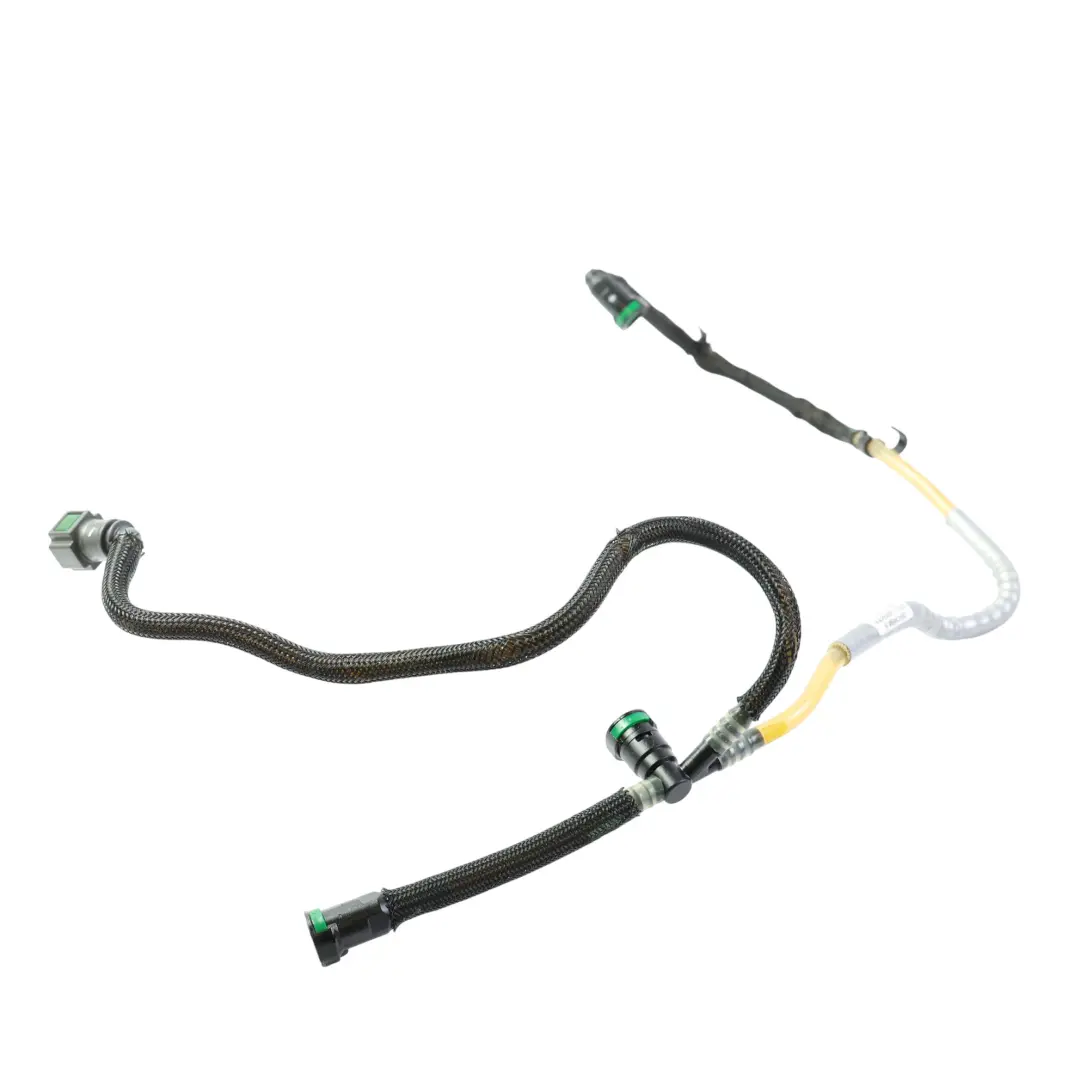

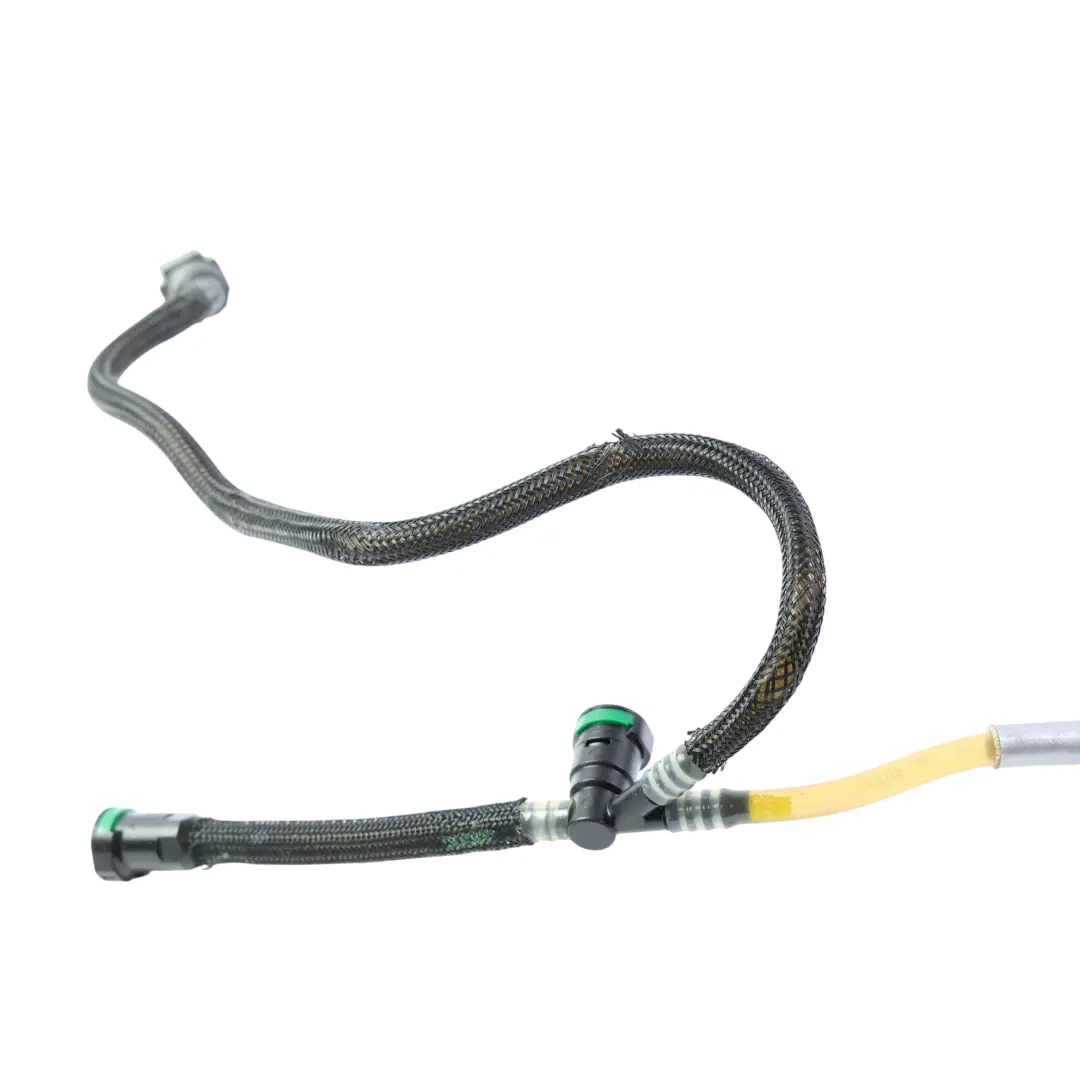

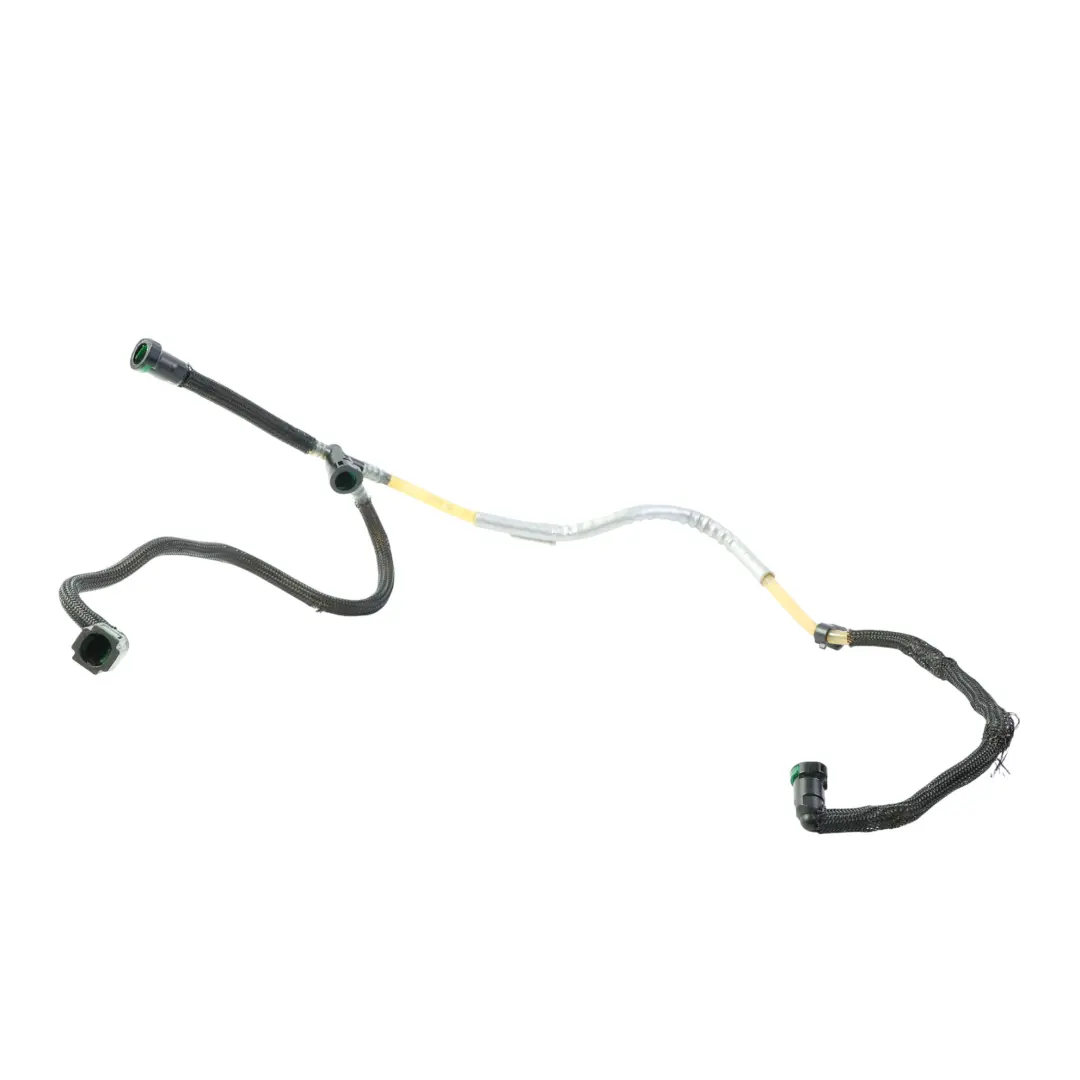

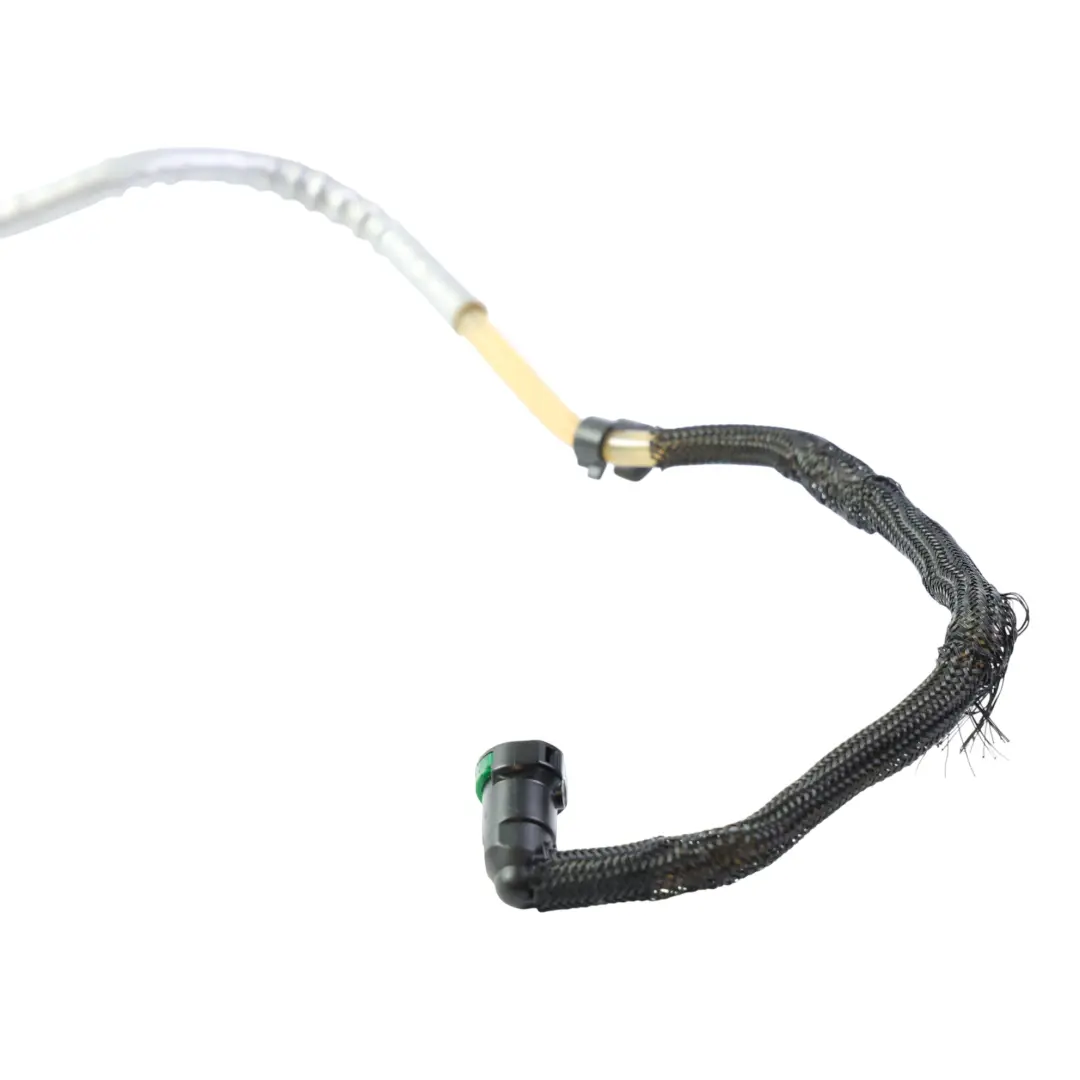

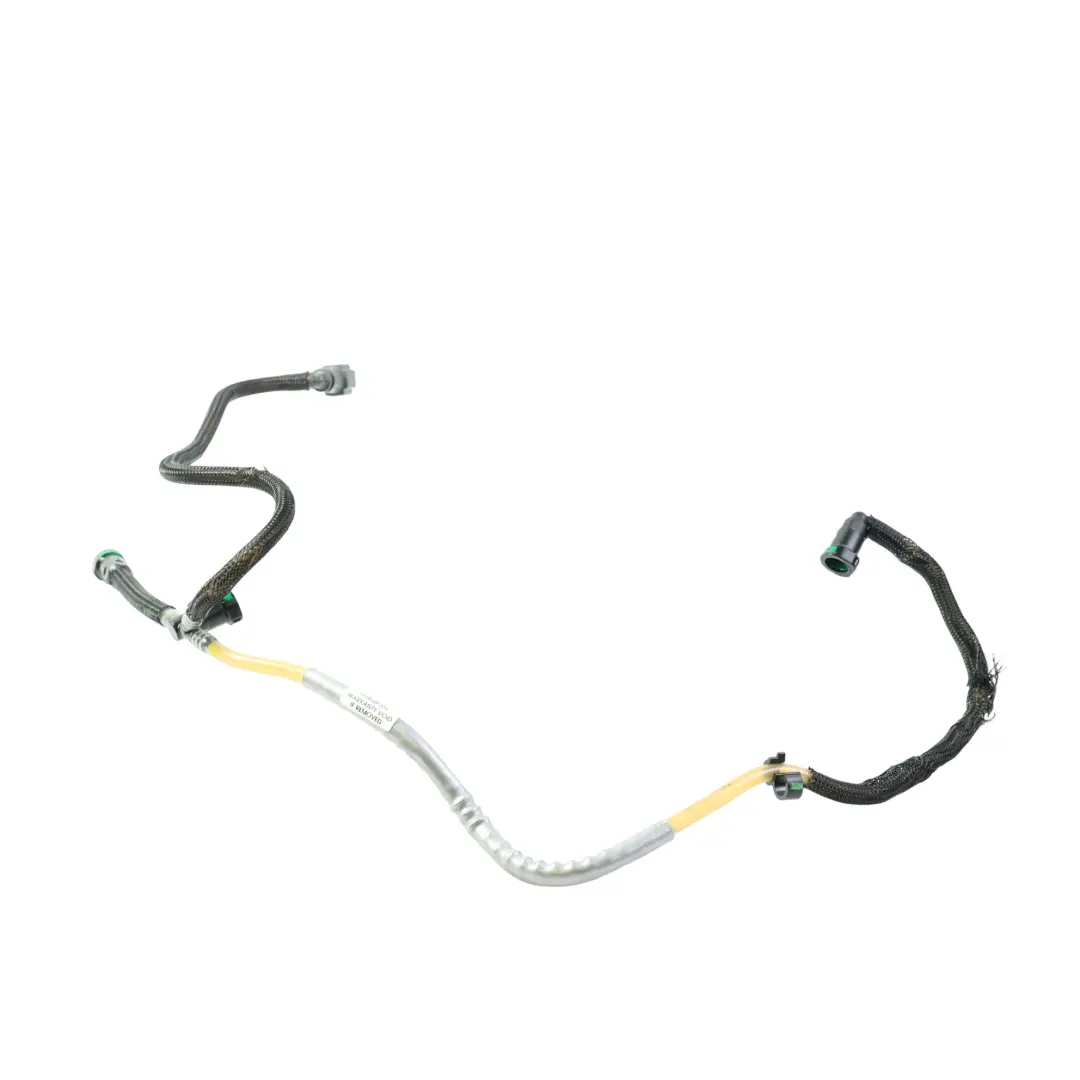

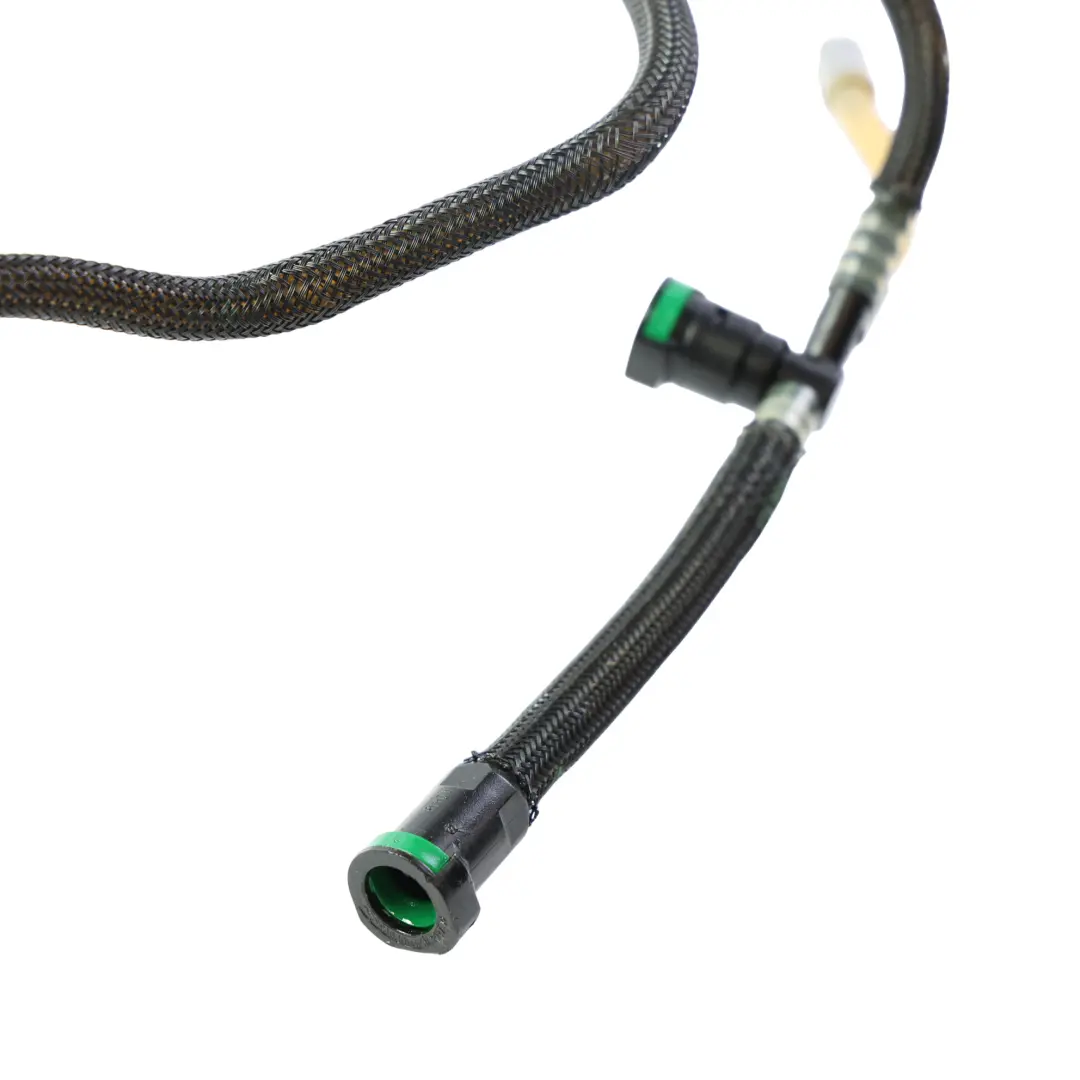

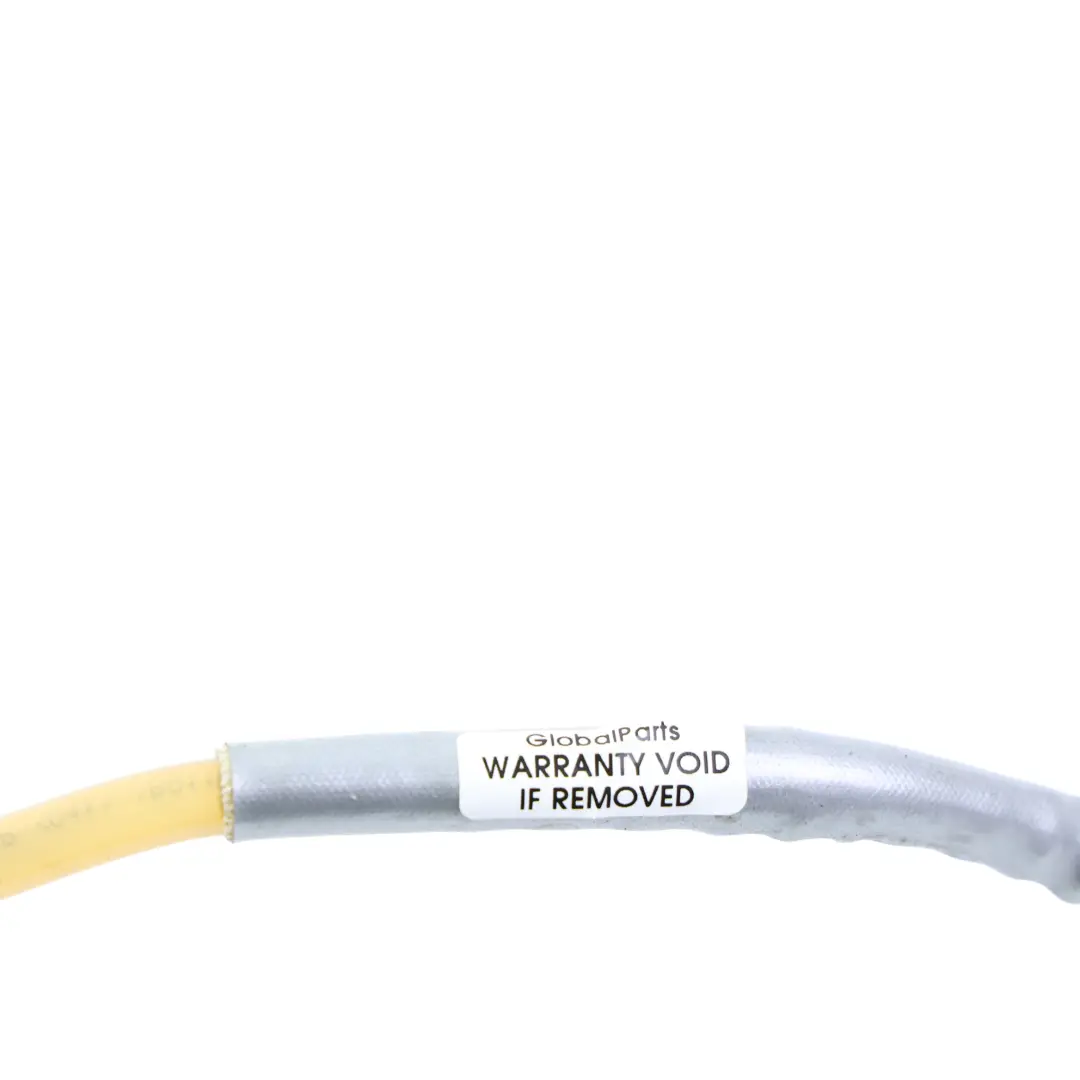

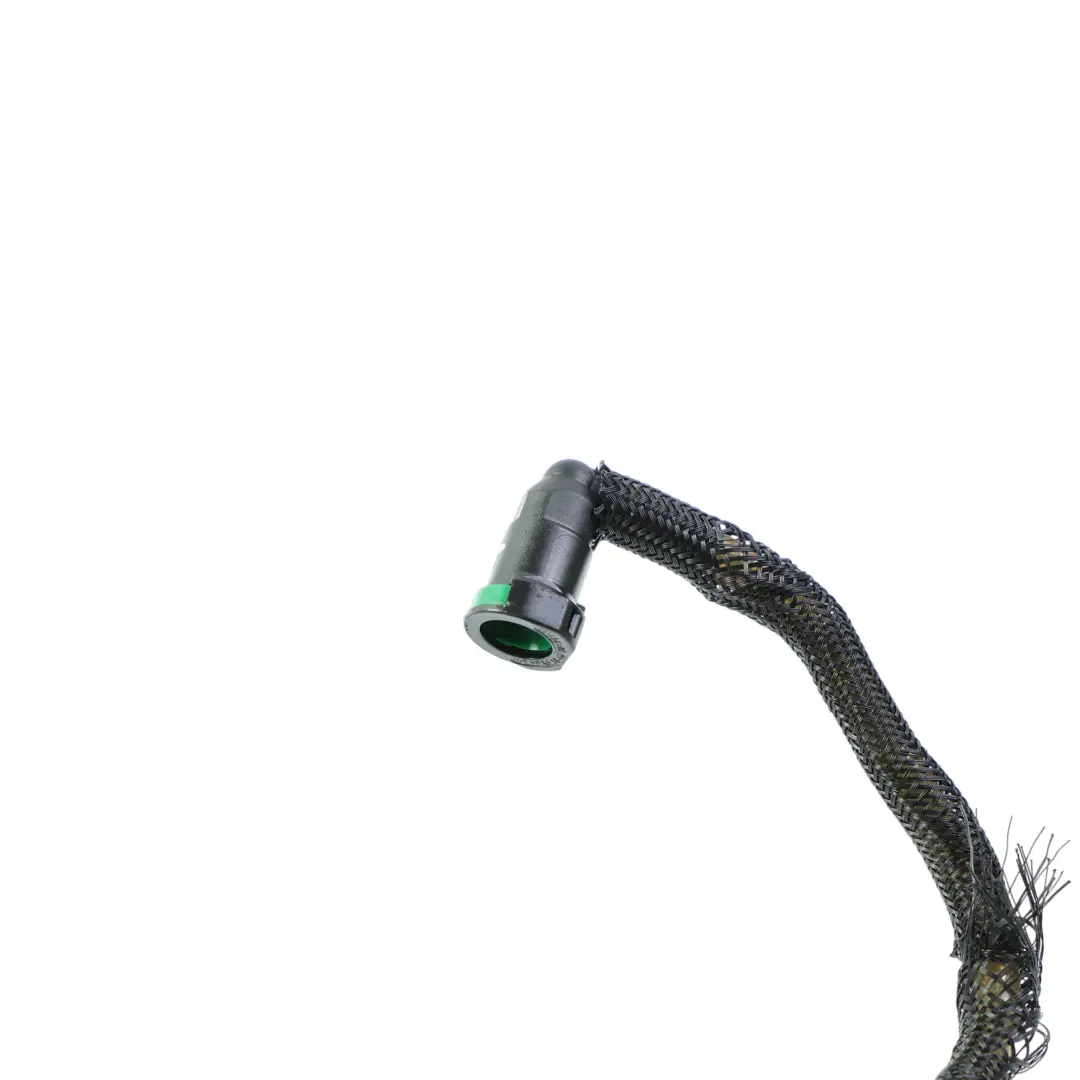

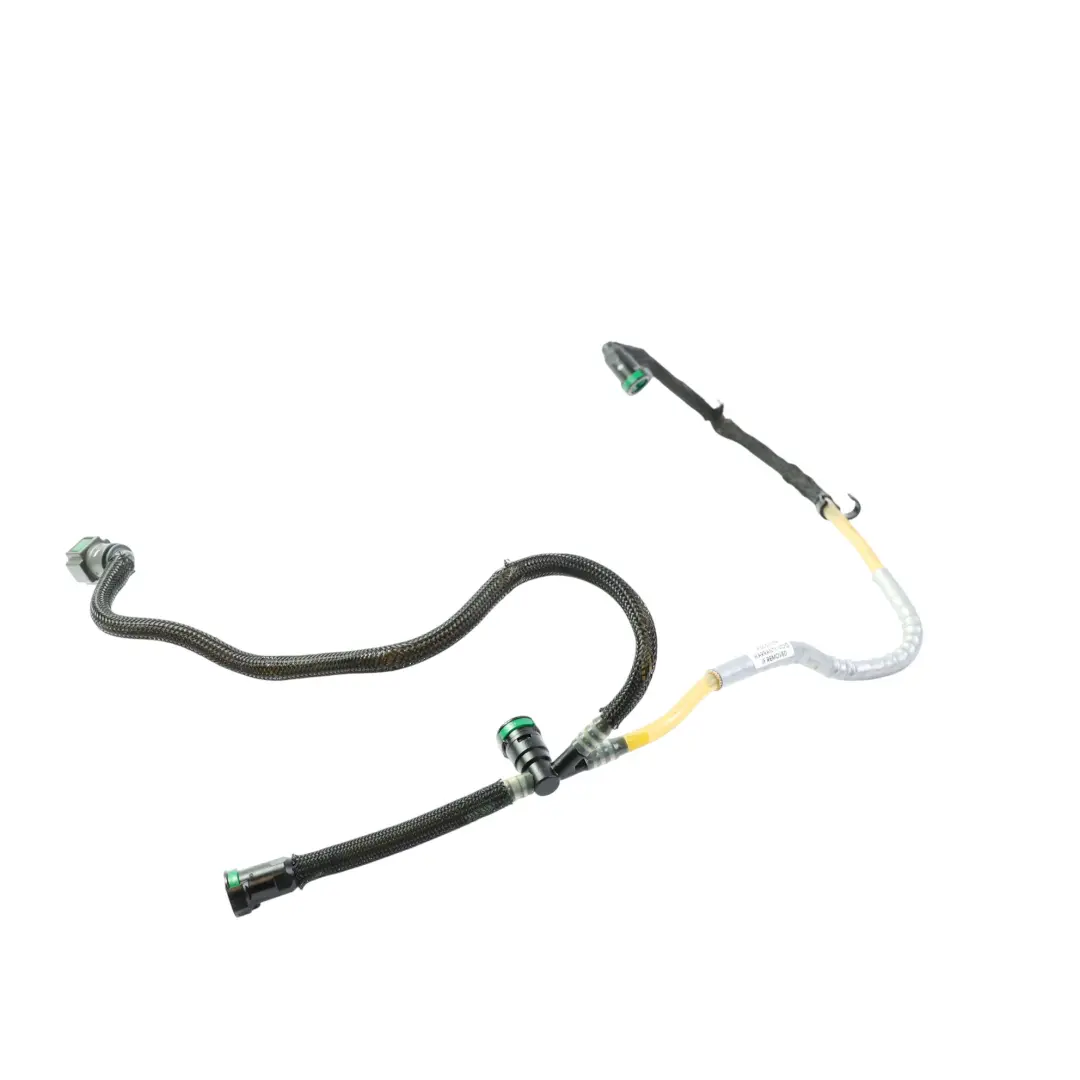

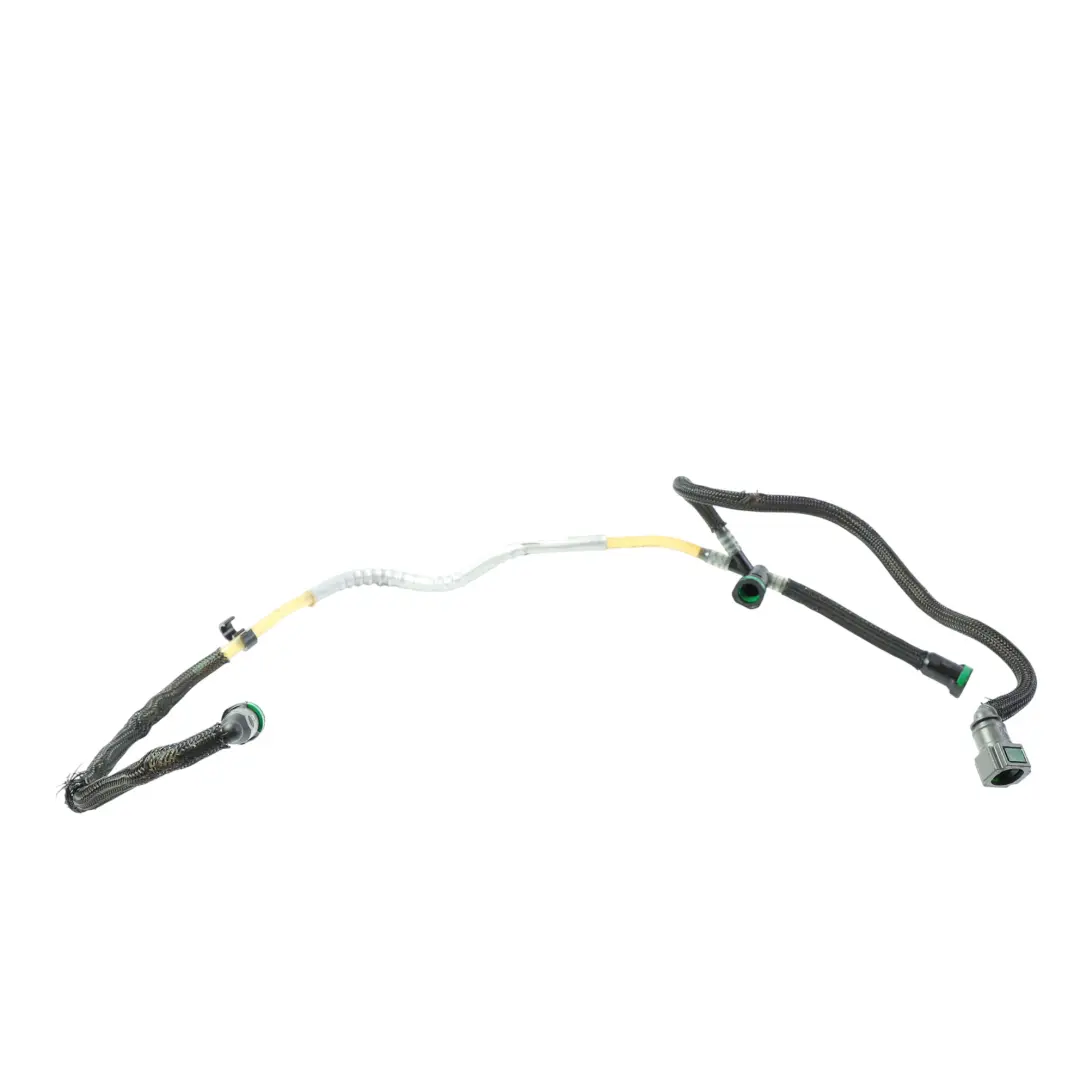

Jaguar XF X250 Fuel Injector Leak Off Pipe Hose Tube Line 2.2 Diesel JDE13608

Jaguar XF X250 Fuel Injector Leak Off Pipe Hose Tube Line 2.2 Diesel is a specialized fuel system component designed for the diesel engines of this model. It is responsible for the controlled return of excess fuel from the injectors, which promotes stable engine operation and proper diesel performance. By maintaining the factory geometry and hose diameters, it ensures proper fuel circulation in the leak-off circuit, which is crucial for both performance and injector durability.

Specifications and technical data

• SKU: JDE13608
• Mark: Jaguar
• Condition: Used
• OEM Part Number: JDE13608
• Substitutable numbers: JDE13608, BG9Q9K022AA, BG9Q-9K022-AA
• Fuel type: Diesel
• Part type: Hose
• Category: Hoses, Lines & Pipes

Purpose and function in the fuel system

The injector leak-off pipe in a diesel engine is responsible for draining excess fuel from the rail or injector bodies back into the system. In the 2.2 Diesel unit used in the Jaguar XF X250, this component:

• stabilizes pressure in the return section of the injection system,
• limits local fuel overheating in the injector area,
• supports smooth operation of all cylinders,
• reduces the risk of air entering the return circuit. A properly selected leak-off pipe is particularly important in modern high-pressure diesel systems, where operating tolerances are very tight and the quality of fuel flow directly translates into engine performance and exhaust emissions.

Construction and fitment for Jaguar XF X250

The offered item belongs to the Pipes, hoses and tubes group, which means it has been designed to operate in a diesel fuel environment and the elevated temperatures of the engine bay. The design of the pipe is adapted to the Jaguar XF X250 injection system, ensuring that it:

• maintains the correct routing in the engine bay, minimizing the risk of chafing and kinking,
• allows for proper connection to the injector nozzles and the return line,
• maintains connection tightness under typical operating conditions of a diesel engine. Such fitment reduces the need for installation modifications and allows for maintaining the factory logic of hose routing in the vehicle.

Benefits of using the original leak-off pipe

Using a leak-off pipe dedicated to the Jaguar XF X250 with a 2.2 Diesel engine provides measurable operational benefits:

• Stable injection system operation – proper fuel flow in the leak-off circuit promotes even dosing and reduces idle fluctuations.
• Better injector protection – an efficient return circuit helps drain excess fuel and heat, which affects the service life of precision injection components.
• Leak reduction – a properly fitted pipe reduces the risk of leaks in the rail and injector area, which is important for safety and engine bay cleanliness.
• Consistency with factory configuration – maintaining the original routing of the pipes facilitates subsequent diagnostics and service.

Condition, verification and service application

The item comes from dismantling and is intended for reinstallation in a vehicle with a diesel engine. This type of leak-off pipe will work well both when replacing a single damaged section and during broader service work within the fuel system, e.g., during injector regeneration or when removing leaks in the fuel circuit. Due to the nature of operation in a diesel system, installation in a workshop environment or by a person with experience with injection systems is recommended, while maintaining connection cleanliness and checking for leaks after starting the engine.

System expansion – other pipes for Jaguar

If you are planning a comprehensive repair or upgrade of the engine area in your Jaguar and need other elements from the same group, such as flexible fuel lines, vacuum hoses, or fuel return tubes, check the available parts in the Jaguar pipes, hoses and tubes category.
