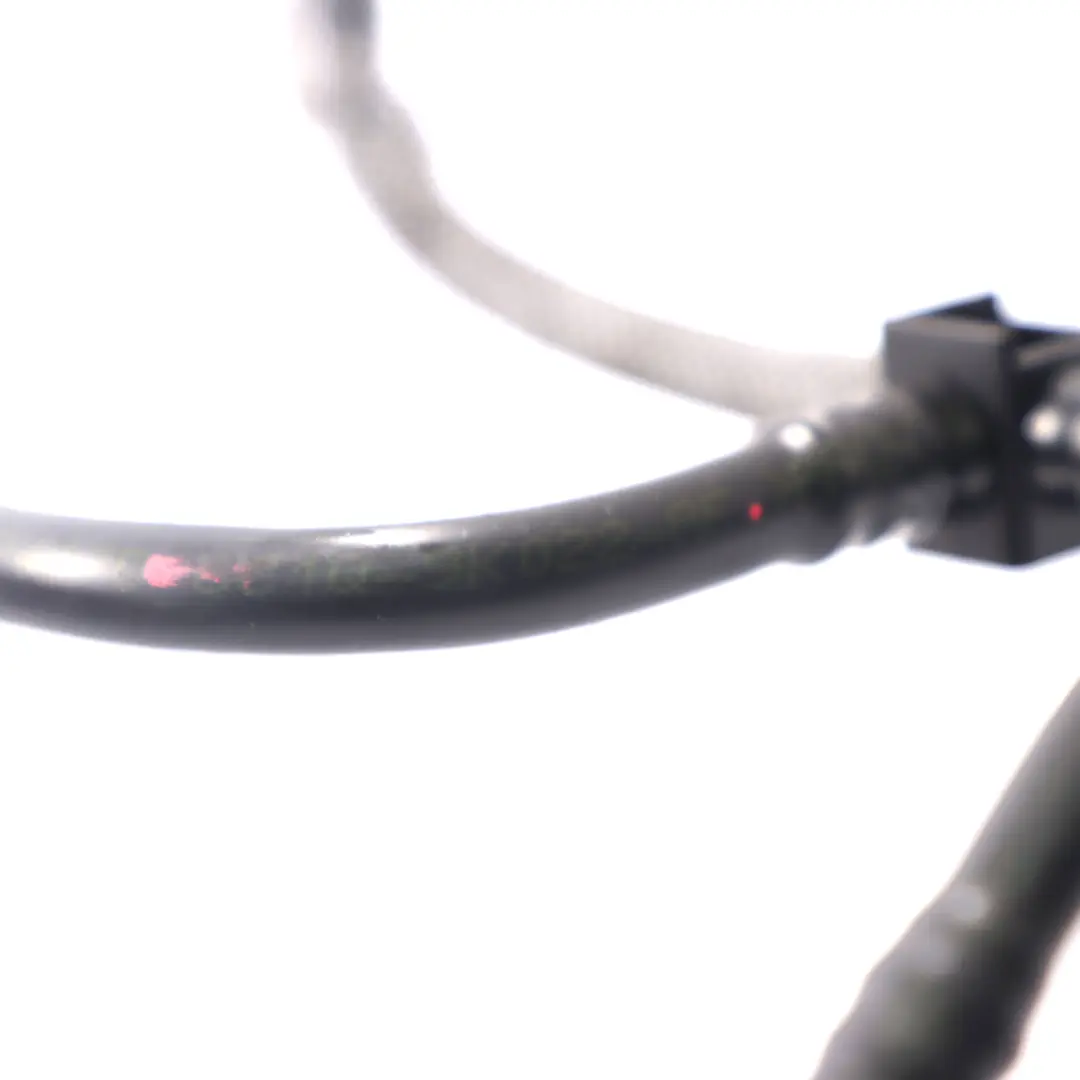

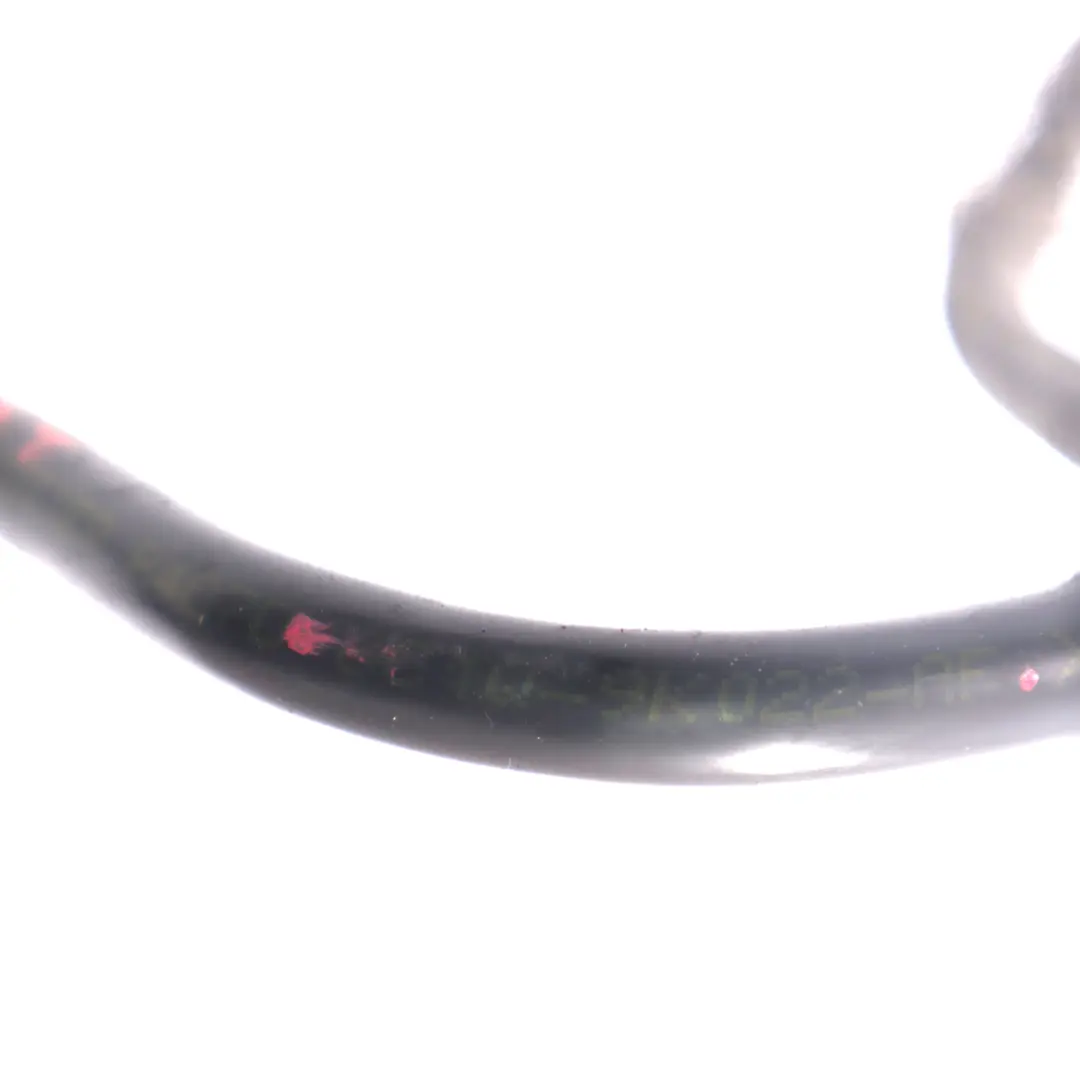

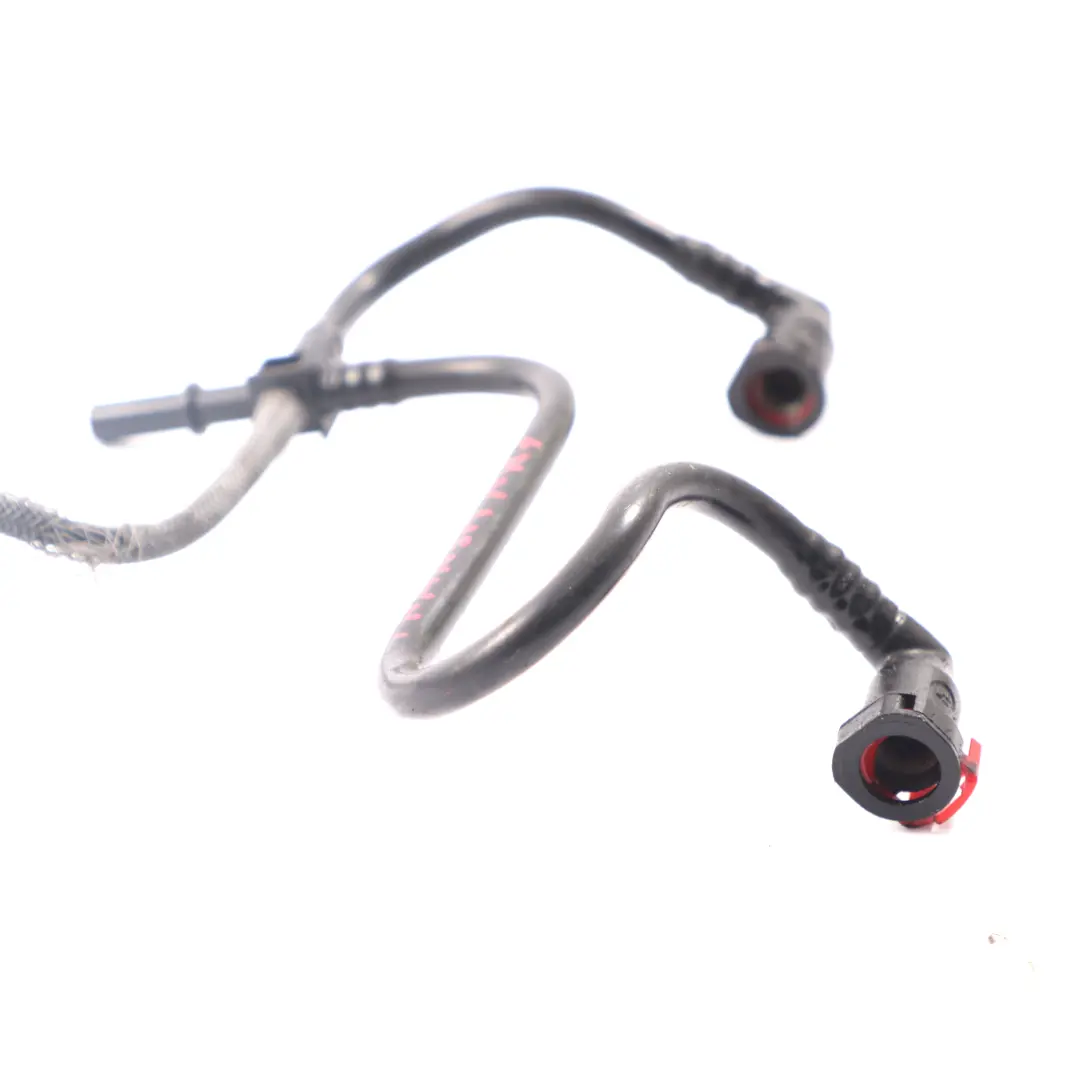

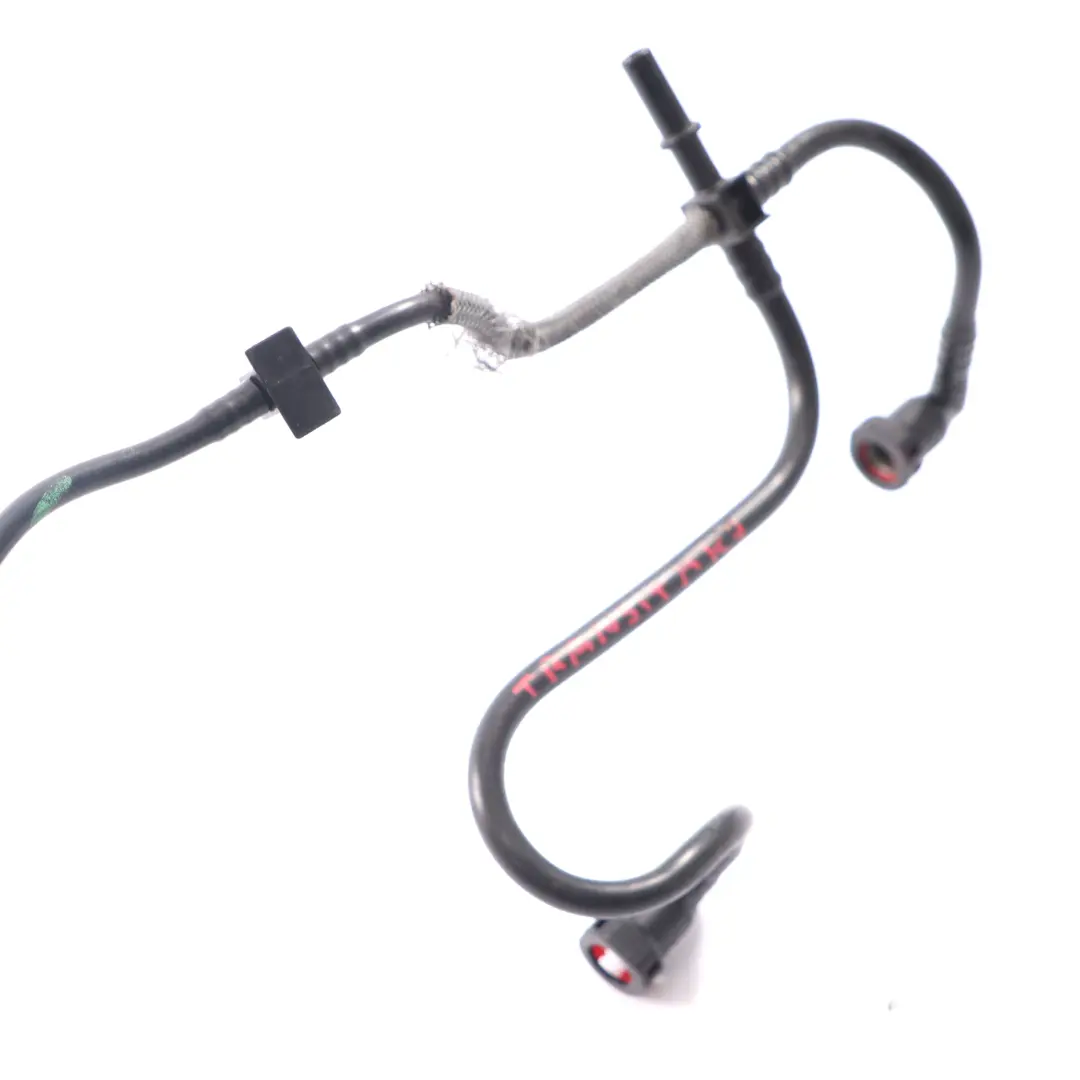

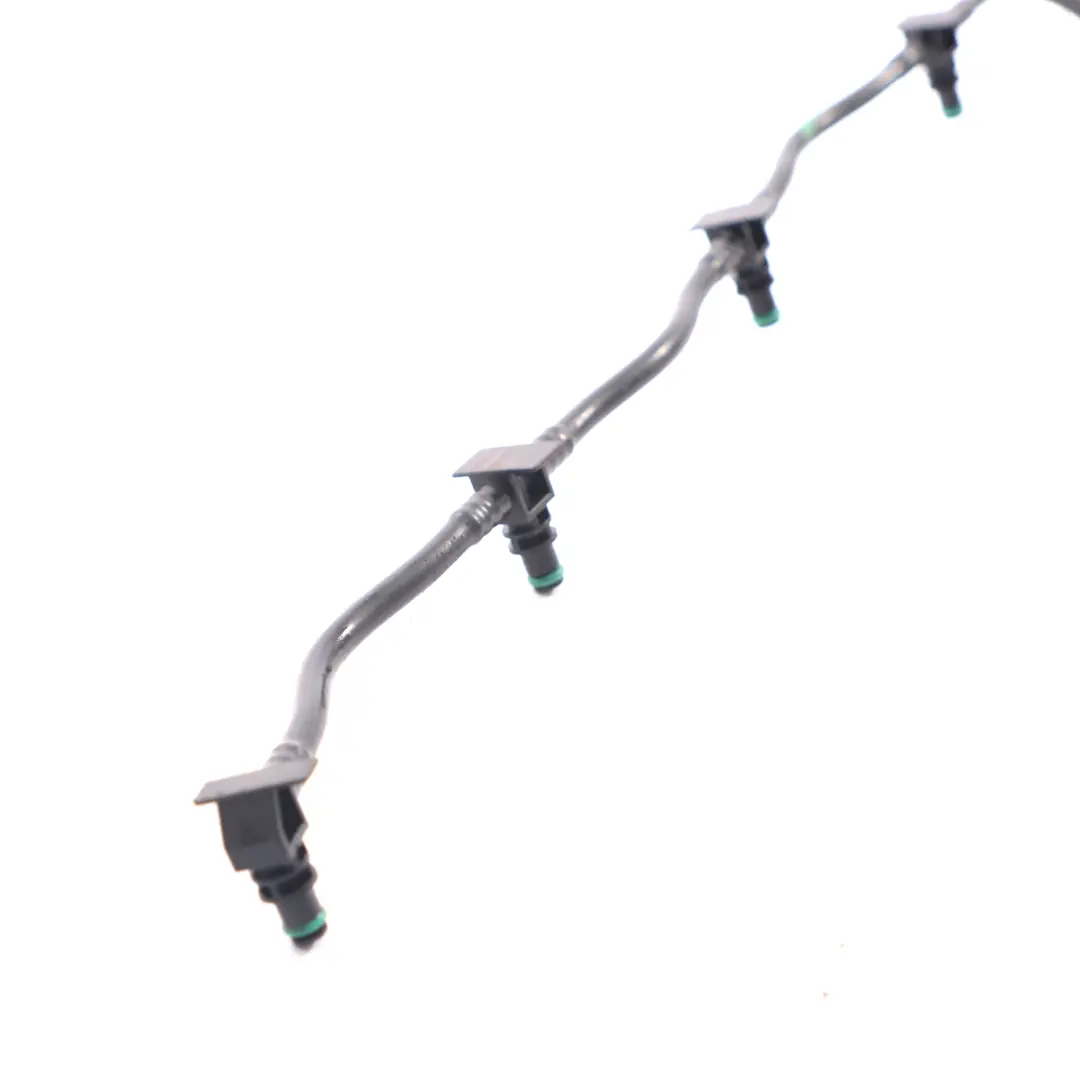

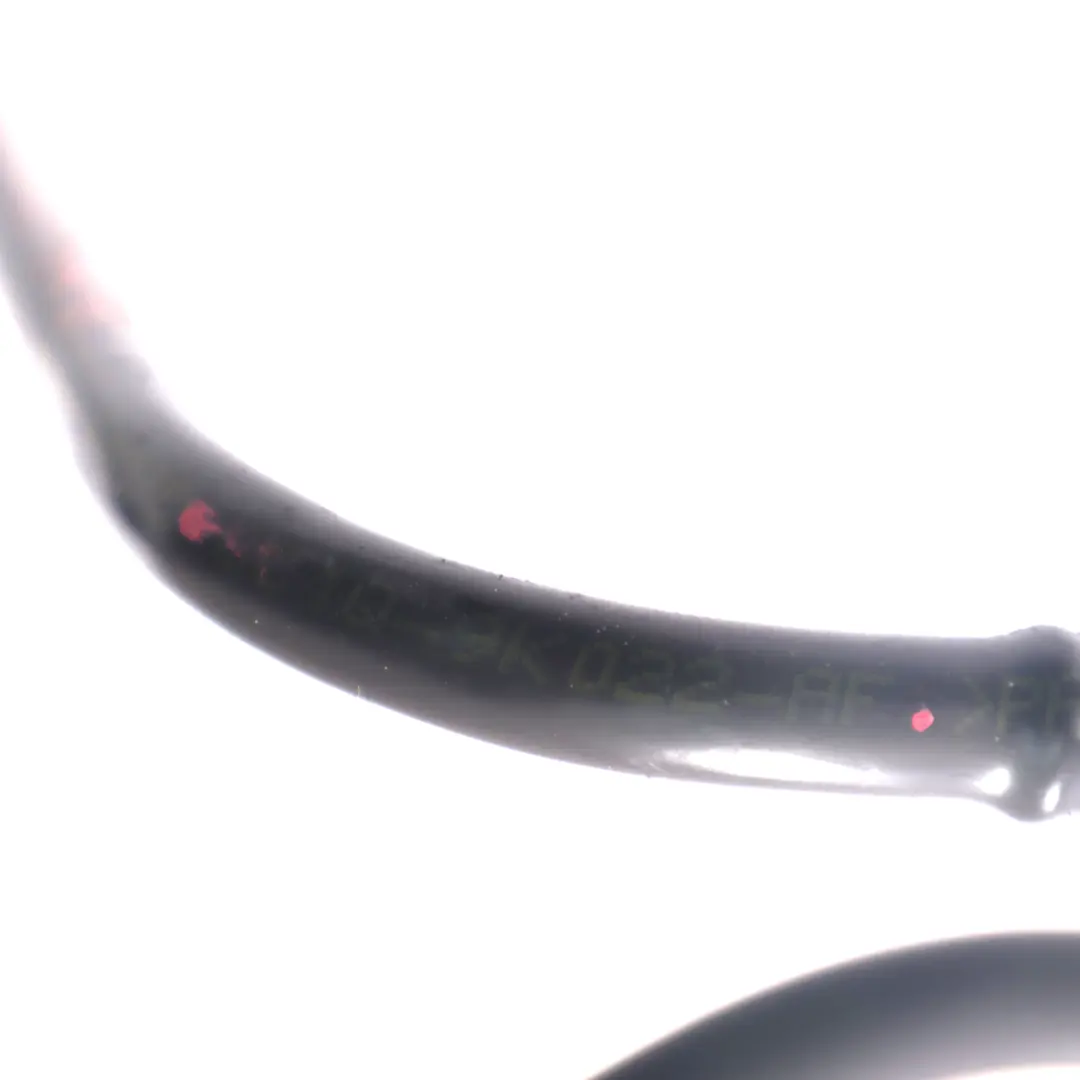

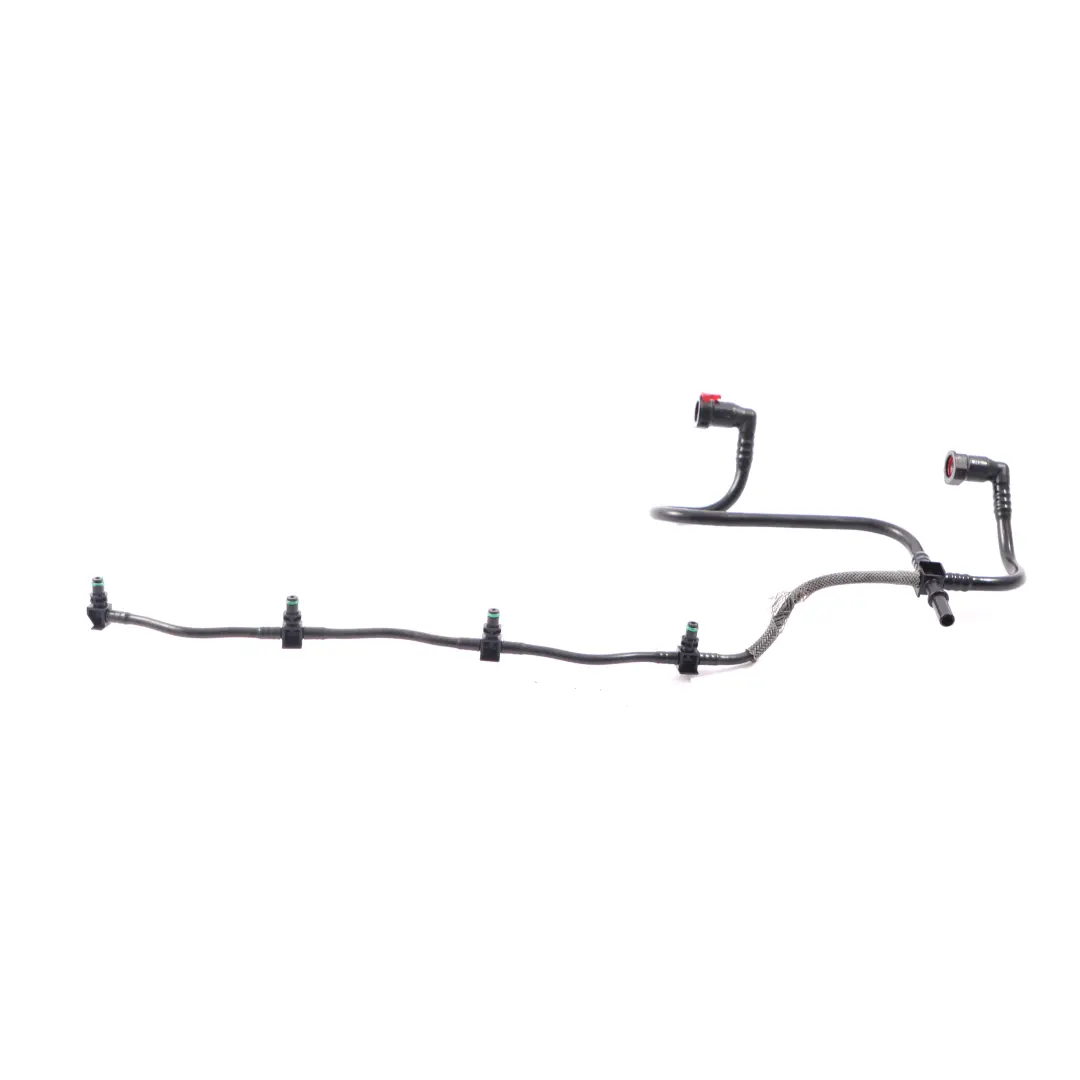

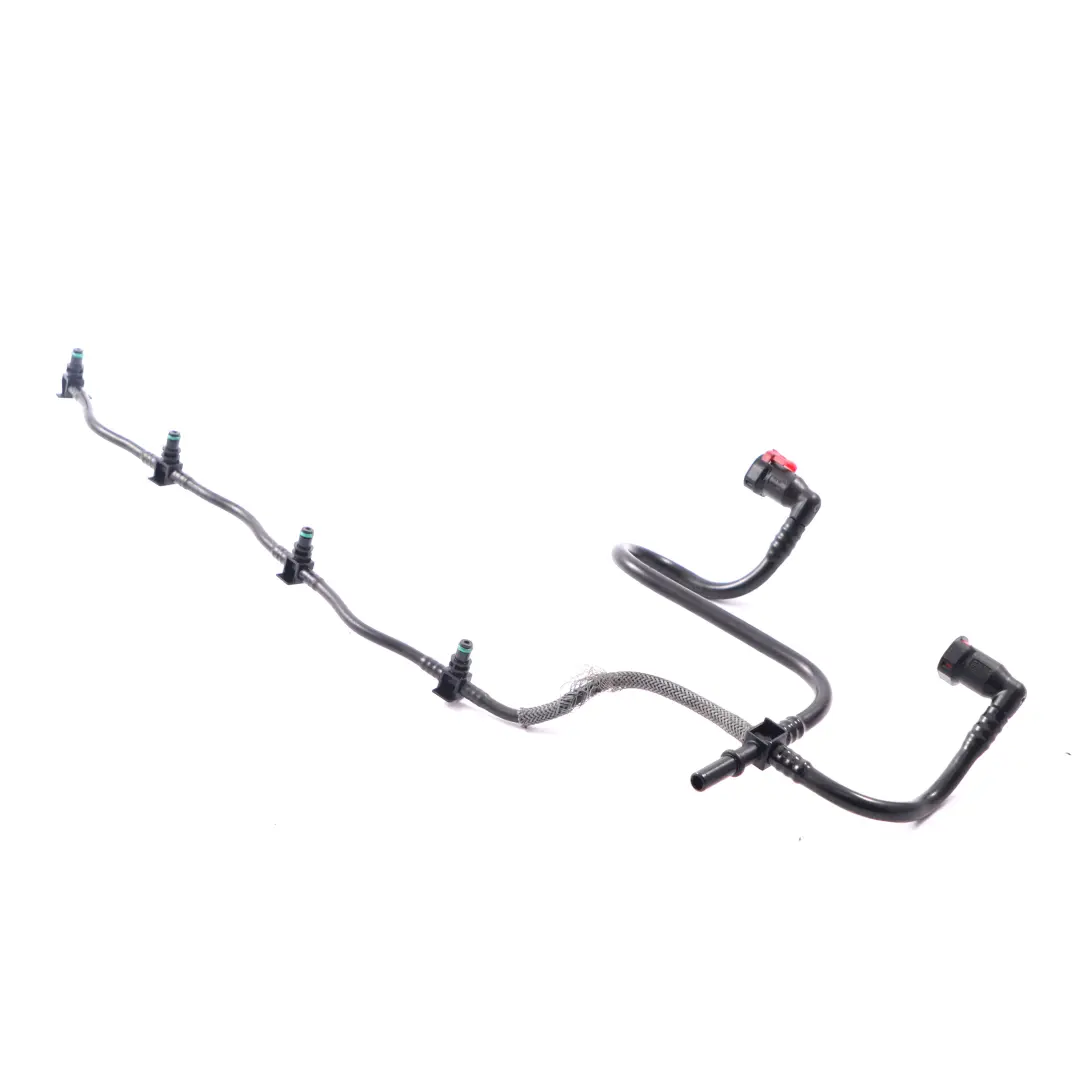

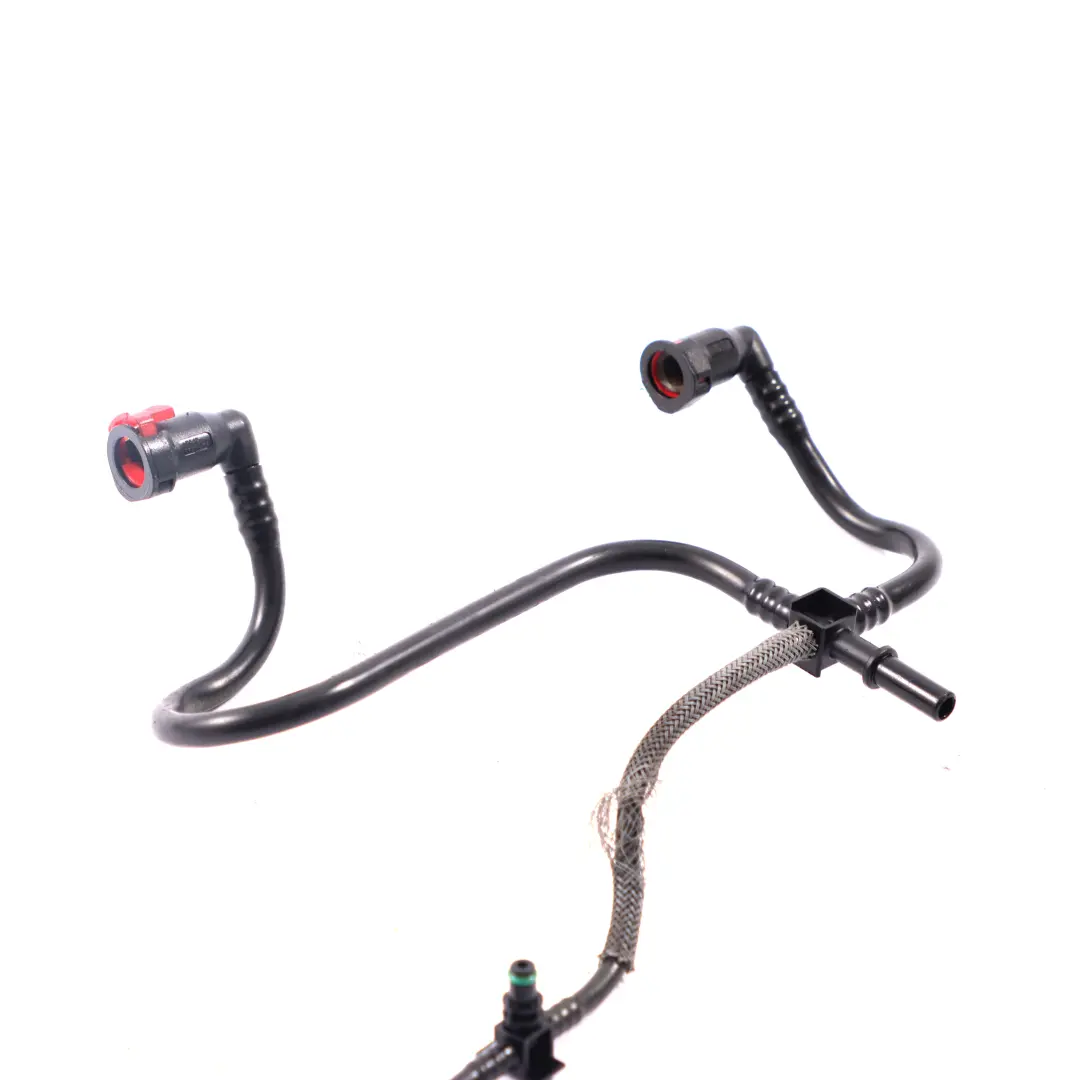

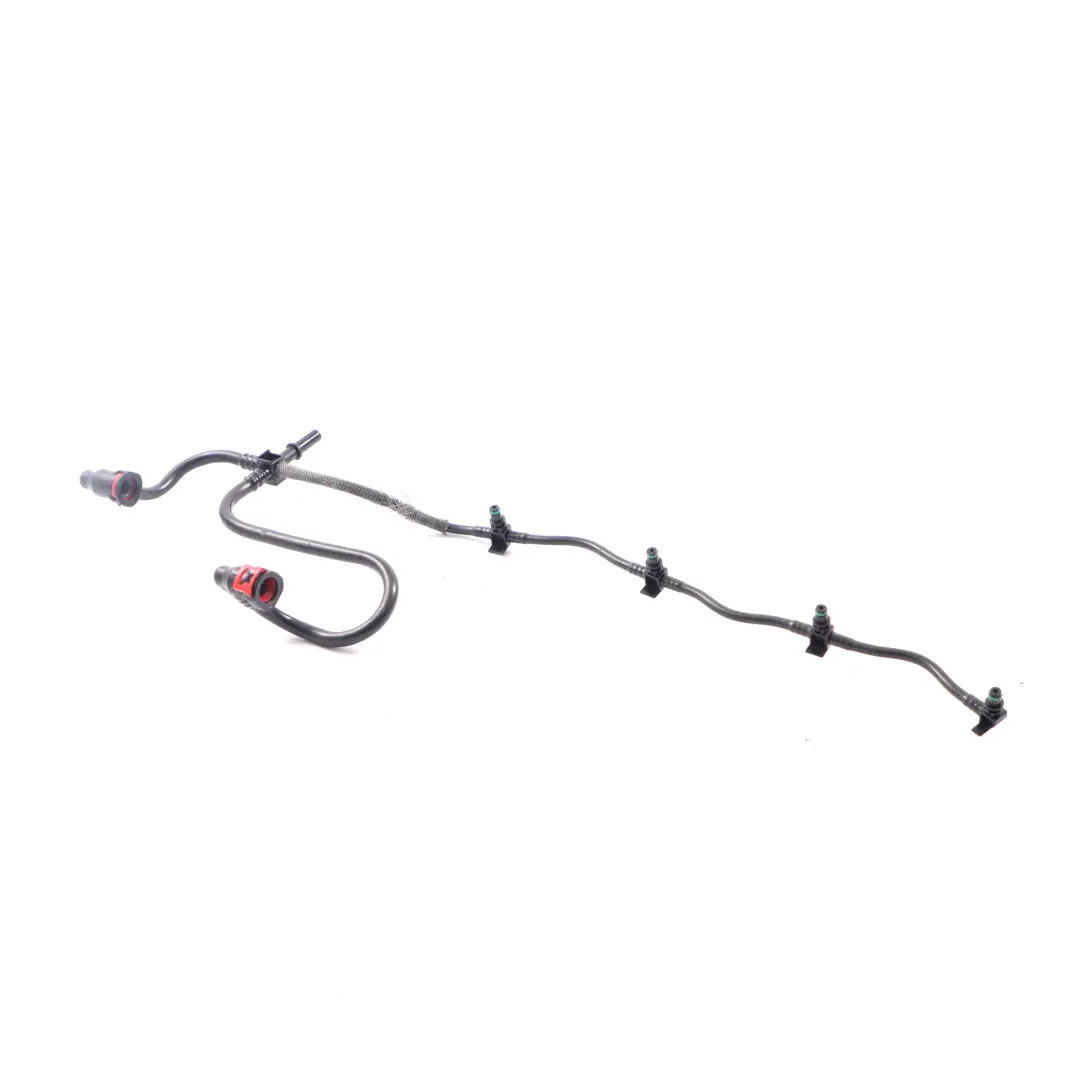

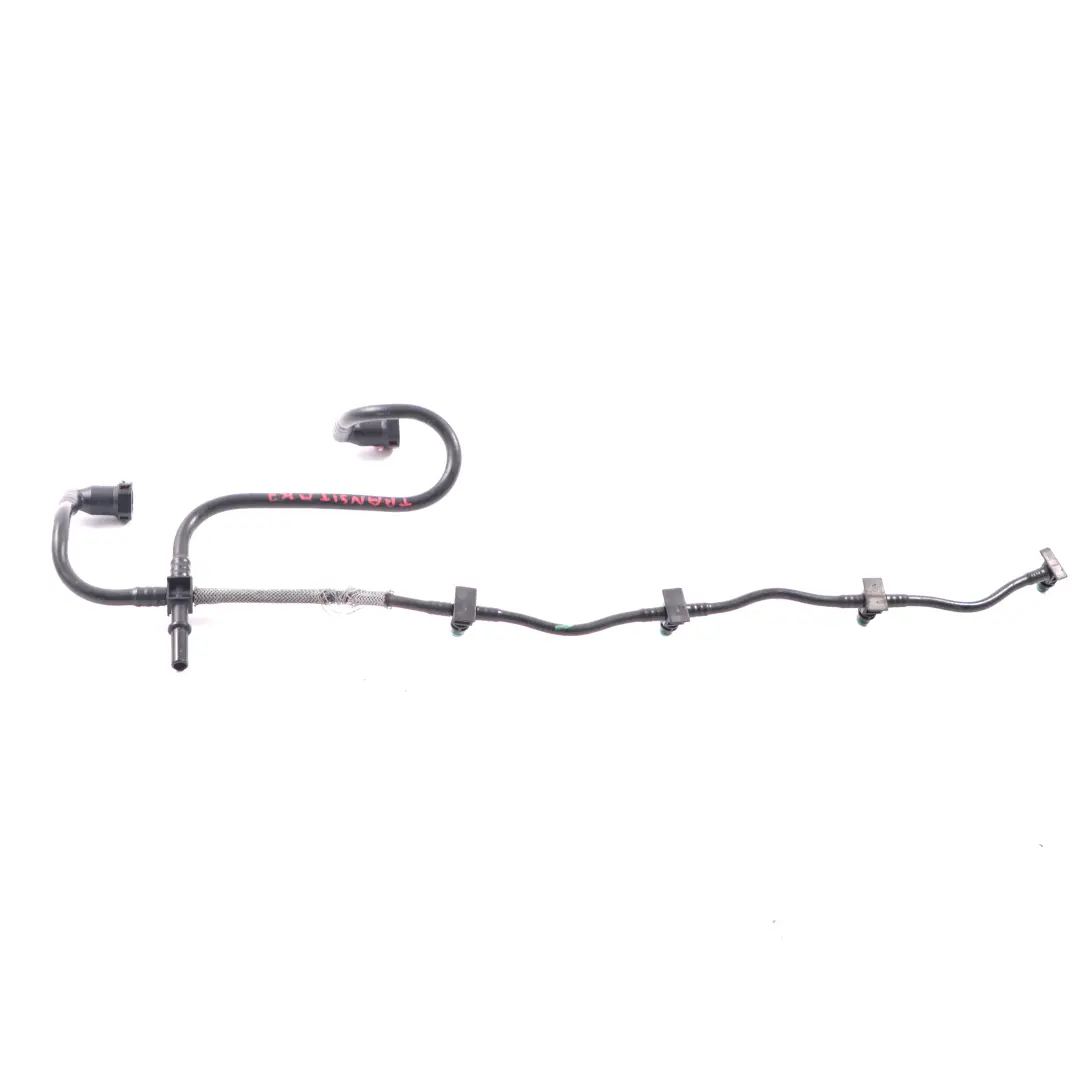

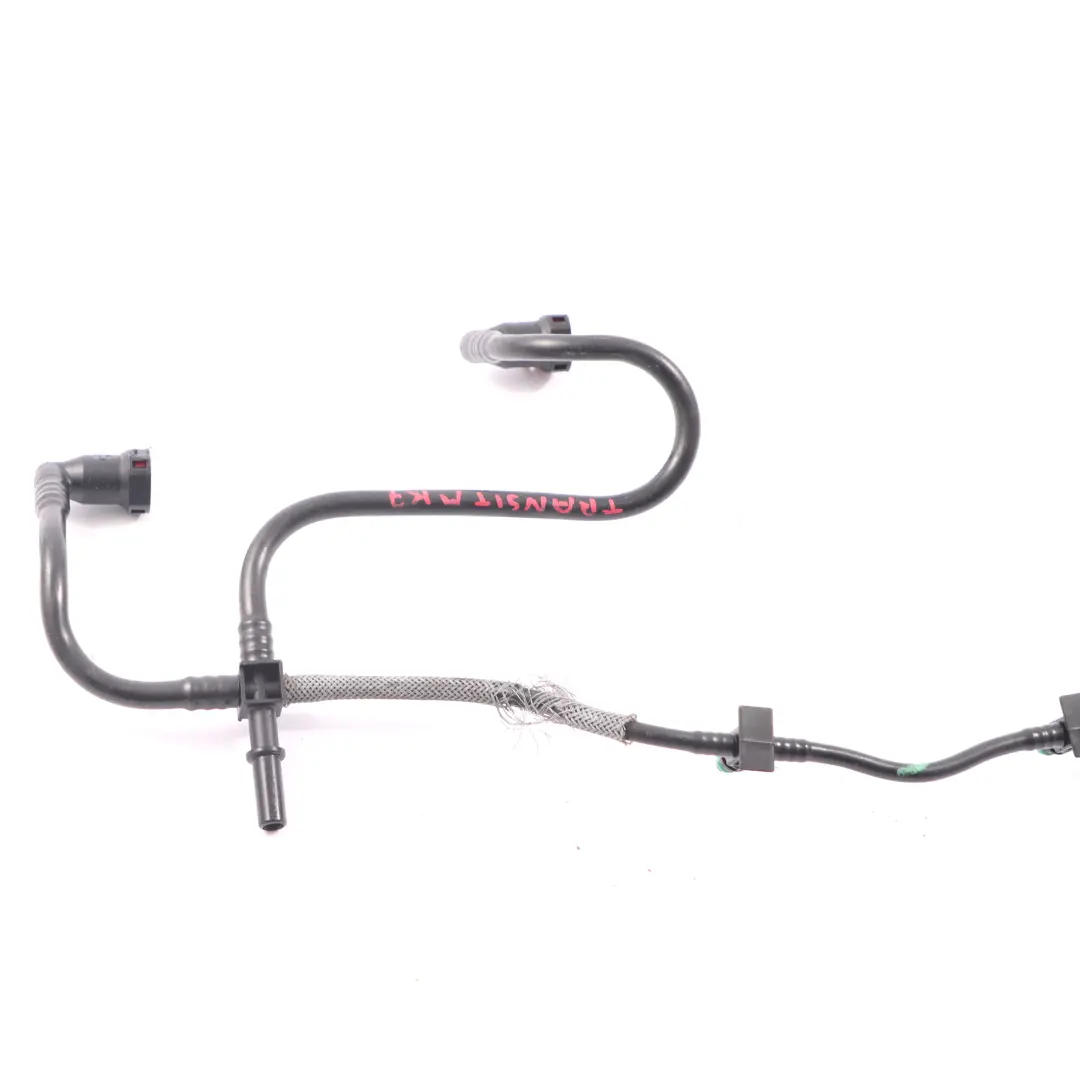

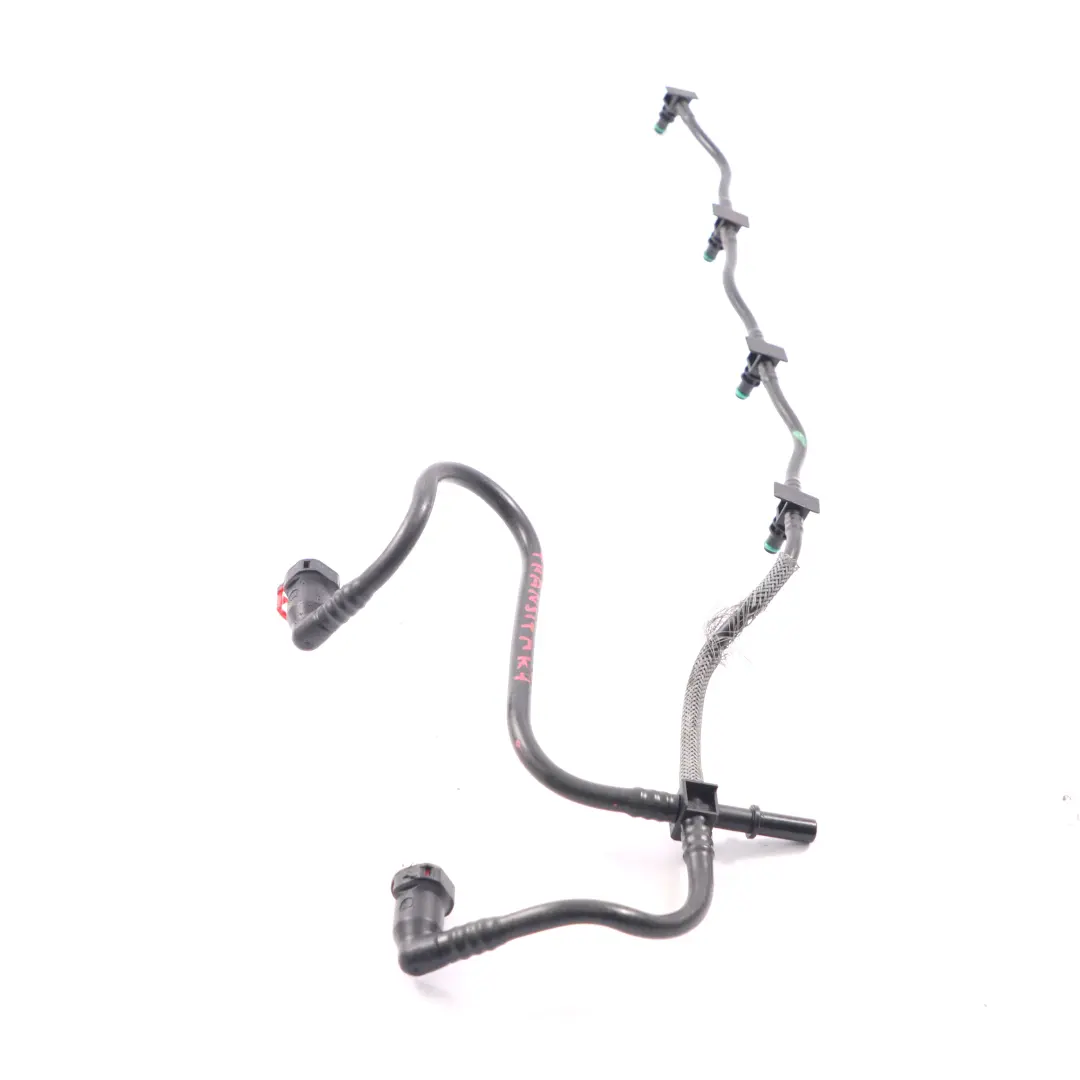

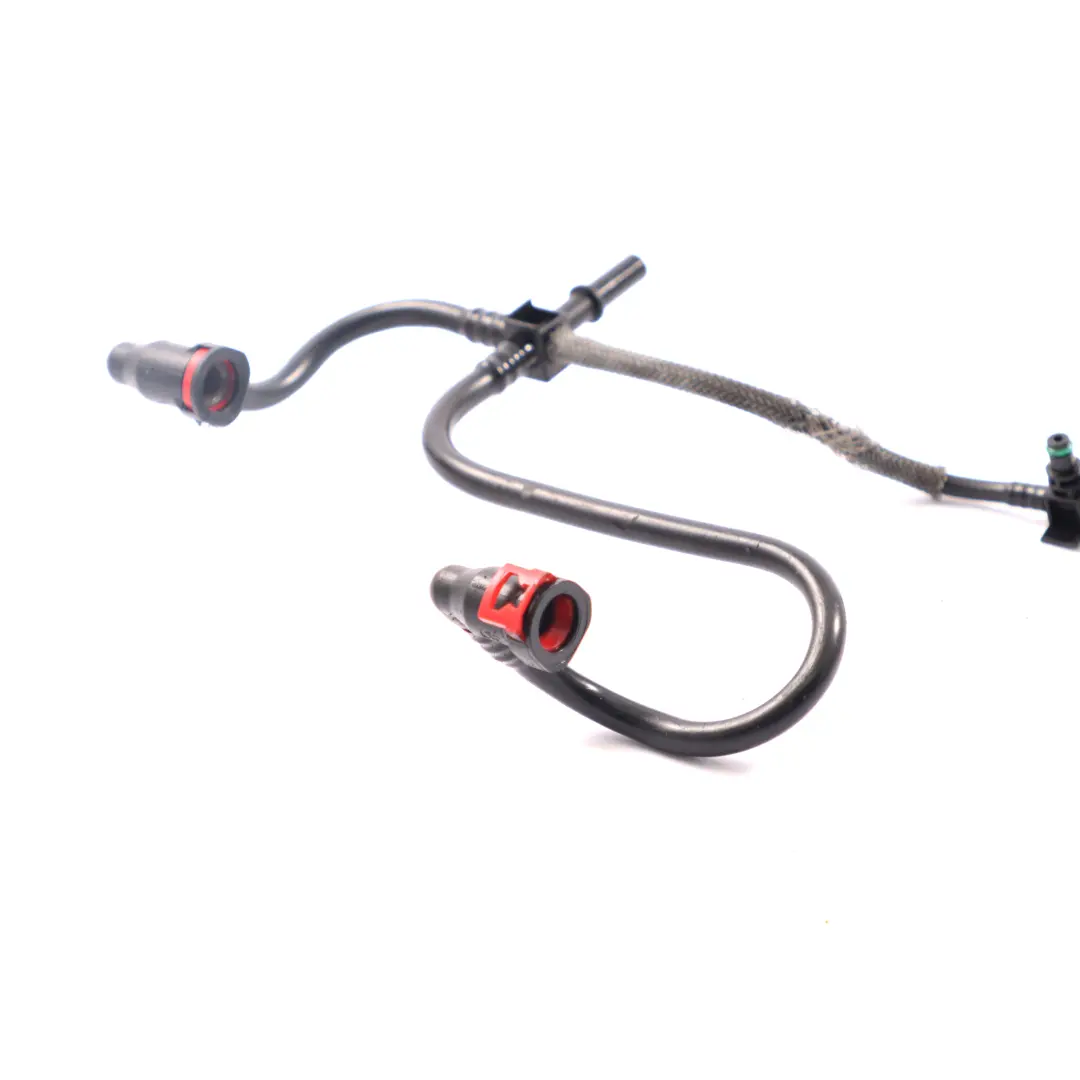

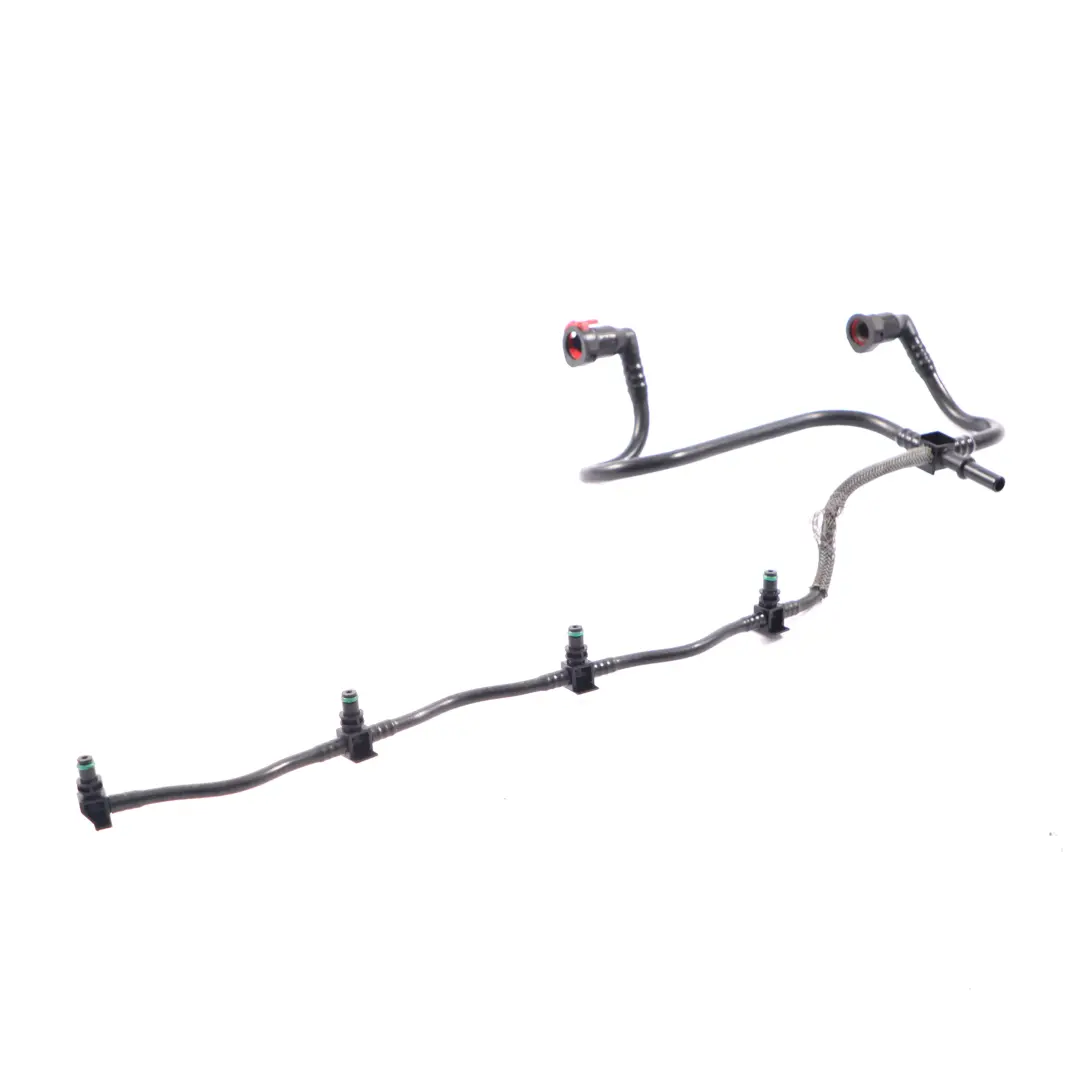

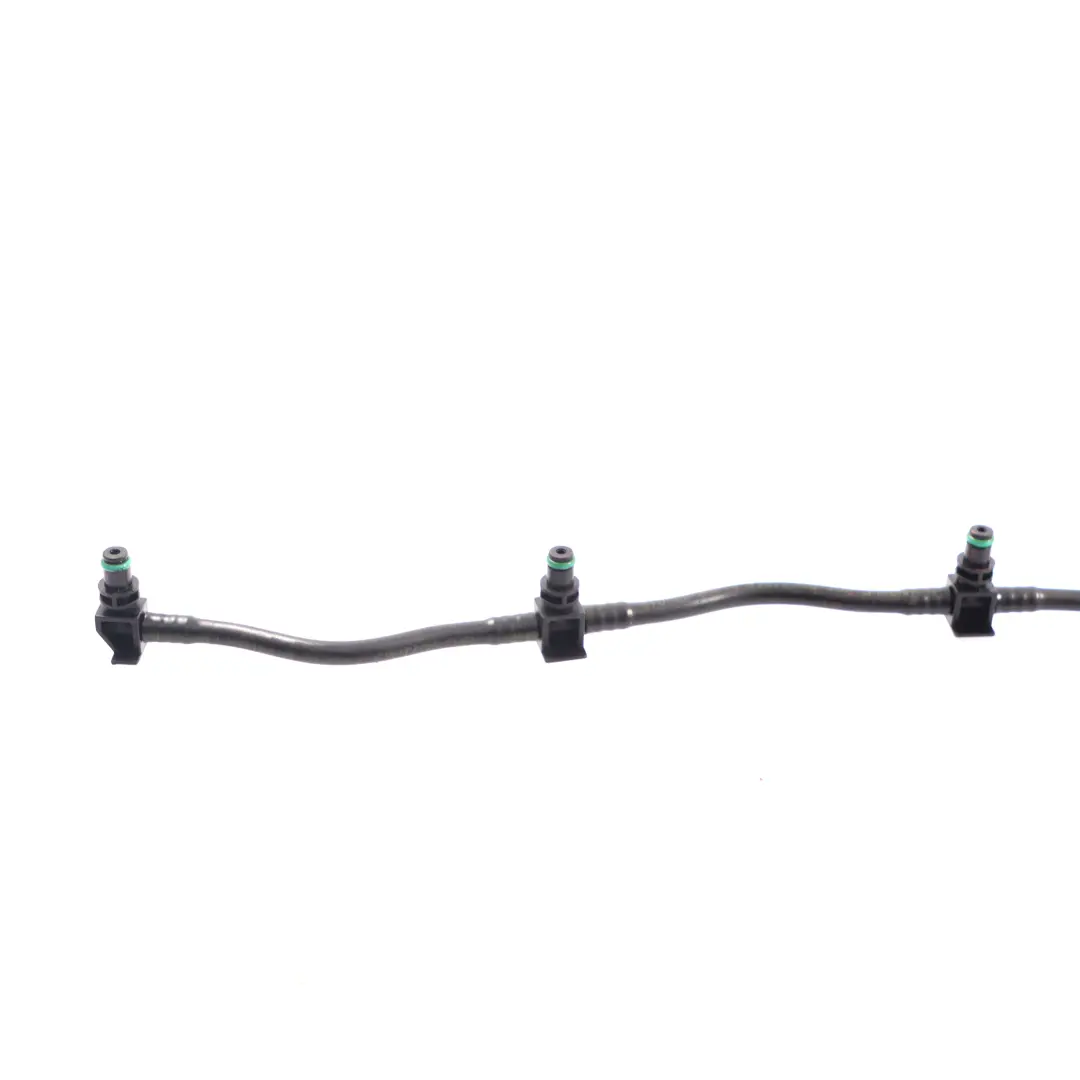

Fuel Line Ford Transit MK7 Diesel Injection System Return Pipe Hose 6C1Q9K022AF

Fuel Line Ford Transit MK7 Diesel Injection System Return Pipe Hose is a fuel system component designed for diesel engines, responsible for the safe return of excess fuel to the tank. A properly selected return hose stabilizes the operation of the injection system, reduces the risk of air ingress, and supports consistent fuel supply to the engine. This component from the Lines, Hoses and Pipes group has been designed specifically for the structural requirements of the Ford Transit MK7 with a diesel engine.

Specifications and technical data

• SKU: 6C1Q9K022AF
• Mark: Ford
• Condition: Used
• OEM Part Number: 6C1Q9K022AF
• Substitutable numbers: 6C1Q9K022AF, 6C1Q-9K022-AF, 1473393
• Fuel type: Diesel
• Category: Hoses, Lines & Pipes

Purpose and function in the fuel system

The fuel return hose in a Ford Transit MK7 with a diesel engine is responsible for draining unused fuel from the fuel rail or injectors back to the tank. A properly functioning component of this type:

• stabilizes pressure in the diesel fuel system,
• reduces the load on the high-pressure pump,
• decreases the risk of fuel overheating in the circuit,
• supports consistent injector operation and engine refinement.

Thanks to its precise fit to the Transit MK7 design, the hose maintains the correct routing geometry, which minimizes stress and the risk of abrasion in the engine bay.

Compatibility and fit for Ford Transit MK7 Diesel

The offered fuel return hose is a component dedicated to Diesel fuel systems in the Ford Transit MK7, ensuring consistency with the vehicle's factory architecture. The use of original geometry and connectors characteristic of this generation of Transit facilitates installation and allows for maintaining factory hose routing in the engine bay.

Such a fit translates into:

• a secure connection with existing fuel system components,
• reduced risk of leaks at the joints,
• maintenance of proper fuel flow in the return circuit.

Performance characteristics of the used component

The fuel return hose offered as a used Ford brand component is a solution for users looking for parts with factory fitment while maintaining reasonable service costs. This type of component, sourced from dismantling, allows for the preservation of the original fuel system specifications without the need to use replacements with uncertain parameters.

Choosing a used fuel return hose is particularly beneficial in situations where:

• a quick replacement of a damaged or leaking hose is necessary,
• maintaining the original fuel flow characteristics is important,
• compliance with the factory mounting and hose routing system is essential.

The importance of a functional return hose in a diesel engine

In diesel engines, a functional fuel return hose has a direct impact on the durability of the injection system and the stability of the engine's operation. Leaks, micro-cracks, or deformations of the hose can lead to starting problems, power loss, or unstable idle speed. Therefore, replacing a worn-out component with a properly selected return hose is an important stage of vehicle maintenance.

To better understand how the condition of the fuel system affects the operation of a diesel engine, it is worth reading the material discussing the symptoms and consequences of injection problems: diesel injector faults – symptoms and diagnostics.

Expansion of the Ford fuel line system

If you are planning a comprehensive repair or upgrade of the fuel system area in your Ford and need other components from the same group, such as supply lines, flexible fuel hoses, or rigid guide pipes, check the available parts in the Ford Lines, Hoses and Pipes category.

Summary

Fuel Line Ford Transit MK7 Diesel Injection System Return Pipe Hose is a practical solution for users who want to restore proper fuel circulation in the diesel engine's fuel system. Proper fitment for the Transit MK7, compatibility with the fuel system architecture, and operating characteristics adapted to diesel units make it a functional choice for repairs and service inspections of this model.
