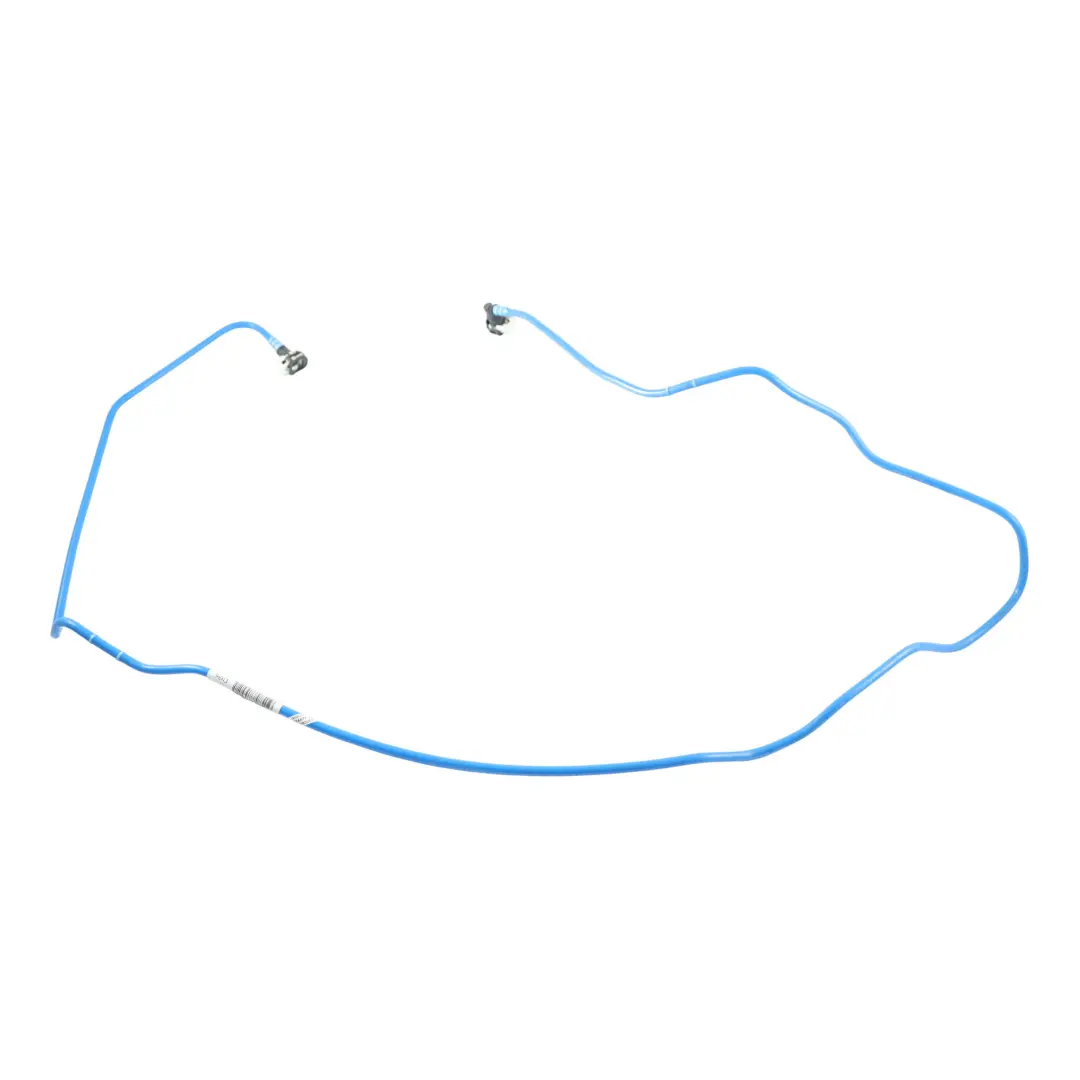

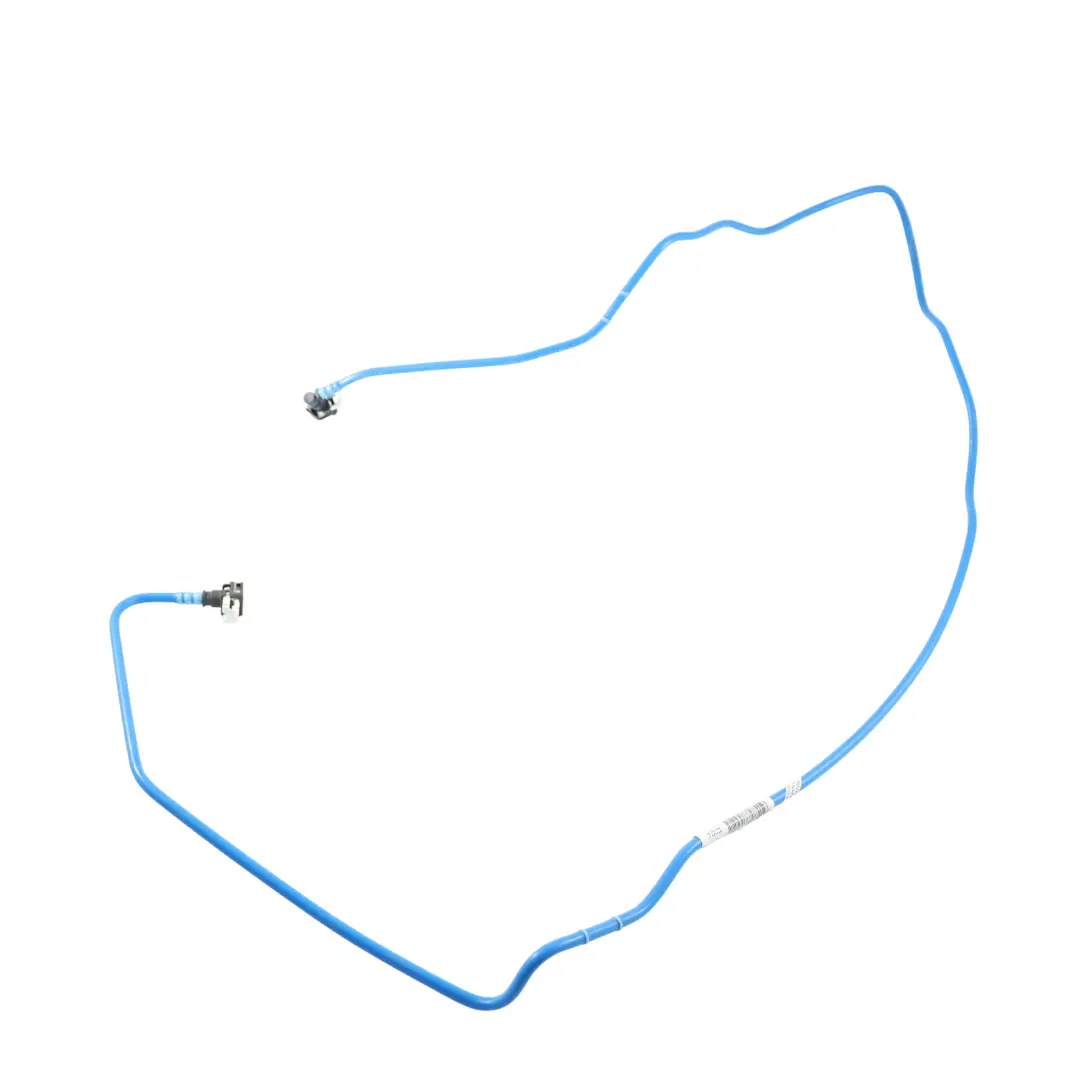

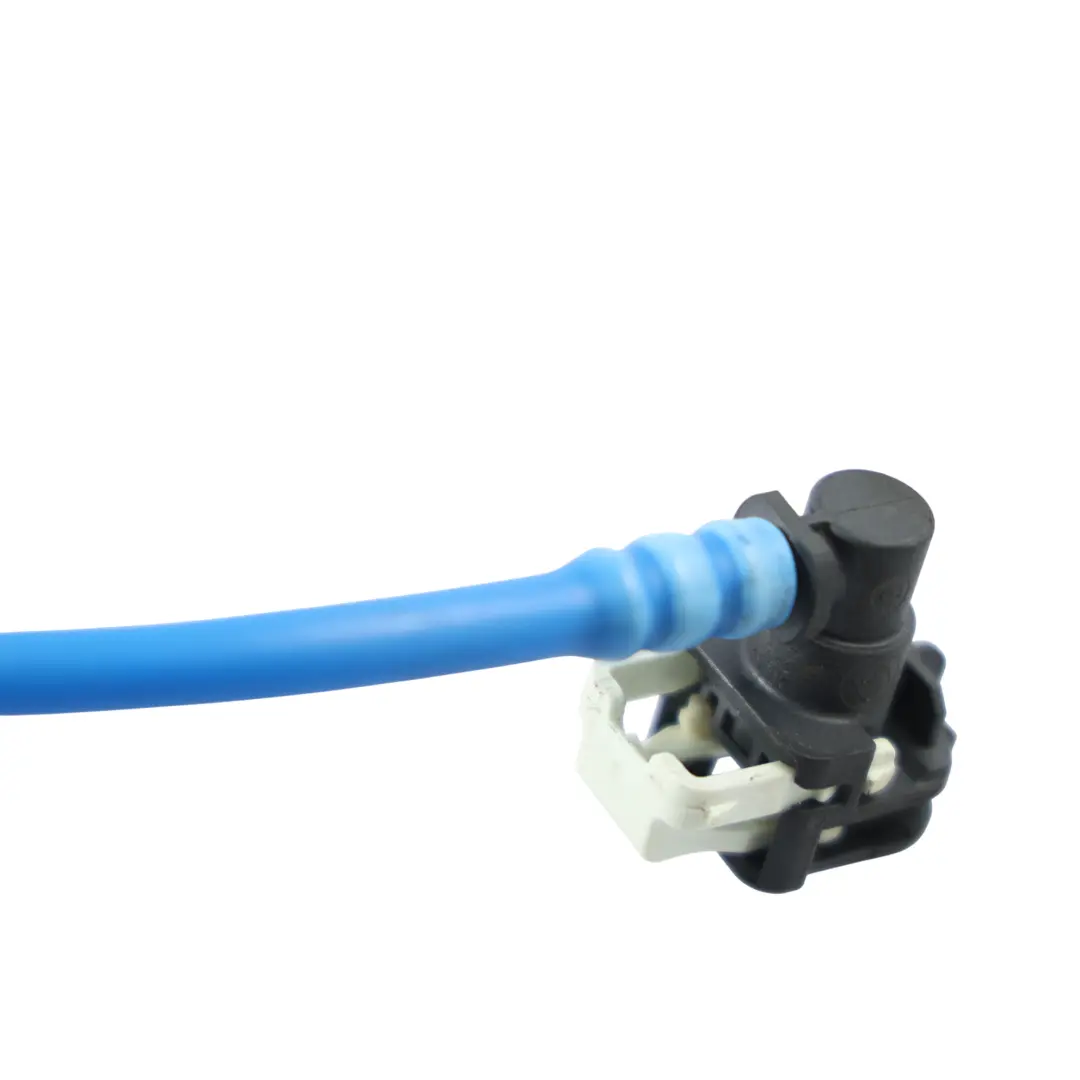

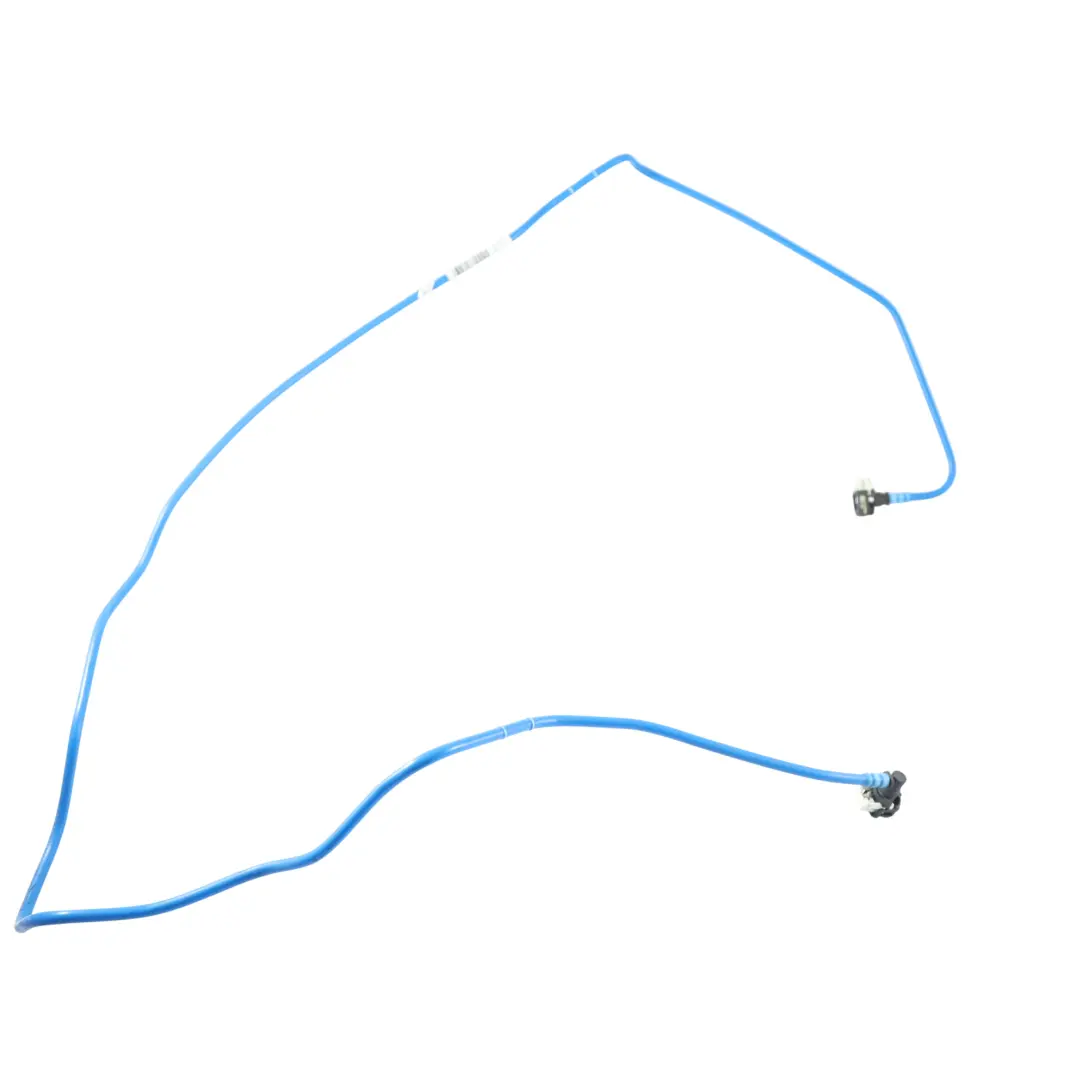

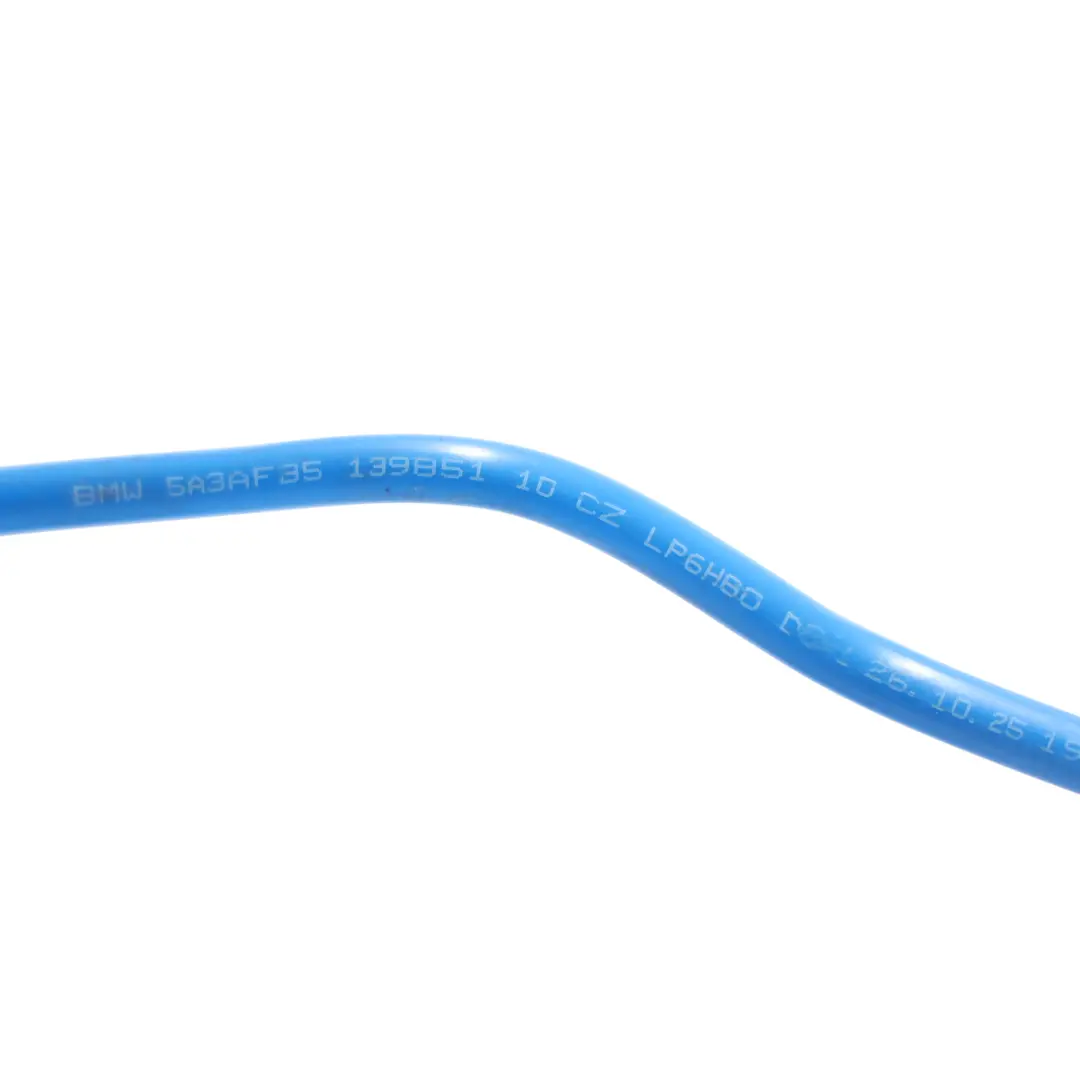

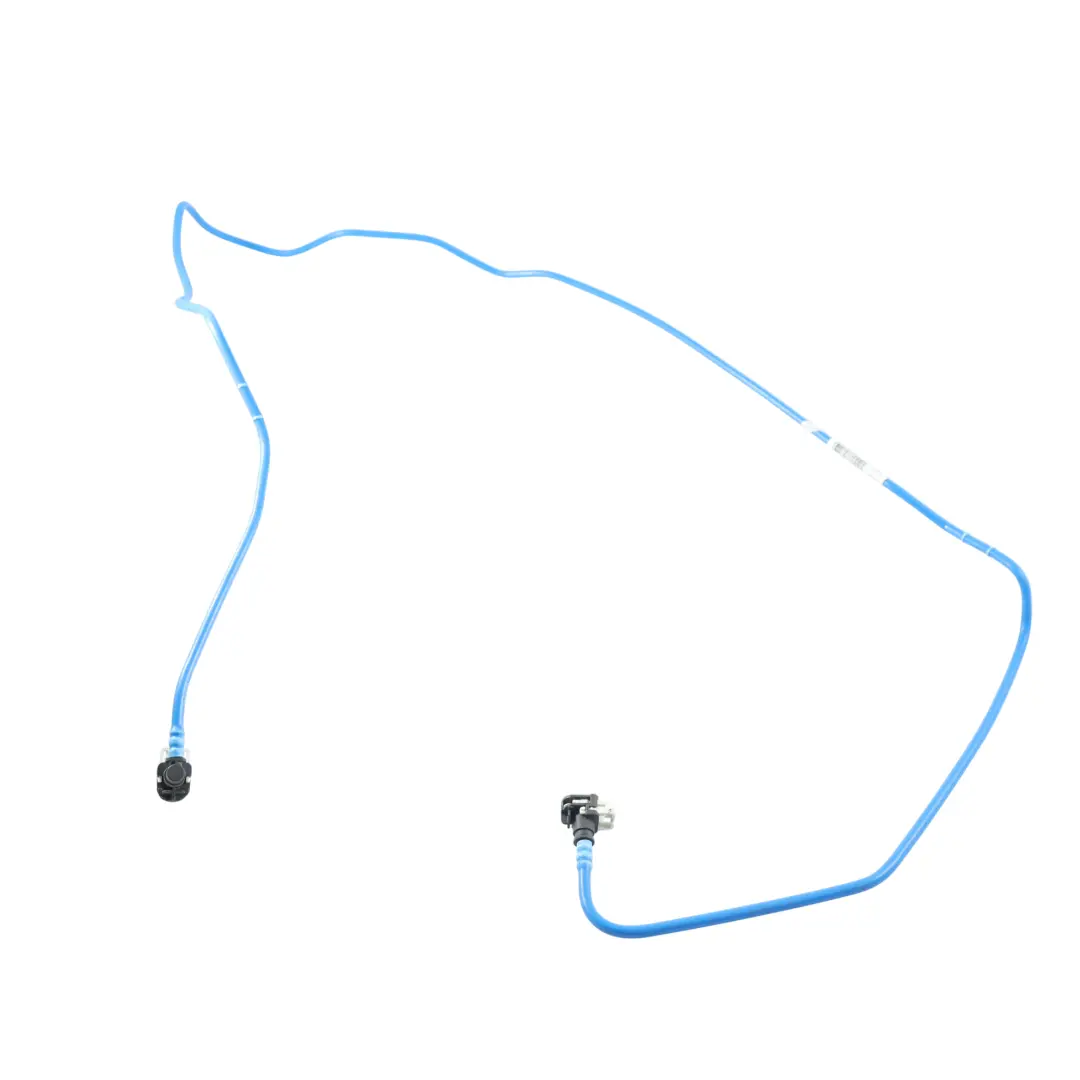

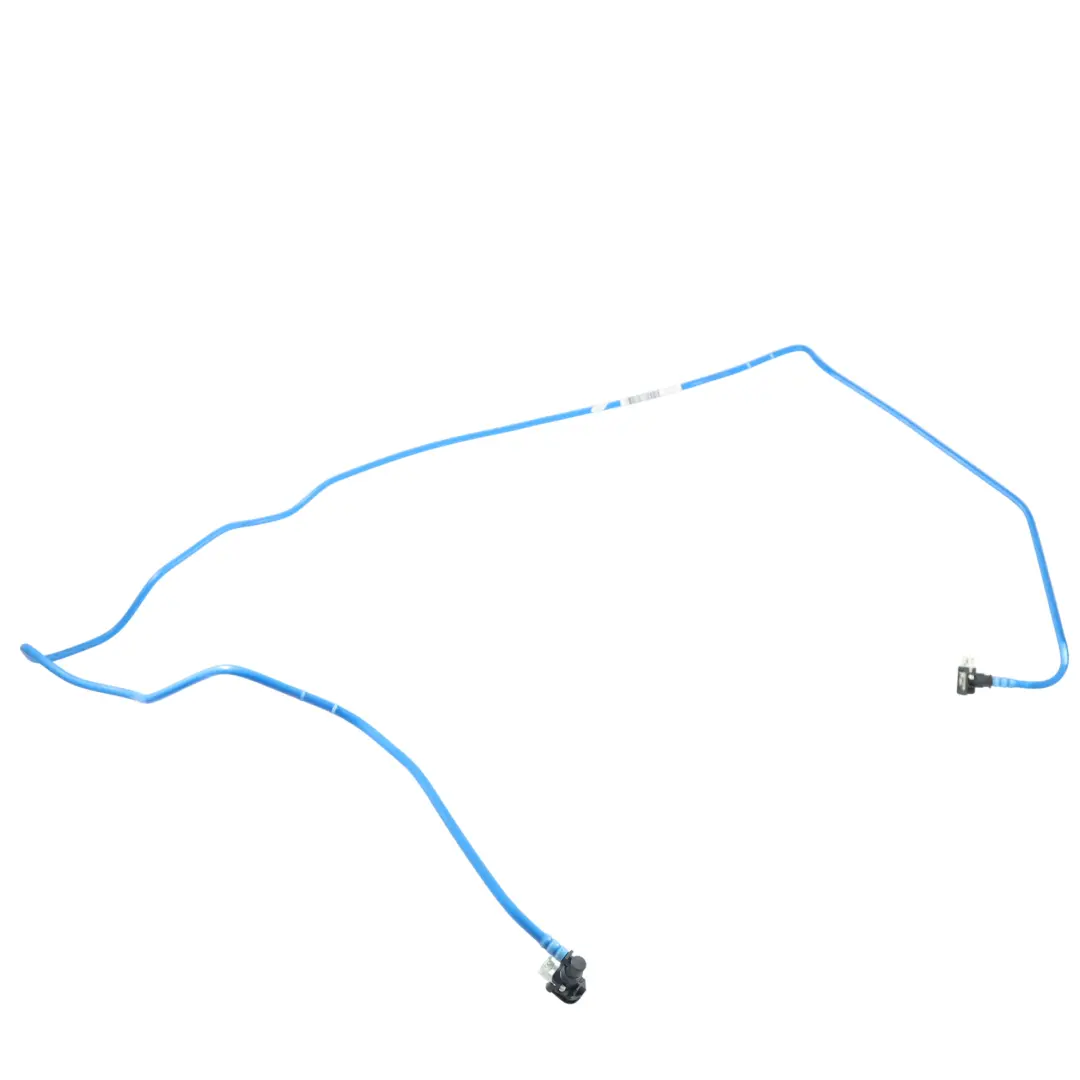

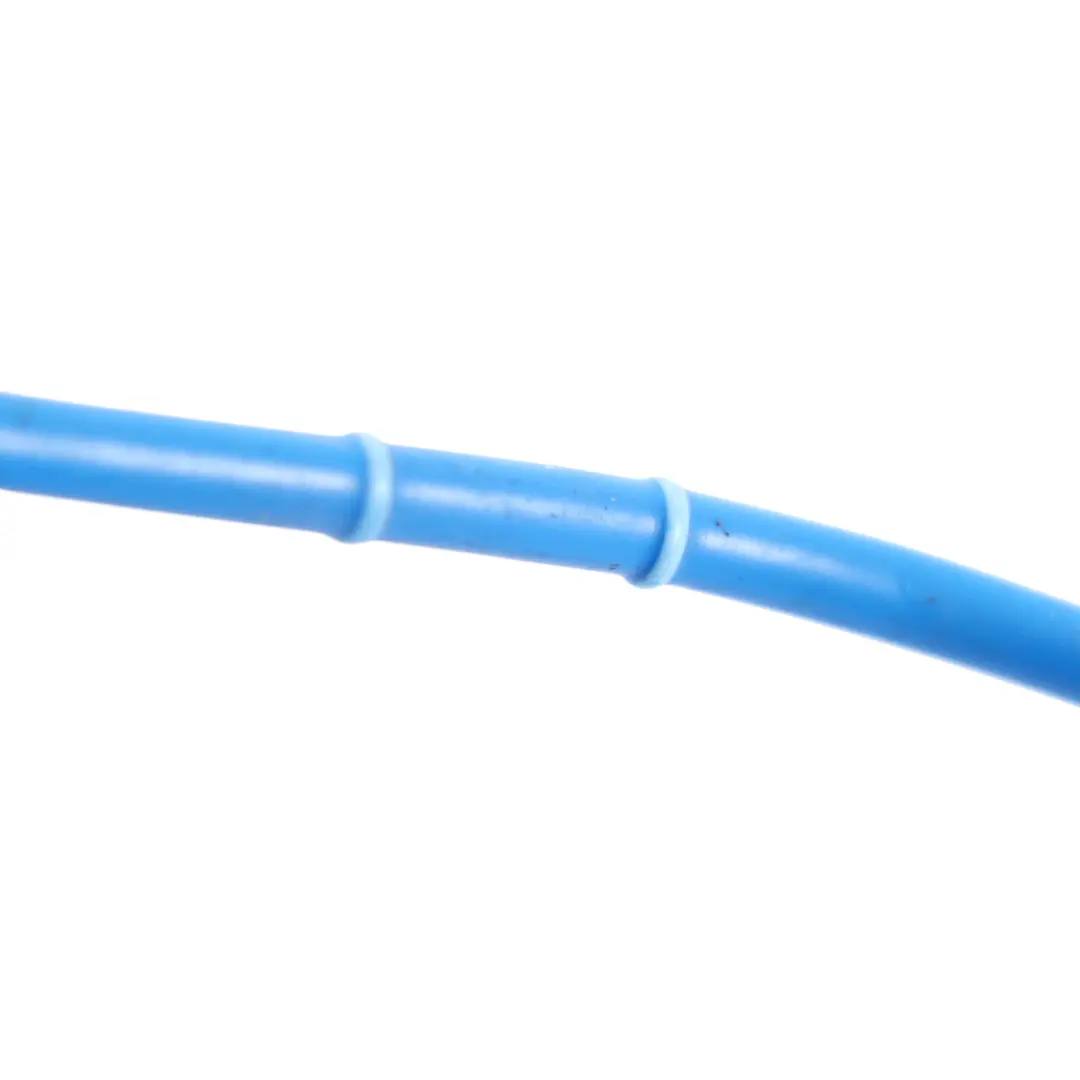

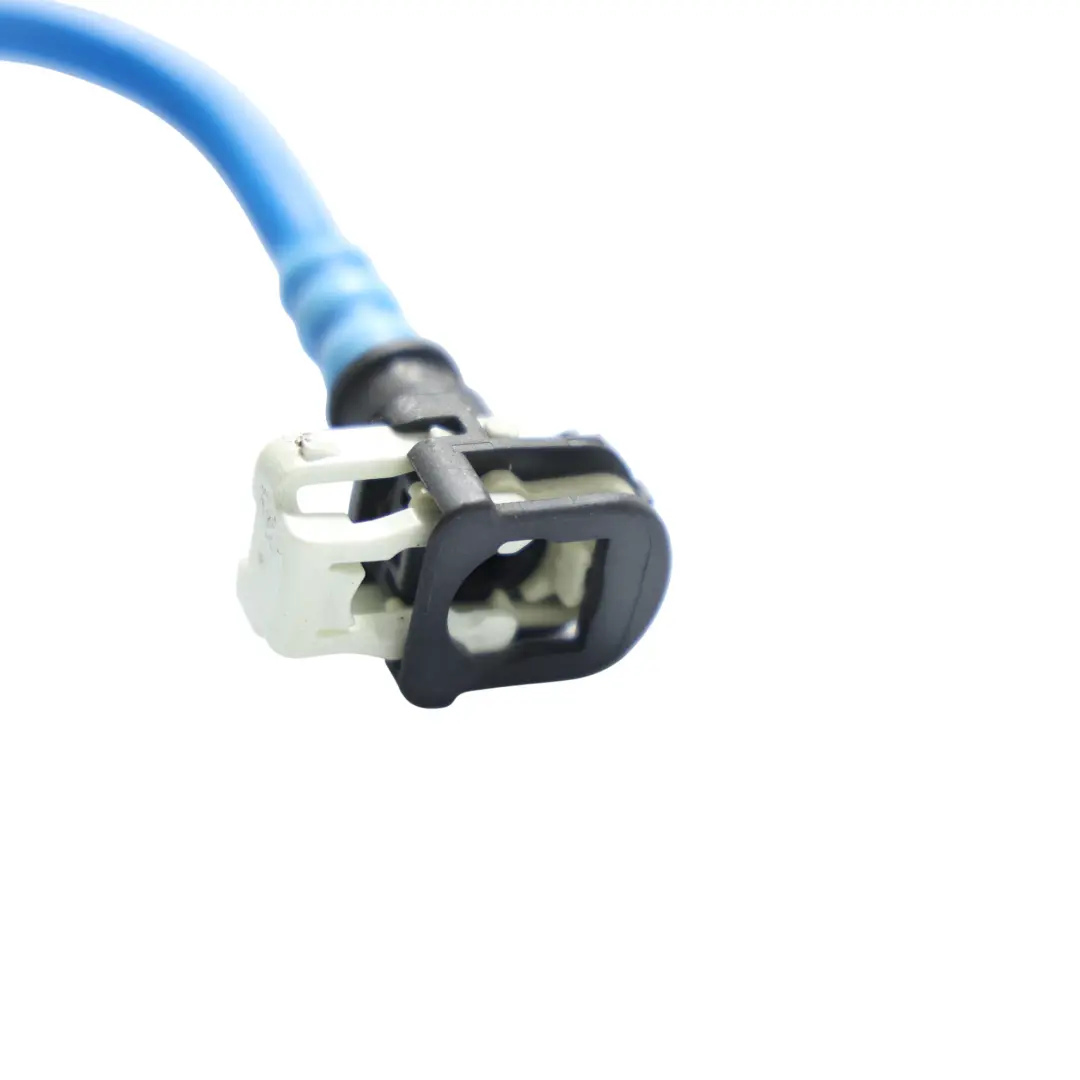

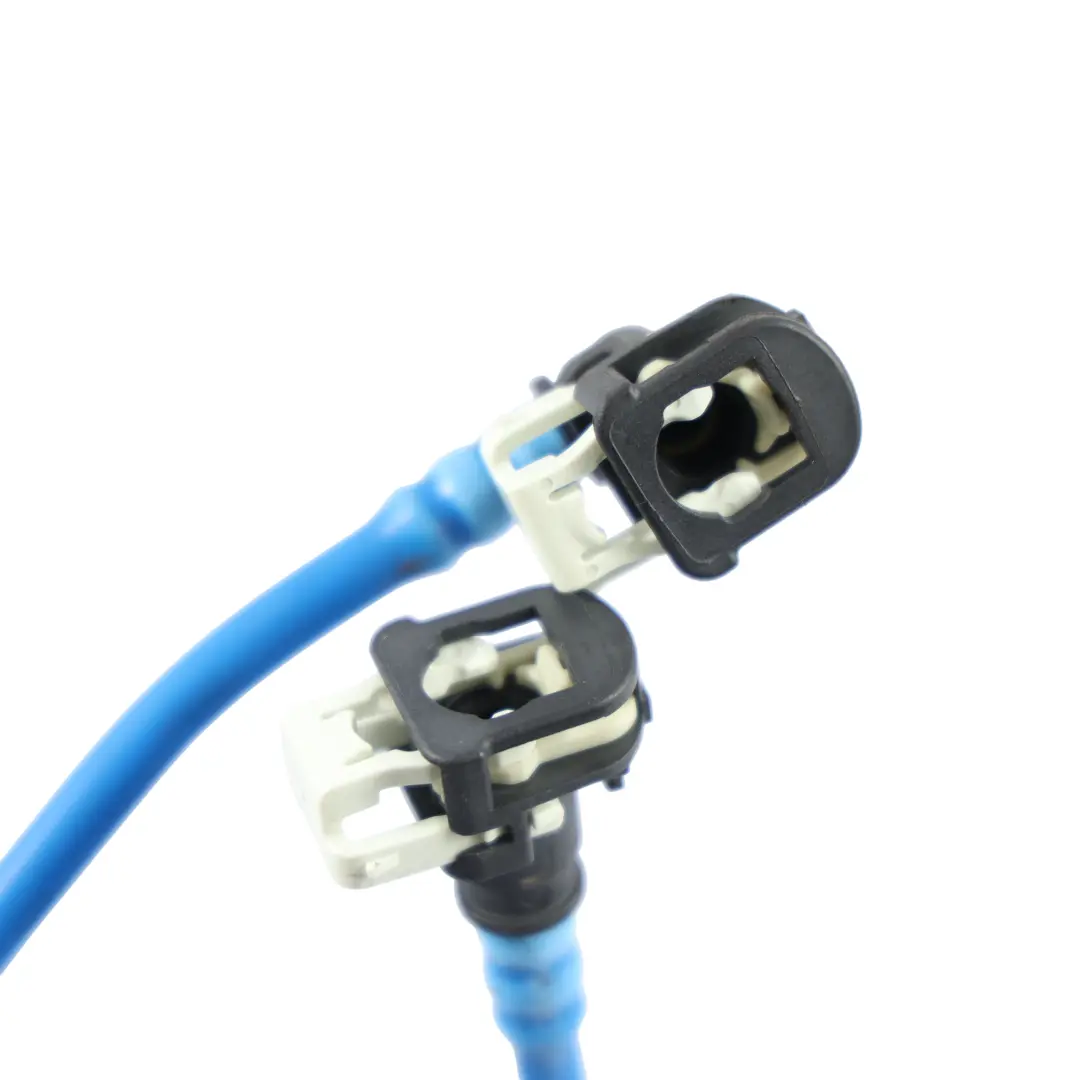

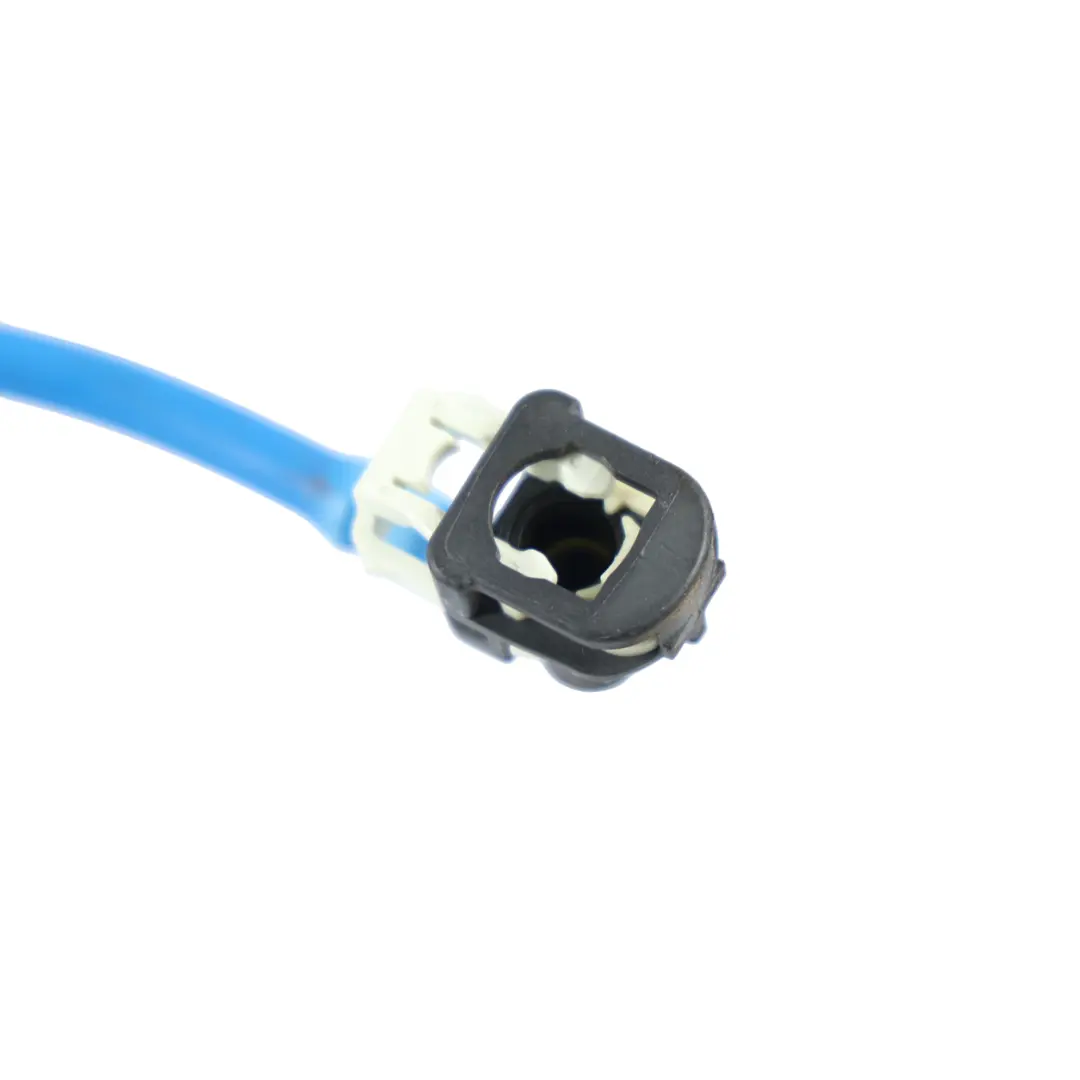

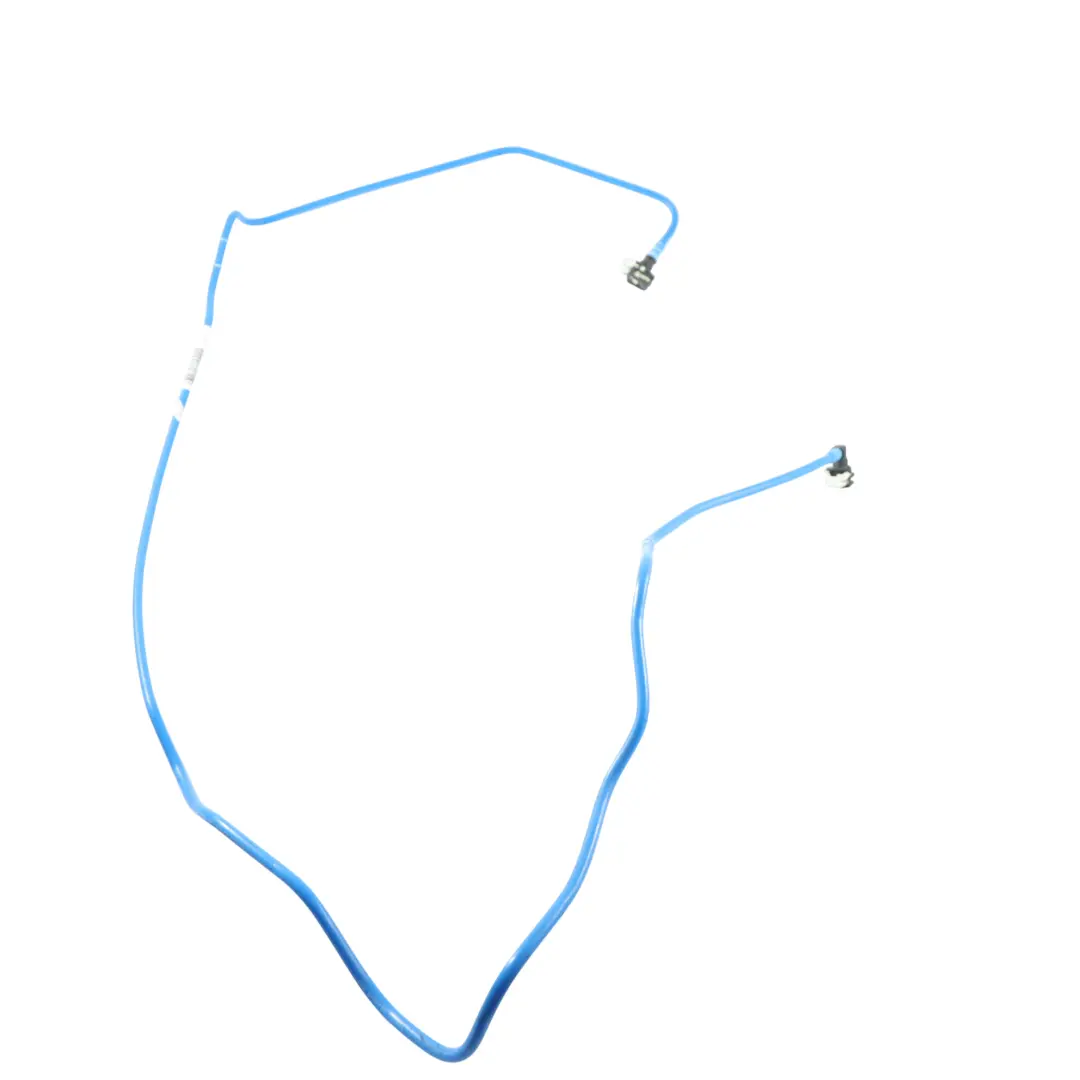

BMW F74 Gran Coupé Fuel Vent Pipe Charcoal Filter Ventilation Hose 5A3AFB5

BMW F74 Gran Coupé Fuel Vent Pipe Charcoal Filter Ventilation Hose is an original fuel system component from the Lines, hoses and pipes group, designed for use in BMW F-series Gran Coupé models. It ensures proper discharge of fuel vapors from the charcoal filter, supporting stable operation of the fuel supply system and reducing vapor emissions into the environment. This solution is dedicated to users who expect factory-fit and predictable performance parameters.

Specifications and technical data

• SKU: 5A3AFB5
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 5A3AFB5
• Substitutable numbers: 16135A3AFB5, 5A3AFB5
• Part type: Pipe
• Category: Hoses, Lines & Pipes

Technical characteristics and function in the fuel system

The BMW F Gran Coupé fuel vent pipe for the charcoal filter is responsible for the controlled flow of fuel vapors between EVAP system components. Thanks to a precisely selected inner diameter and a shape adapted to the body geometry, the pipe maintains tightness and stable flow of the working medium. The appropriate flexibility of the material allows for the compensation of engine and body vibrations, minimizing the risk of micro-cracks and leaks in the long term. The original design of the pipe results in:

• proper cooperation with the charcoal filter and other fuel system components,
• maintenance of the vapor emission levels designed by the manufacturer,
• stable engine operating conditions regarding fuel tank ventilation.

Purpose and fitment for the BMW F Gran Coupé

BMW F74 Gran Coupé Fuel Vent Pipe Charcoal Filter Ventilation Hose has been designed as a component dedicated to the specific Gran Coupé body architecture. This means that the pipe routing, mounting points, and length are optimized for factory brackets and installation paths in the engine bay and undercarriage area. Using an original pipe eliminates the need for any modifications, which is important both from a safety perspective and for subsequent maintenance. In practice, this translates into:

• secure fitment with factory brackets and guides,
• maintaining the correct bending radius in critical areas,
• easier diagnostics of potential fuel system leaks.

Condition, quality and benefits of using a used part

The offered pipe comes from the used BMW parts segment, which allows combining factory fitment with a more favorable purchase cost compared to a new component. For many users, this is a rational solution when repairing faults related to ventilation system leaks, EVAP diagnostic errors, or problems with fuel odors around the vehicle. Using an original used pipe provides, among other things:

• compliance with the factory BMW specification without the use of universal replacements,
• reduced risk of mismatch in pipe diameters and shape,
• the ability to quickly replace a damaged component without interfering with other system parts.

Installation and maintenance tips

When installing the fuel vent pipe for the charcoal filter, it is recommended to thoroughly clean the connection ports and check the condition of the connectors and clamps. Proper routing of the pipe along the original path minimizes the risk of chafing against body elements or engine components. After installation, it is worth performing a fuel system leak test and verifying any error codes stored in the engine control unit. Regular inspection of lines, hoses, and pipes within the fuel system allows for early detection of signs of material aging, such as hardening, micro-cracks, or traces of leaks, which translates into safer and more predictable vehicle operation.
