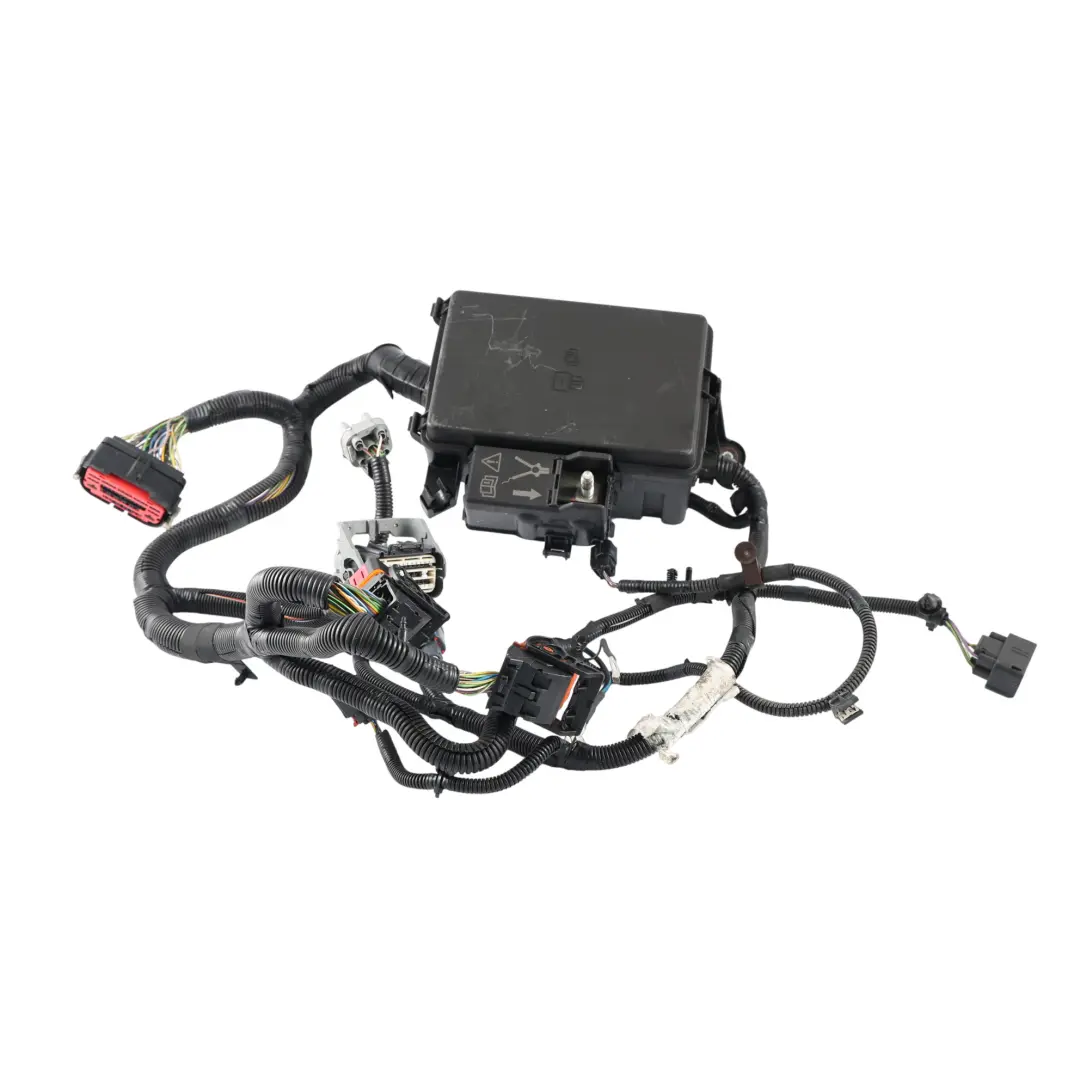

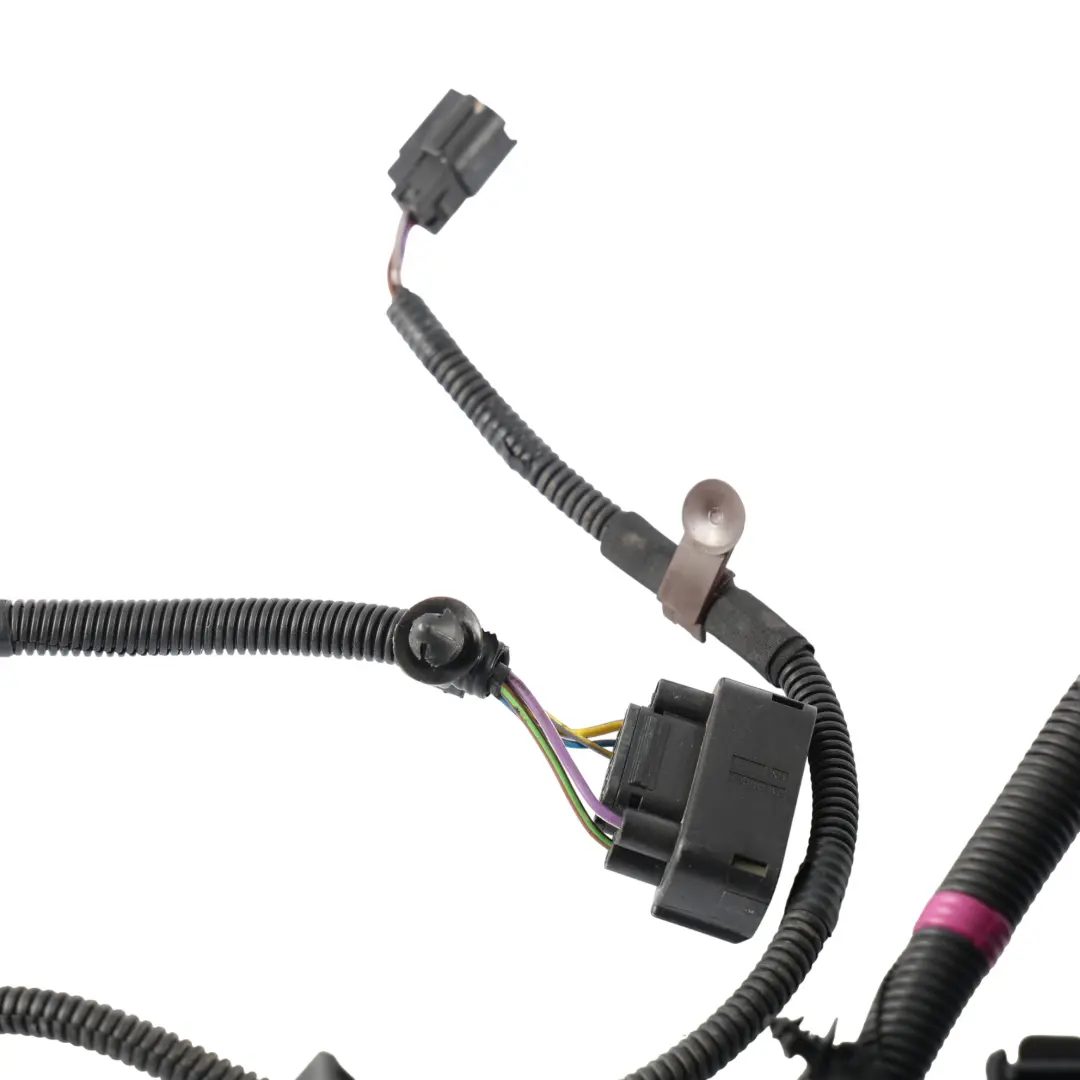

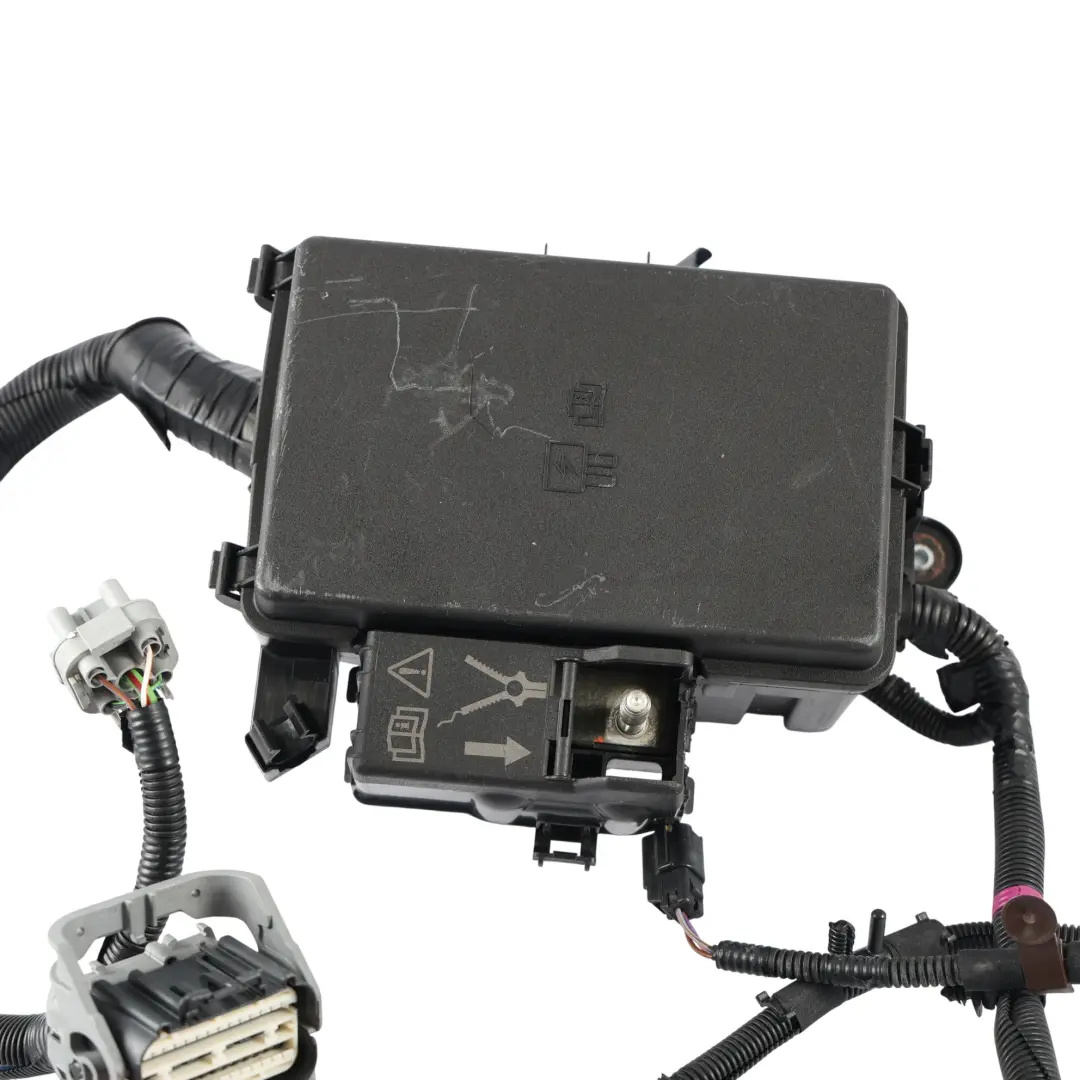

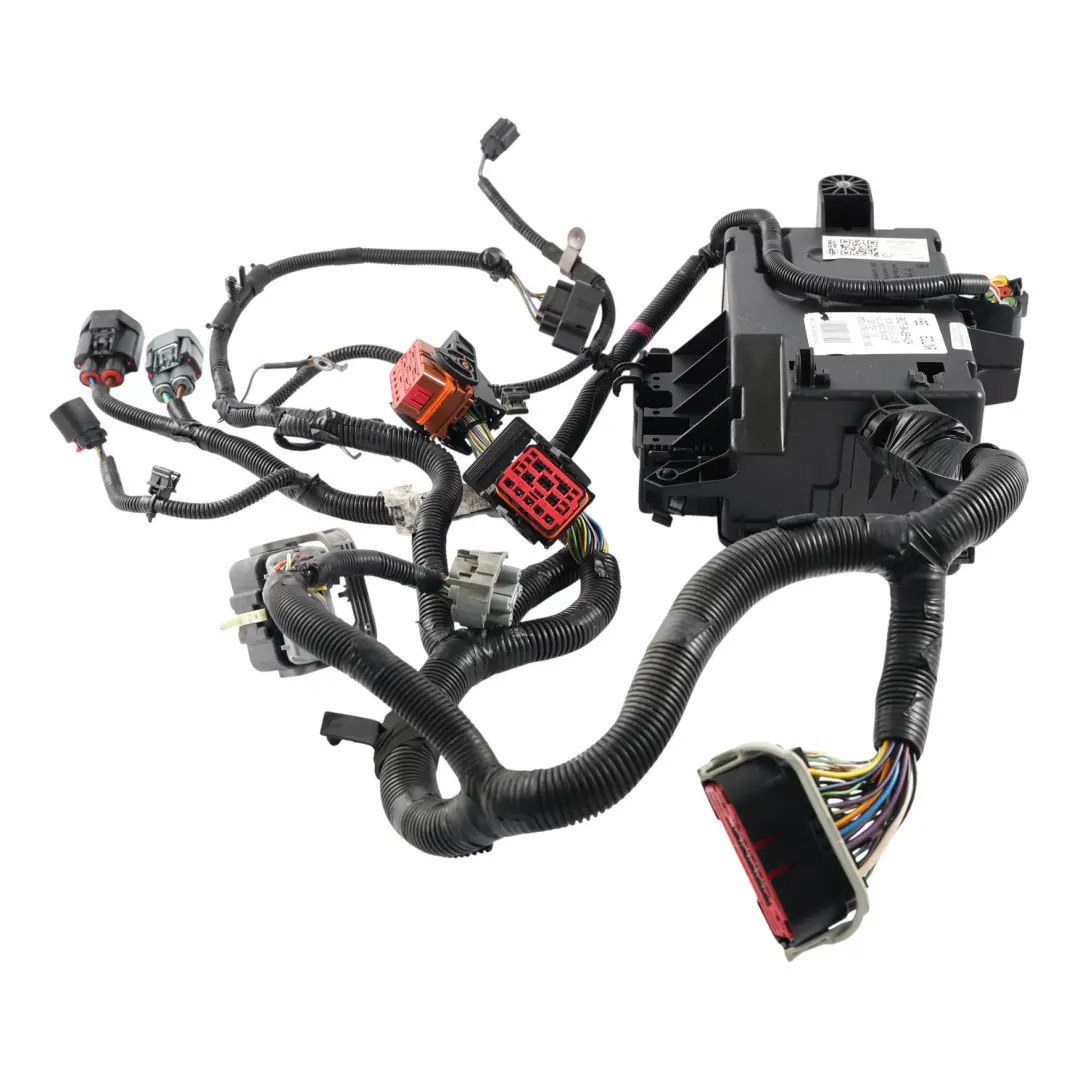

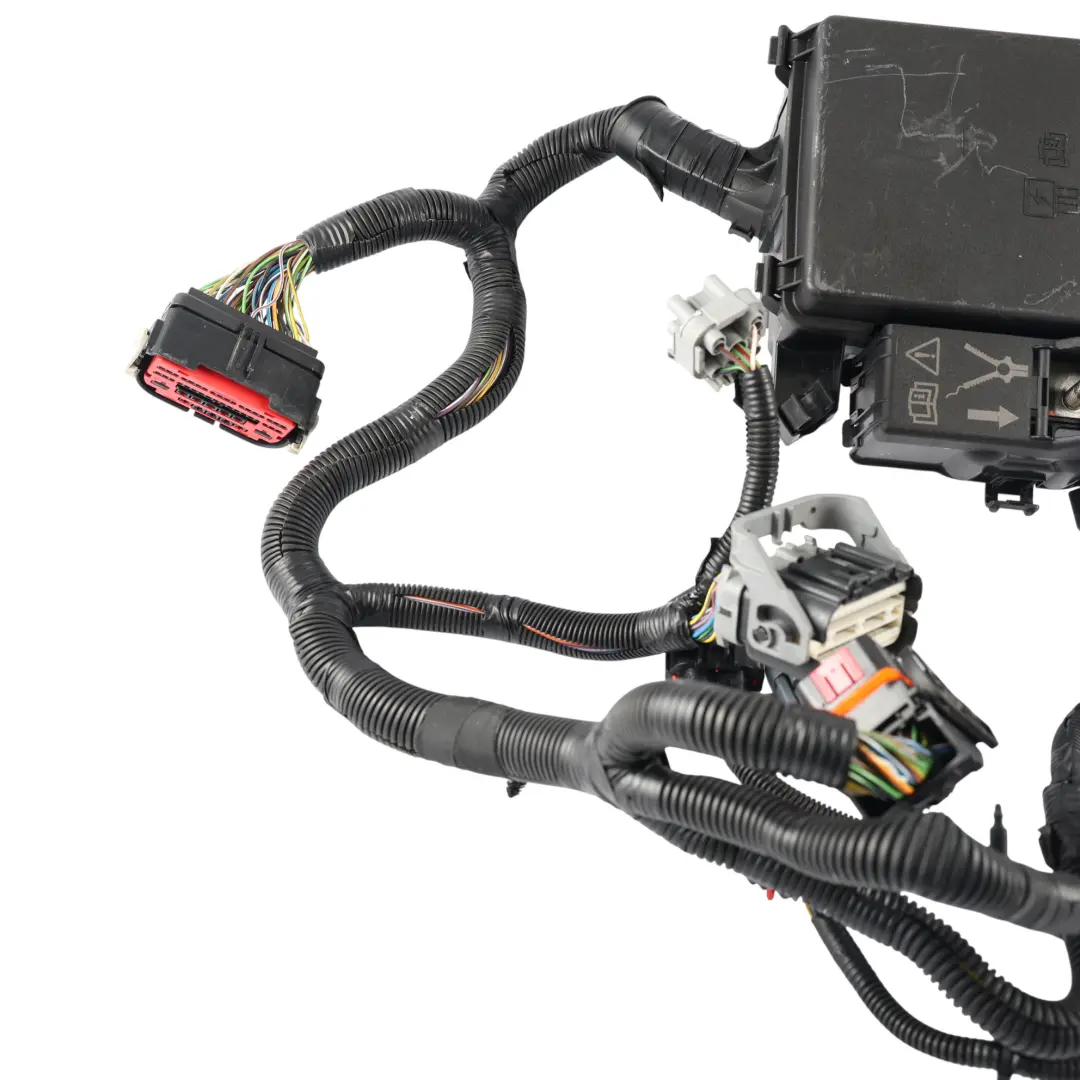

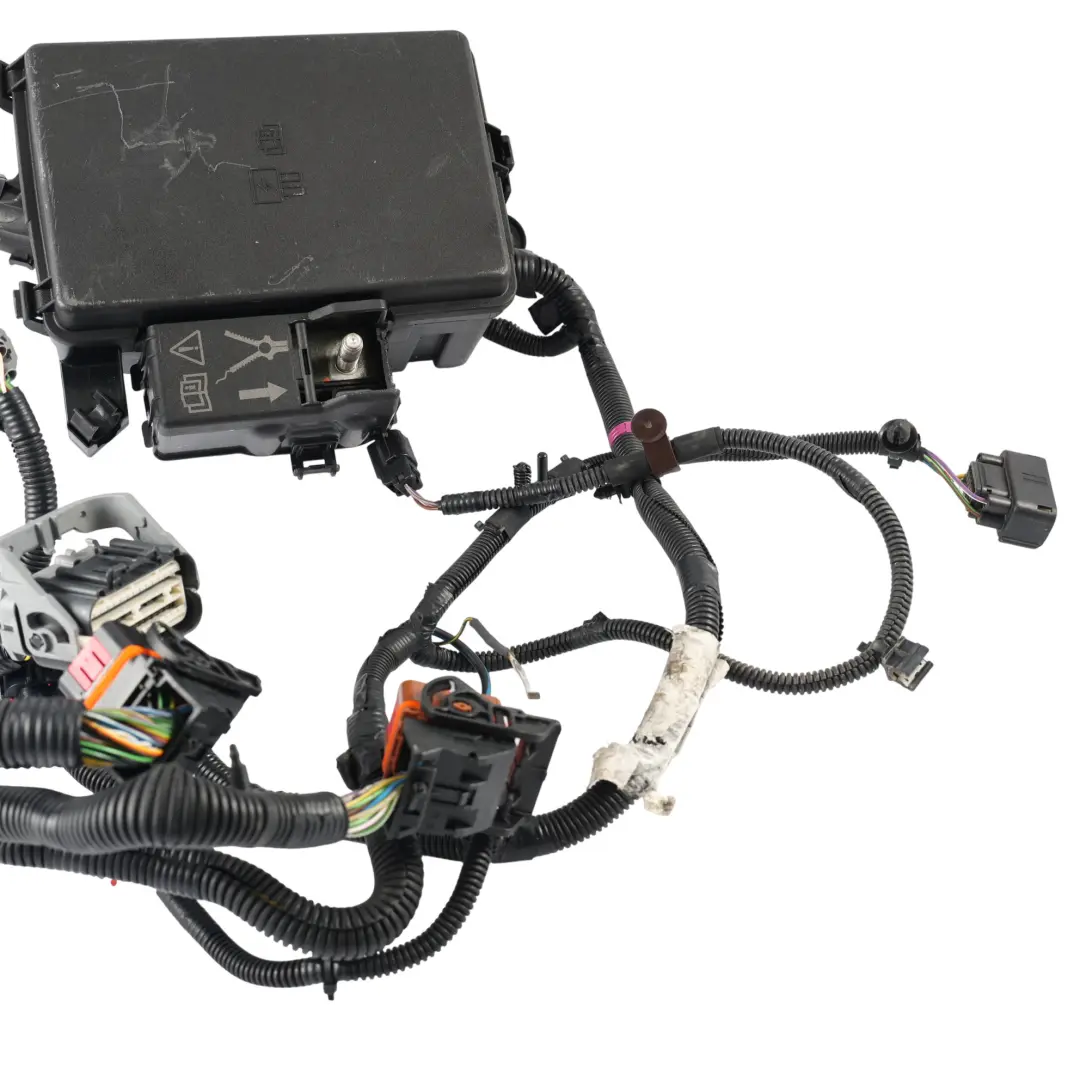

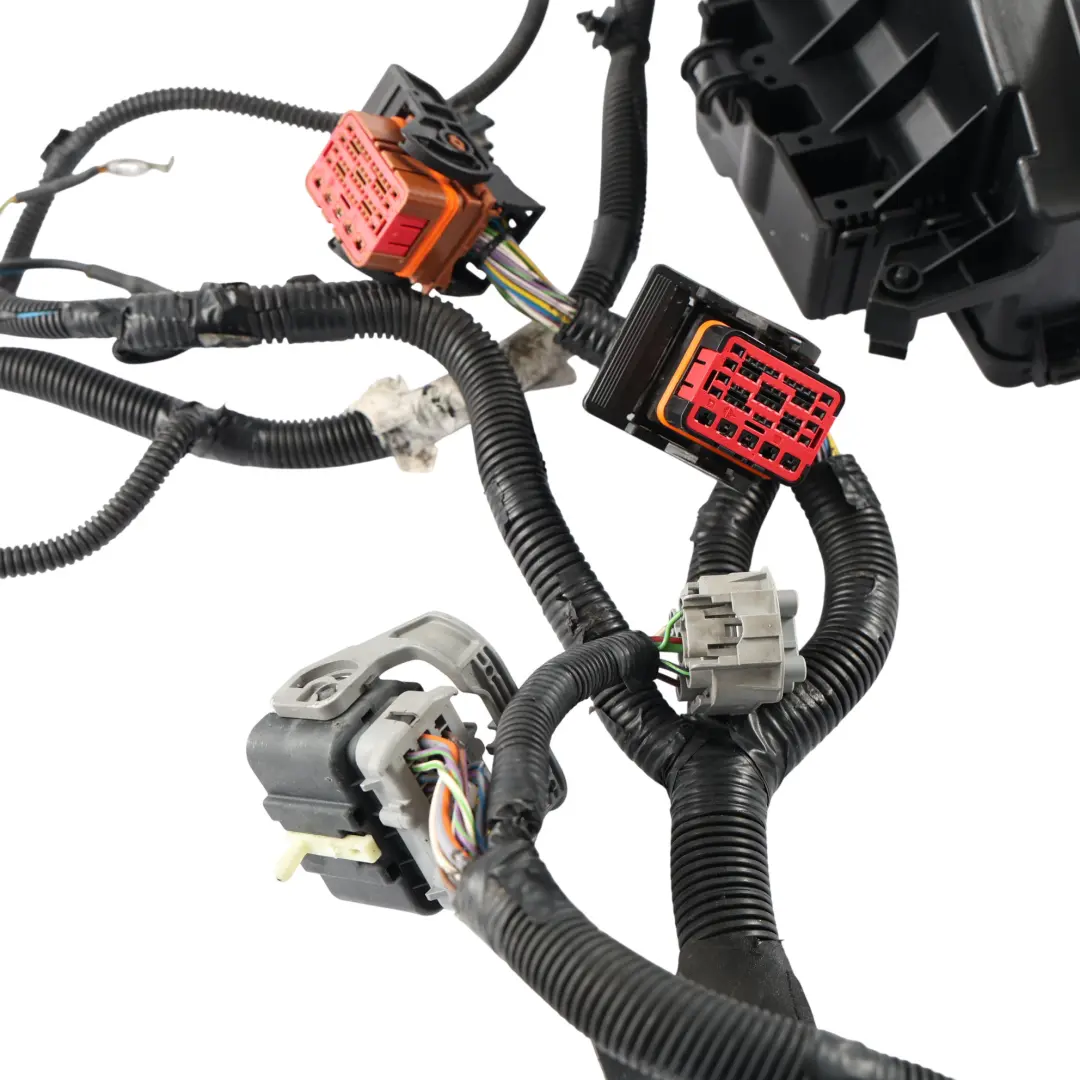

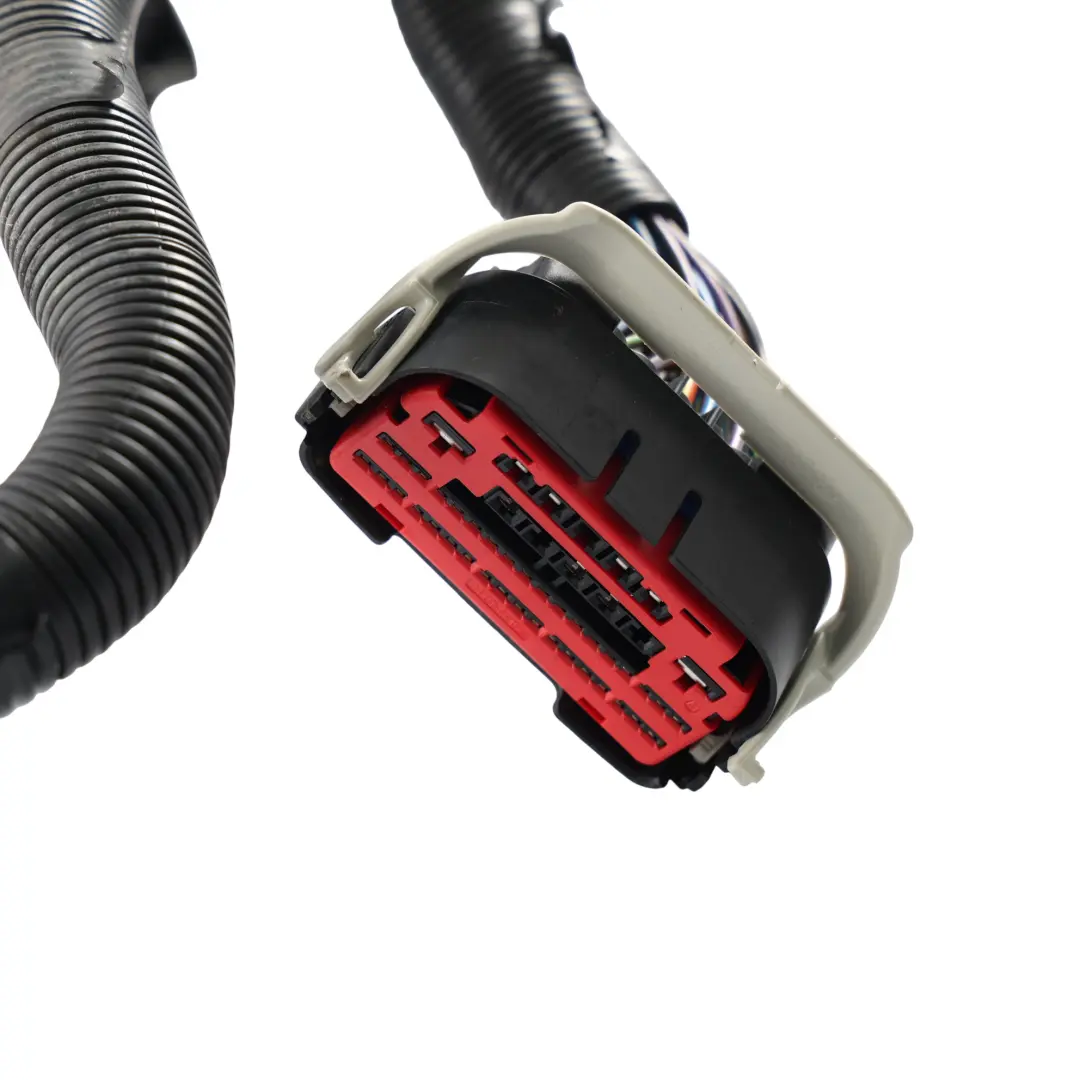

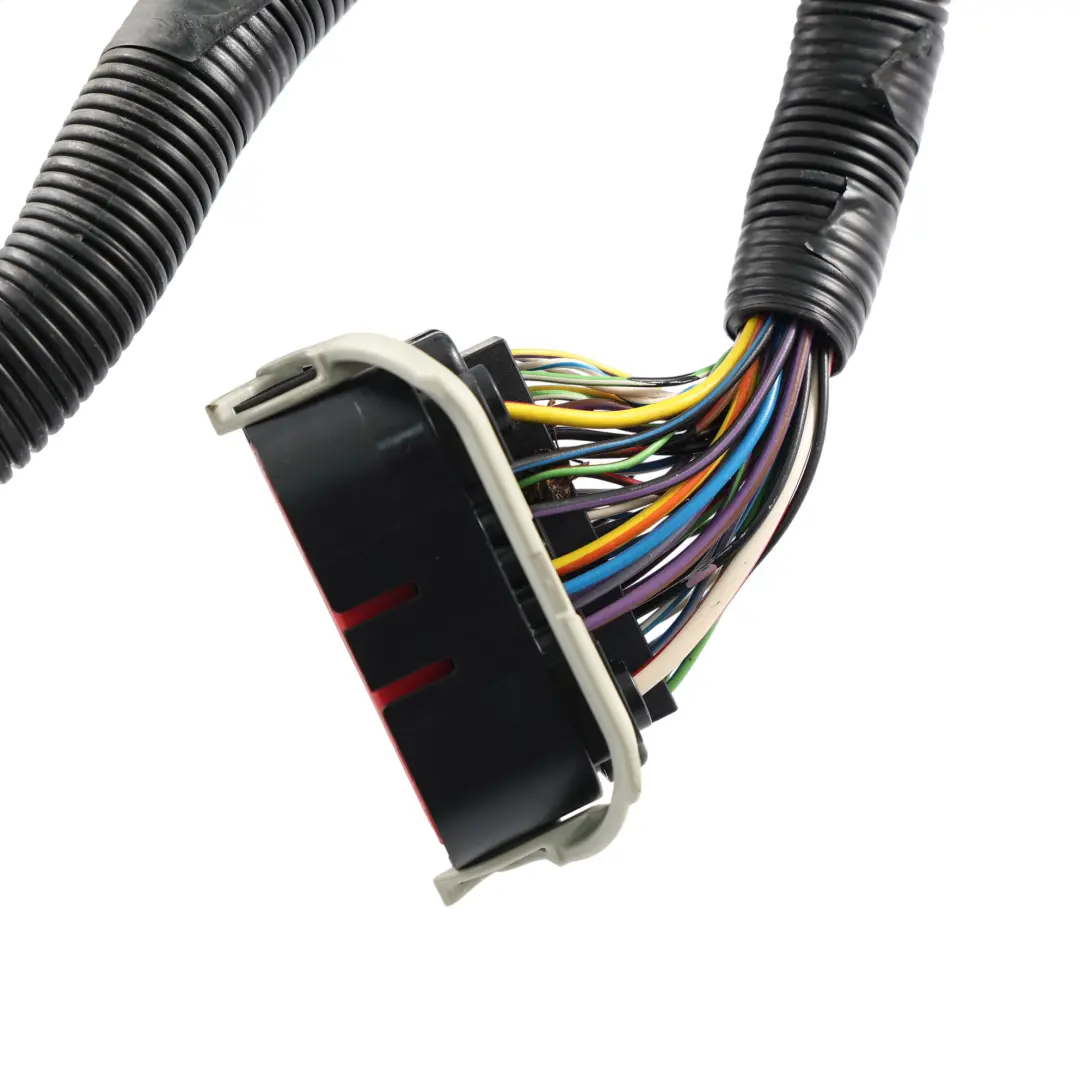

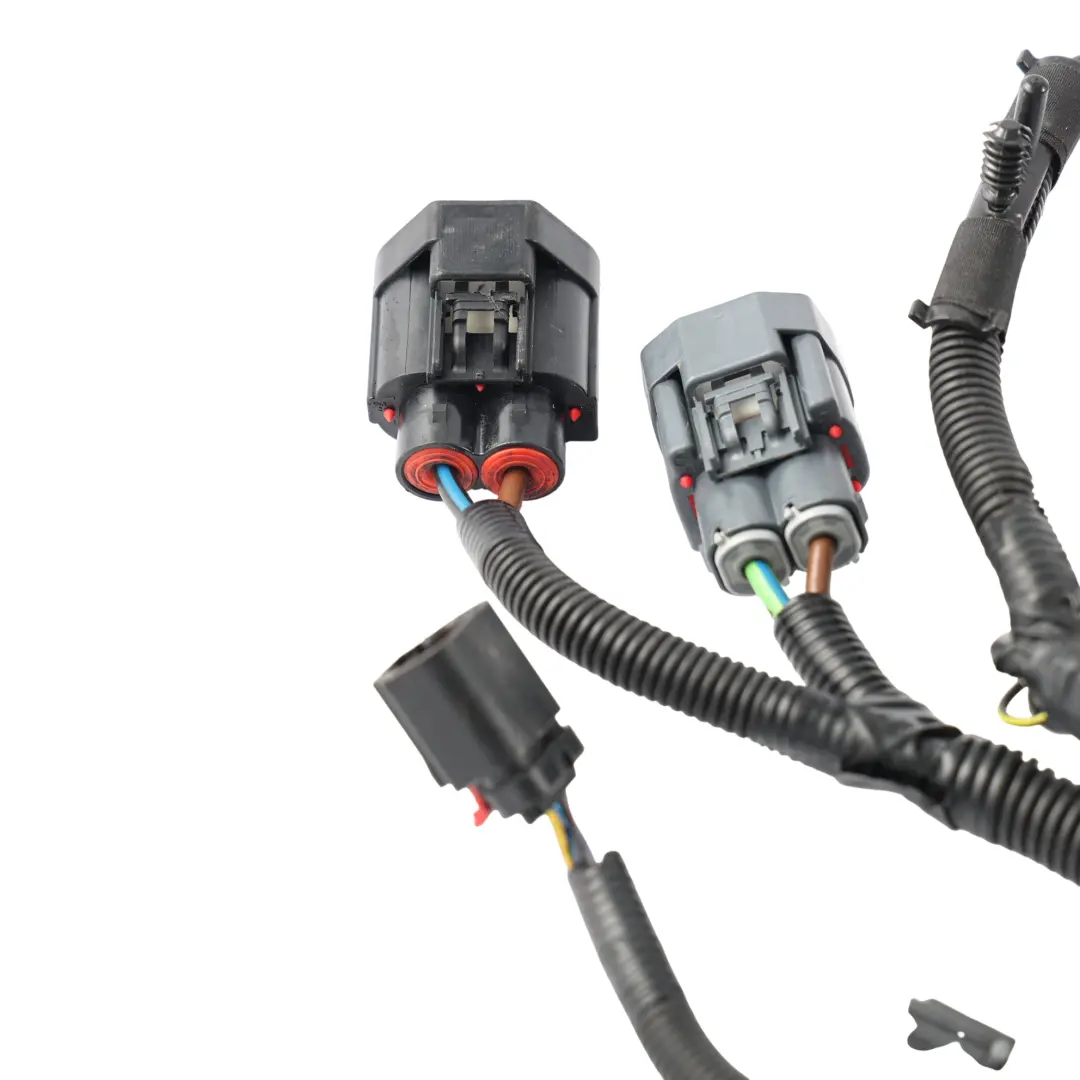

Ford Transit Custom Fuse Box Loom Harness Wire 2.2 TDCi CYFF Mk8 BK2T-9K499-ACH

Ford Transit Custom Fuse Box Loom Harness Wire 2.2 TDCi CYFF Mk8 is a factory-original electrical installation component, designed for precise circuit management and vehicle system protection. This fuse box, from the Fuses and fuse boxes category, comes from a Ford vehicle and provides a solid foundation for professional repair or replacement of a damaged module in a Transit Custom with a 2.2 TDCi CYFF engine.

Specifications and technical data

• SKU: BK2T-9K499-ACH
• Mark: Ford
• Condition: Used

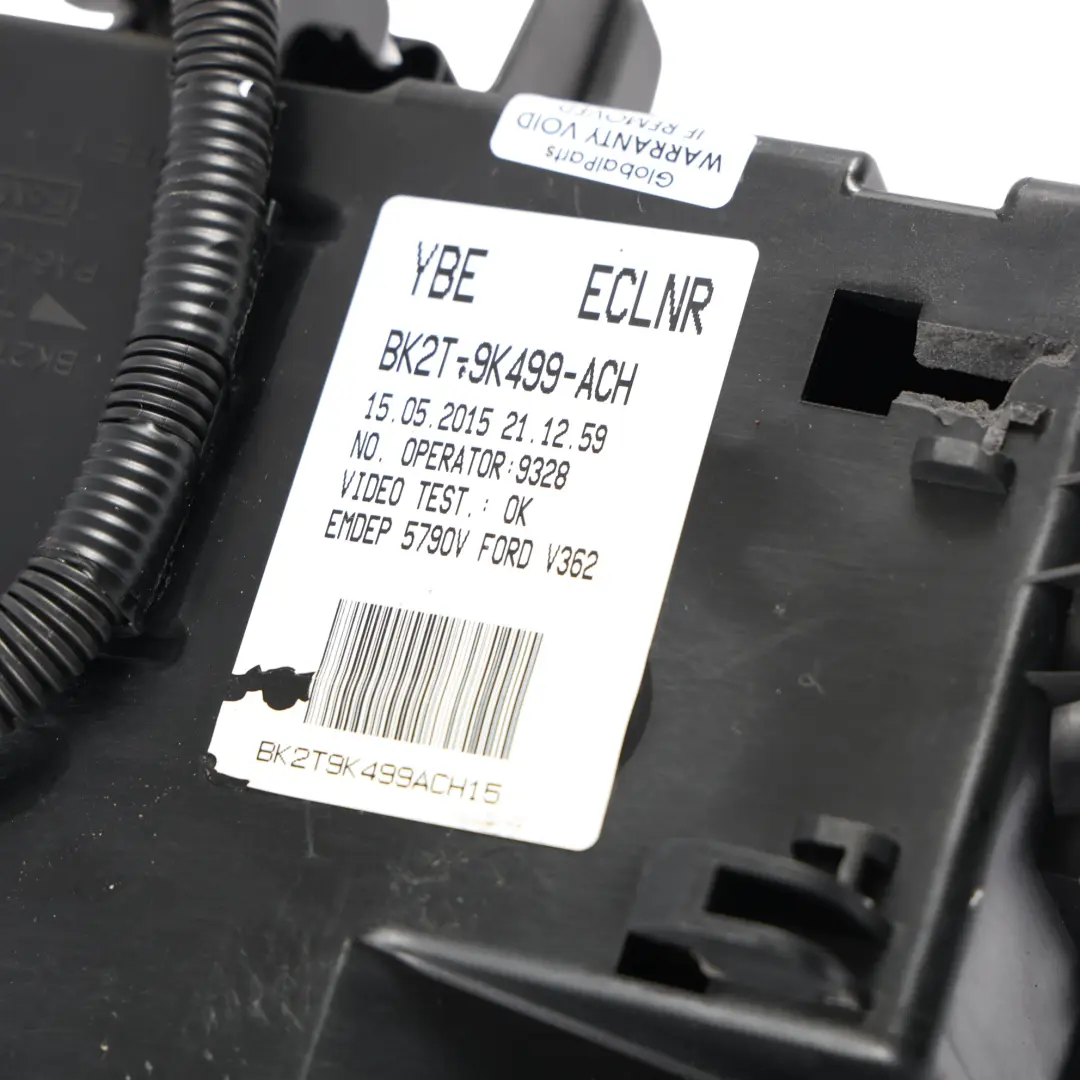

• OEM Part Number: BK2T-9K499-ACH
• Substitutable numbers: BK2T-9K499-ACH, BK2T9K499ACH, 2348781, BK2T-9K499-ACM, BK2T9K499ACM
• Category: Fuses & Fuse Boxes

Purpose and function in the electrical system

The fuse box in the Ford Transit Custom is responsible for power distribution and protecting the vehicle's key electrical circuits. In practice, this means monitoring and protecting components such as:

• the starting and power supply system for the 2.2 TDCi CYFF engine,
• essential onboard systems (lighting, controls, module power supply),
• selected comfort and auxiliary equipment circuits. By using an original Ford fuse box, the correct installation architecture is maintained, which reduces the risk of compatibility issues and facilitates future diagnostics.

Compatibility and replacement numbers

The presented fuse box is a component from the family of parts used in the Mk8 generation Ford Transit Custom with the 2.2 TDCi CYFF unit. It belongs to a group of components for which the manufacturer has provided interchangeable numbers, making it easier to select the appropriate module in the event of catalog changes or updates within the same platform. Before purchasing, it is recommended to compare the markings with the removed part and verify compatibility with the specific vehicle equipment version to ensure proper integration with the existing wiring harness and control modules.

Product characteristics and advantages of using Ford parts

The fuse box comes from the Ford parts line, which ensures factory manufacturing standards and pin layout are maintained. In practice, this translates into:

• proper fitment for mounts and connectors in the vehicle compartment,
• compliance with original service documentation and electrical diagrams,
• easier diagnostics using factory service tools. The used component allows for an economical repair while maintaining the design intended by the manufacturer, without the need for installation modifications or the use of adapters.

Condition, installation, and service application

The offered fuse box is a dismantled component intended for reinstallation in a vehicle after verifying compatibility. This type of component is particularly useful in situations where there has been mechanical damage to the housing, overheating of contacts, or flooding of the original fuse box in a Ford Transit Custom. During installation, it is recommended to:

• thoroughly clean and inspect the wiring harness connectors,
• check the condition of the fuses and relays transferred from the old module,
• verify the correct operation of the main circuits after starting the vehicle.
