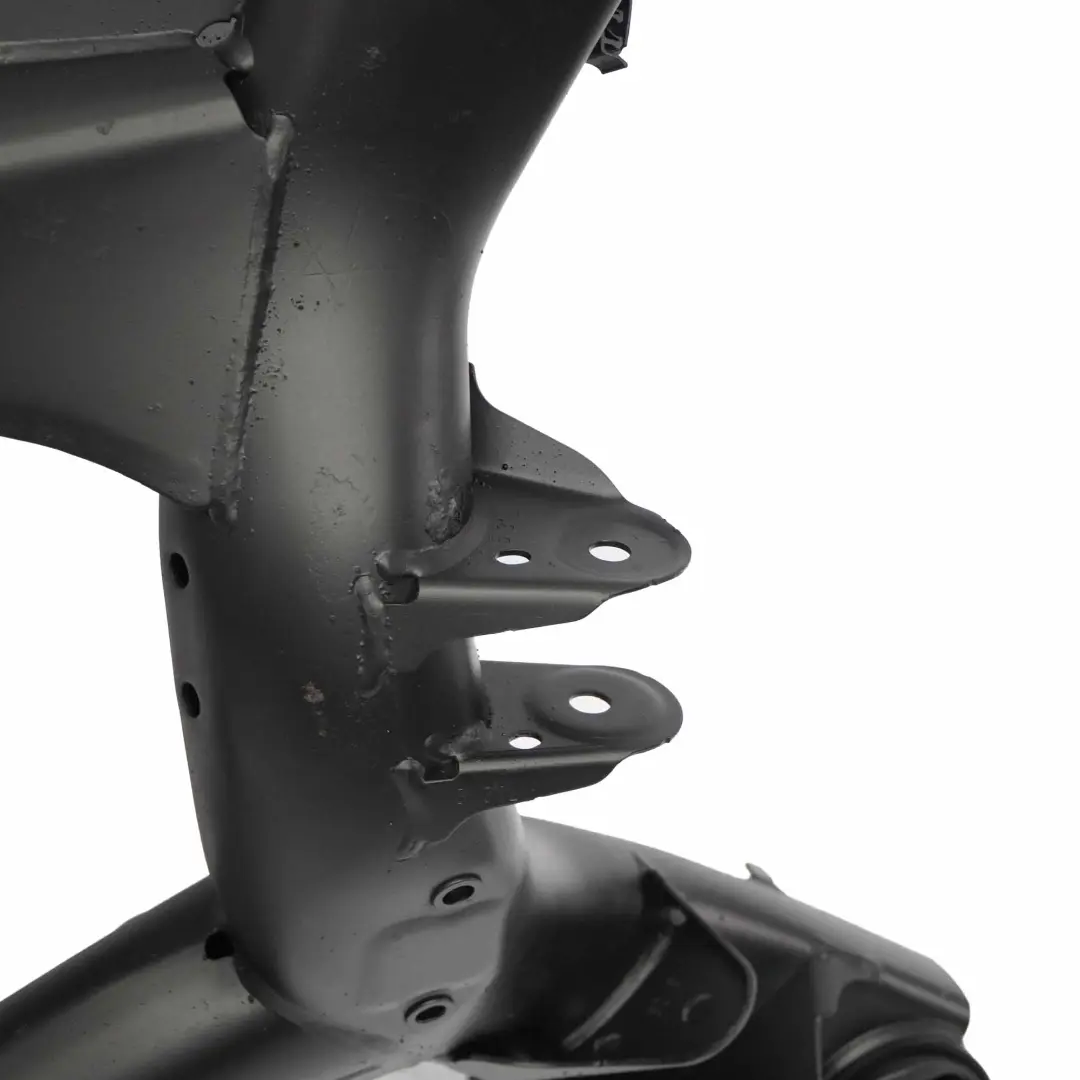

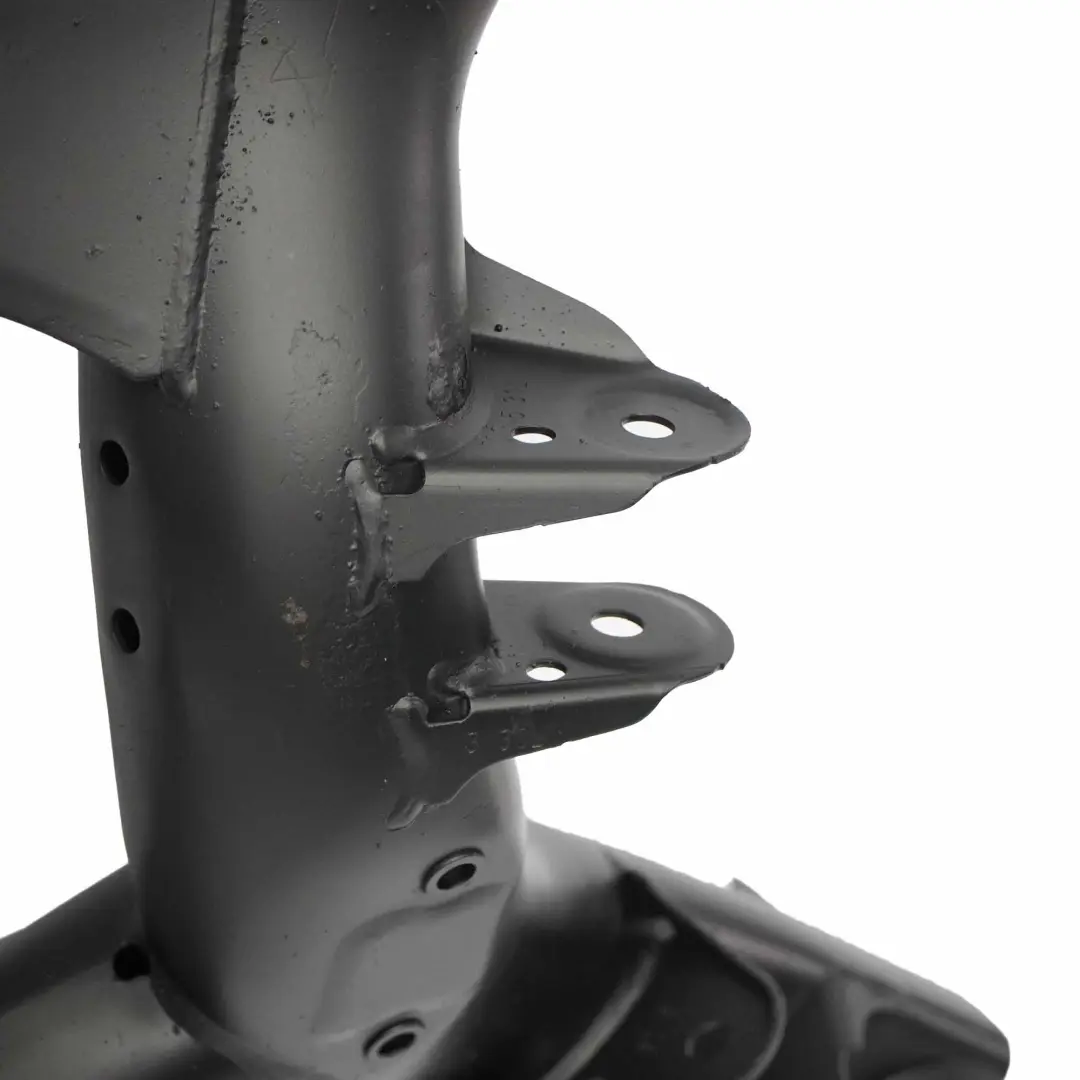

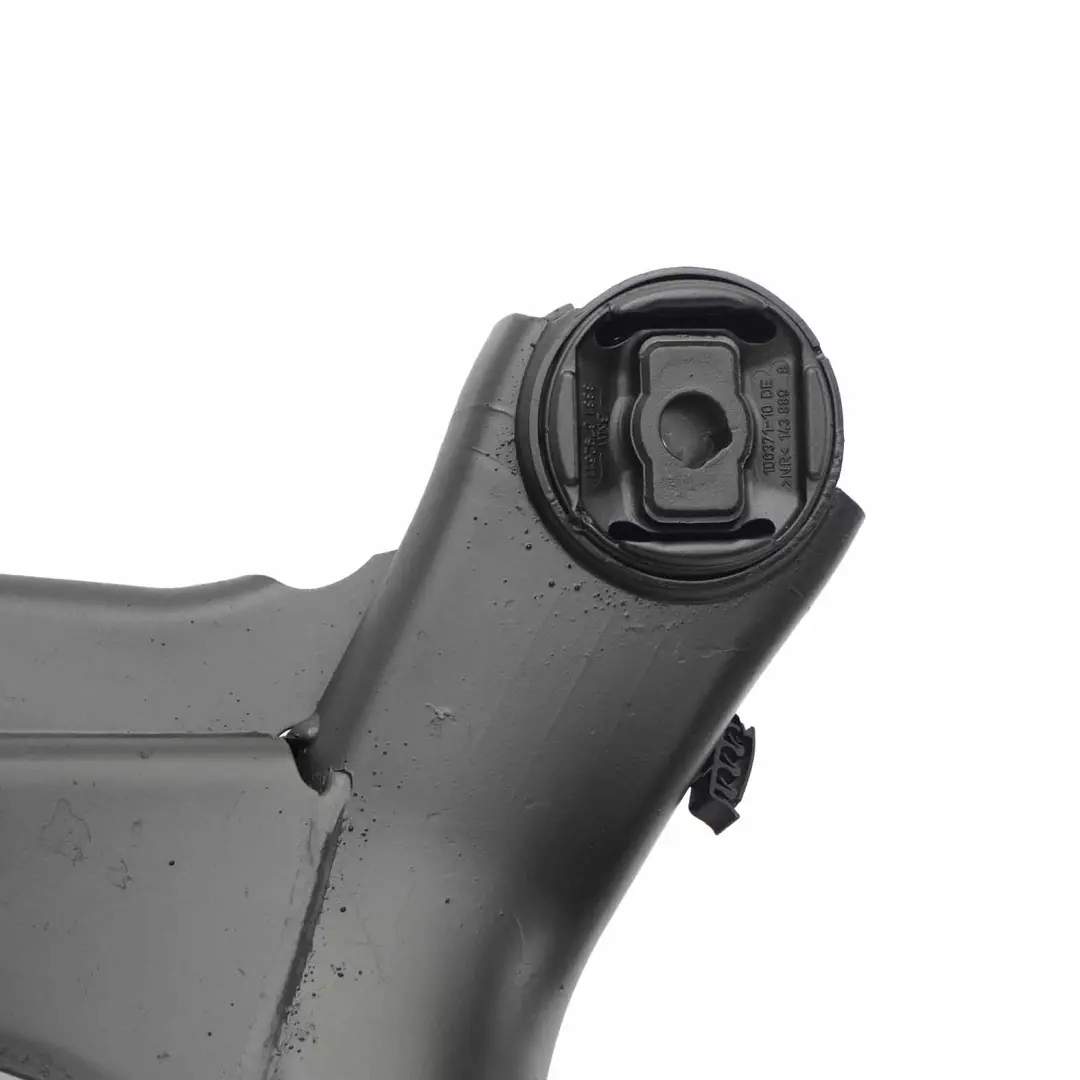

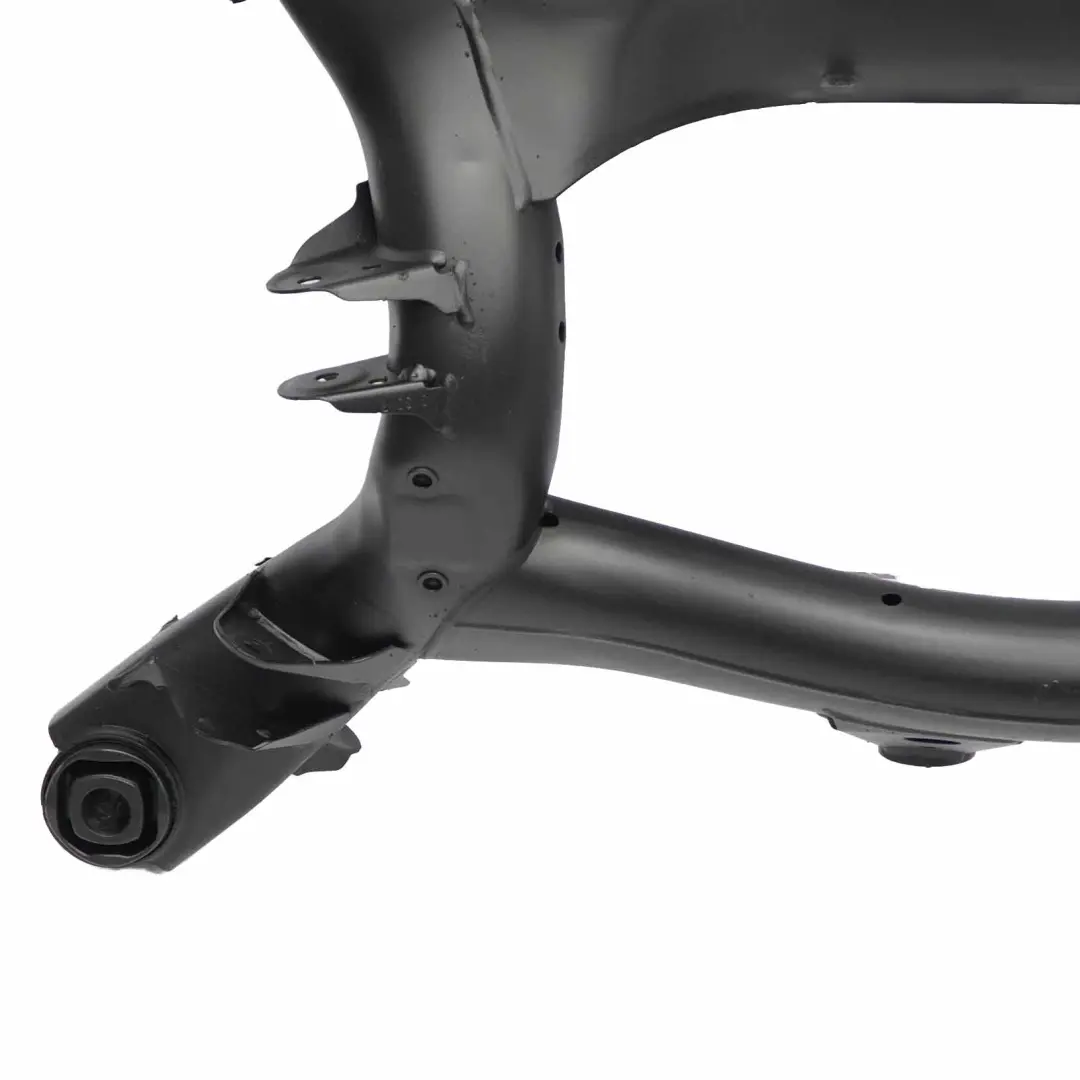

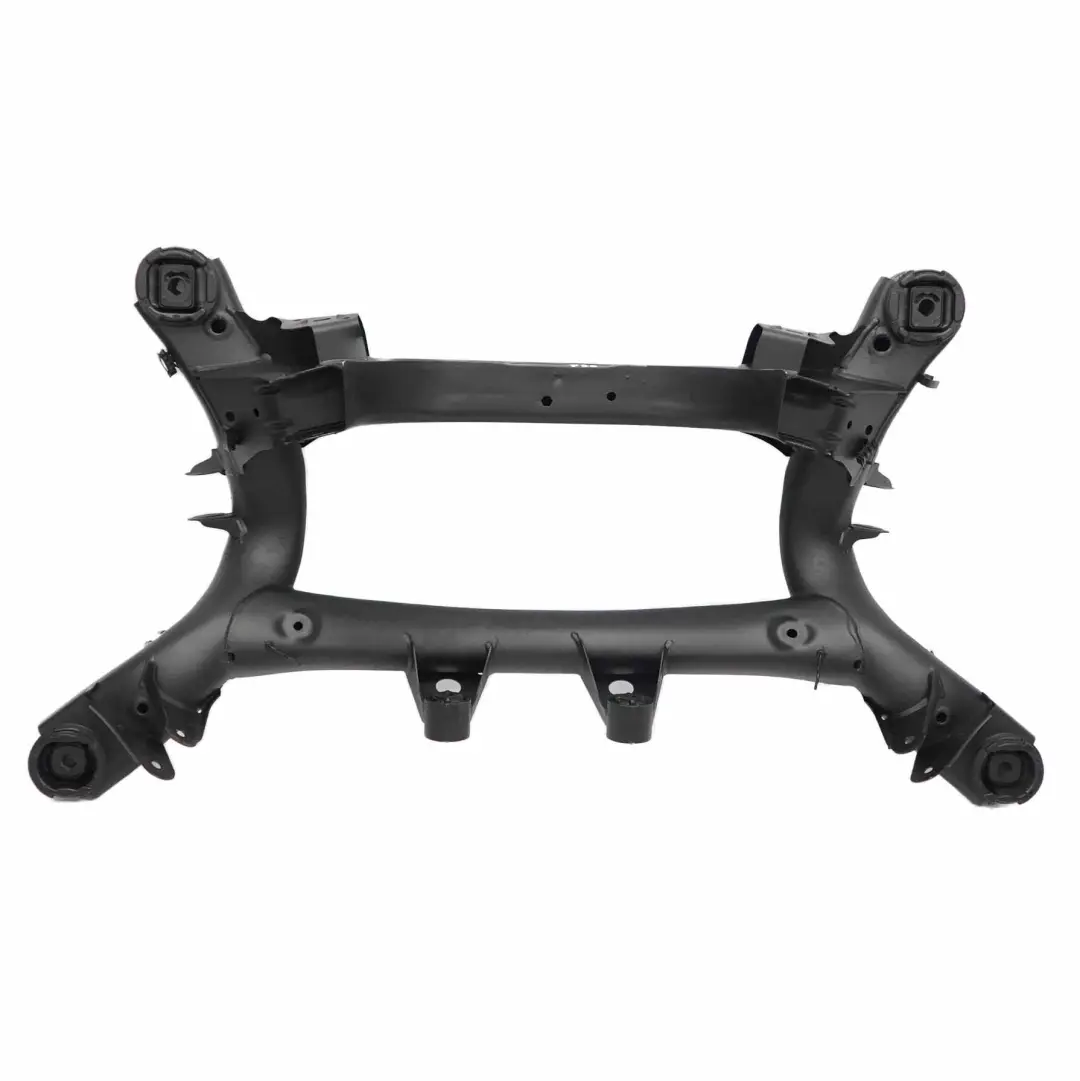

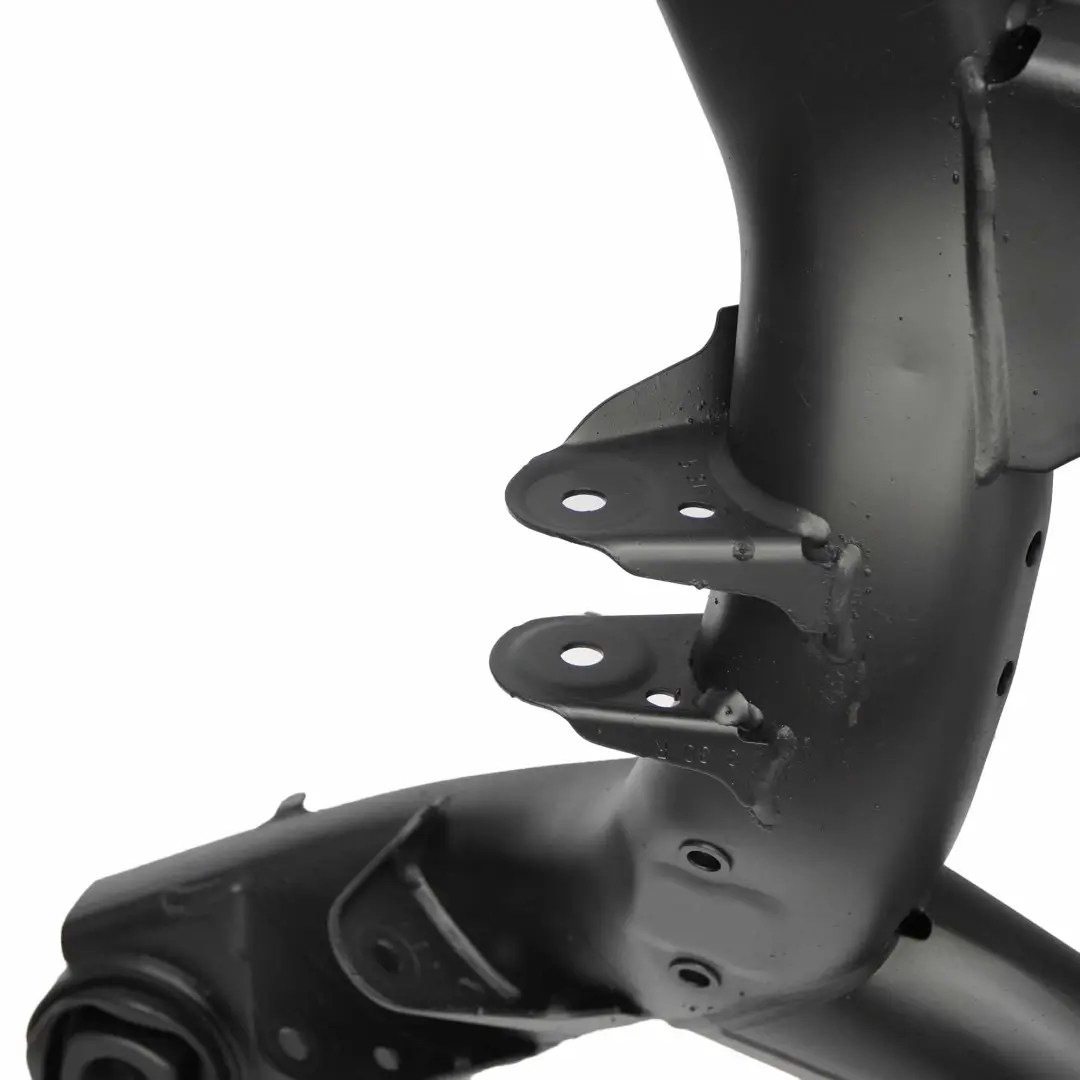

Rear Axle Carrier BMW F30 F32 F36 N20 Petrol Diff Cradle Subframe 6851657

BMW F30 F32 F36 N20 Rear Suspension Cradle Subframe is a component from the category of longitudinal body frame parts and brackets, designed for the rear suspension in BMW vehicles with a gasoline engine. It is a robust structural base responsible for the stable mounting of suspension elements and the correct geometry of the rear axle.

Specifications and technical data

• SKU: 6851657
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6851657
• Substitutable numbers: 33306851657, 6851657, 33316855894, 6855894, BG
• Location on the vehicle: Rear
• Fuel type: Petrol
• Category: Frame Rails & Subframes

Purpose and Function in Rear Suspension

The rear cradle, also known as the suspension subframe, is a key structural support for the rear axle in the BMW F-series platform. It ensures a rigid connection between the suspension components and the car body, which directly impacts vehicle handling, stability at higher speeds, and predictable car behavior in corners.

In vehicles with the N20 gasoline engine, the cradle is adapted to the characteristics of the powertrain and body geometry, ensuring proper transfer of loads from the wheels to the vehicle's structure. A correctly selected component of this type helps maintain:

• rear axle stability during acceleration and braking,
• predictable vehicle behavior under load changes,
• correct suspension geometry, which translates to even tire wear.

Construction and Fitment for BMW F30, F32, F36

The rear cradle is designed as a load-bearing suspension component that works with the car body frame and other brackets. Its geometry is adapted to the architecture of BMW F30, F32, and F36 models, allowing for the preservation of factory mounting points for control arms, shock absorbers, and other rear axle components.

As part of the longitudinal body frame parts and brackets group, the cradle handles significant dynamic loads. Proper fitment for a specific BMW generation minimizes the risk of body stress and facilitates installation without requiring vehicle structure modifications.

Benefits of Using an Original Rear Cradle

Using the correct rear cradle in BMW F-series vehicles offers a range of practical operational benefits:

• Factory fitment to the body – maintaining original mounting points and suspension geometry.
• Compatibility with gasoline powertrains – construction designed to work with the N20 unit and the load characteristics of this version.
• Stable vehicle handling – proper transfer of forces from the suspension to the body structure contributes to confident driving.
• Possibility of professional post-accident repair – replacing the cradle allows for the restoration of the rear section's structural parameters.

Application in Service and Suspension Diagnostics

The rear cradle is often replaced in cases of mechanical damage, corrosion, or deformation after a collision. In BMW F30, F32, and F36 vehicles, its condition directly affects:

• correct wheel alignment and camber angles,
• absence of unwanted play in the rear suspension,
• driving comfort and vibration damping transmitted from the road surface.

When replacing this component, a full suspension geometry check is recommended to fully utilize the potential of the BMW's design and ensure stable vehicle handling in everyday use.
