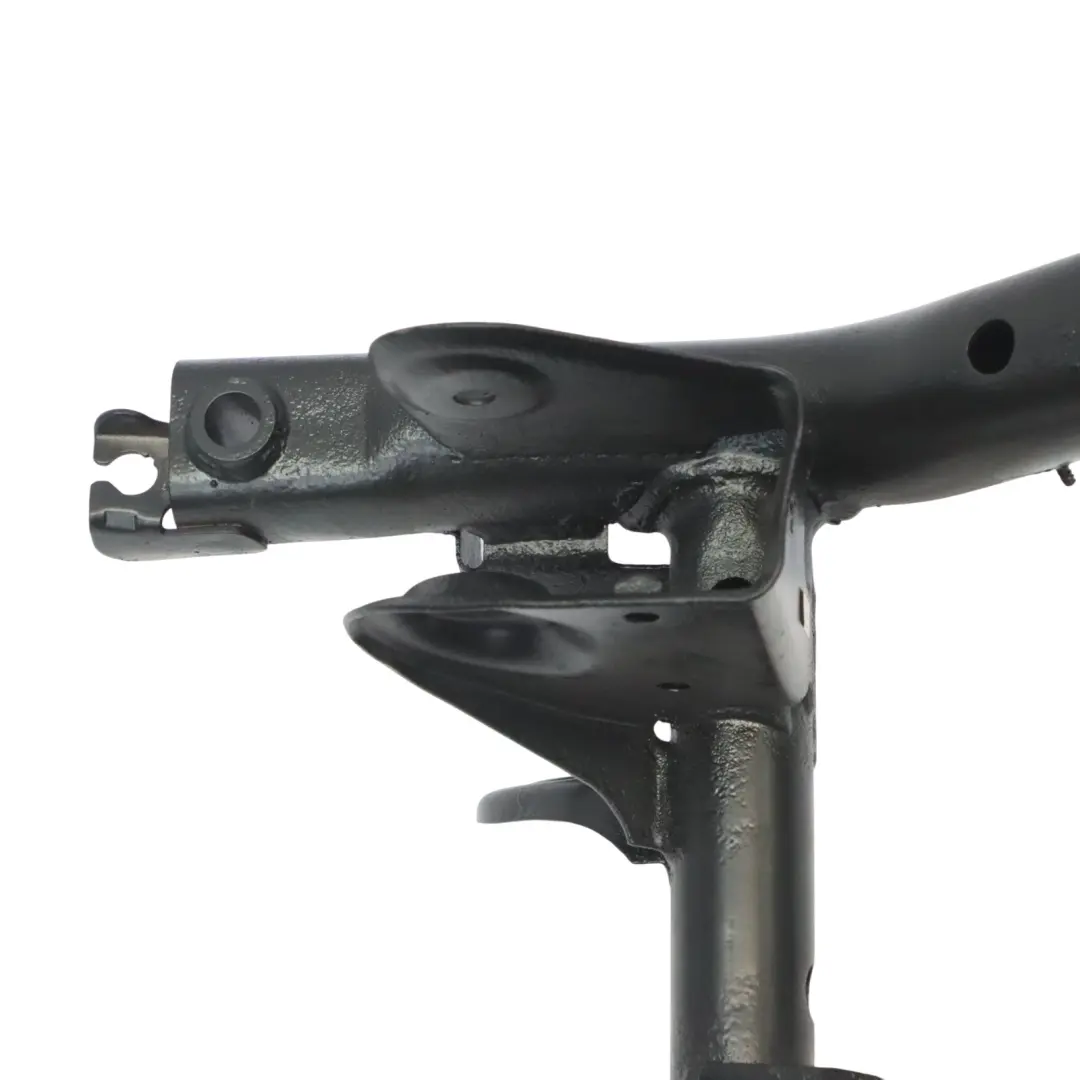

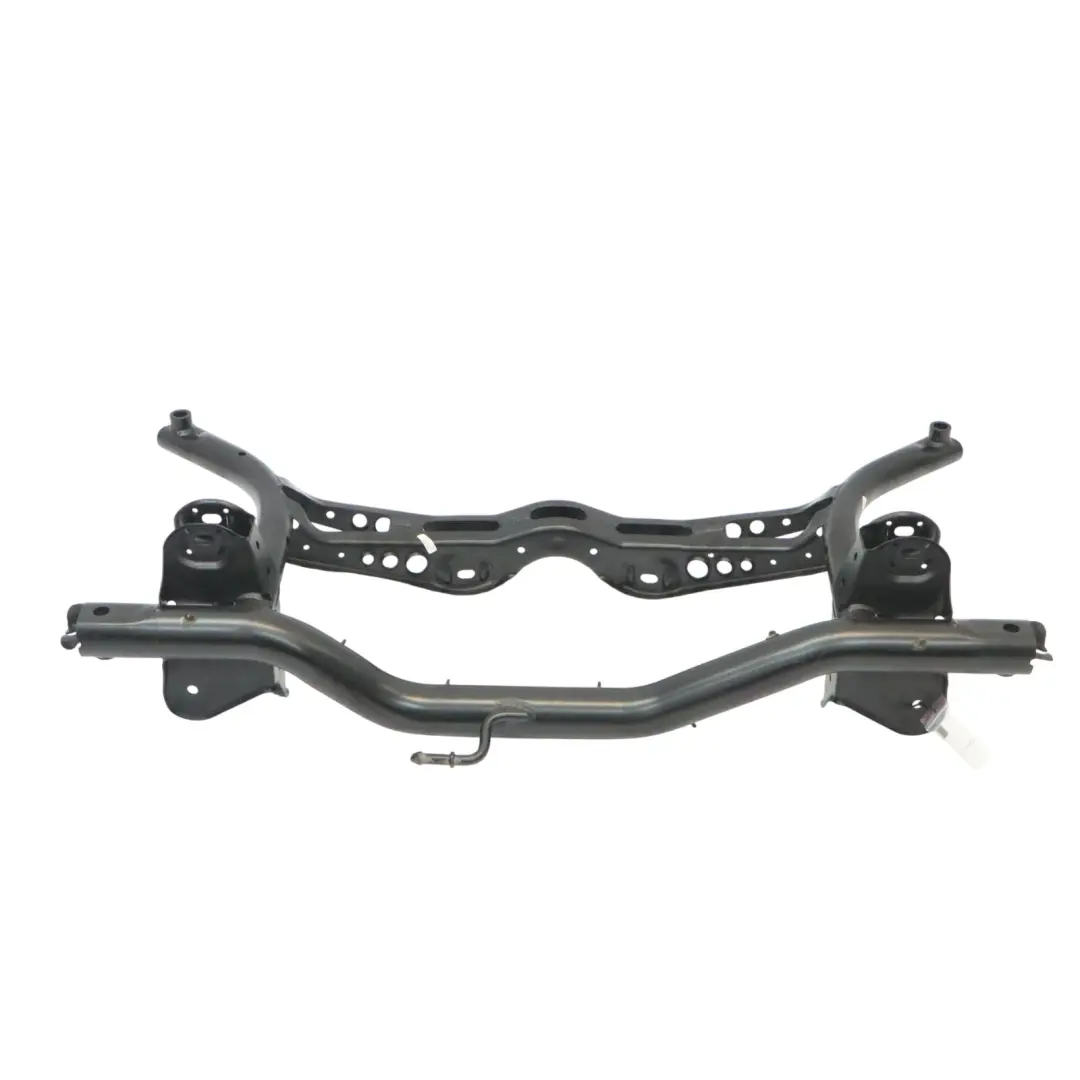

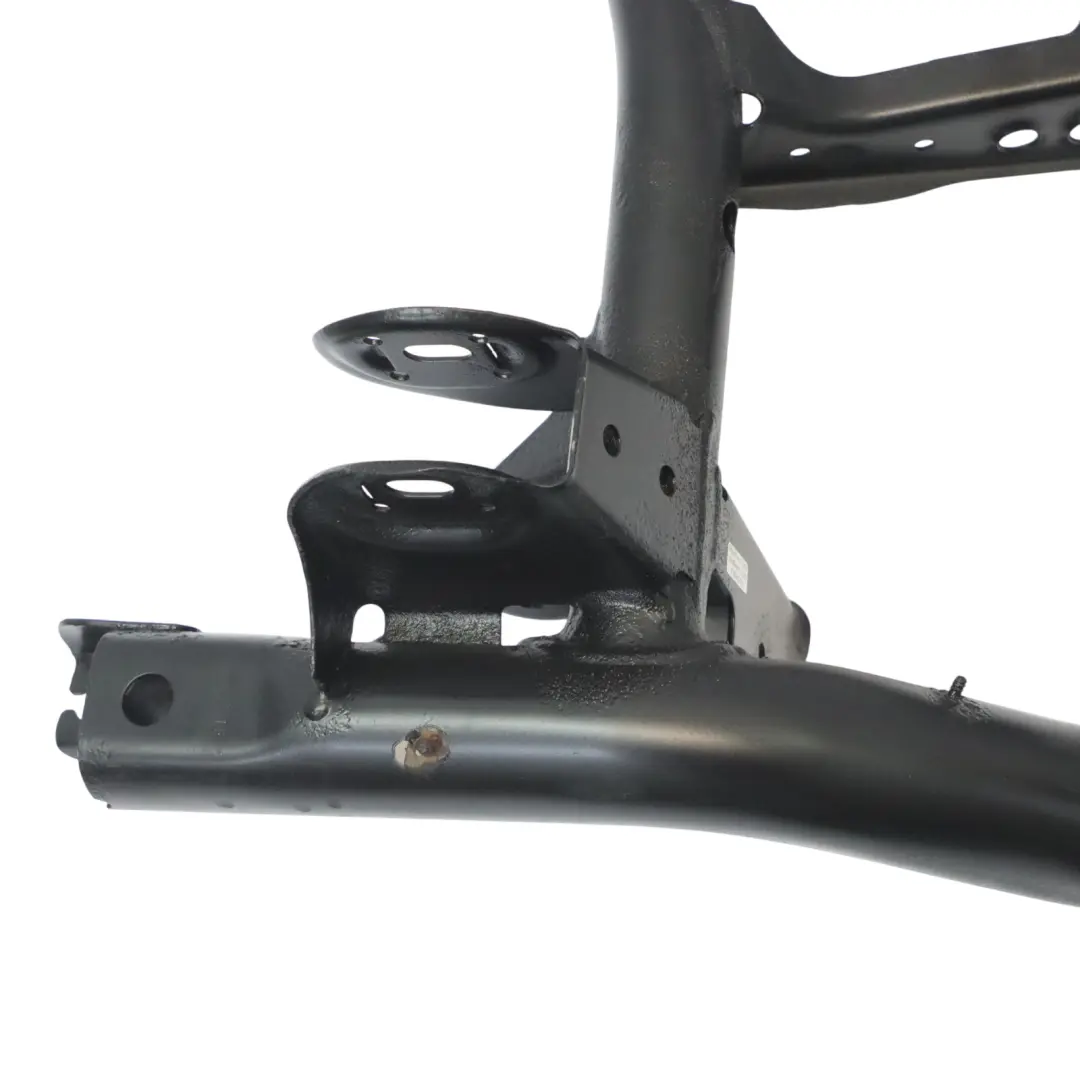

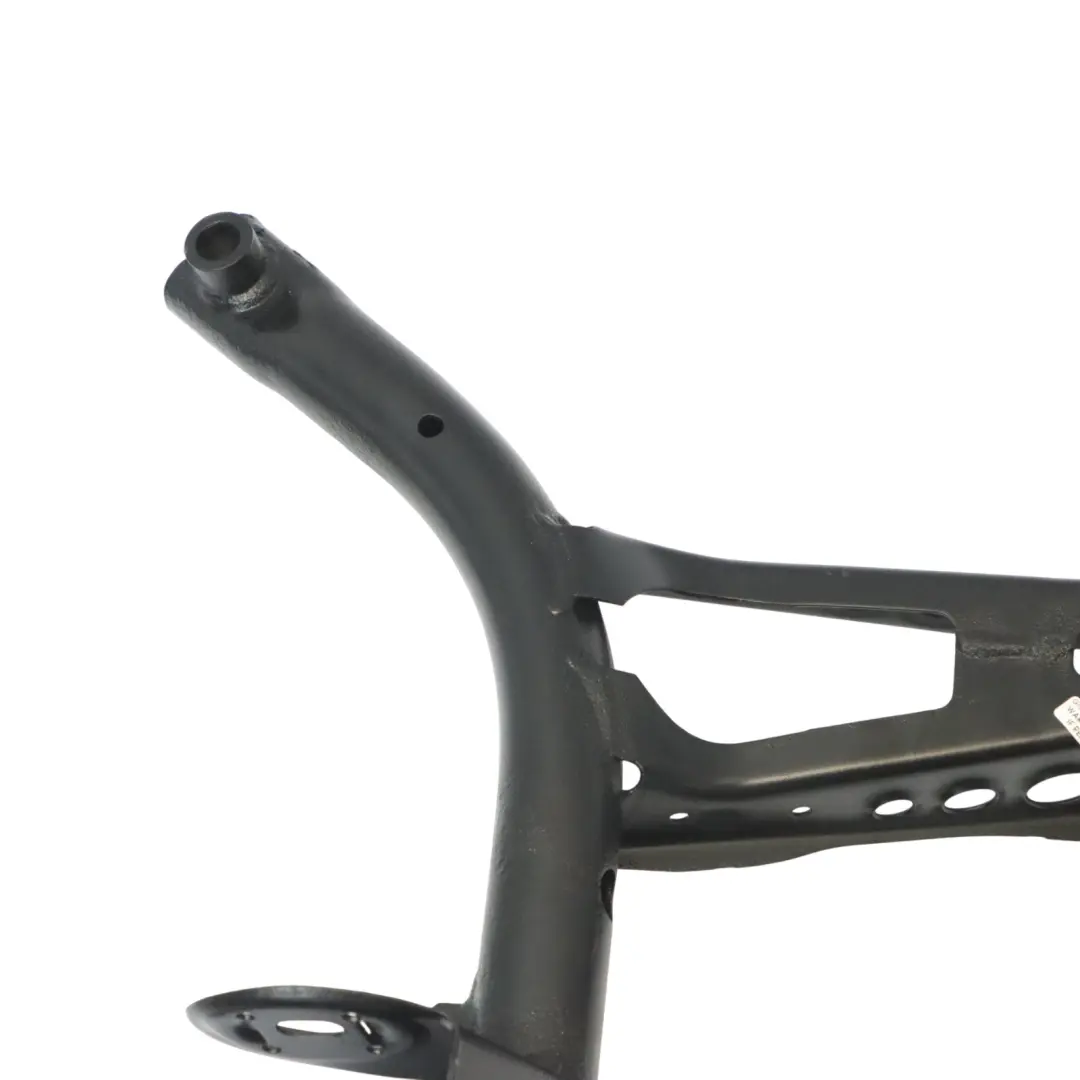

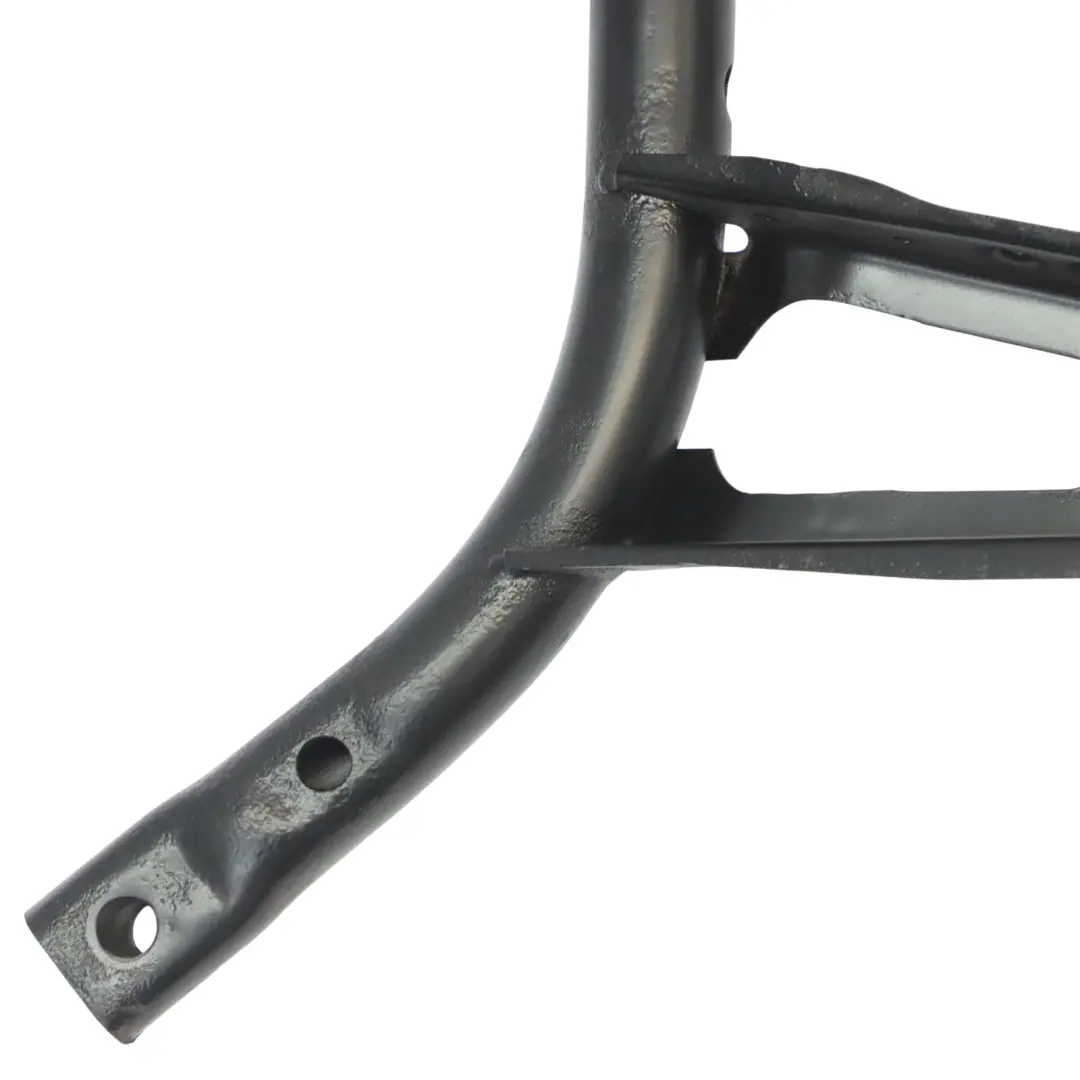

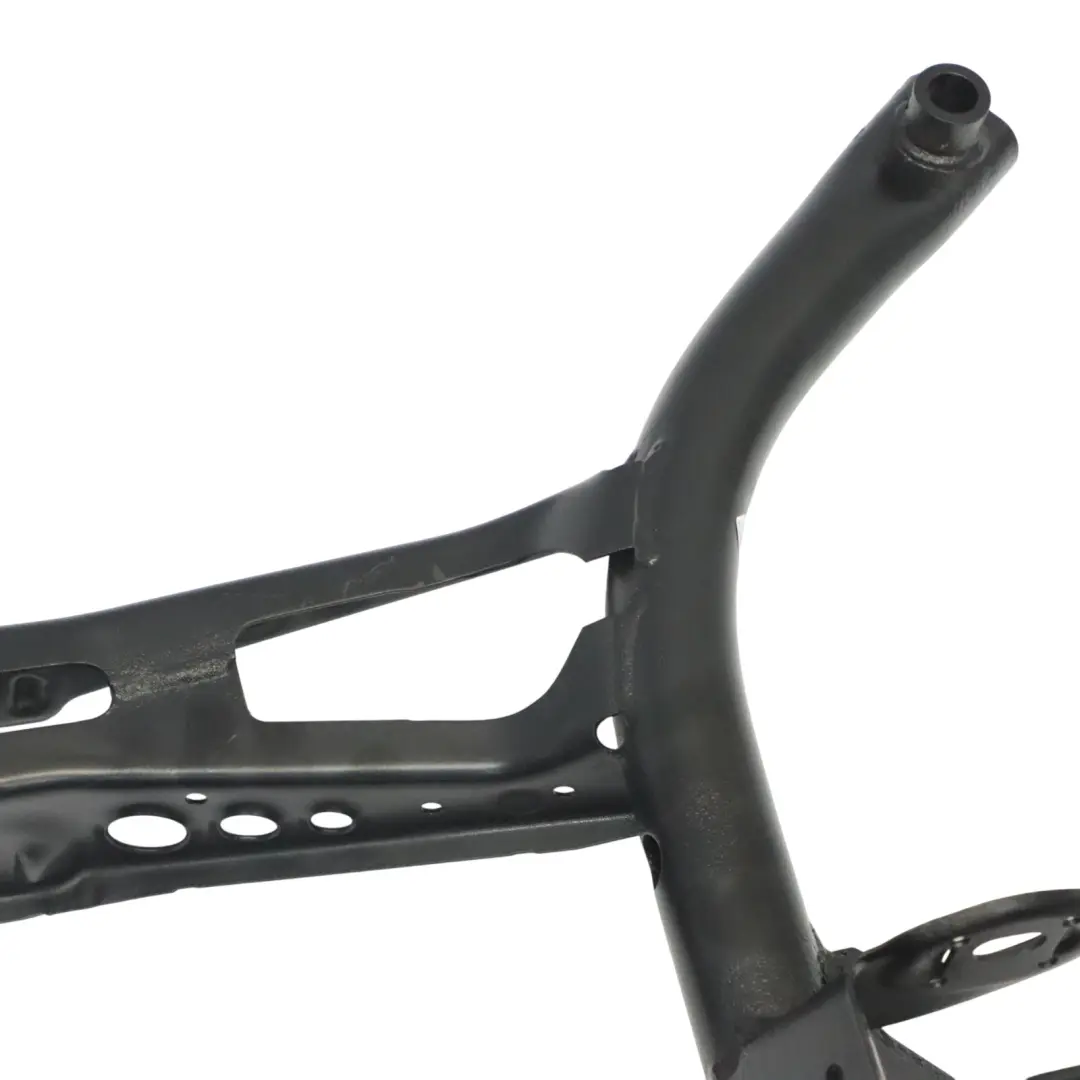

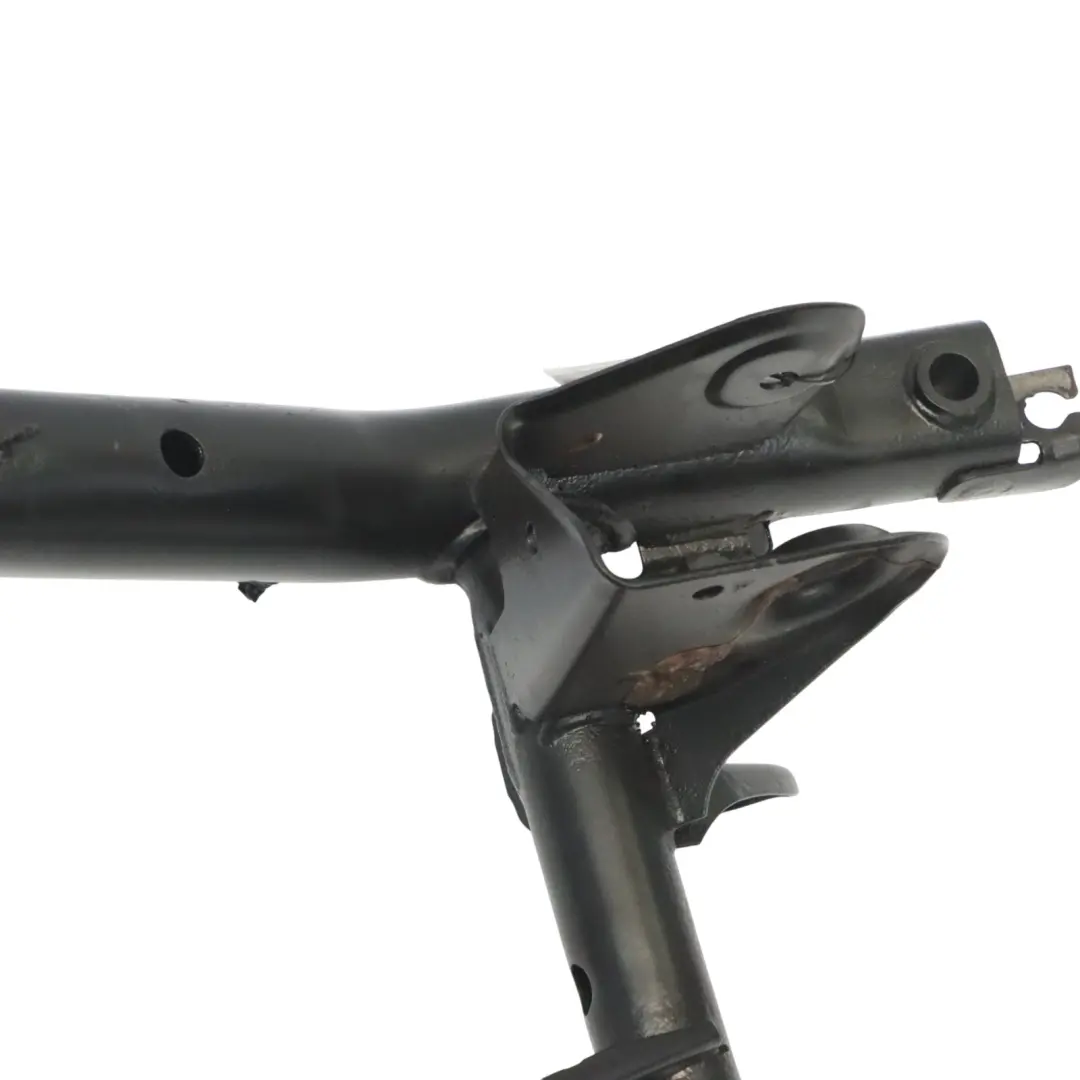

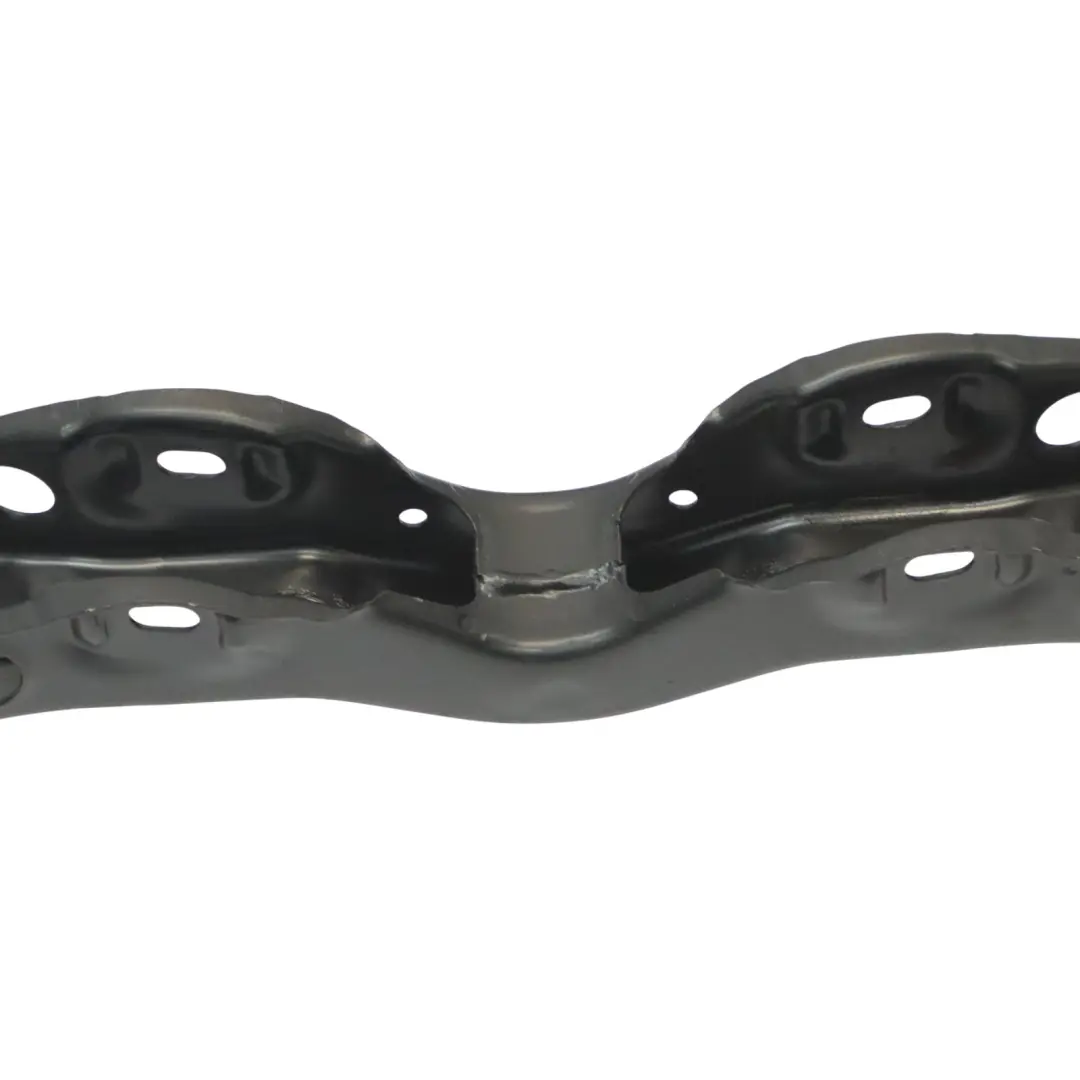

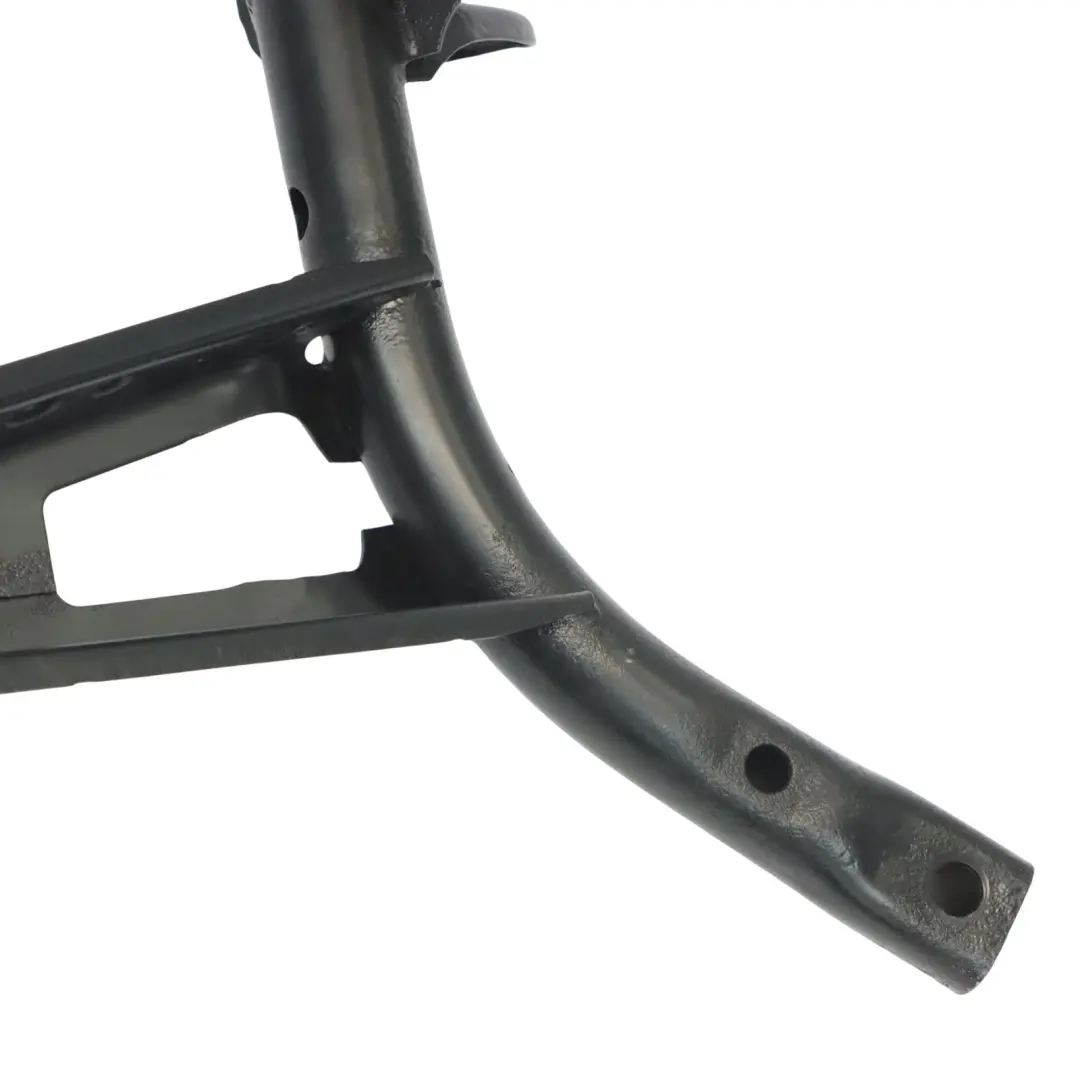

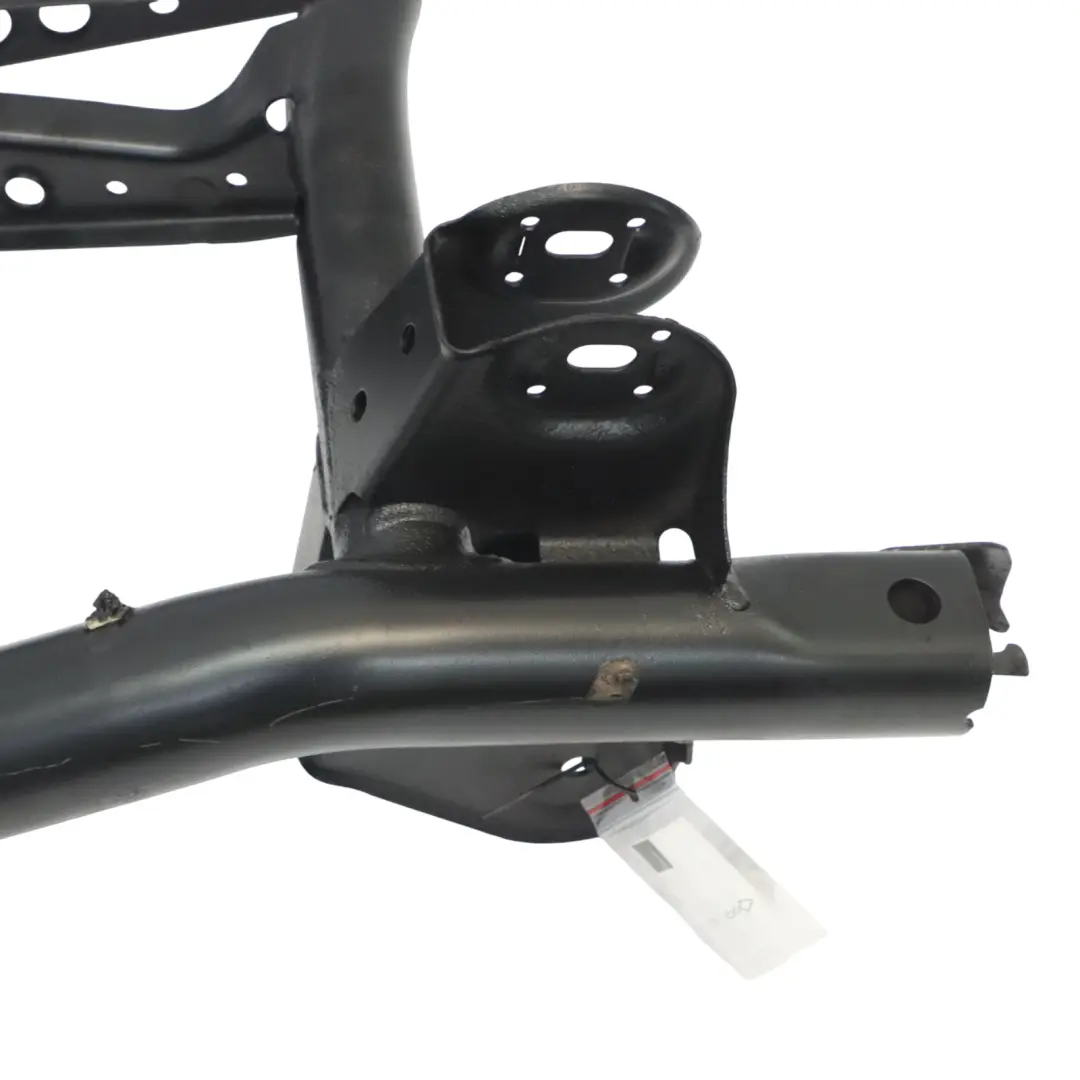

Audi A3 S3 8P TT 8J Quattro Rear Axle Suspension Subframe Cradle 5N0505235AG

Audi A3 S3 8P TT 8J Quattro Rear Suspension Subframe Crossmember is an original structural component from the longitudinal body frame parts and brackets group, designed for the rear suspension in Audi Quattro vehicles. It serves as a robust load-bearing base for suspension elements, crucial for stability, wheel geometry, and predictable vehicle handling.

Specifications and technical data

• SKU: 5N0505235AG
• Mark: Audi
• Condition: Used
• OEM Part Number: 5N0505235AG
• Substitutable numbers: 5N0505235AG, 5N0 505 235 AG
• Location on the vehicle: Rear
• Rim width: 8
• Category: Frame Rails & Subframes

Purpose and Function of Audi Rear Subframes

The rear suspension subframe crossmember in Audi A3, S3 8P, and TT 8J Quattro models is responsible for the rigid and repeatable mounting of control arms, wheel hubs, drivetrain components, and shock absorber mounts. As part of the subframe, it transfers loads from the wheels to the body, influencing:

• maintaining predictable vehicle behavior during acceleration, braking, and cornering,
• rear axle geometry stability under various loads,
• handling precision in Quattro cars, especially at higher speeds.

This component is particularly important in performance-oriented versions like the S3 and TT, where the chassis operates under higher dynamic loads.

Construction and Compatibility with Quattro Suspension

The presented subframe belongs to the longitudinal body frame parts and brackets group, designed from the factory for specific mounting points on the Audi body. The appropriate placement of mounting holes and the shape of the profiles ensure:

• correct positioning of the rear axle relative to the body,
• compatibility with the Quattro drivetrain – space for the driveshaft and gearbox components,
• torsional rigidity of the structure, limiting unwanted flex under load.

Thanks to this, the subframe provides a stable platform for the entire rear suspension, resulting in repeatable toe and camber settings after any service intervention.

Performance Parameters and Practical Application

The rear subframe in this model works with wheels of a specific width, which is important for wheel and tire configuration in sporty cars. Proper selection of rim width for the suspension design helps in:

• maintaining the correct load distribution on bearings and hubs,
• preserving proper tire tracking in corners,
• minimizing the risk of rubbing against suspension components during dynamic driving.

As an original part from disassembly, the subframe retains factory mounting points, which facilitates the mechanic's work and reduces the need for additional modifications when replacing a damaged subframe.

Why Choose a Used Audi Rear Suspension Subframe

Choosing a used rear suspension subframe from the longitudinal body frame parts and brackets Audi group is a sensible solution for accident repairs or when replacing a corroded component. This type of part:

• maintains factory geometry in relation to the body,
• allows for reduced service costs compared to a new aftermarket part,
• ensures compliance with original Audi structural solutions.

To maximize the potential of parts from disassembly, it is advisable to use appropriate cleaning, anti-corrosion, and installation procedures. Practical tips can be found in the article: How to Extend the Lifespan of Used Car Parts.

Audi Longitudinal Body Frame Parts and Brackets – Selection and Drivetrain Development

If you are modernizing your rear suspension or performing structural repairs on your Audi, it is worth considering other elements from the same group. For this model, various Audi longitudinal body frame parts and brackets are crucial, working in conjunction with the rear subframe to create a cohesive structural system. Check available Audi longitudinal body frame parts and brackets to select a complete structural solution for your car.
