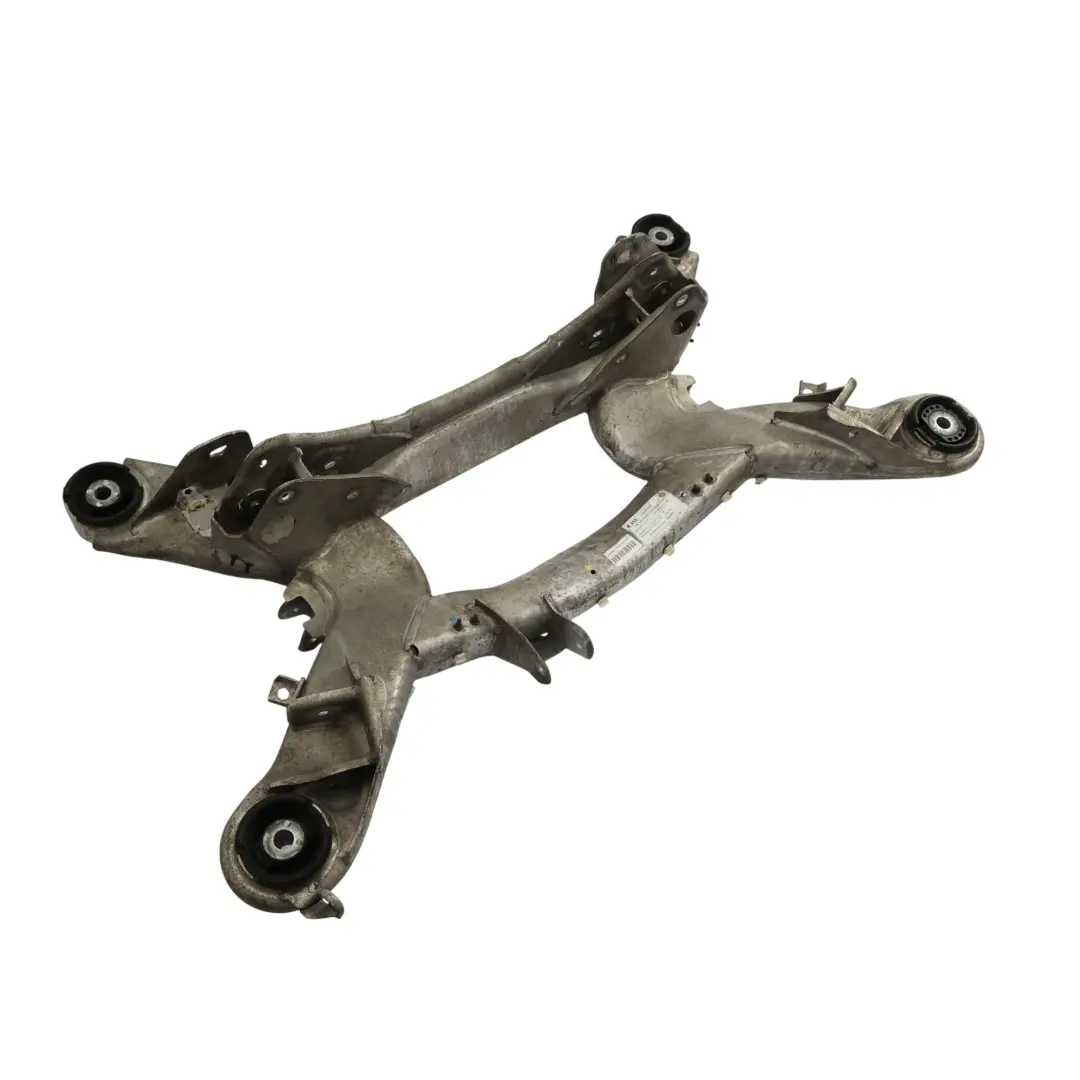

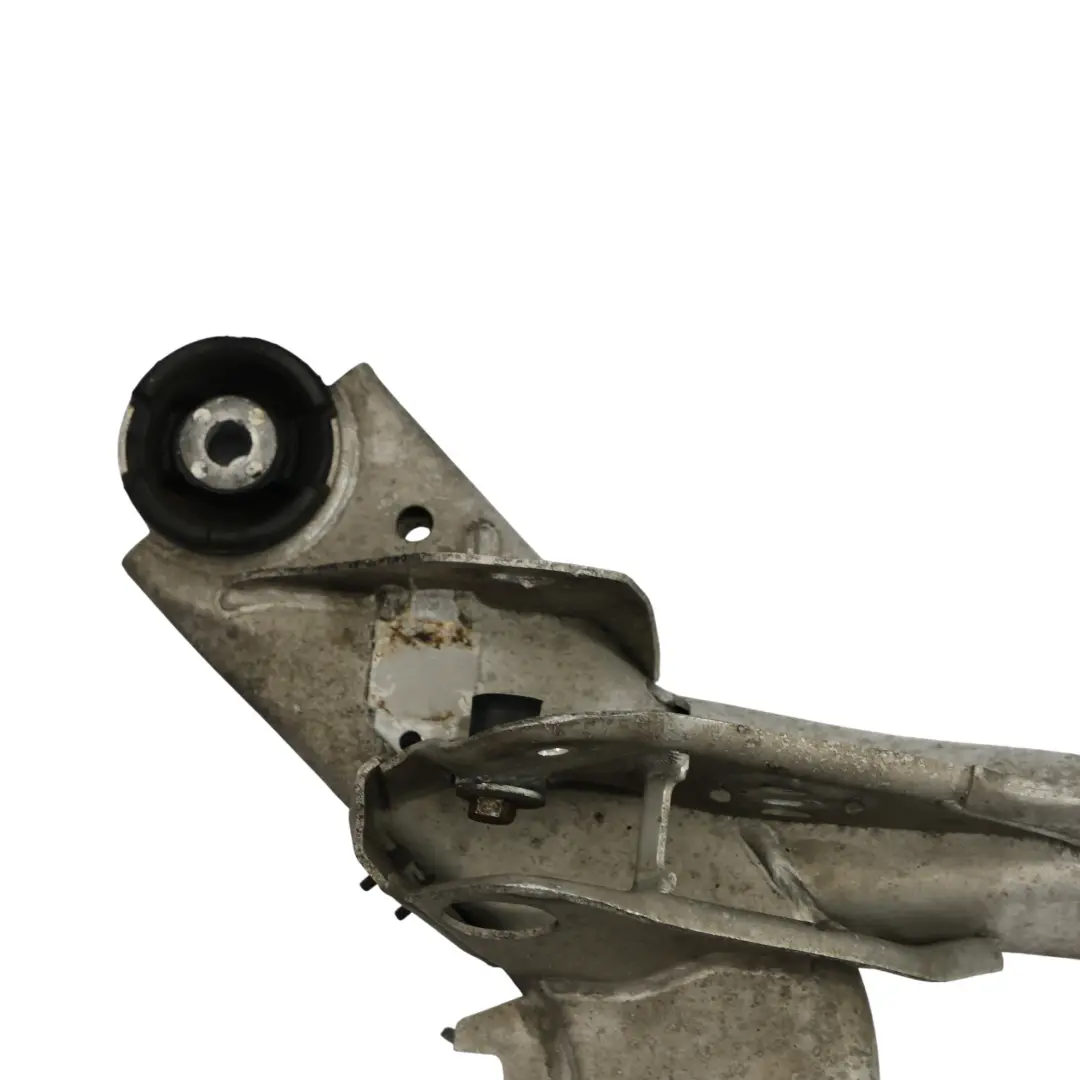

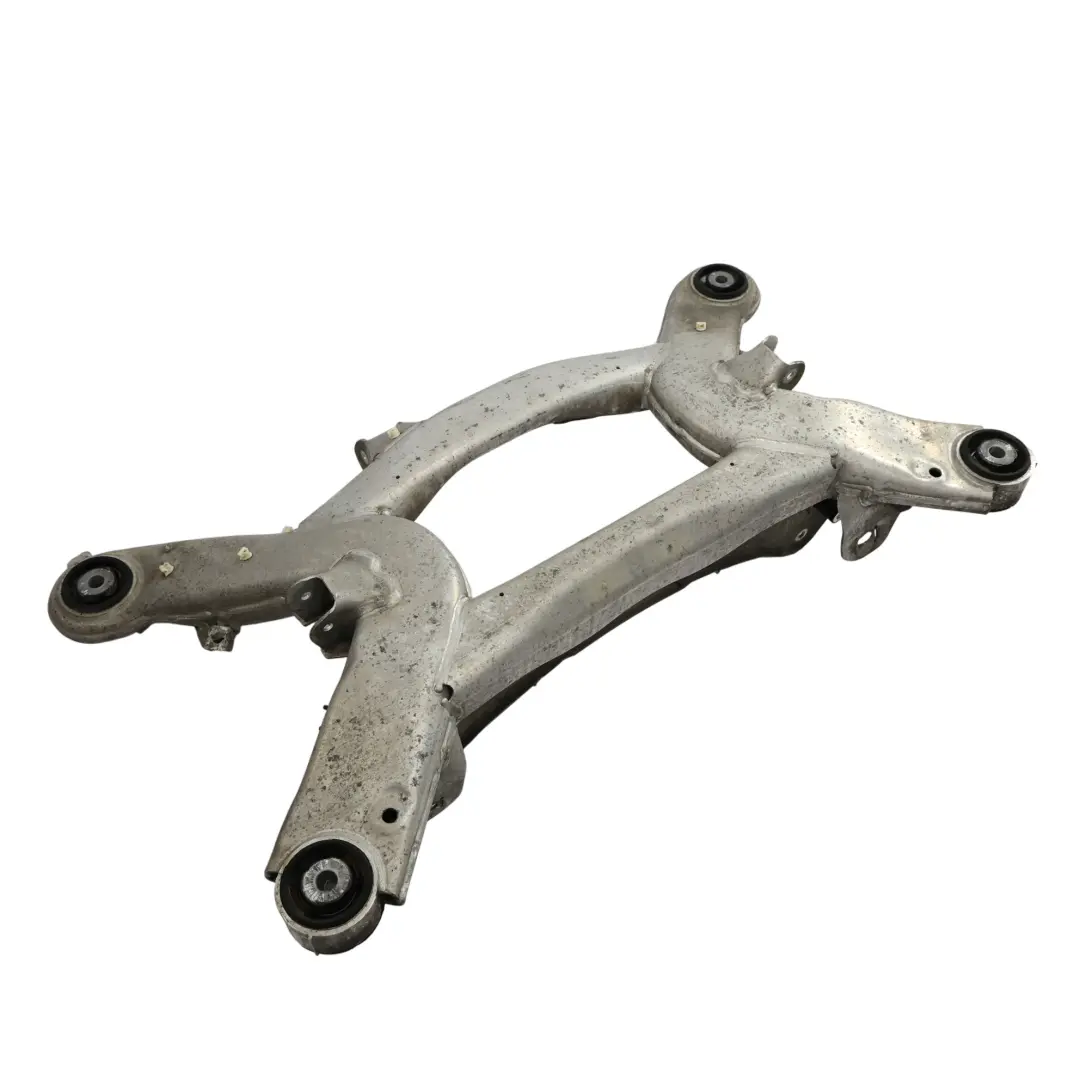

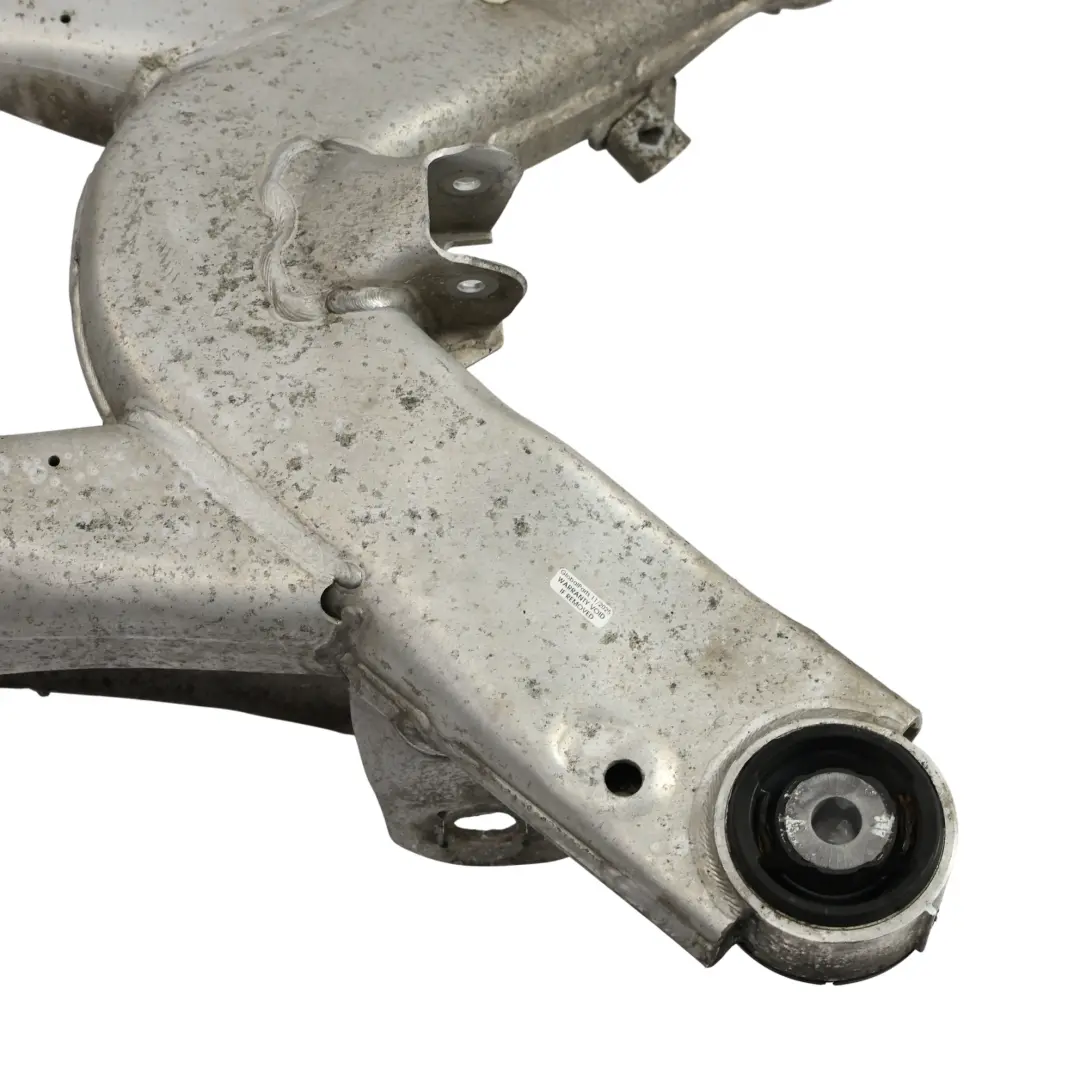

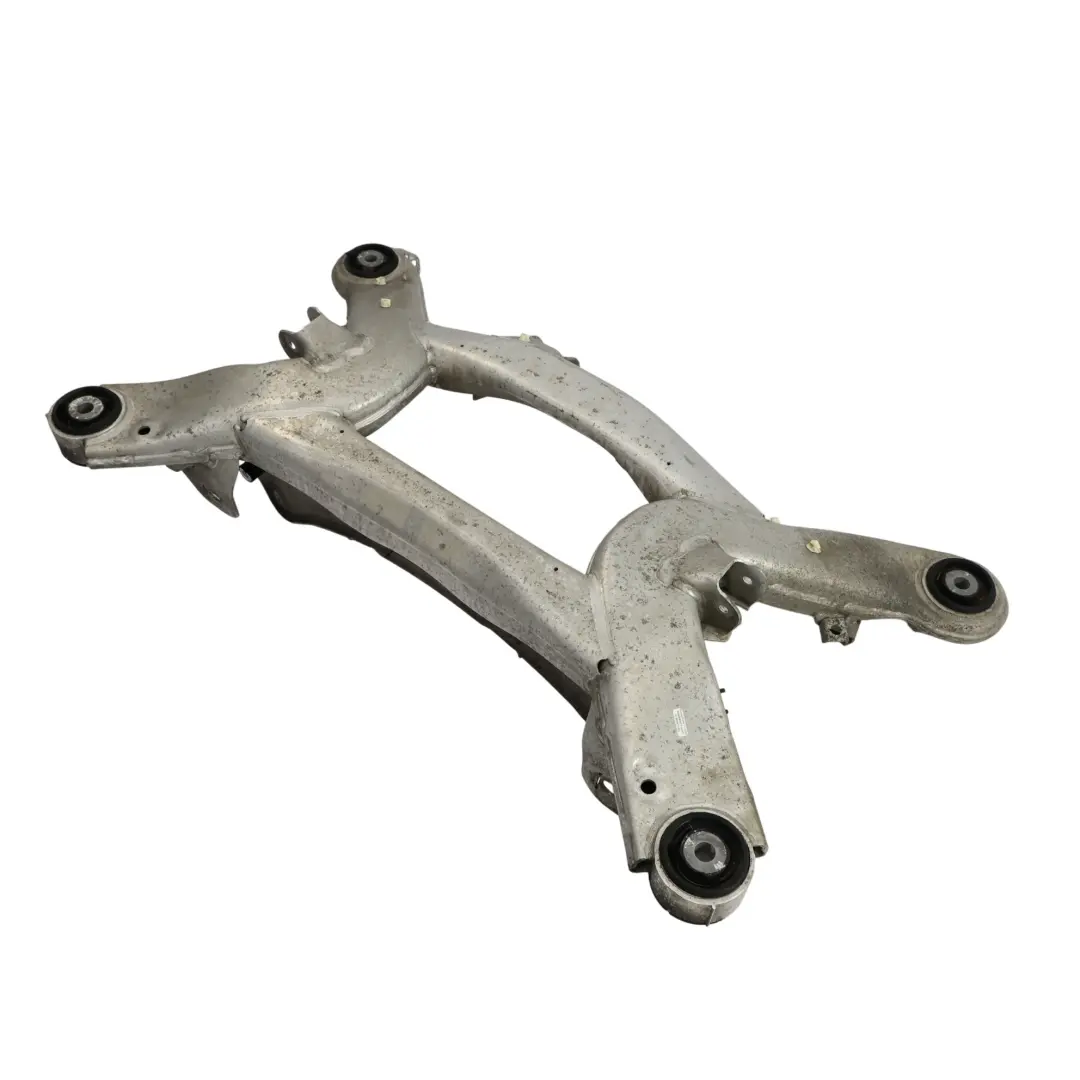

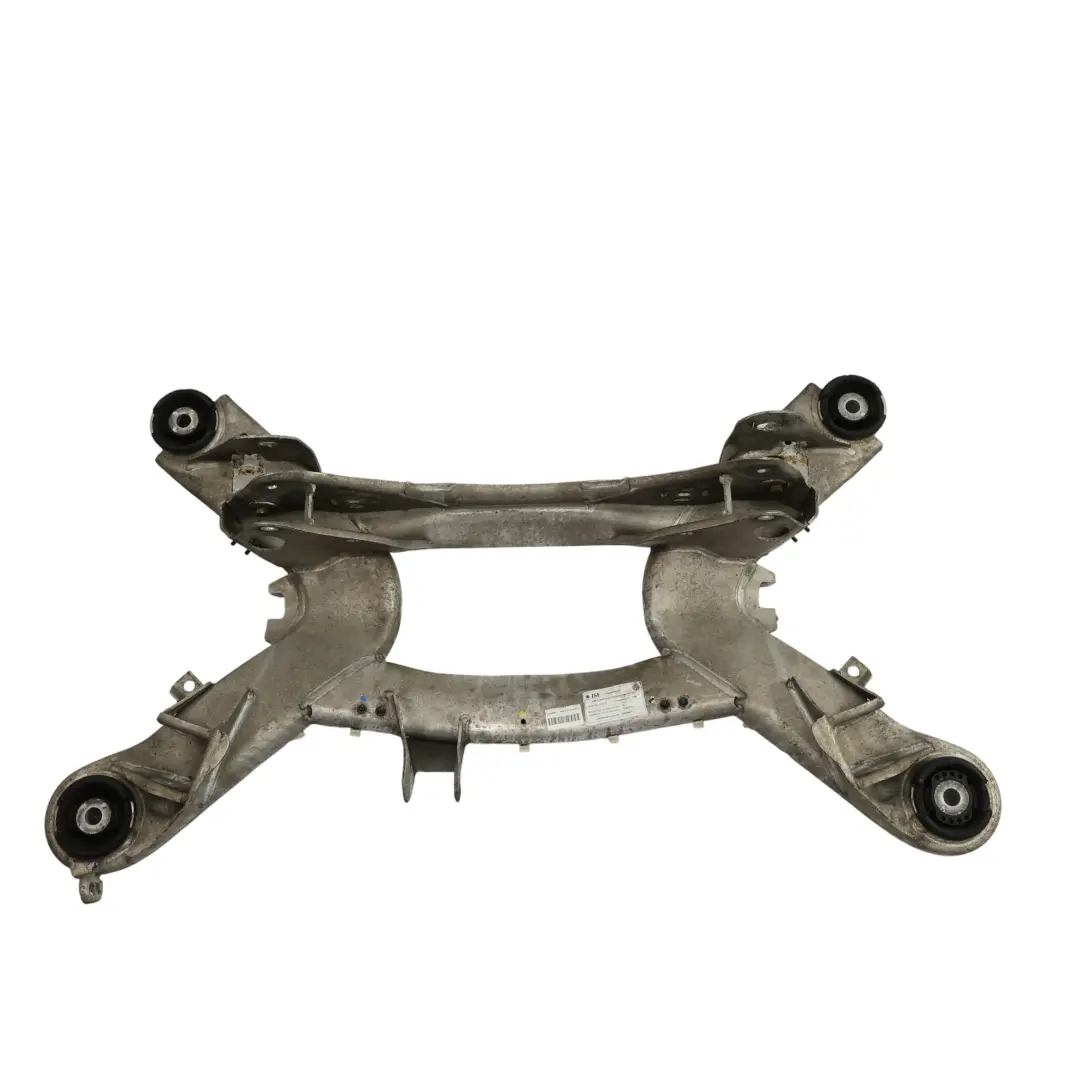

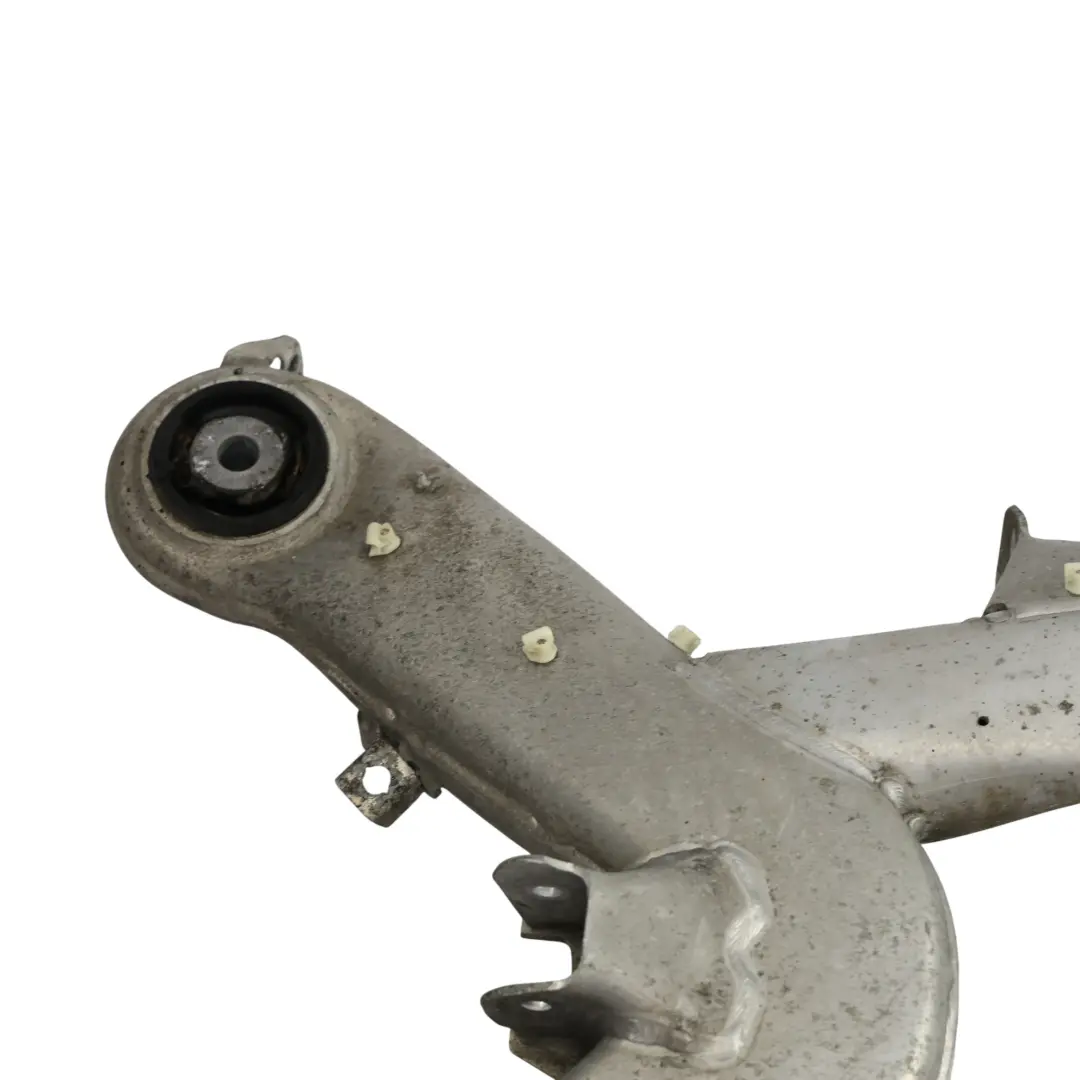

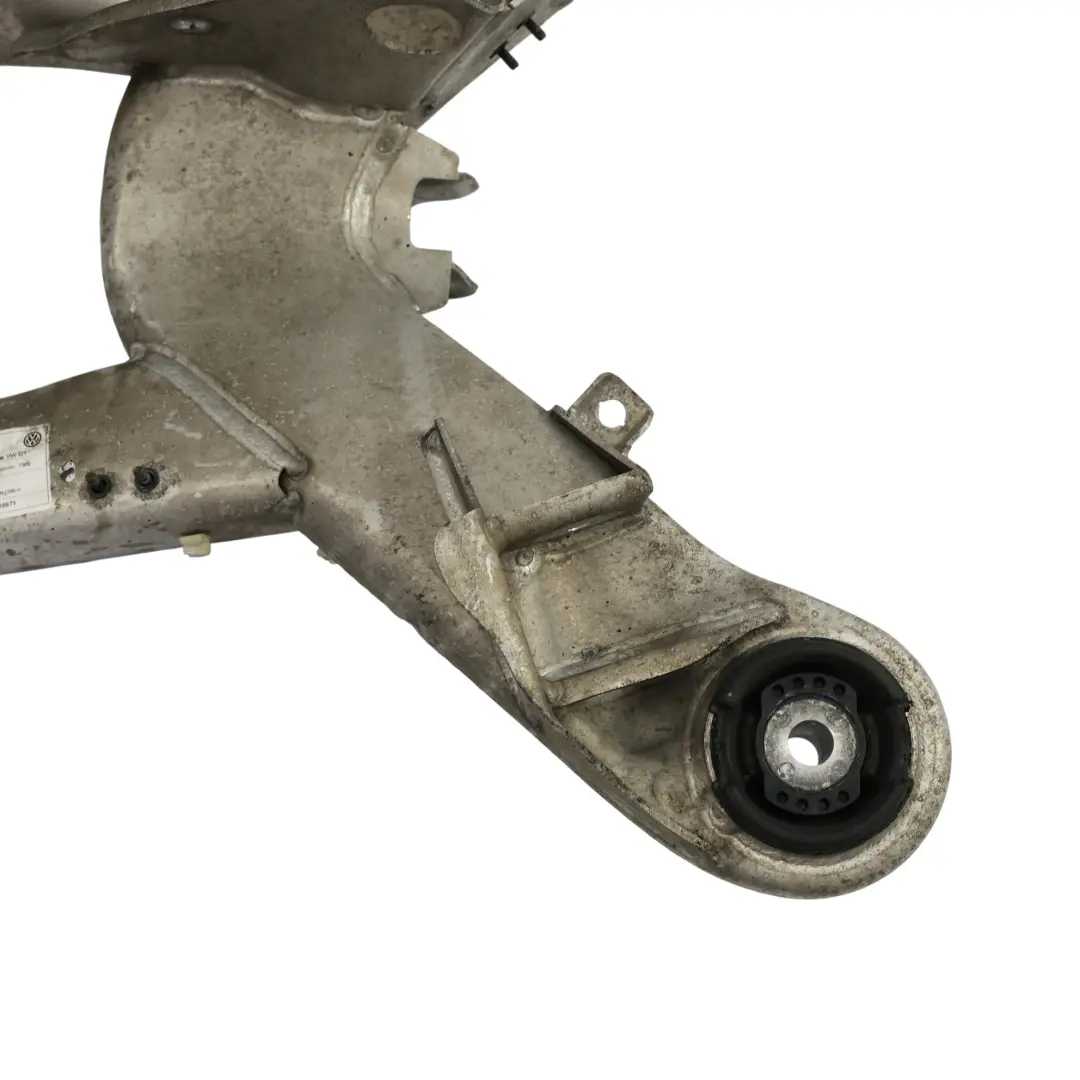

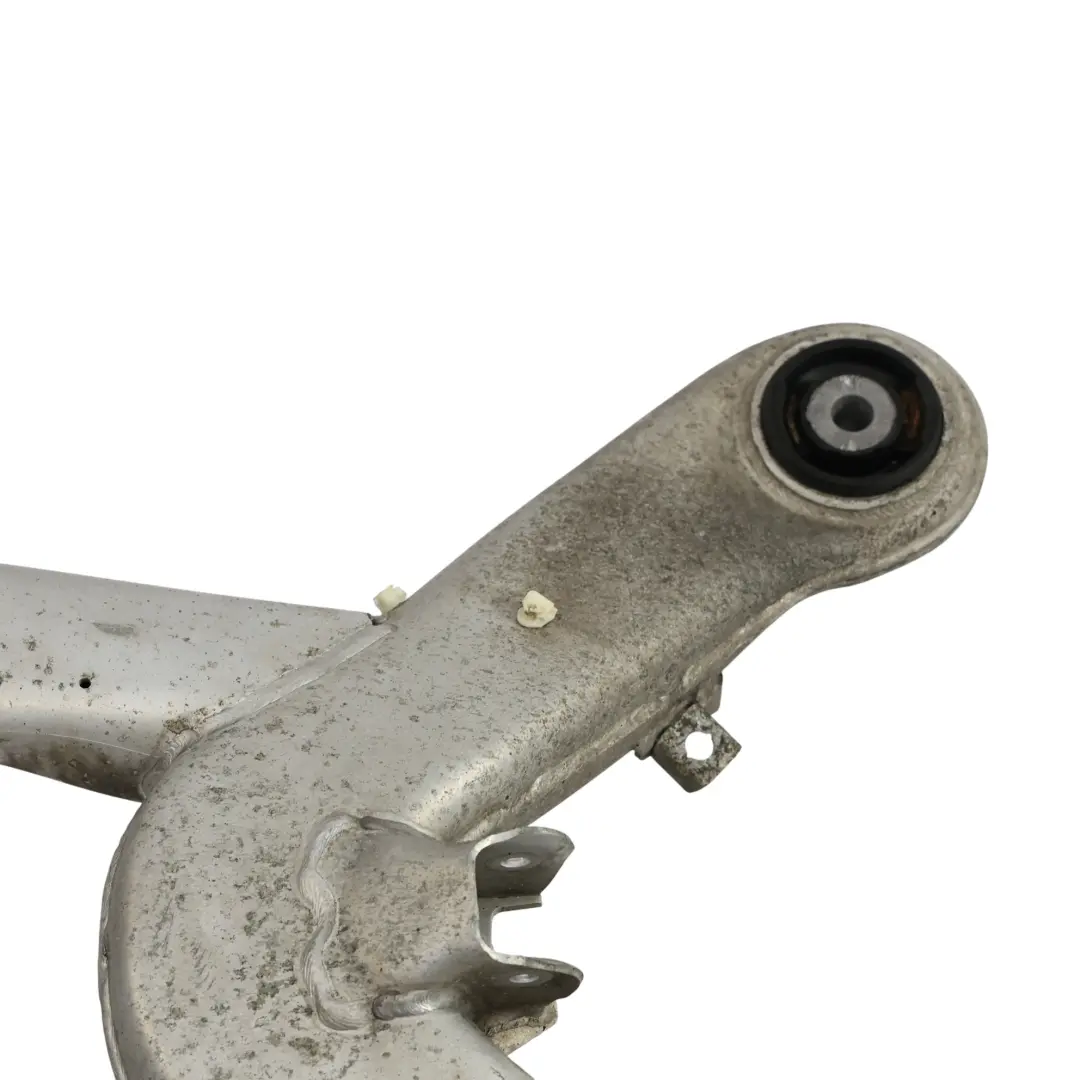

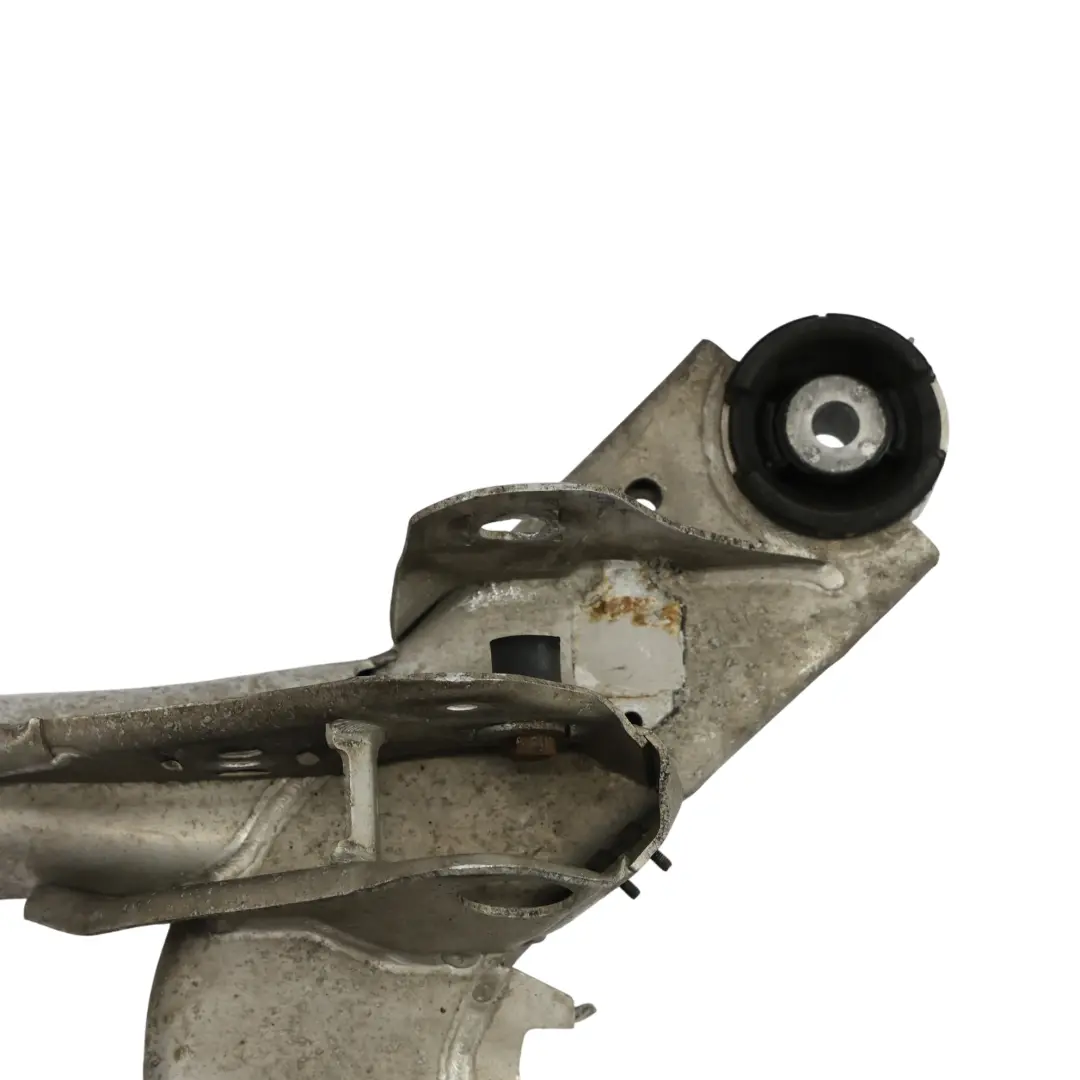

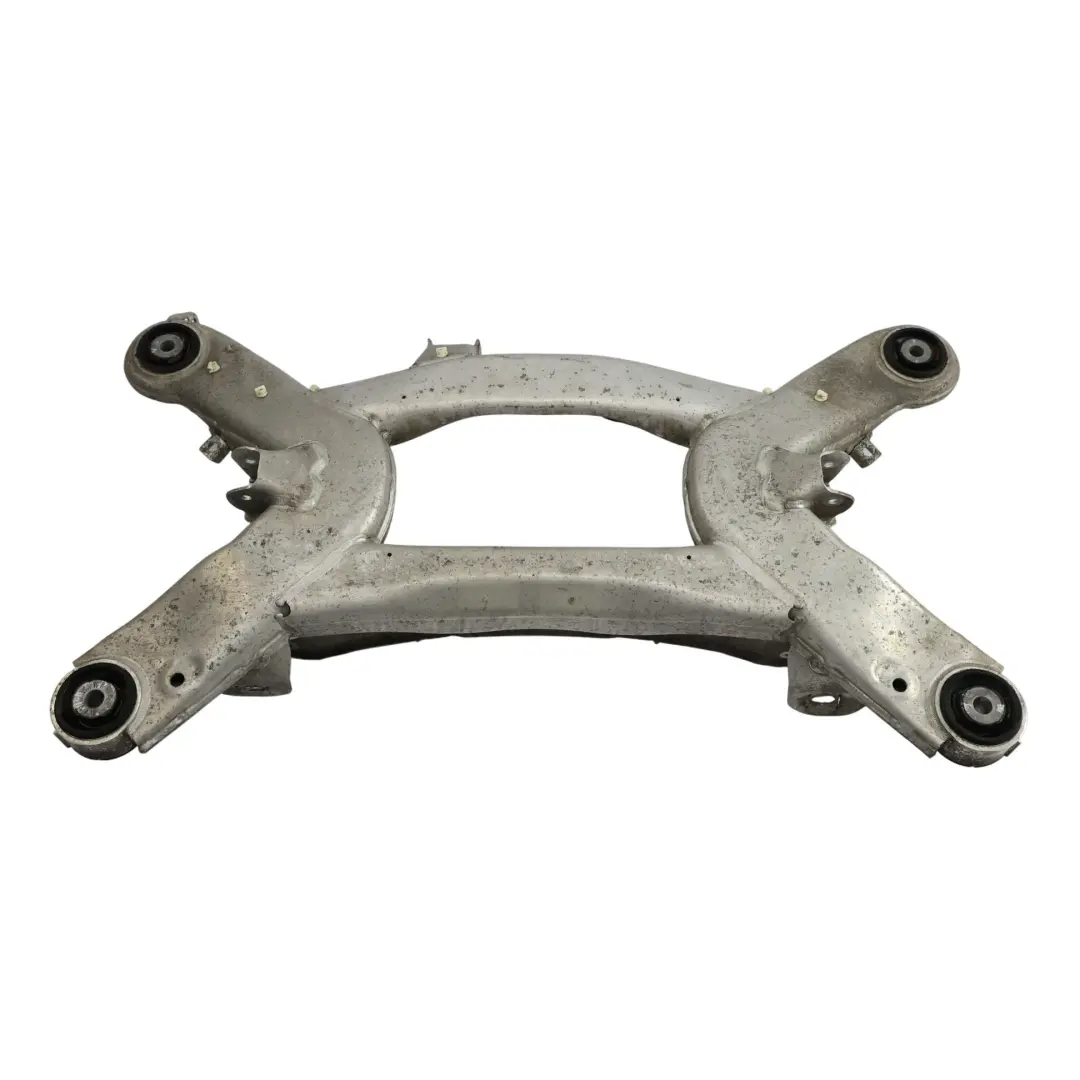

The VW Phaeton 3D Rear Suspension Cradle Subframe is a structural component from the group of longitudinal body frame parts and brackets, designed for the rear axle of this model. It ensures stable mounting of suspension components, influencing steering precision, ride comfort, and the durability of the entire drivetrain.
Specifications and technical data
- SKU: 3D0505235AE
- Mark: Volkswagen
- Condition: Used

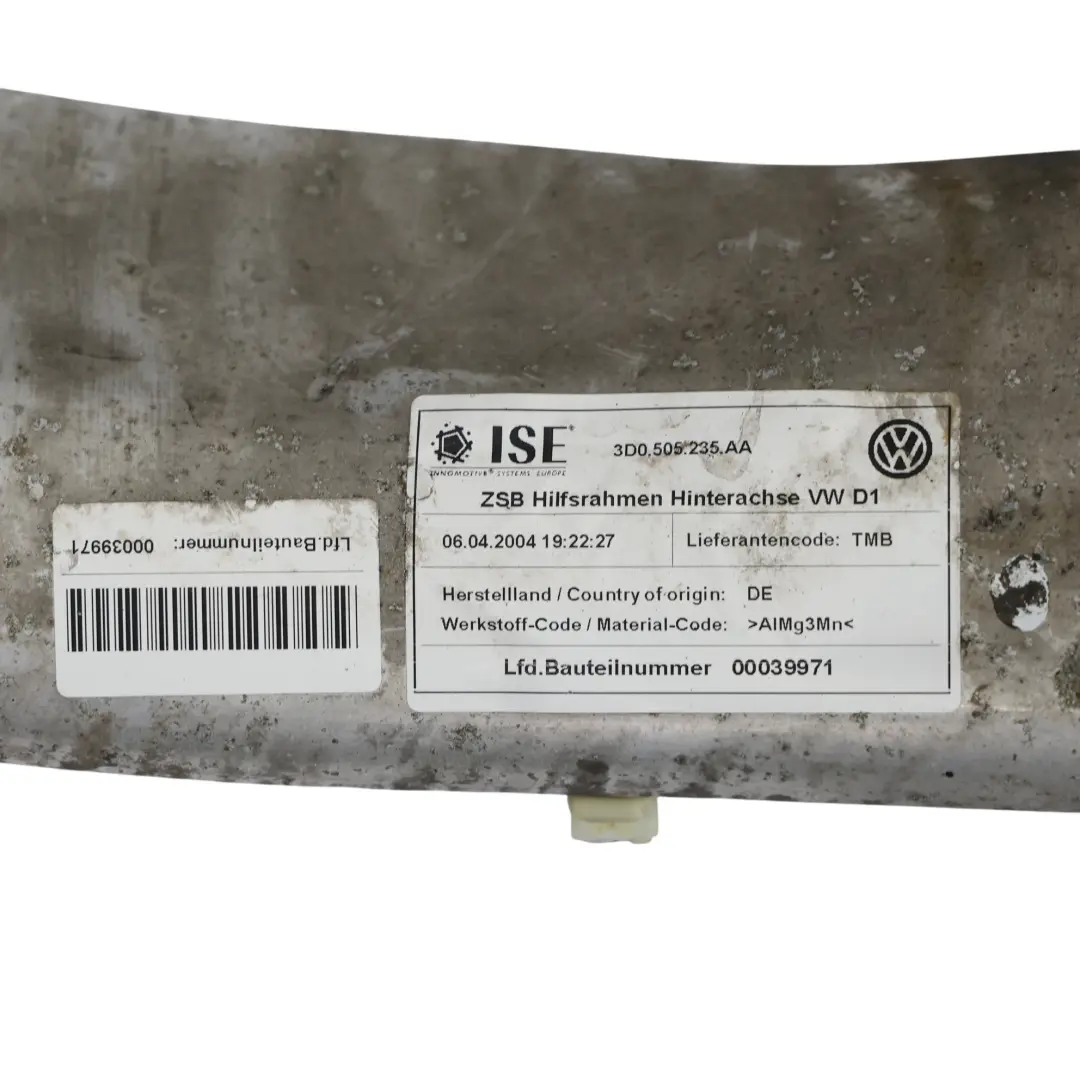

- OEM Part Number: 3D0505235AE
- Substitutable numbers: 3D0505235AE, 3D0 505 235 AE, 3D0505235AA, 3D0 505 235 AA
- Location on the vehicle: Rear
- Category: Frame Rails & Subframes
Purpose and Function in the Vehicle
The described rear suspension cradle is a key load-bearing element that transfers loads from the control arms, shock absorber mounts, and other suspension components to the body. Its rear placement directly impacts:
- driving stability at higher speeds,
- maintaining rear axle geometry within the manufacturer's specifications,
- damping vibrations and loads transferred from the road surface to the body,
- even distribution of forces acting on suspension elements.
A properly selected rear suspension frame is particularly important in a heavy, comfortable car like the VW Phaeton, where predictable vehicle behavior and a high level of passenger comfort are paramount.
Construction and Fit for VW Phaeton
The cradle is designed as a dedicated element for the Phaeton platform, maintaining factory mounting points. This means that:
- the spacing of mounting holes matches the original body construction,
- the frame geometry works in conjunction with the standard control arms and other suspension components,
- the structural rigidity is adapted to the weight and characteristics of this model.
This ensures that installation is similar to factory procedures, without the need for modifications or adaptations. After replacement, precise alignment of toe and camber angles can be achieved according to manufacturer specifications.
Condition, Origin, and Benefits of Choosing a Used Part
The offered cradle belongs to the group of used longitudinal body frame parts and brackets from Volkswagen. Choosing this solution is a beneficial option for users who want to restore proper rear suspension operation while maintaining reasonable service costs. A used structural element allows you to:
- reduce repair costs compared to a new part,
- maintain the original vehicle specification regarding suspension construction,
- minimize vehicle downtime thanks to the availability of a ready component.
Before installation, it is recommended to perform a standard inspection of the mounting surfaces, bushing seats, and bolt points, followed by a wheel alignment after the work is completed.
Application in Rear Suspension Service and Repairs
The VW Phaeton rear suspension cradle is primarily used in situations where there has been:
- mechanical damage due to a collision or impact with an obstacle,
- structural corrosion affecting rigidity and safety,
- permanent frame deformation preventing correct geometry alignment.
Replacing the complete rear suspension frame is often a more predictable solution than temporary straightening or local repairs, as it restores the factory geometry of the mounting points and facilitates subsequent adjustment.
