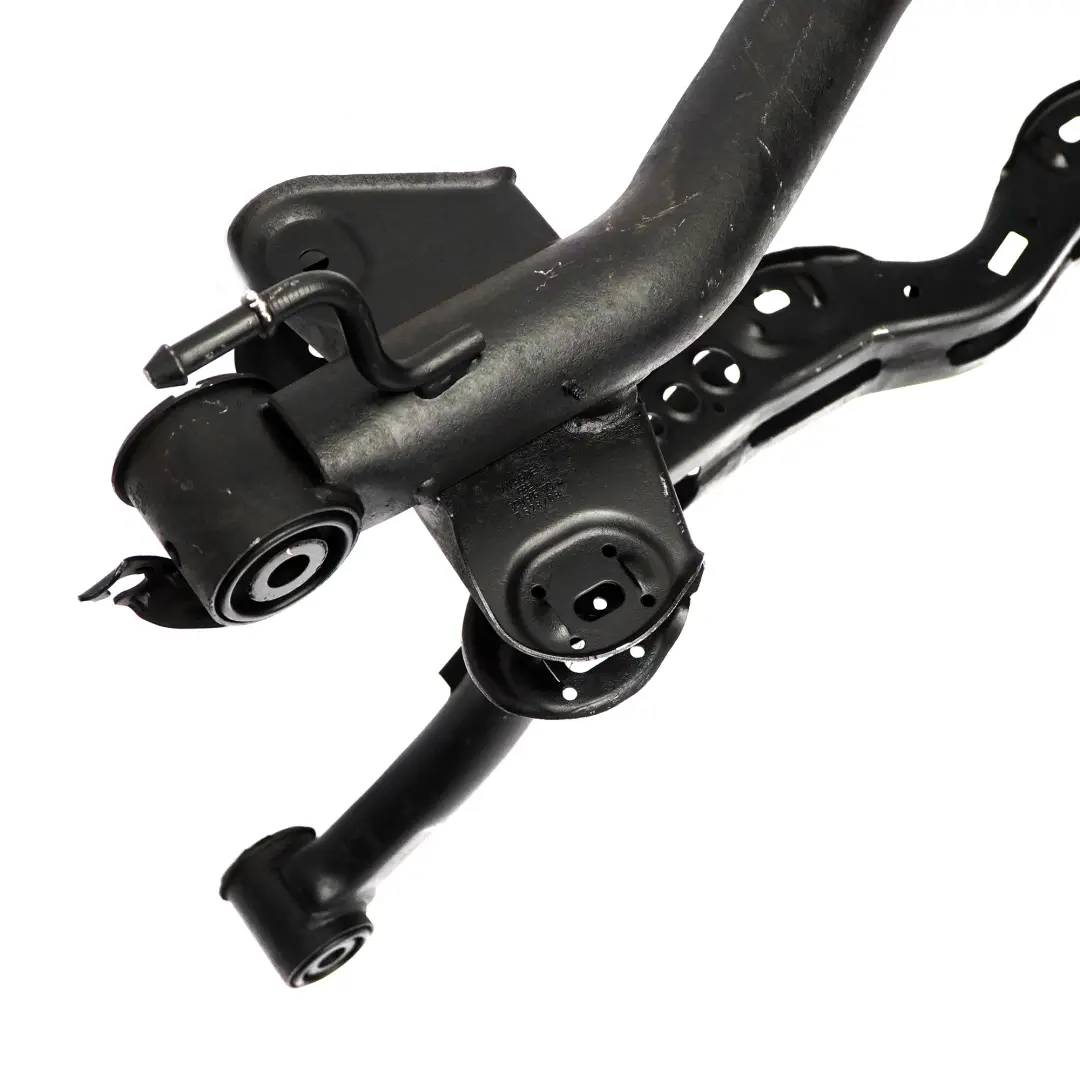

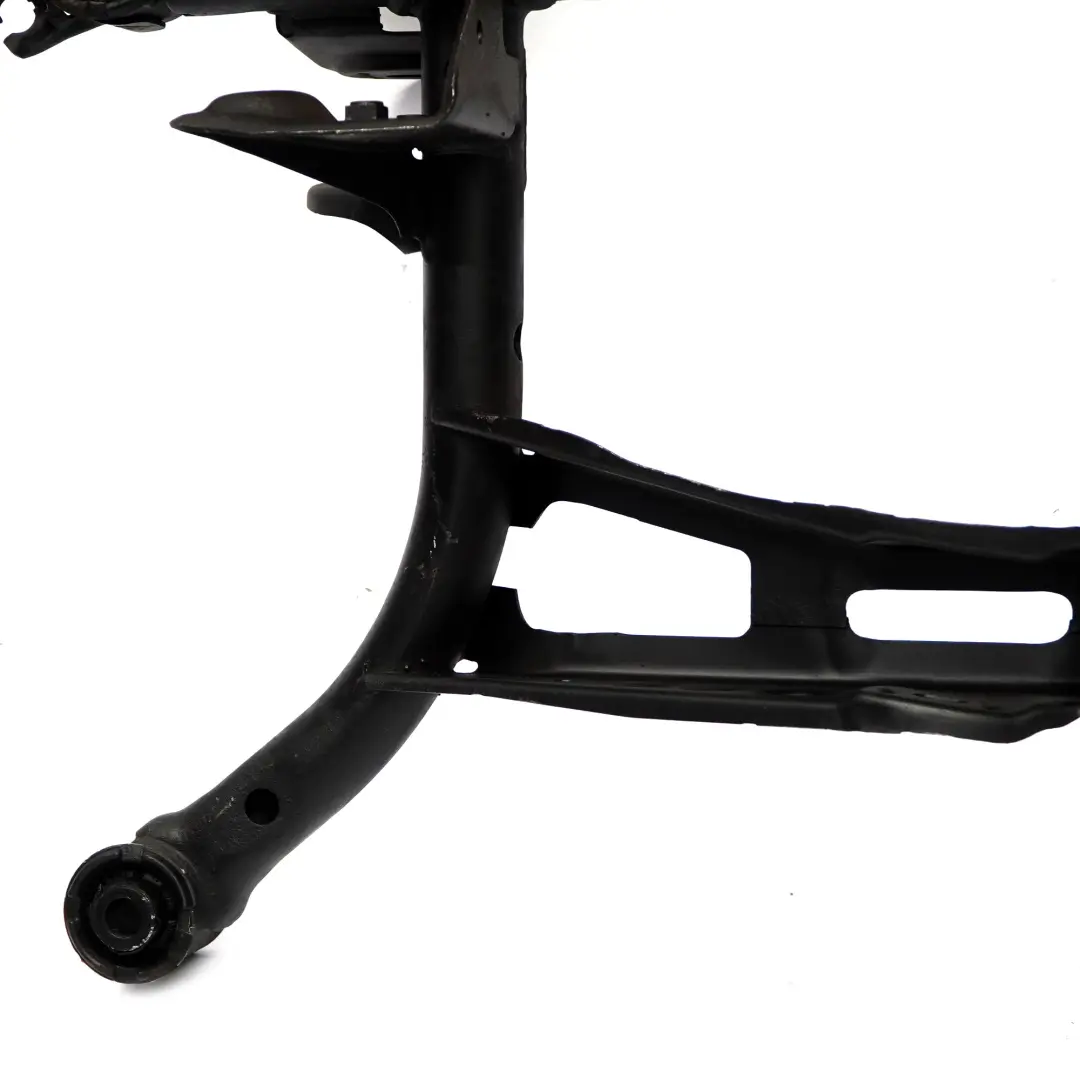

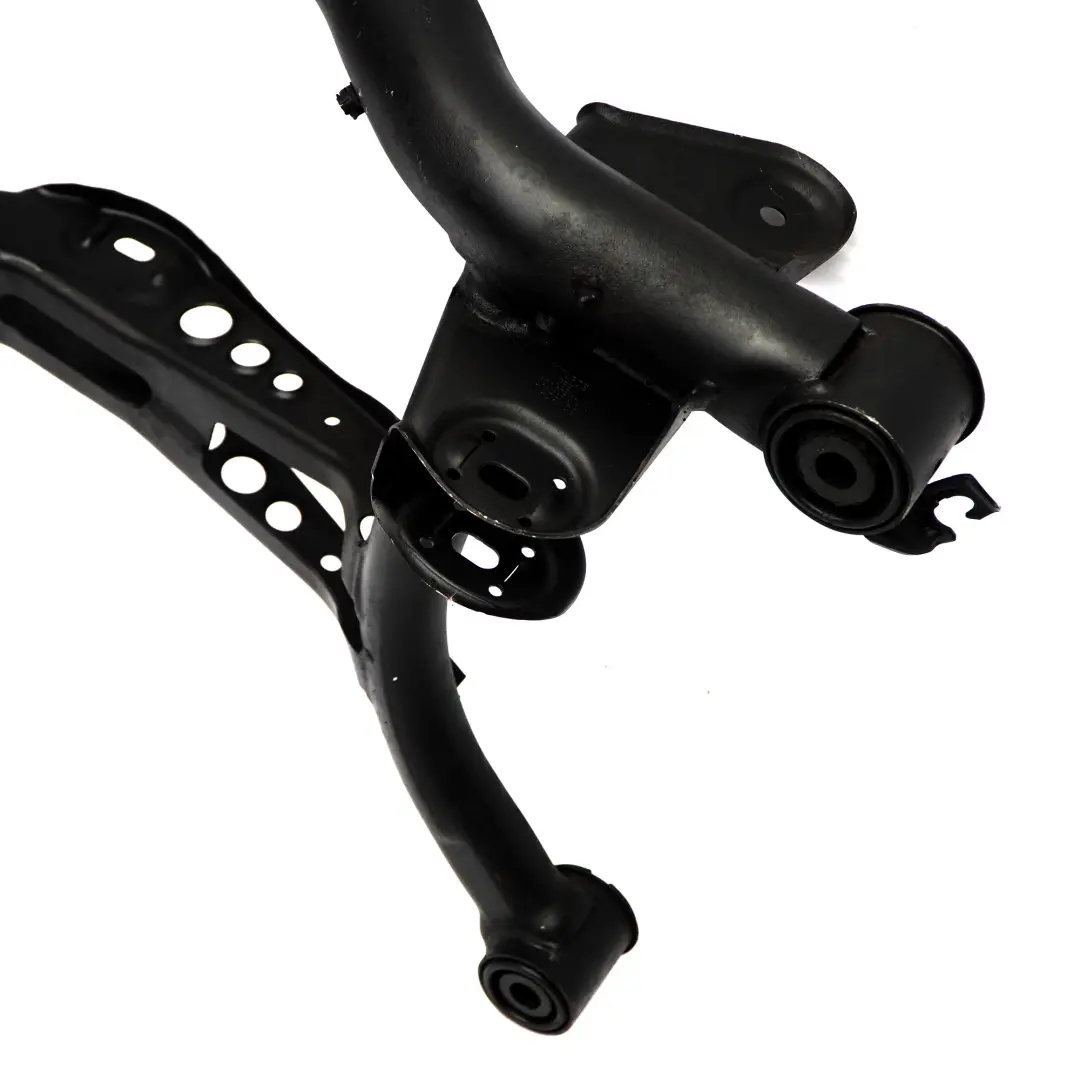

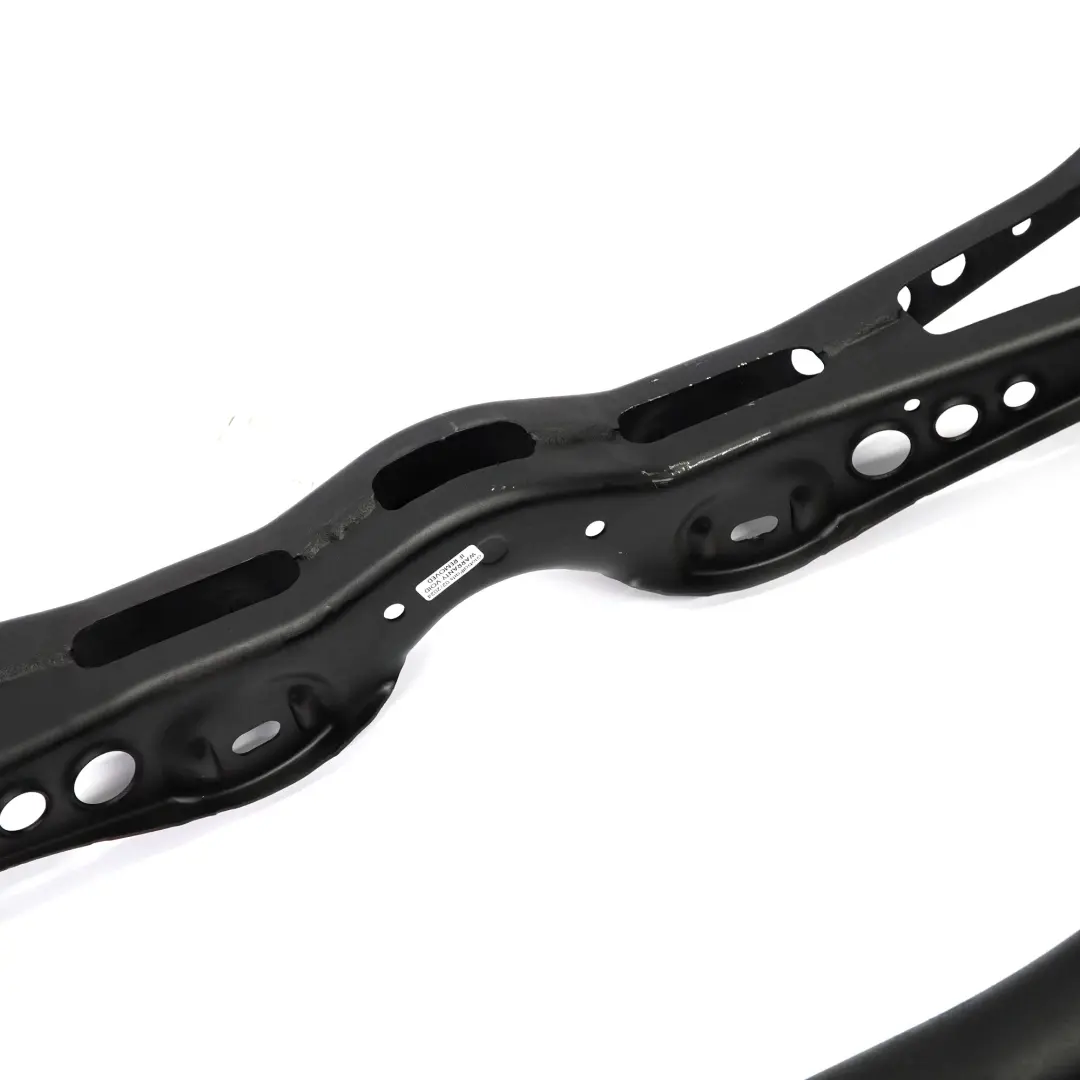

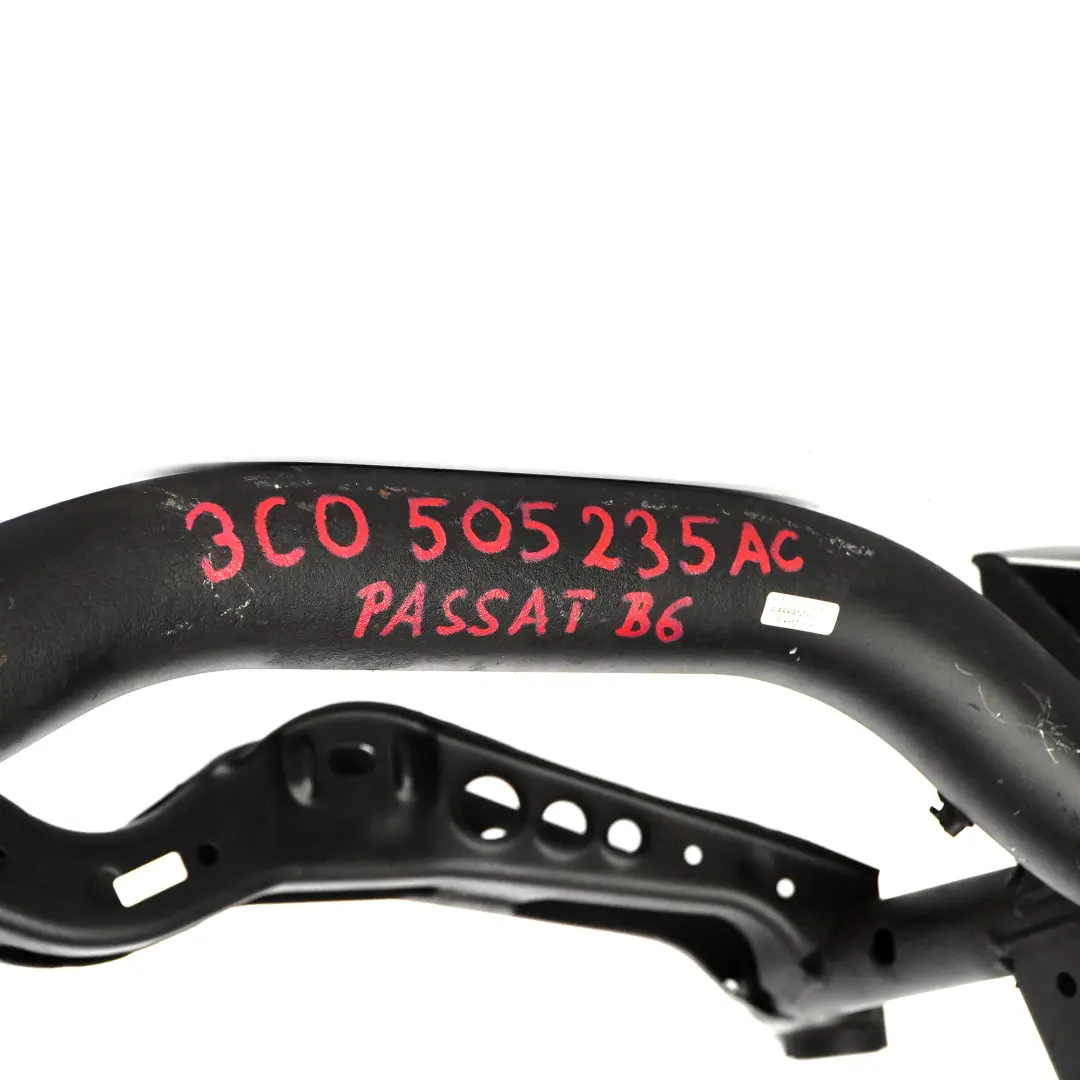

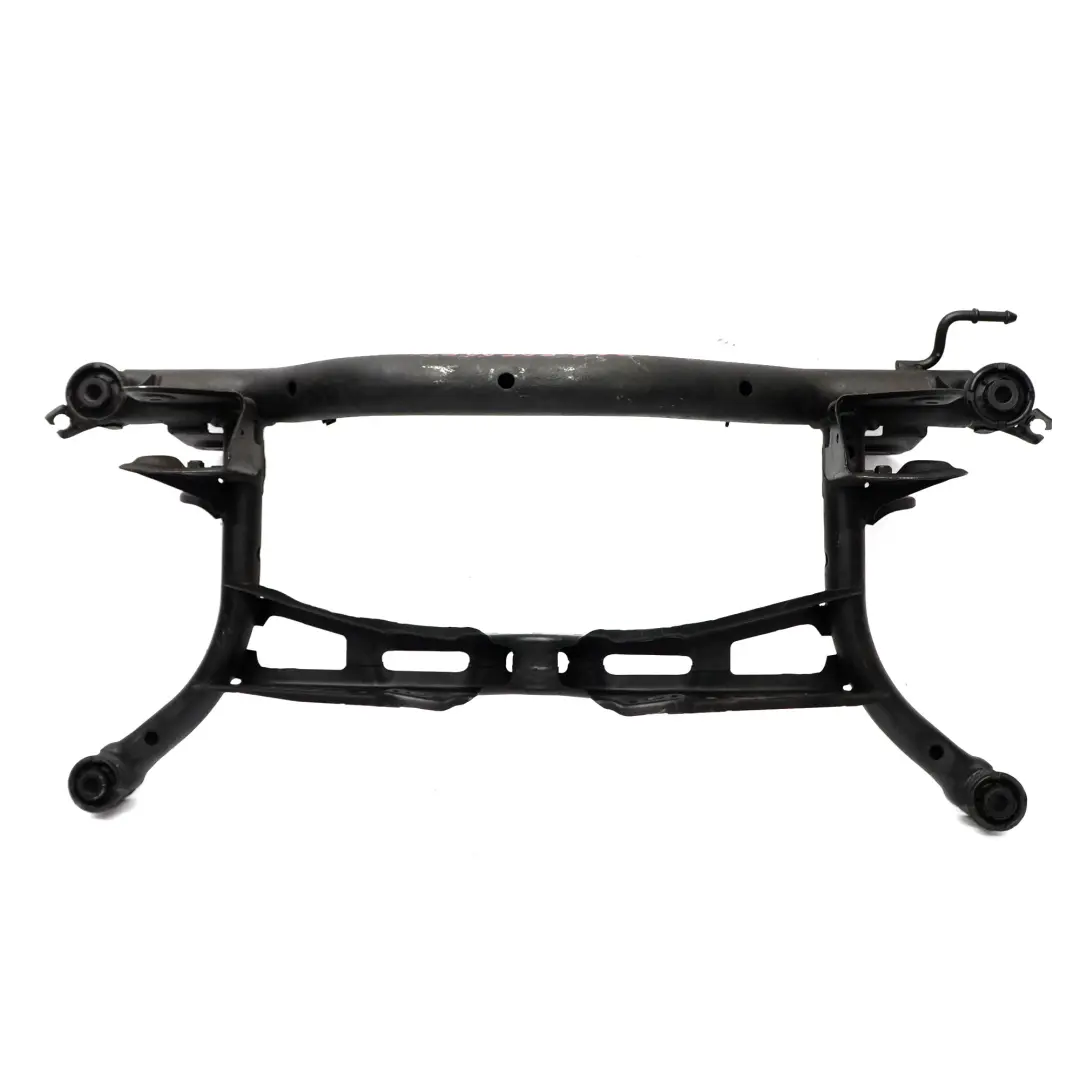

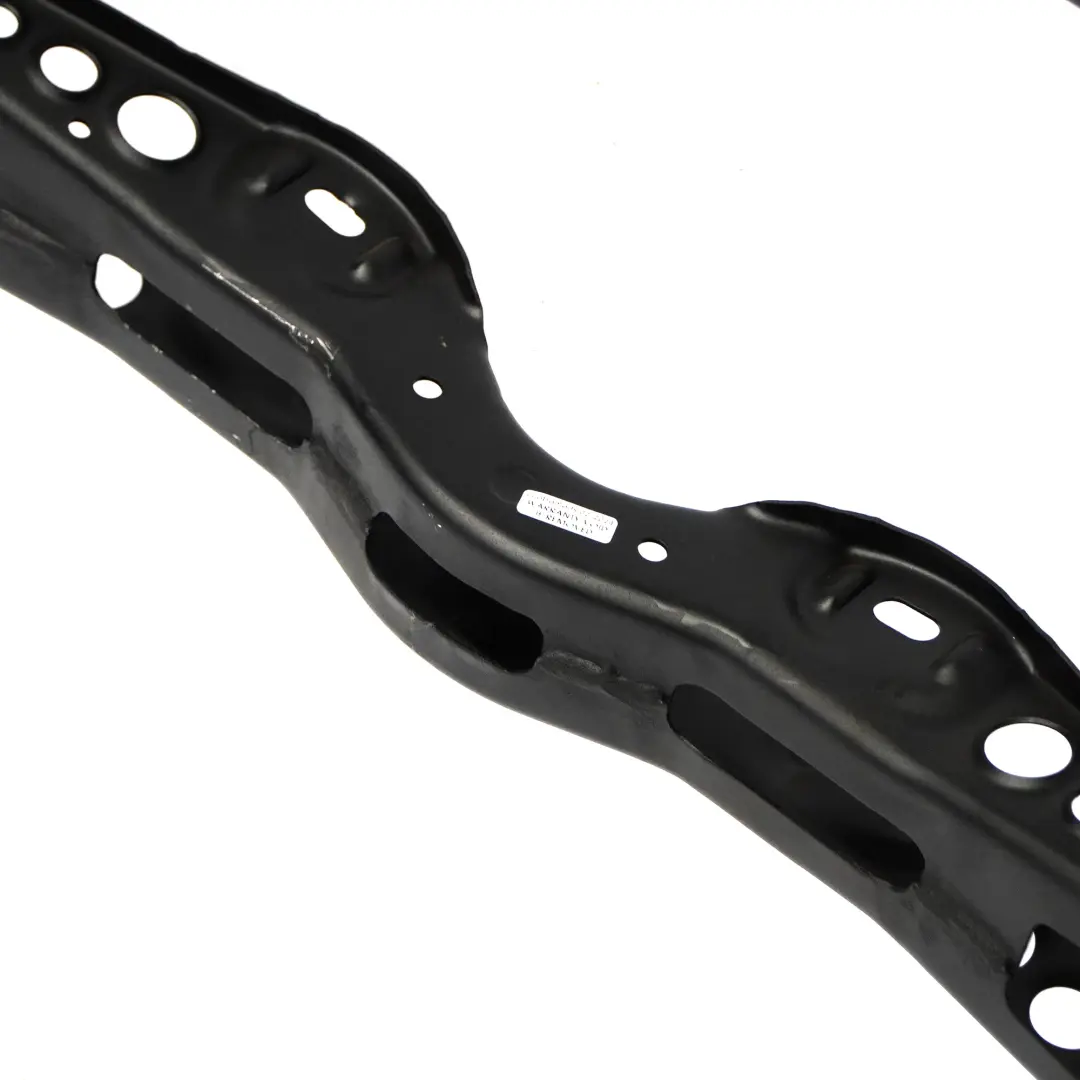

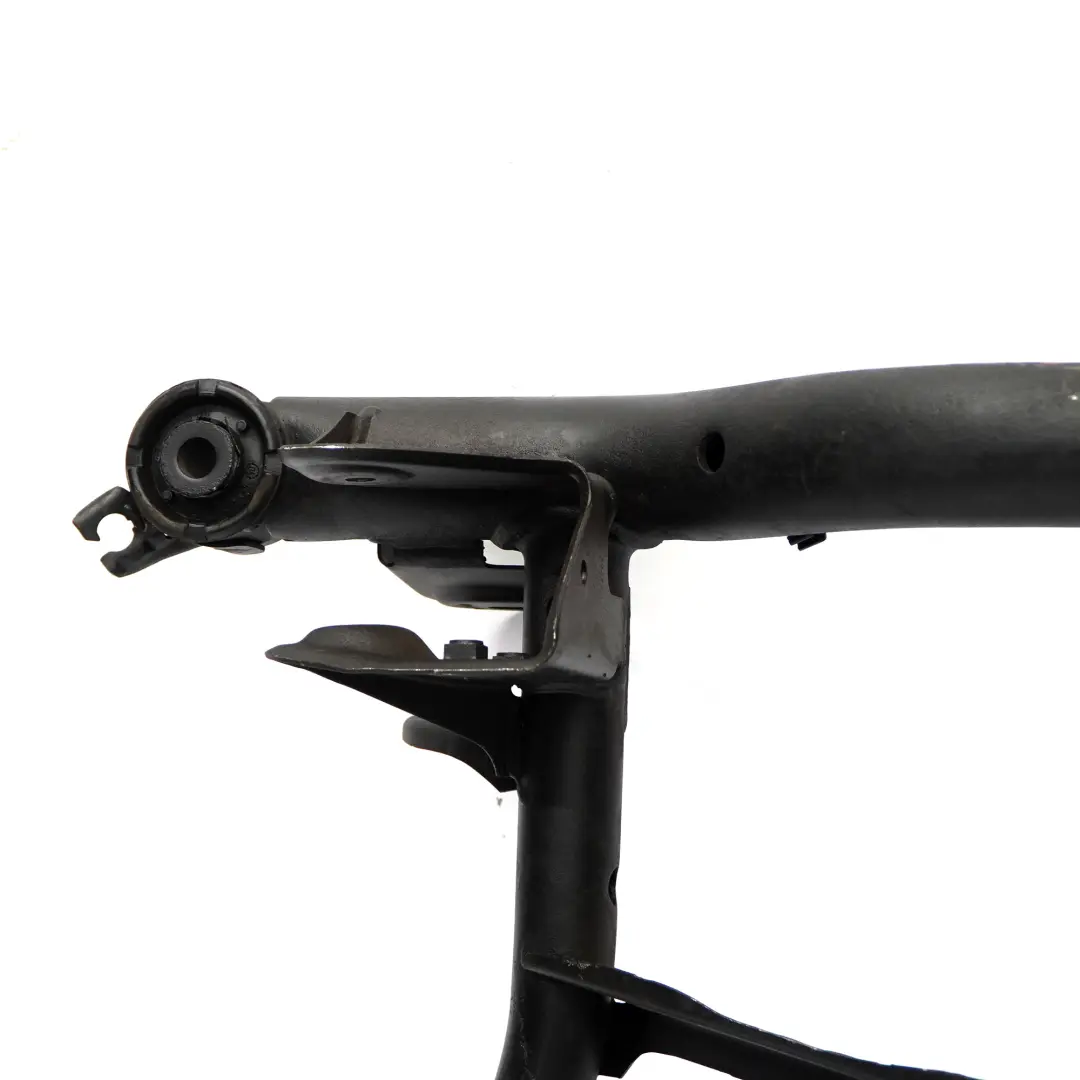

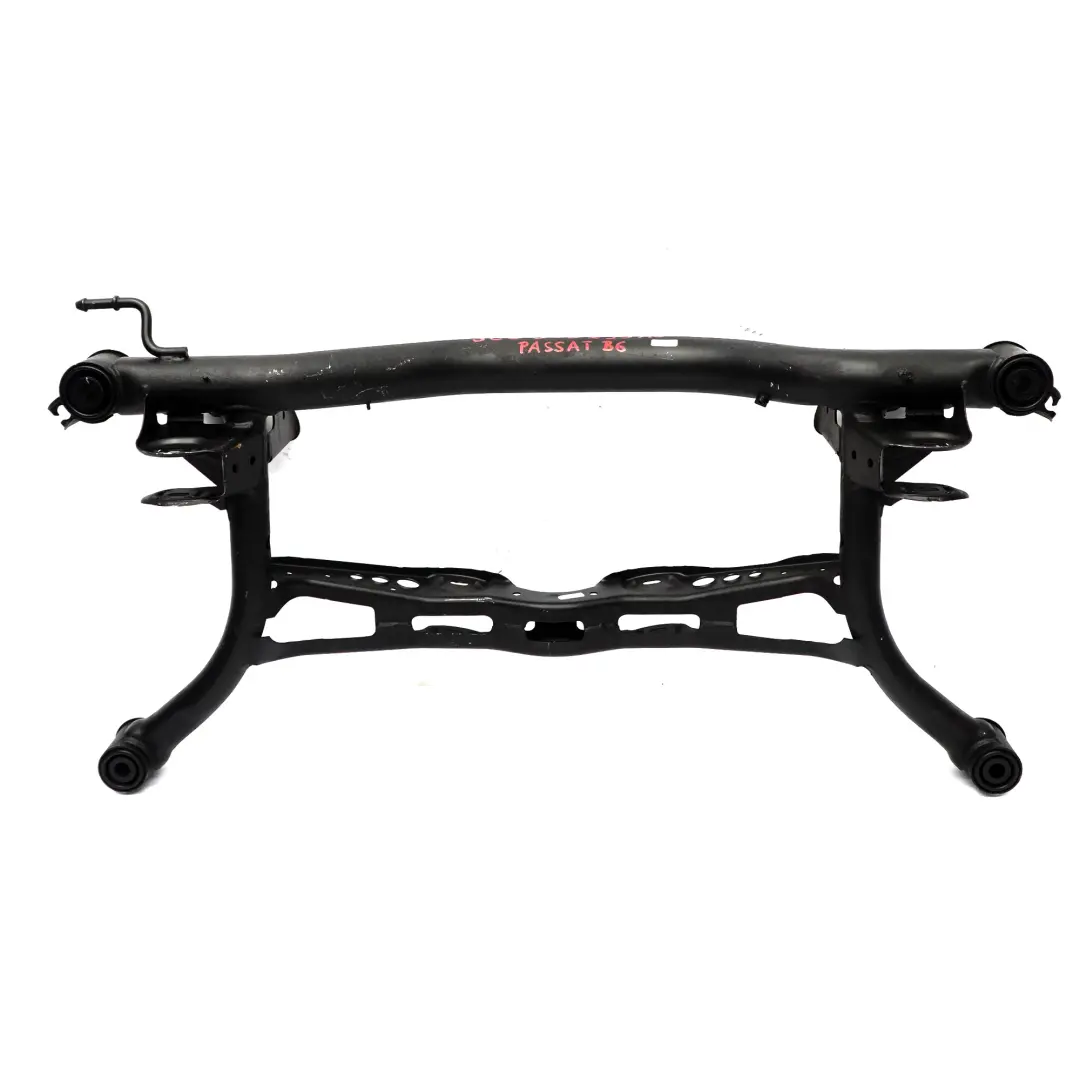

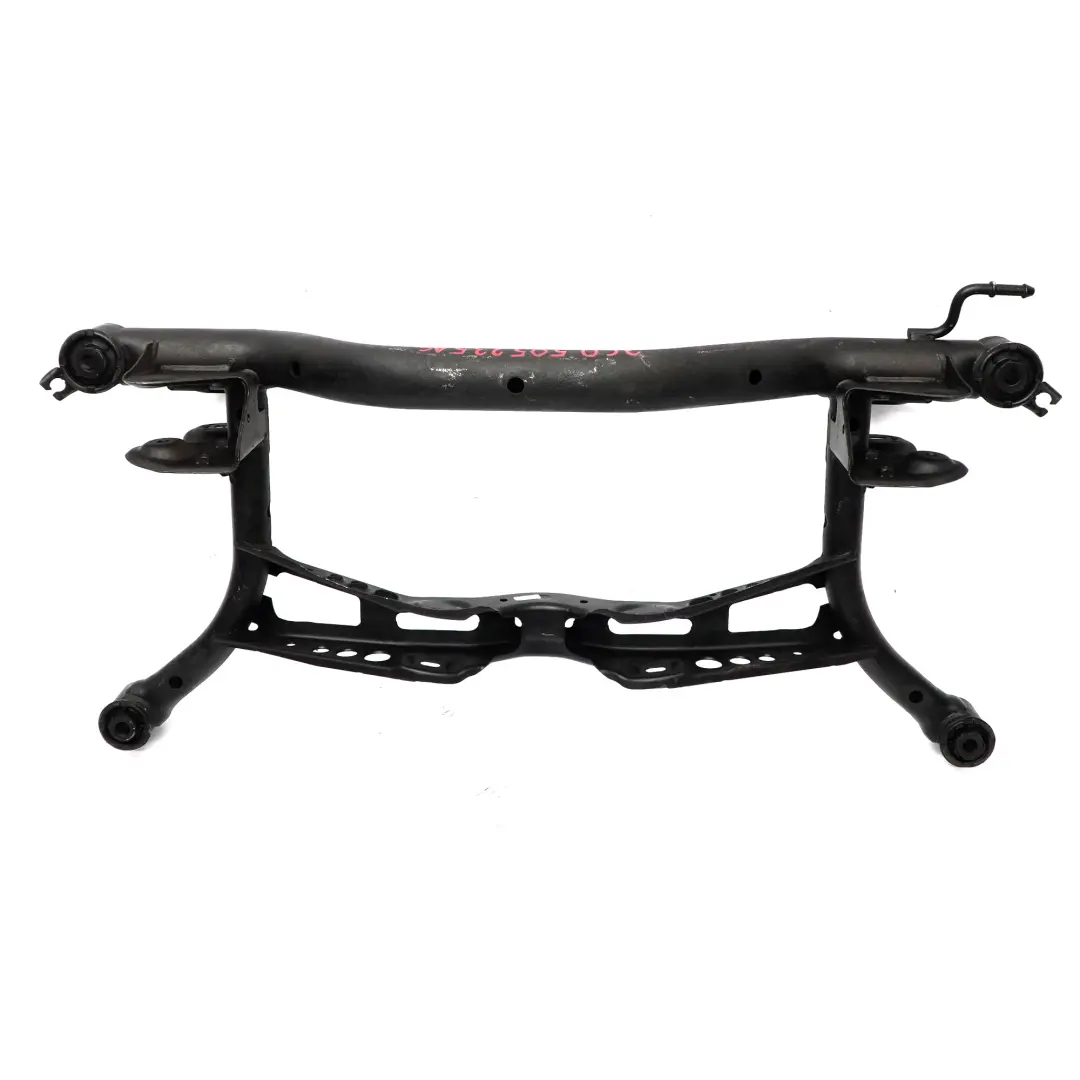

VW Volkswagen Passat B6 Rear Axle Suspension Cradle Subframe Carrier 3C0505235AC

VW Volkswagen Passat B6 Rear Subframe Cradle Crossmember is a structural component from the group of longitudinal body frame parts and brackets, designed for the rear of the vehicle. It provides stable support for suspension components and proper load transfer to the vehicle's structure, which is crucial for the handling and safety of the Passat B6.

Specifications and technical data

• SKU: 3C0505235AC
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 3C0505235AC
• Substitutable numbers: 3C0505235AC, 3C0 505 235 AC
• Location on the vehicle: Rear
• Category: Frame Rails & Subframes

Purpose and Function in the Vehicle

The offered Passat B6 rear subframe/cradle is a component mounted at the rear of the vehicle, serving as a load-bearing element for the suspension and selected drivetrain components. As part of the longitudinal body frame parts and brackets category, it is responsible for:

• stiffening the rear of the body and correctly distributing forces acting on the chassis,
• precise maintenance of the rear axle suspension geometry,
• stable mounting of suspension elements, which affects the predictable behavior of the car on the road.

A properly selected and functional rear cradle is particularly important after collisions, body repairs, or when replacing worn suspension components, when restoring the original structural rigidity is required.

Construction Characteristics

The Passat B6 rear subframe has been designed as a rigid bracket integrating suspension mounting points with the body. Thanks to this:

• it limits structural deformation during dynamic driving and heavy loads,
• it ensures repeatable wheel alignment on the rear axle, facilitating correct convergence adjustment,
• it minimizes the transfer of unwanted vibrations from the suspension to the body.

The design solution used by the manufacturer allows for secure mounting at the factory mounting points, without the need for body modifications, which is important for professional accident repairs.

Benefits of Using an Original Part

Choosing an original rear subframe for the Passat B6 from the Volkswagen OE group primarily offers:

• compliance with factory technical documentation – maintaining the rigidity and operating characteristics of the rear axle as intended by the manufacturer,
• guaranteed fit to mounting points – no issues with geometry or alignment,
• easier suspension condition check after installation – predictable results on the wheel alignment station.

A component from this group is often used in comprehensive suspension repairs when it is necessary to restore the original geometry and rigidity of the rear body section after mechanical damage or corrosion.

Vehicle Placement and Service Application

The presented cradle is intended for installation in the rear of the vehicle. In workshop practice, it is used, among other situations, when:

• the rear suspension structure has been damaged as a result of an impact or hitting an obstacle,
• deformation or corrosion of the existing subframe has been identified, affecting driving safety,
• it is necessary to restore correct geometry after bodywork and mechanical repairs.

By maintaining the original design concept, the installation of the subframe is predictable for experienced mechanics and allows for effective restoration of the original driving parameters of the Passat B6.

Condition and Fitment Verification

The offered part is used, which in service practice allows for economical repair while maintaining the original manufacturer's construction. Before purchasing, it is recommended to verify compatibility with the specific Passat B6 version and consult with a mechanic or body shop regarding the scope of the planned repair and installation method.
