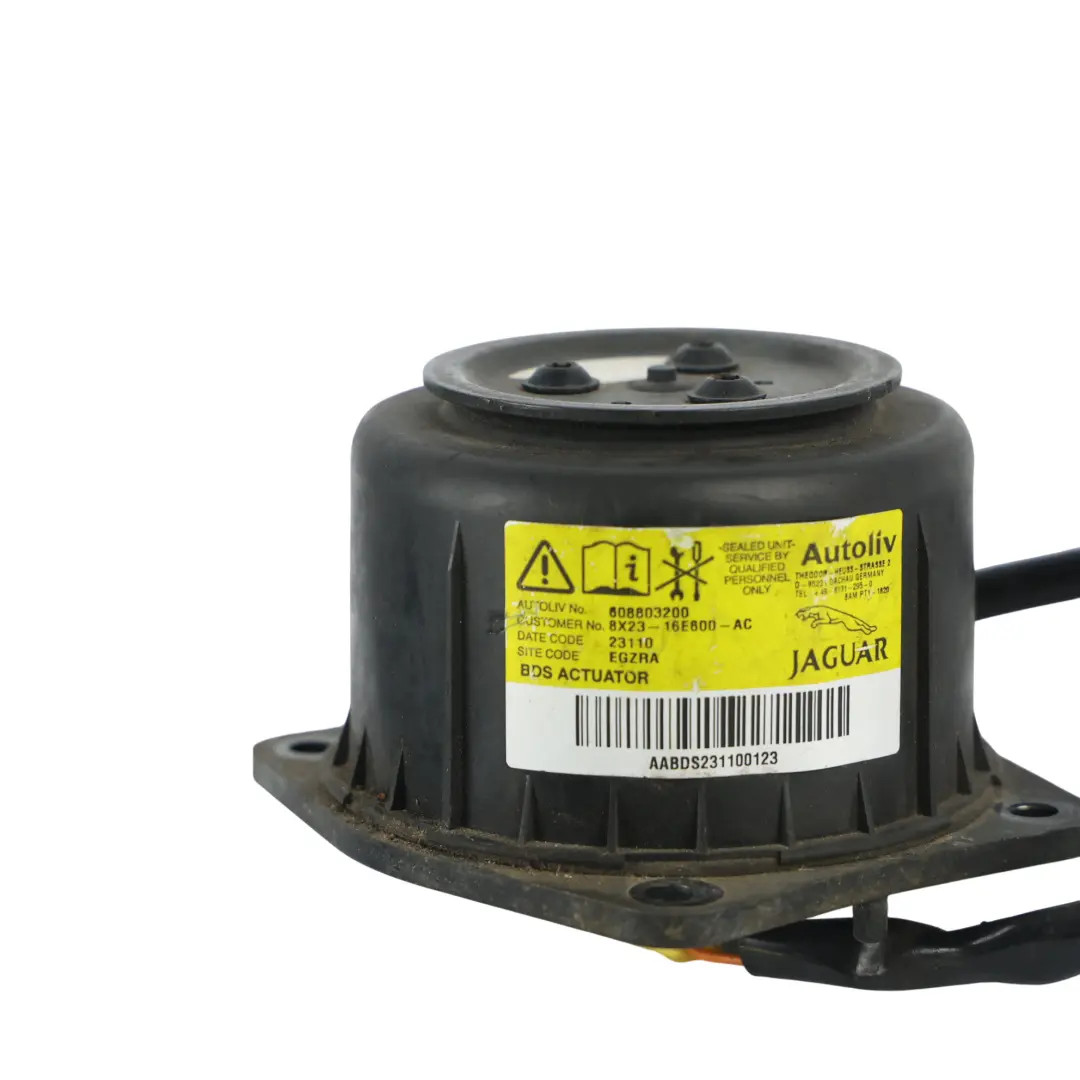

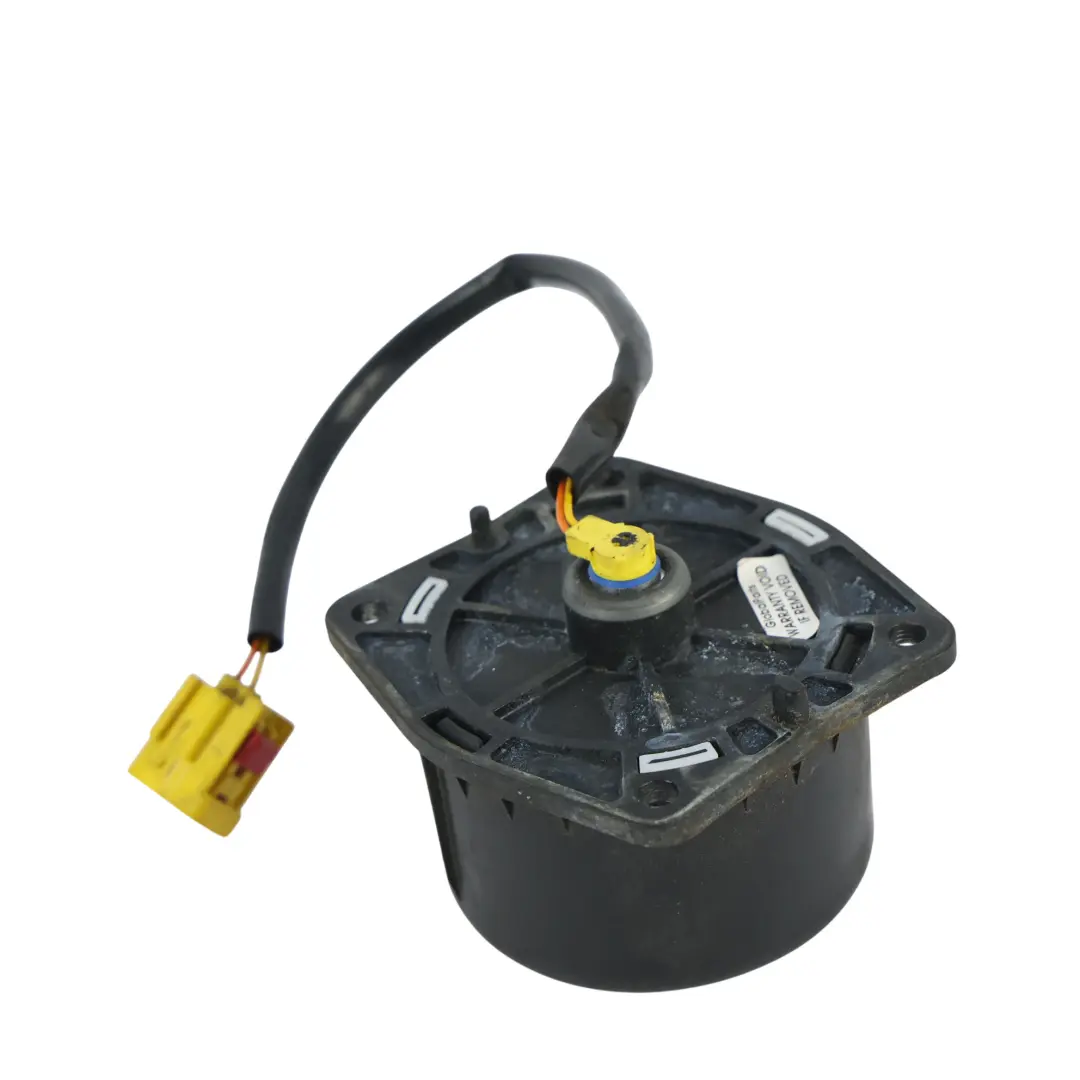

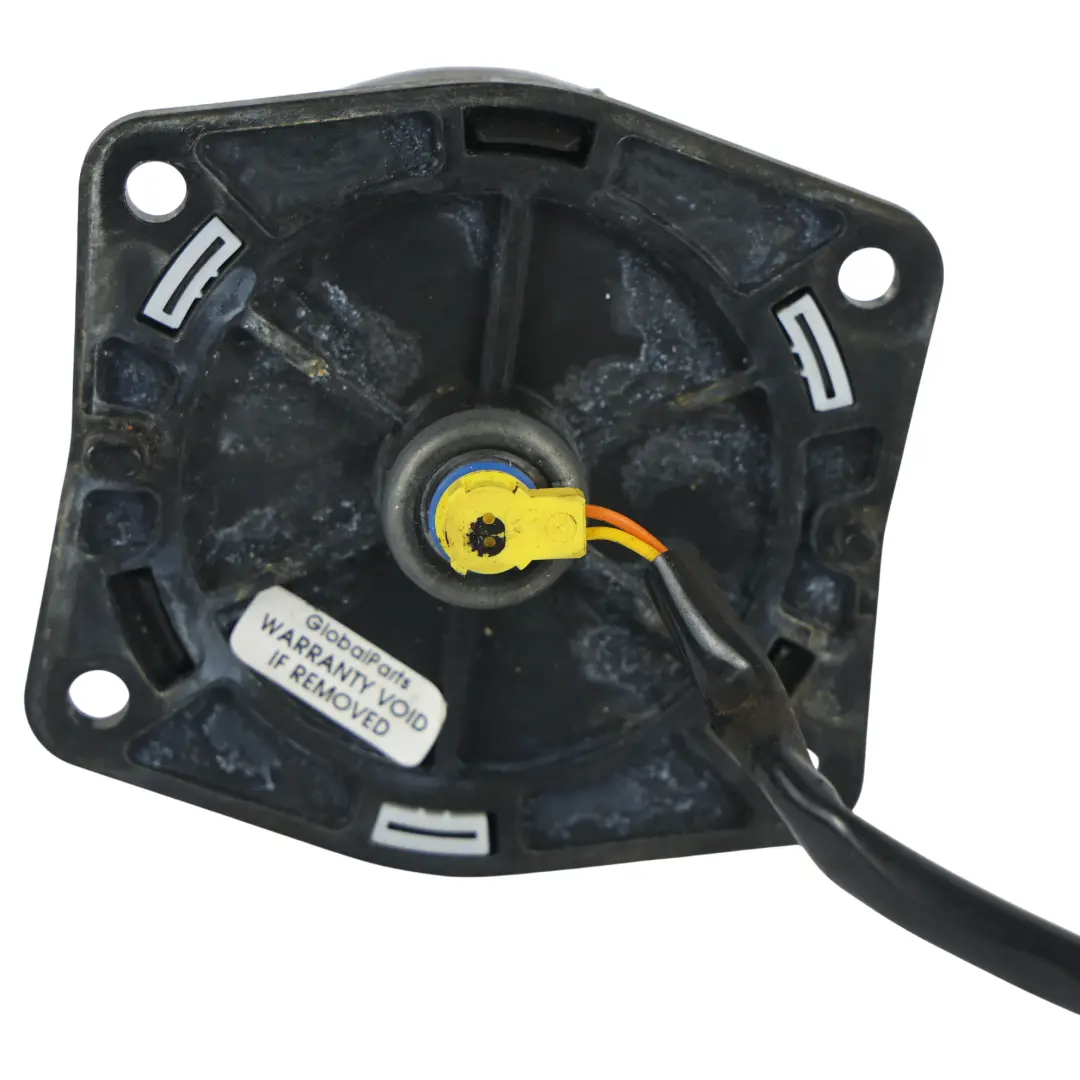

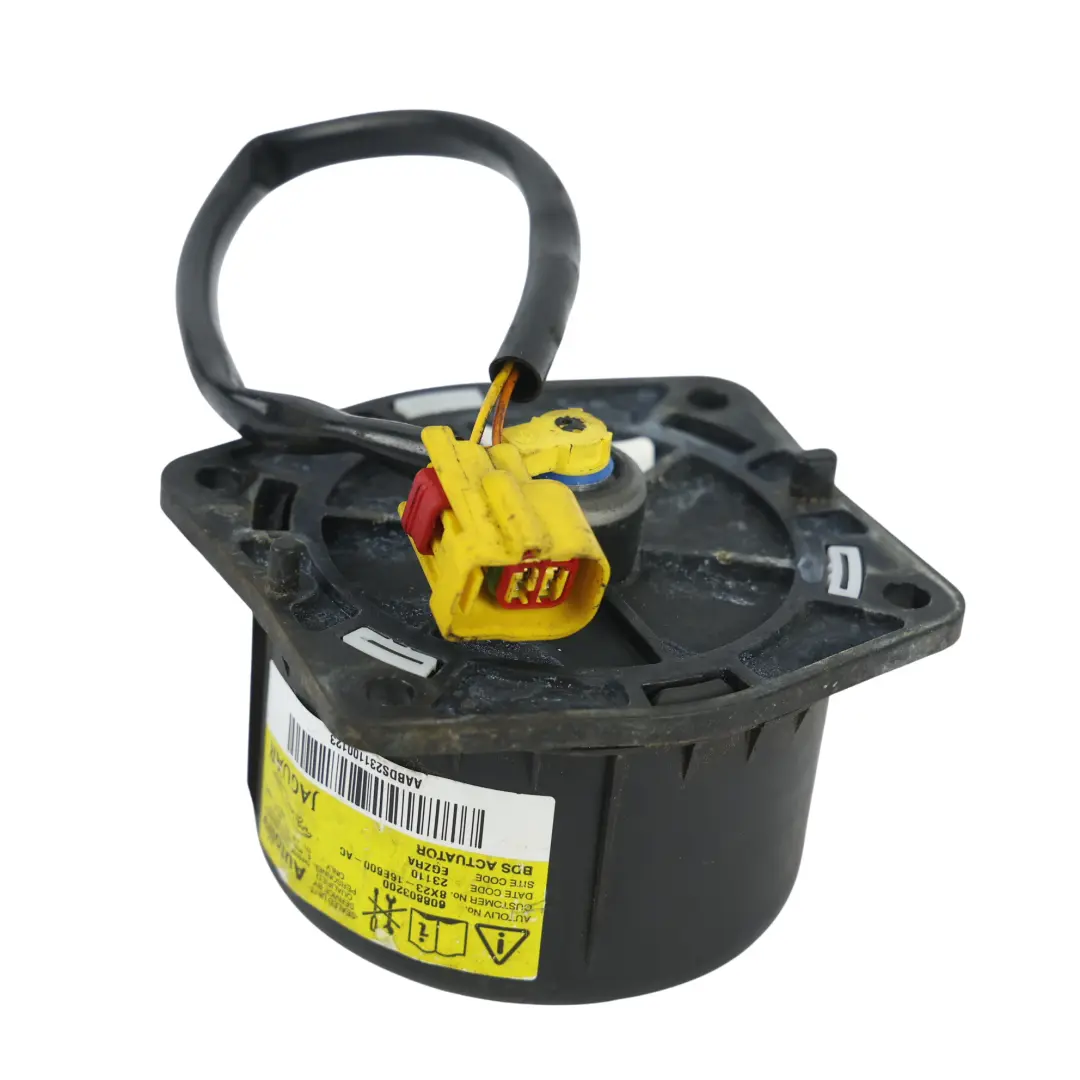

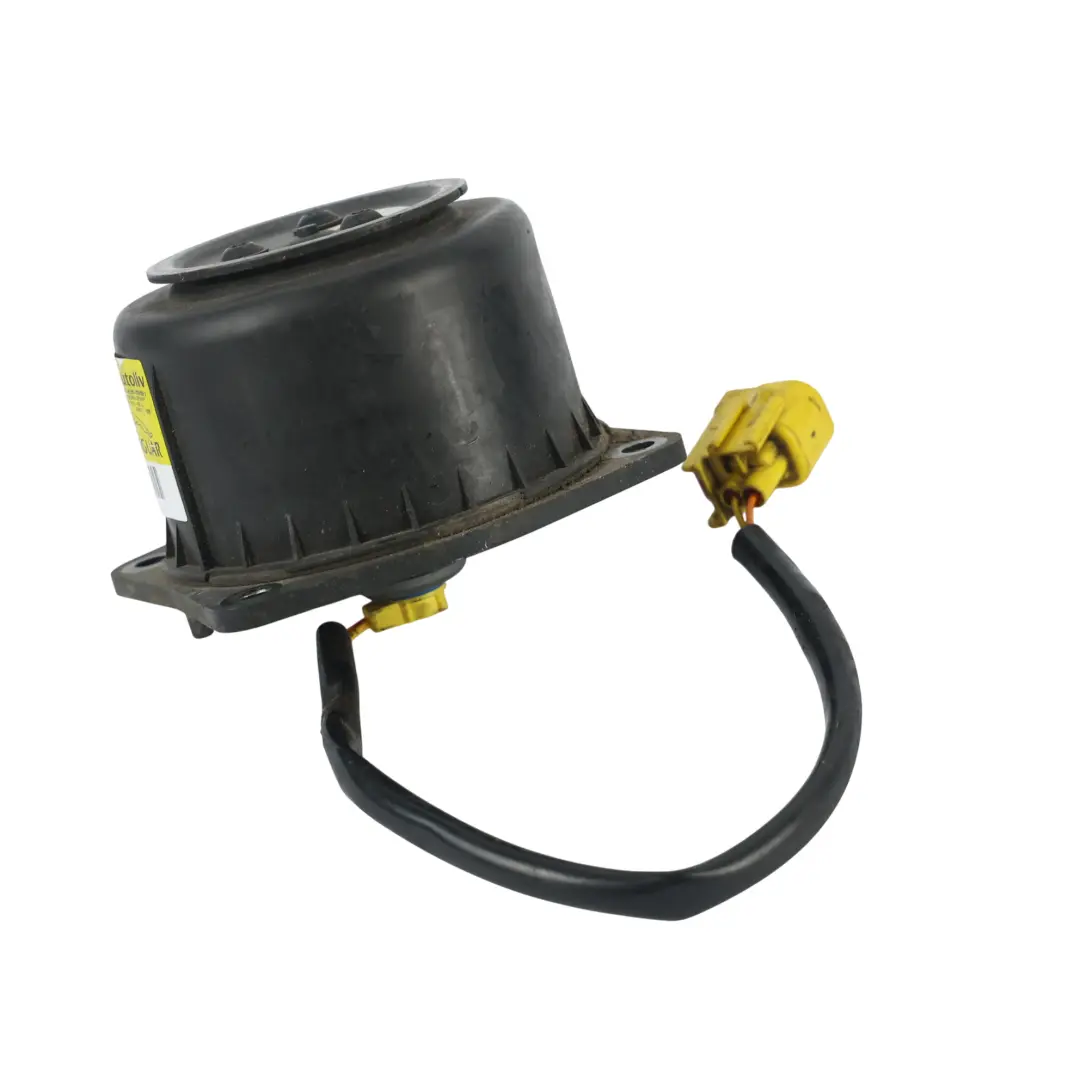

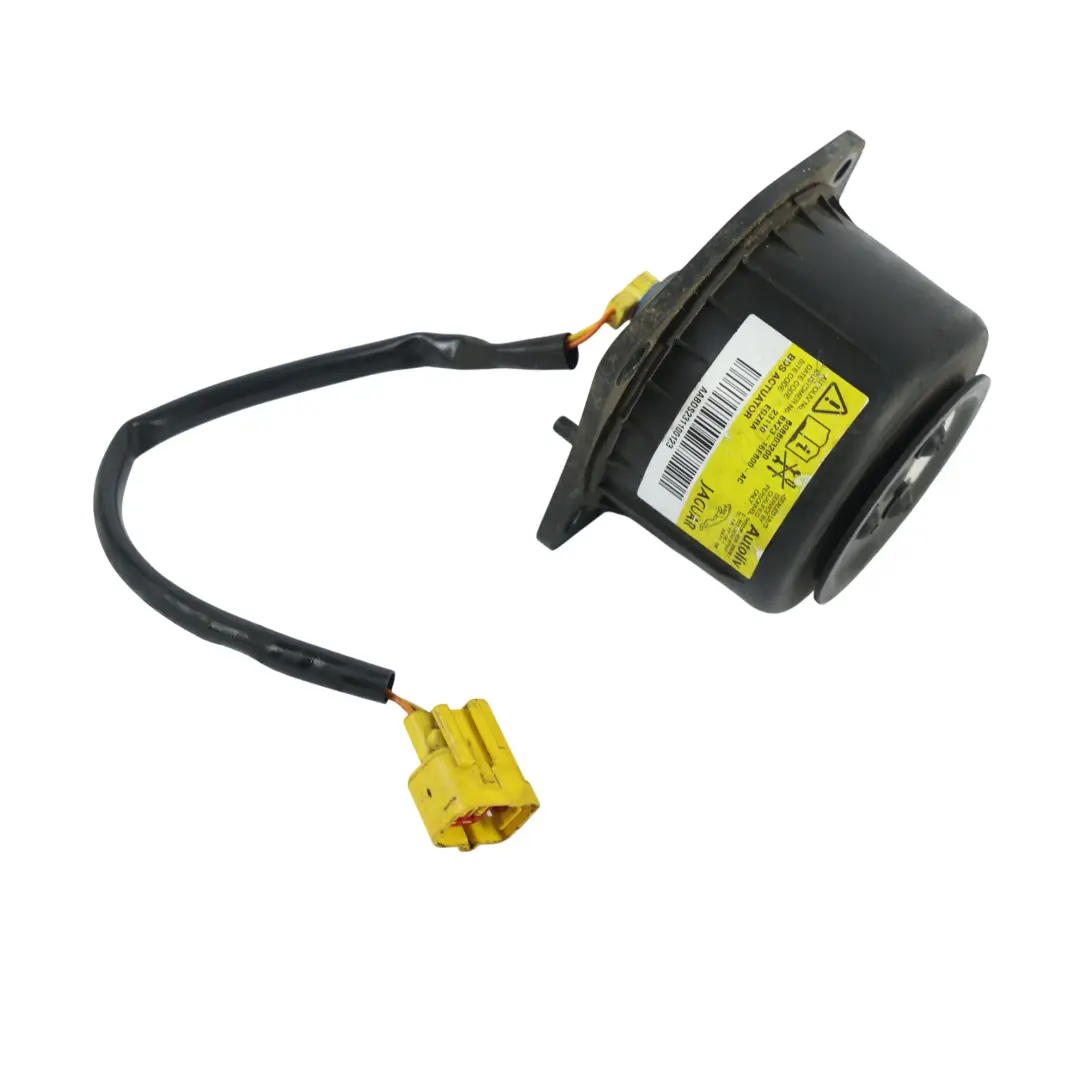

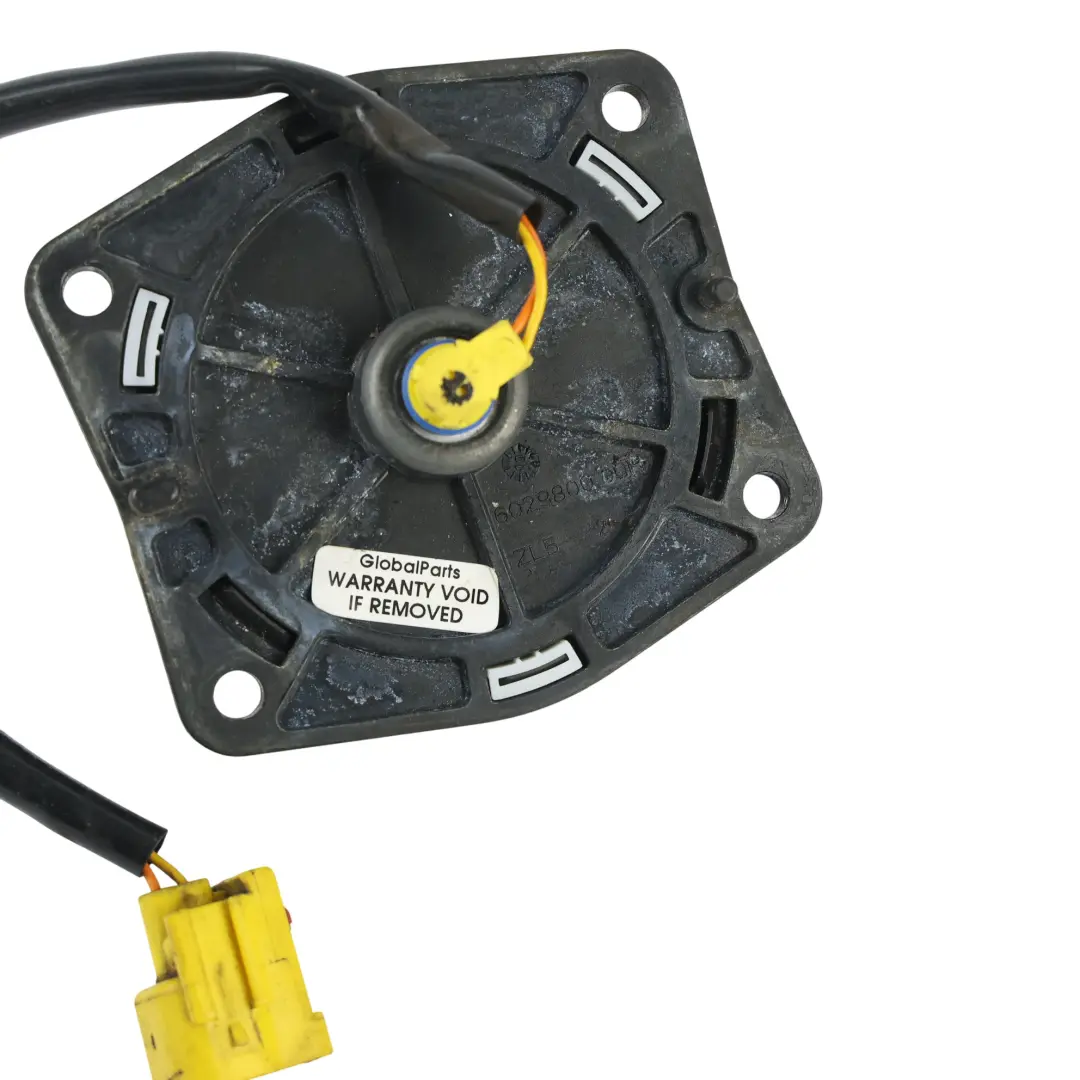

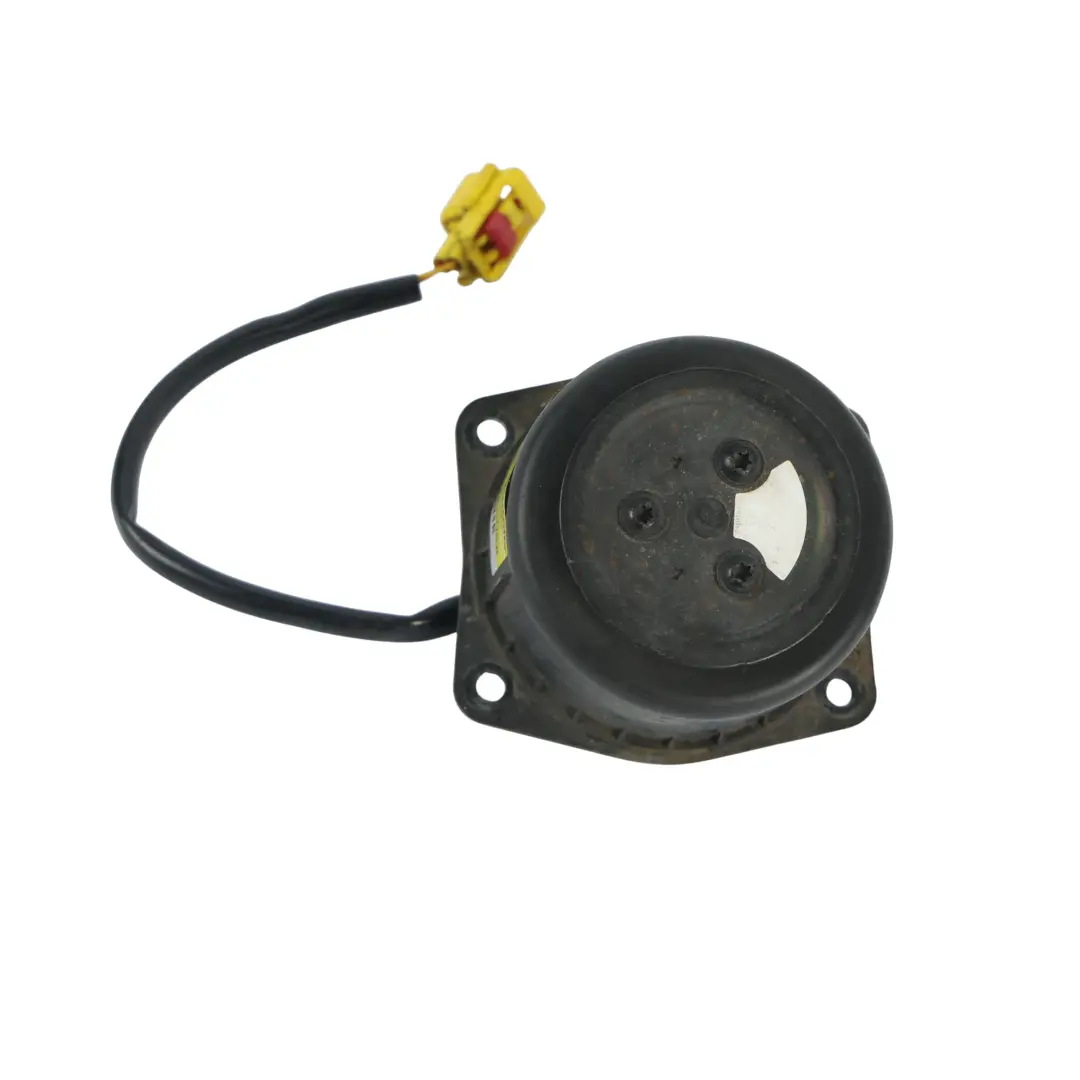

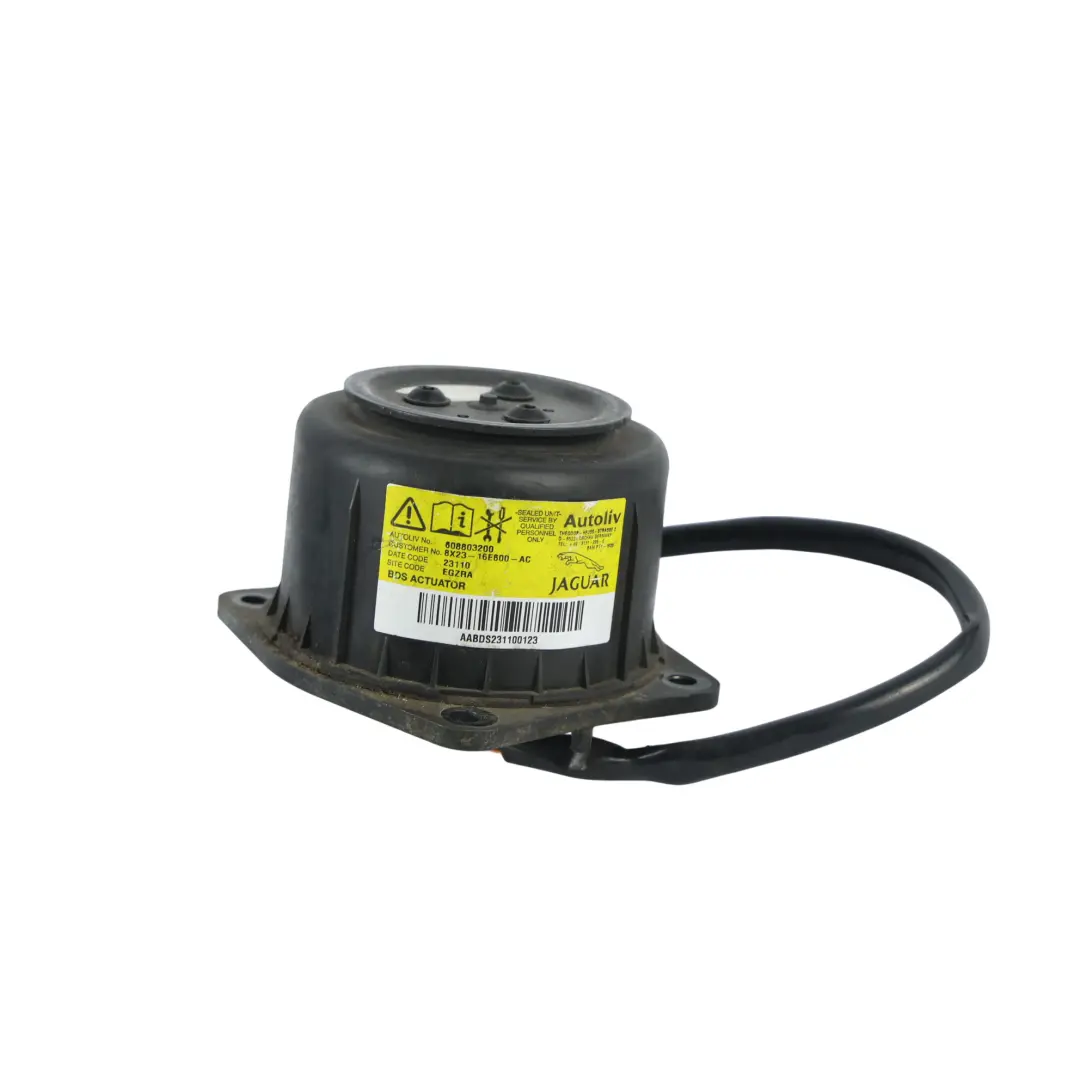

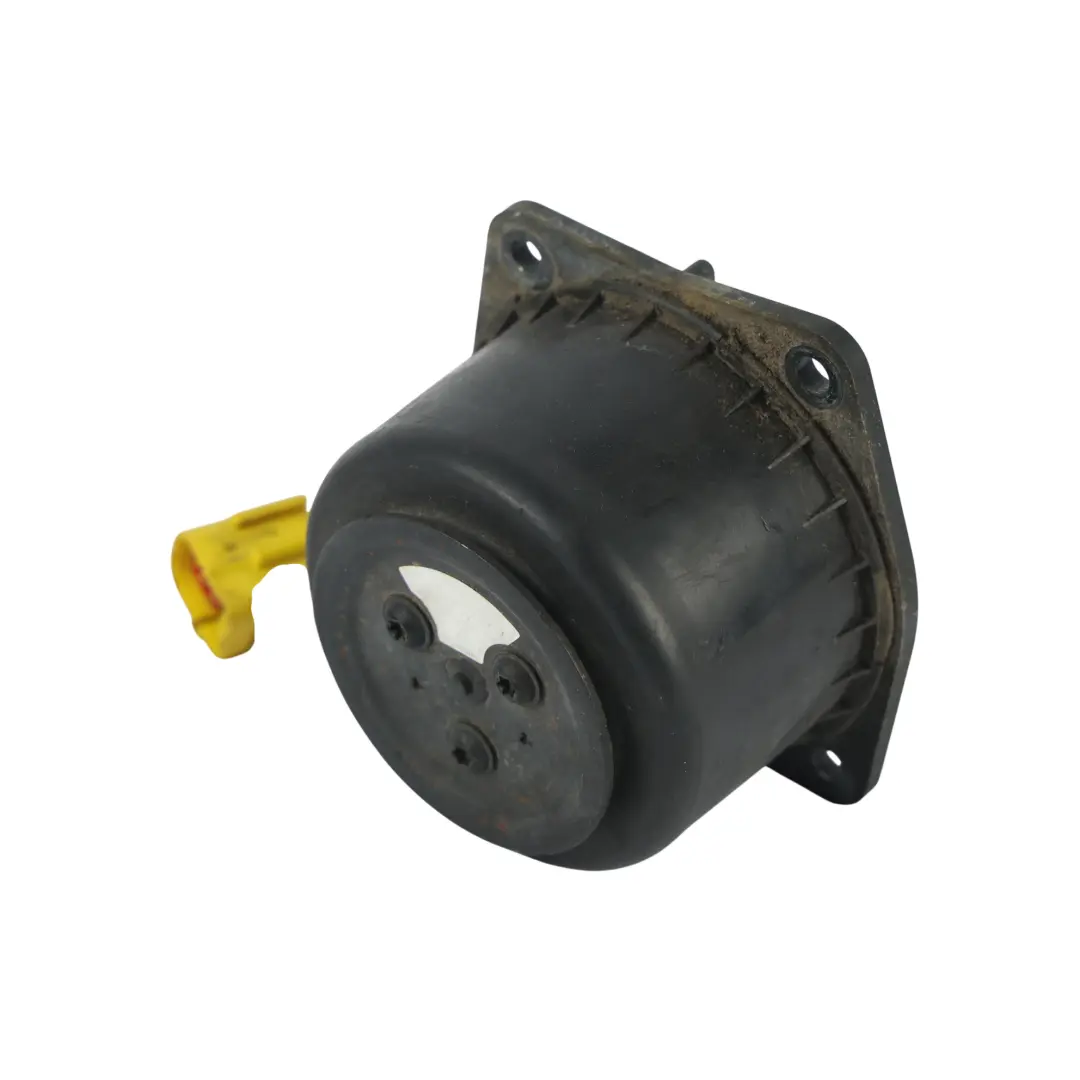

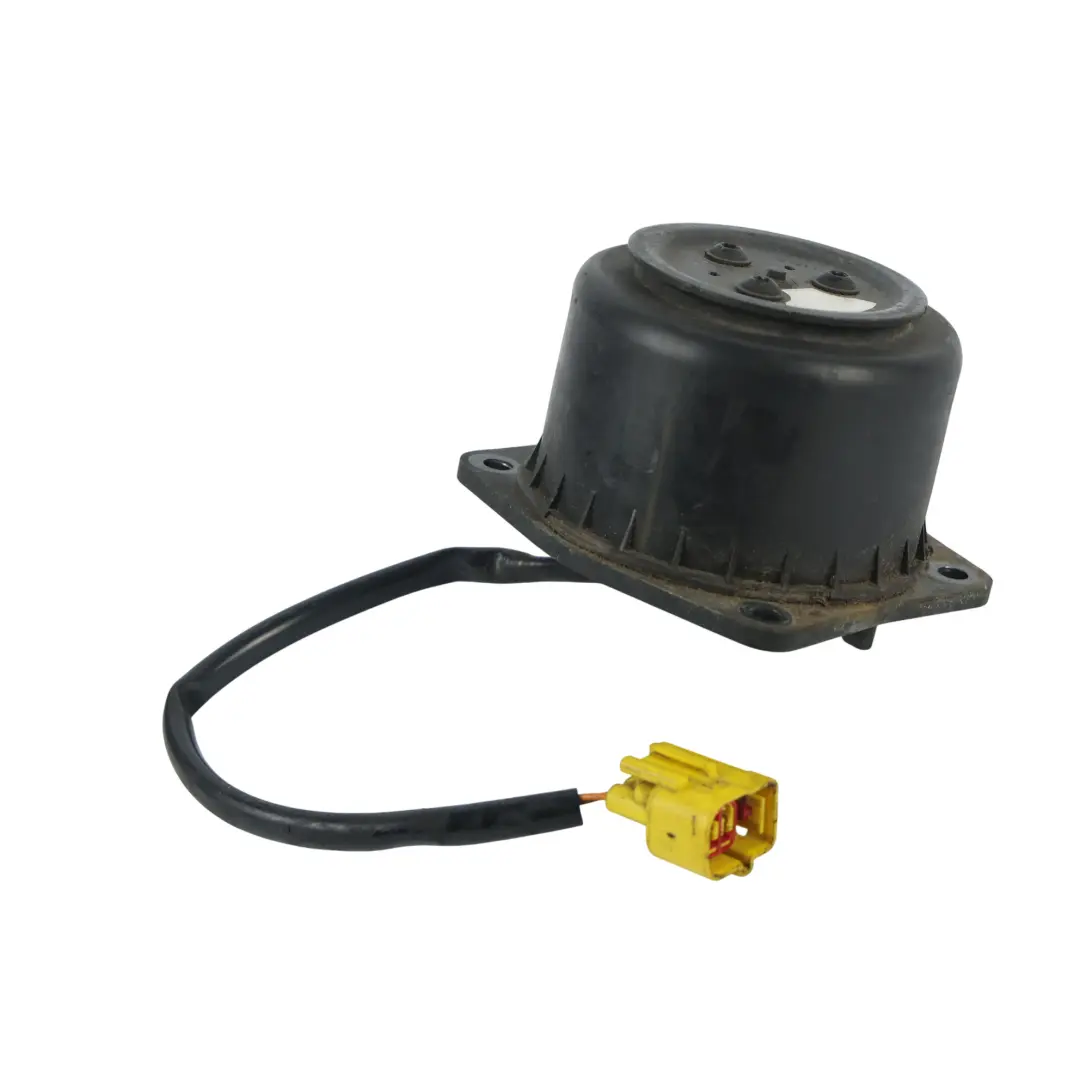

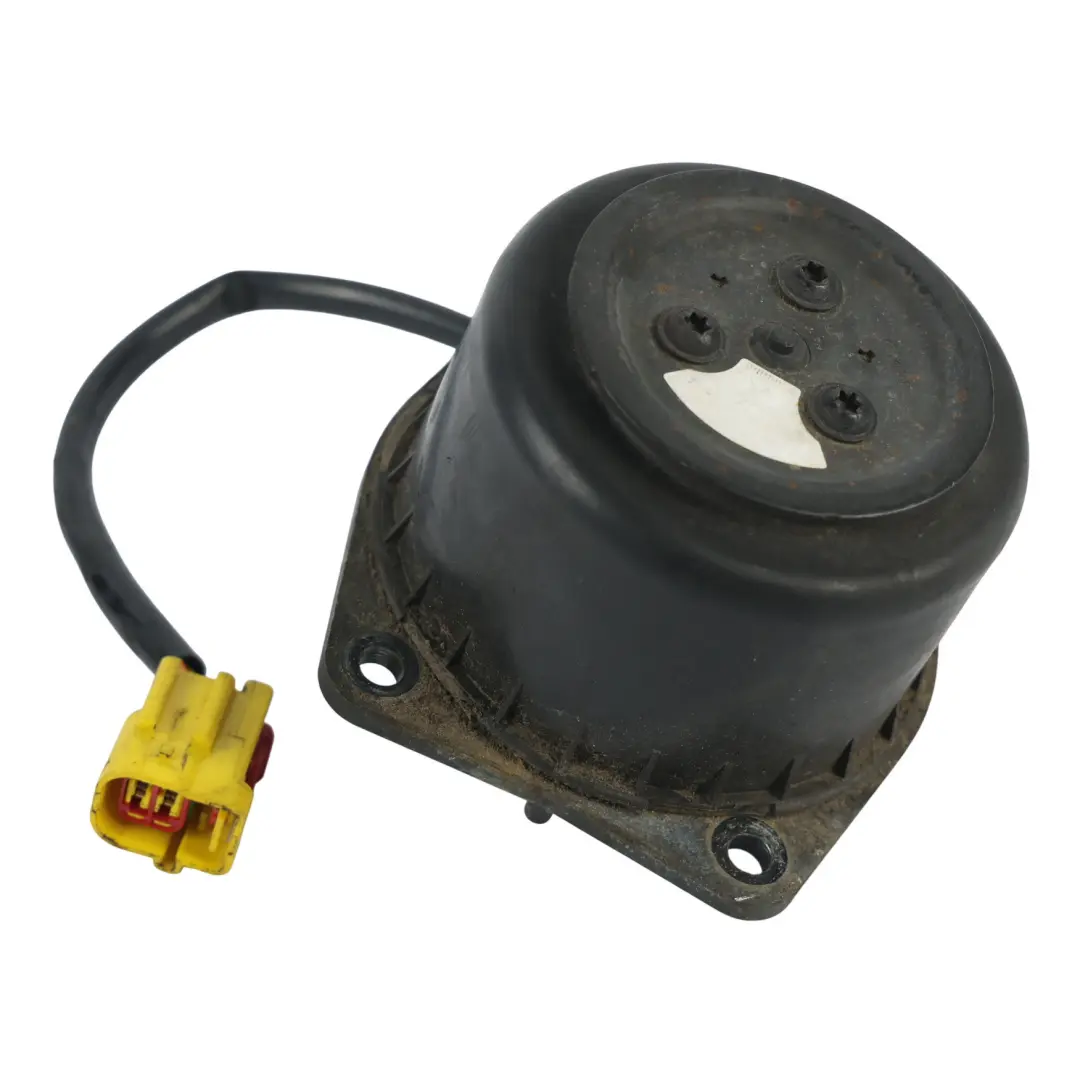

Jaguar XF X250 Pedestrian Protection Bonnet Actuator Air Module 8X23-16E600-AC

Jaguar XF X250 Pedestrian Protection Bonnet Actuator Air Module is a specialized component from the Electronic control modules and controllers group, responsible for the active protection of vulnerable road users in the event of a collision. This component works in conjunction with body safety systems, ensuring precise deployment of the airbag under appropriate conditions and mitigating the effects of an impact.

Specifications and technical data

• SKU: 8X23-16E600-AC
• Mark: Jaguar
• Condition: Used
• OEM Part Number: 8X23-16E600-AC
• Substitutable numbers: 8X2316T60A, 8X2316F641A, 8X2316E600AC, 8X23-16E600-AC, C2Z3352, C2D23552, CX2316E600AA, CX23-16E600-AA, C2D26054, CX2316E628AB, CX23-16E628-AB, C2Z2916, W713044S440
• Part type: ADAS Control Module
• Category: ECUs & Computer Modules

Function and role in the pedestrian protection system

The pedestrian protection airbag in the Jaguar XF X250 model is integrated with the vehicle's sensor array and body control modules, forming a cohesive external safety system. It is responsible for the controlled lifting of specific bodywork elements and the creation of an additional energy-absorbing zone, which helps reduce the forces acting on a pedestrian's body during a collision. As an element from the Electronic control modules and controllers category, the component works with a dedicated controller that analyzes signals from crash sensors and makes the decision to activate within a fraction of a second. A correctly selected and functional airbag is crucial for maintaining the vehicle's factory safety parameters.

Selection and compatibility with the Jaguar XF X250

The presented airbag has been designed specifically for the Jaguar XF X250 body architecture, taking into account the hood geometry, crumple zones, and sensor placement. This allows for the maintenance of the correct system operation sequence, from collision detection to the deployment of the airbag in the appropriate zone. The element has an assigned OEM part number and associated interchangeable numbers, which facilitates verification of compatibility with a specific equipment version and vehicle year. When selecting, it is recommended to compare catalog data and consult service documentation to ensure full compatibility with the existing electronic installation.

Characteristics of the used element

The pedestrian protection airbag is offered as a used part, sourced from a dismantled Jaguar vehicle. Such components are frequently chosen for post-accident repairs when the priority is to maintain the original design of the safety system while optimizing service costs. When installing a used element, it is particularly important to follow the manufacturer's procedures, including correct wiring connection, checking for errors in the controller, and performing system tests after the work is completed. This allows for the restoration of the proper operation of the pedestrian protection system and avoids unwanted messages on the instrument cluster.

Installation and service aspects

Installing the pedestrian protection airbag in a Jaguar XF X250 requires access to the front body zone and work with pyrotechnic and electronic systems. For this reason, installation in a specialized service center that has the appropriate diagnostic equipment and experience in working with active safety systems is recommended. After replacing the element, it is usually necessary to:

• check the integrity of wiring and connectors within the pedestrian protection system,
• clear stored errors and perform adaptation in the controller,
• verify proper communication with other body modules. A service procedure conducted in this manner increases the chance of trouble-free operation and the correct response of the system in an emergency situation.

Integration with other electronic modules

The pedestrian protection system in the Jaguar XF X250 works with a range of other electronic modules responsible for vehicle safety and diagnostics. Proper airbag operation requires correct communication within the vehicle network and software compatibility of the controllers. For those interested in the broader context of how electronic modules work in modern cars, including how to diagnose faults and use parts from dismantling, an article describing the maintenance of multimedia systems and controllers in other premium brands may be helpful, available at the link: how to take care of electronic modules and control systems in modern BMWs. If you are planning a comprehensive repair or upgrade of the external safety zone in your Jaguar and need other elements from the same group, such as airbag controllers, actuator modules, or protection system controllers, check the available parts in the Jaguar electronic control modules and controllers category.
