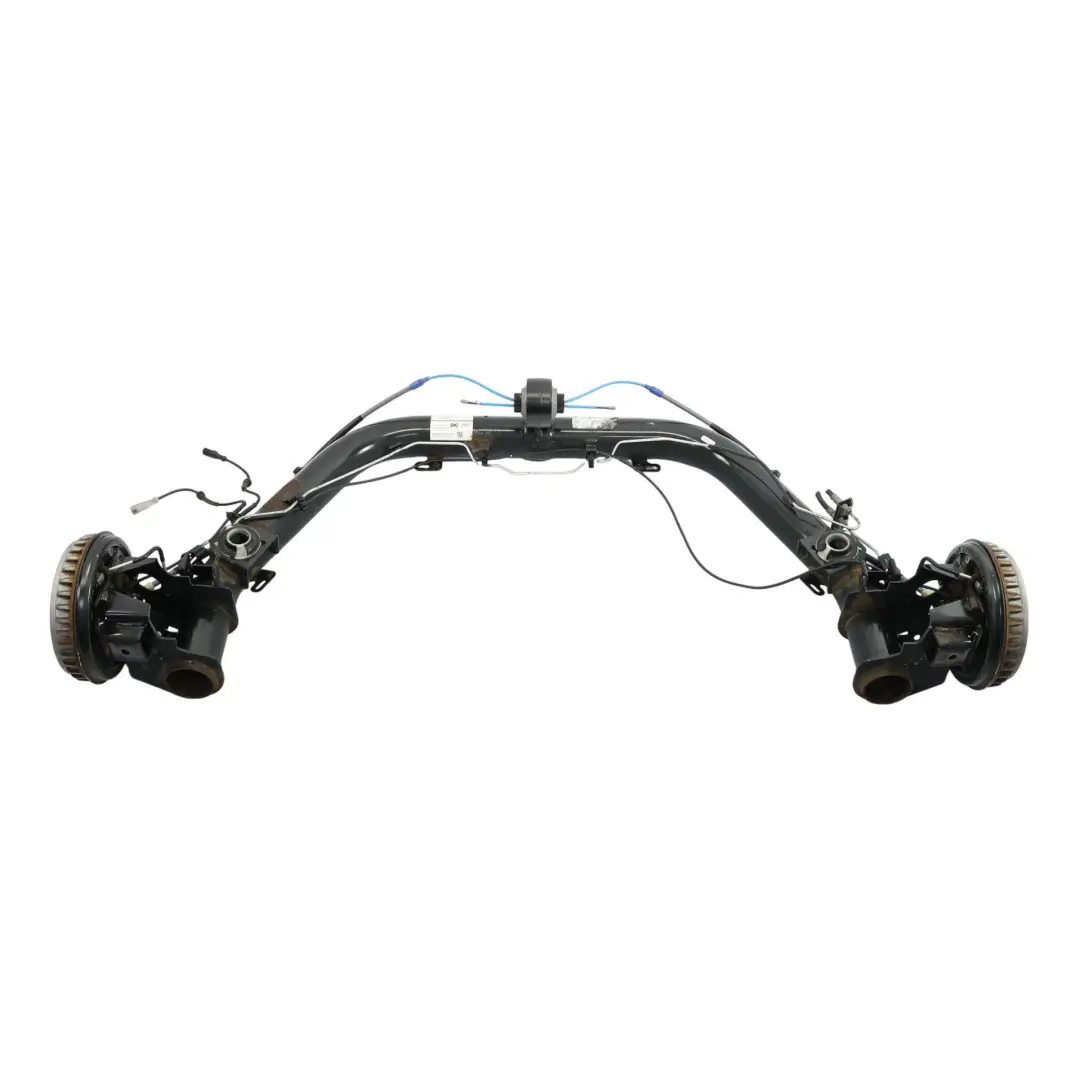

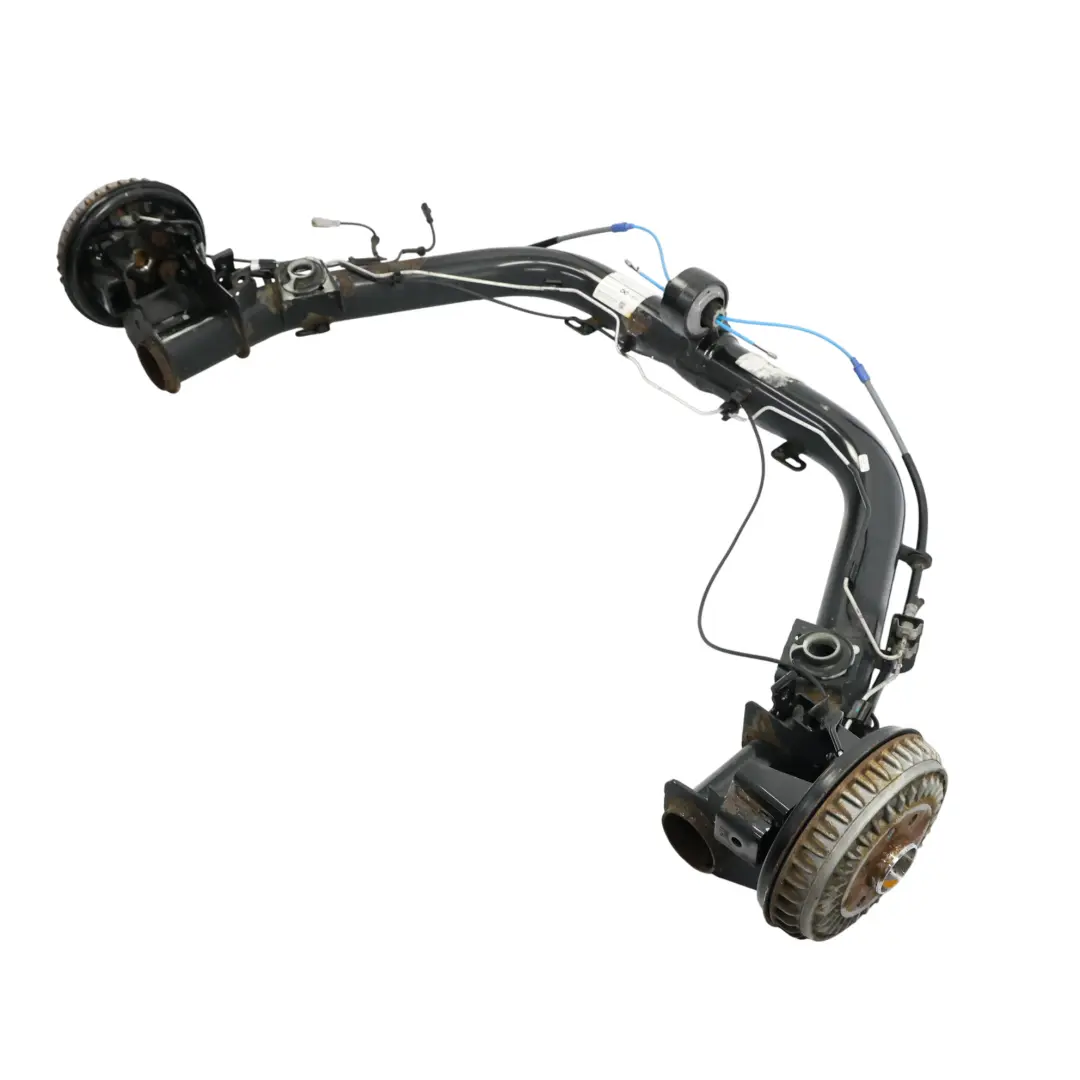

Smart Fortwo C453 Electric Rear Axle Subframe Beam Cradle Mounting A9063506700

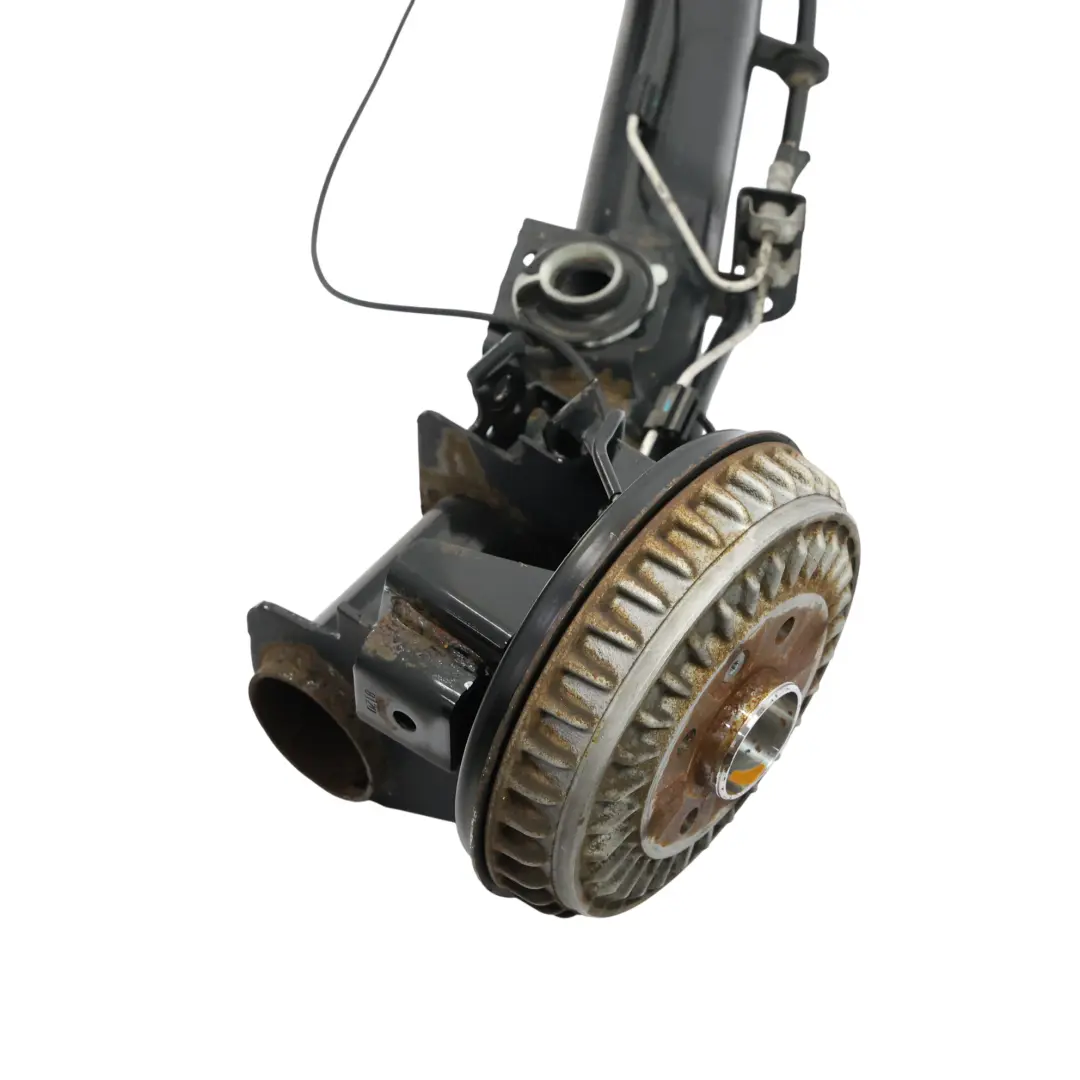

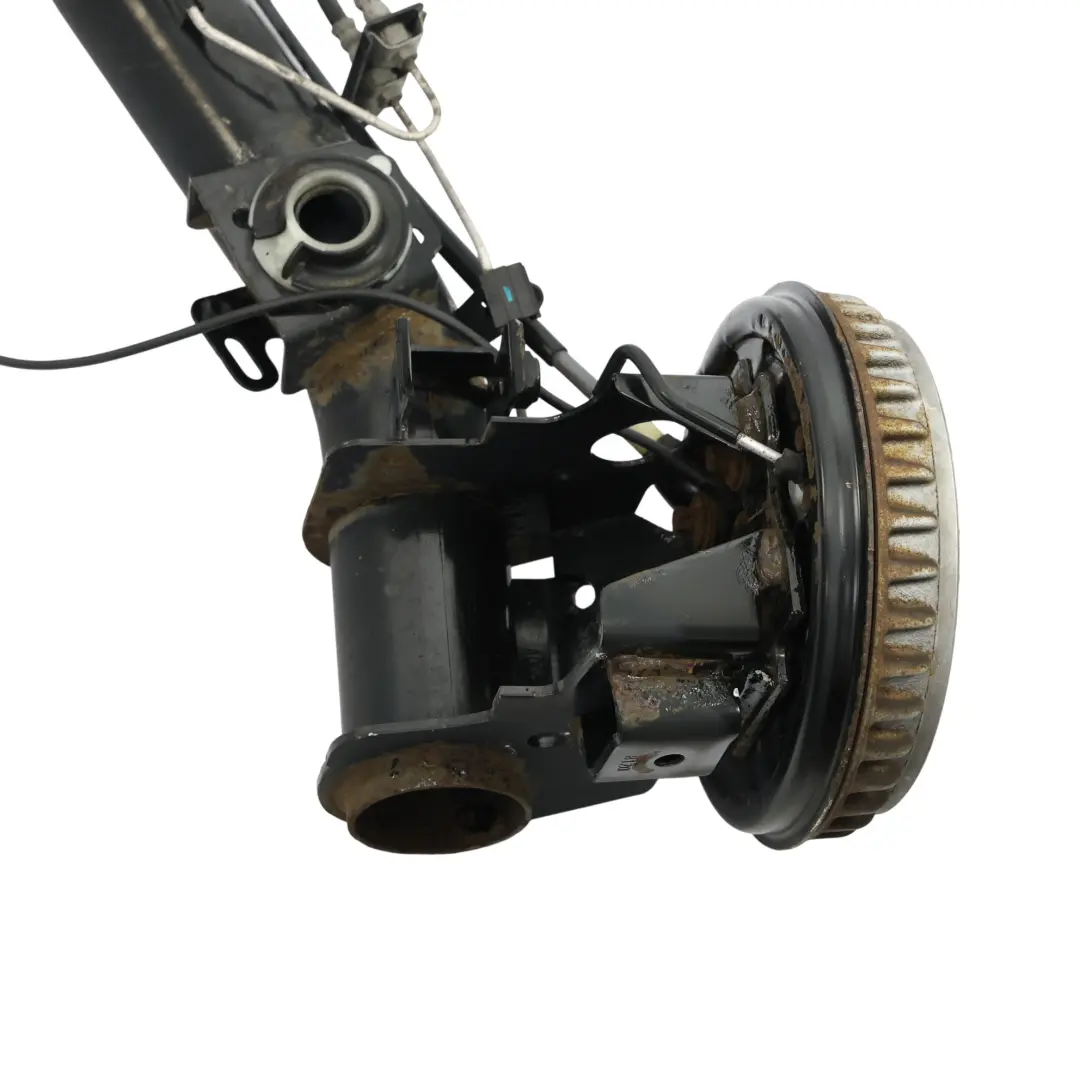

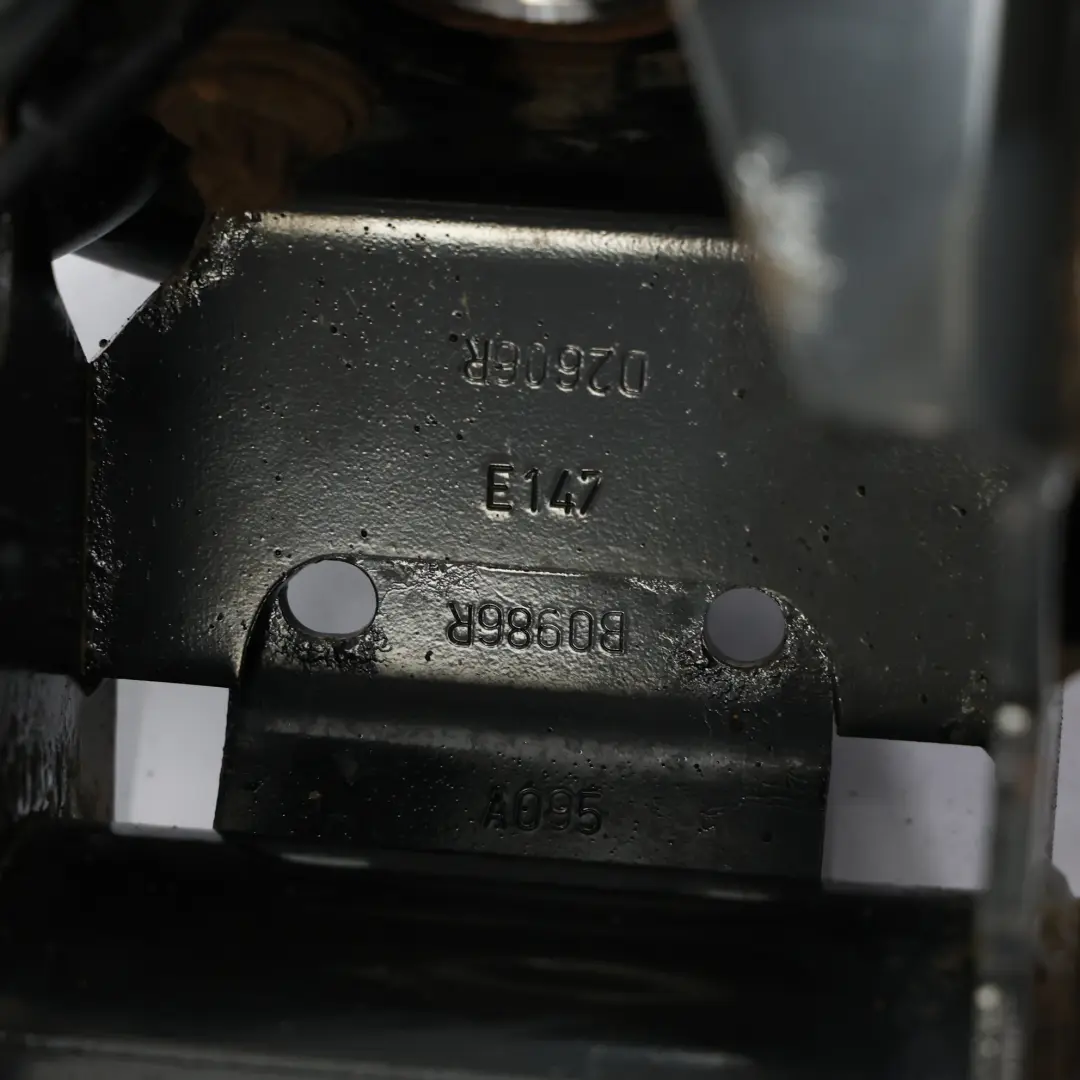

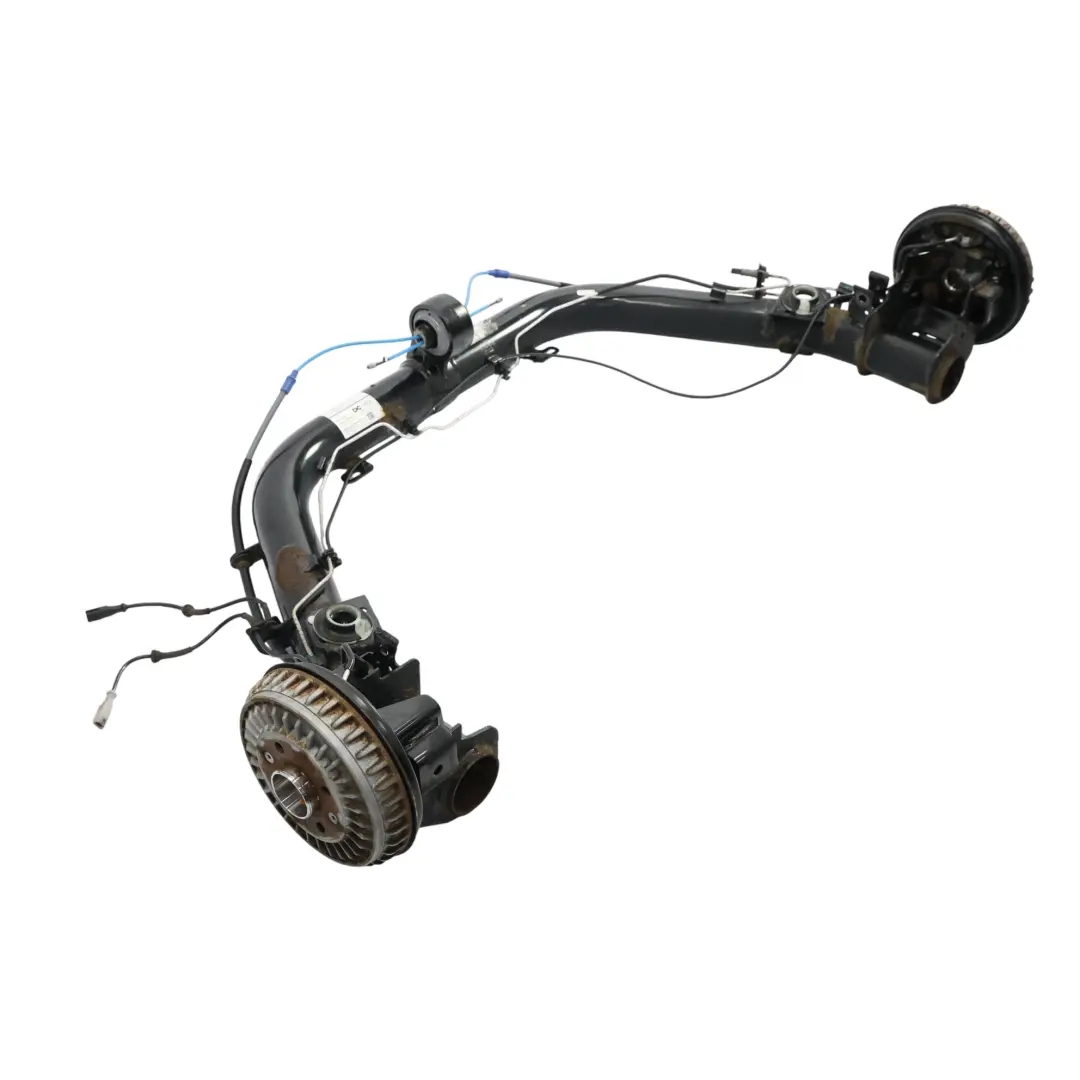

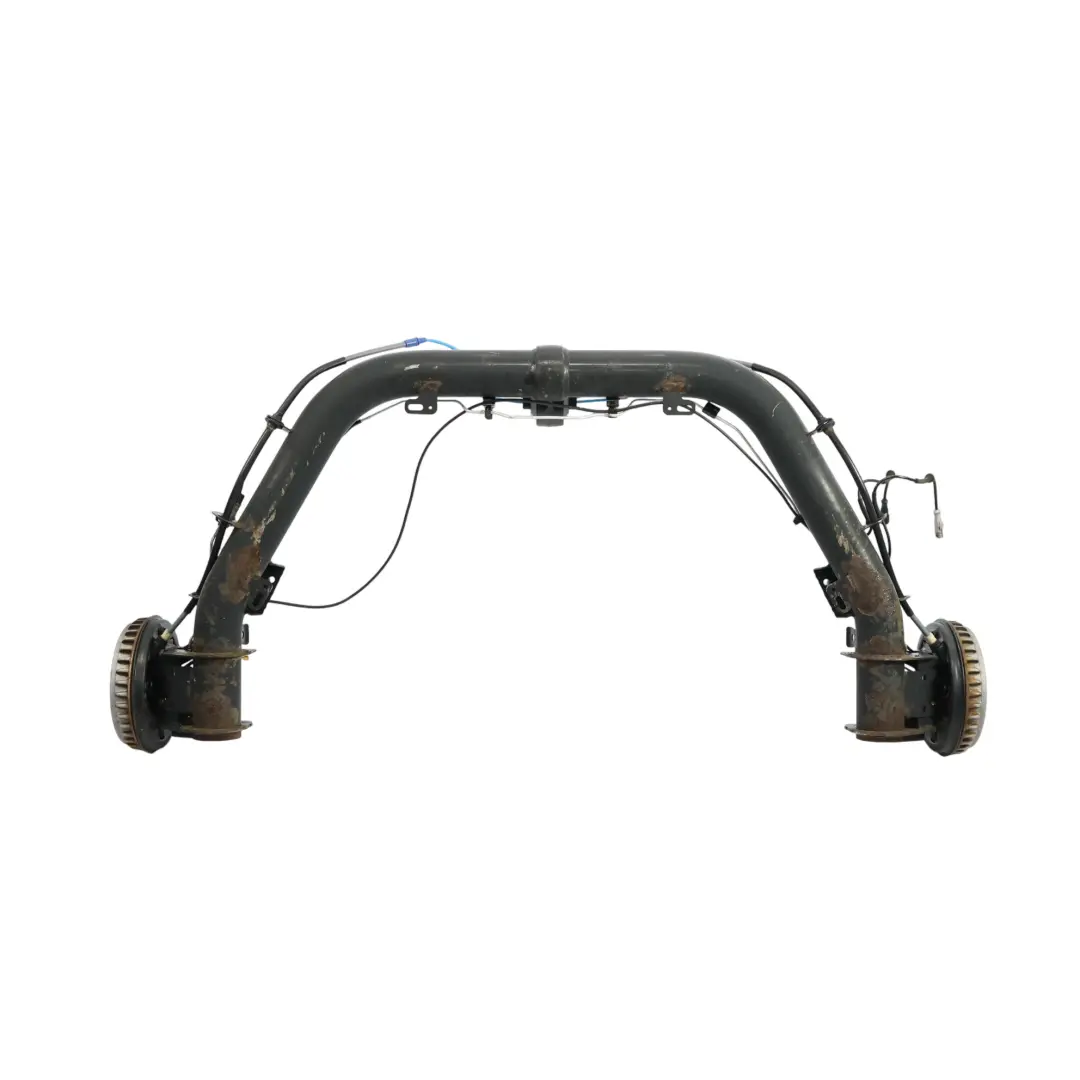

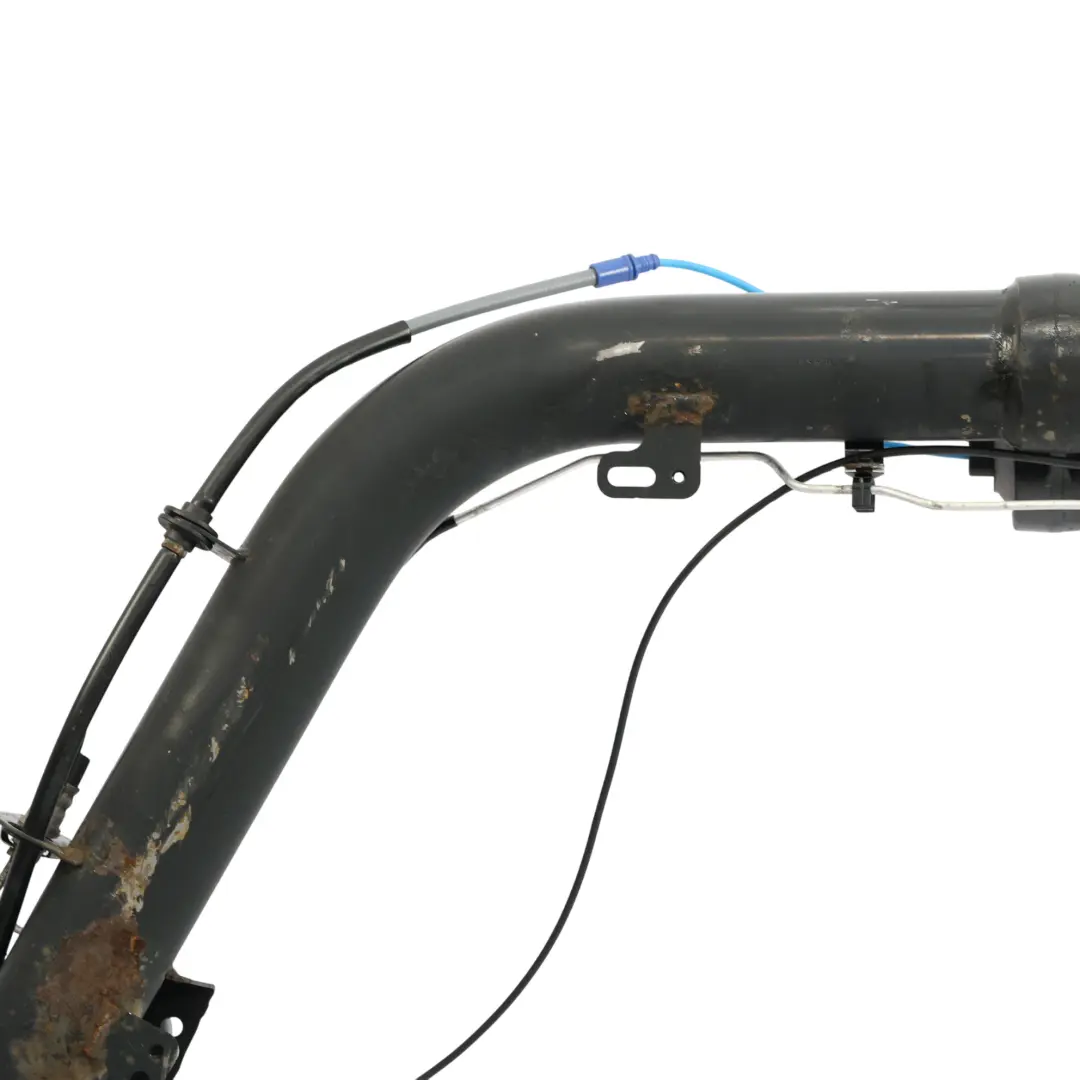

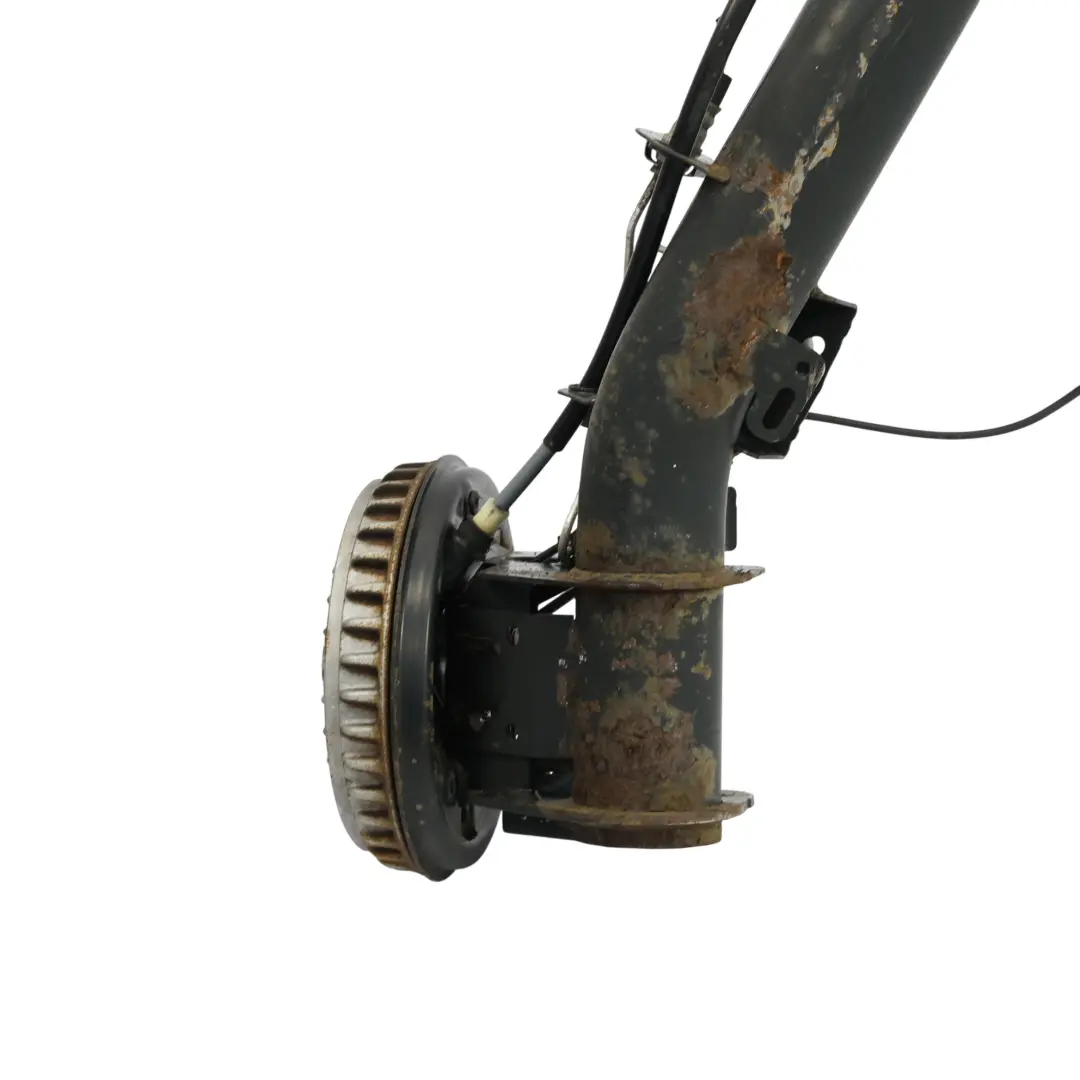

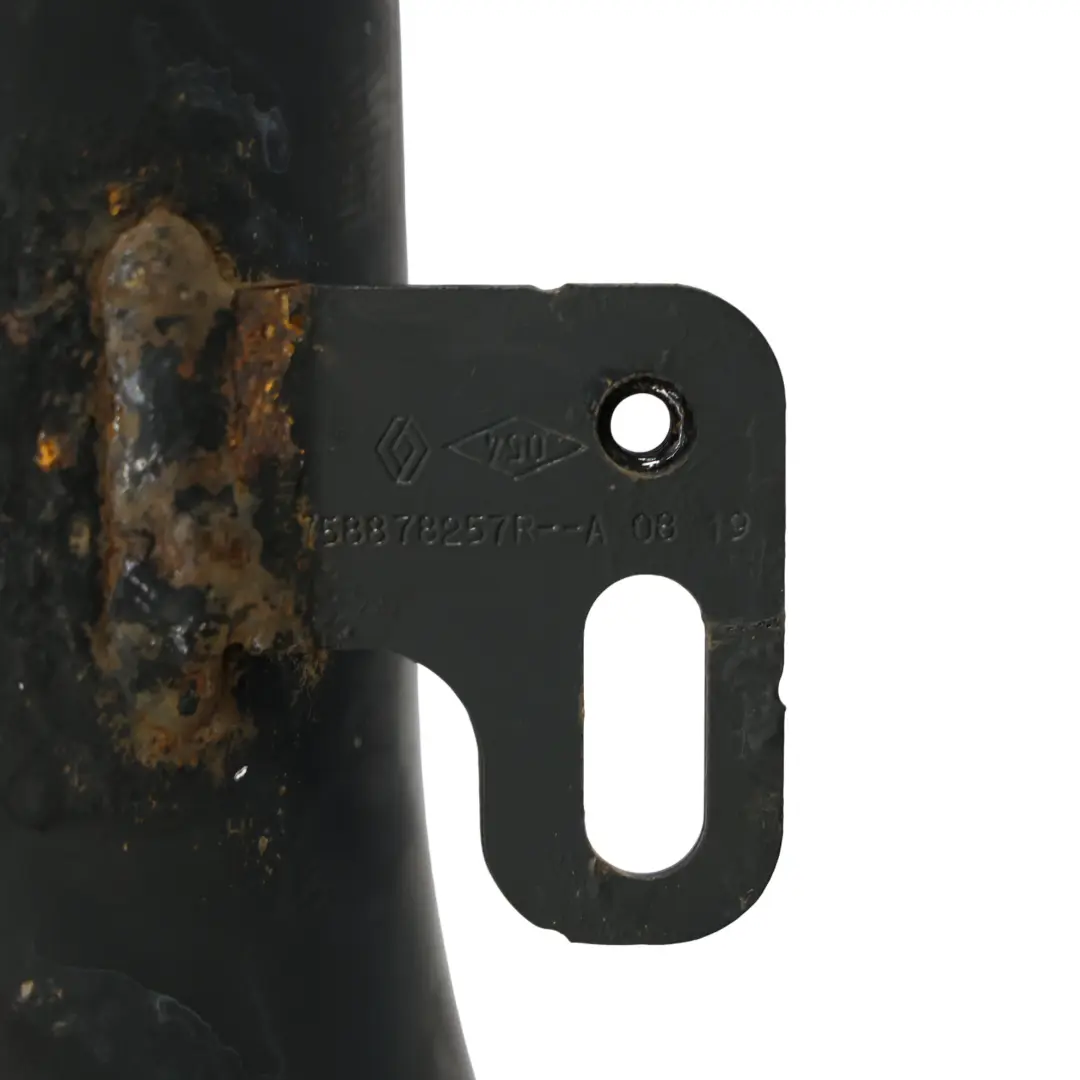

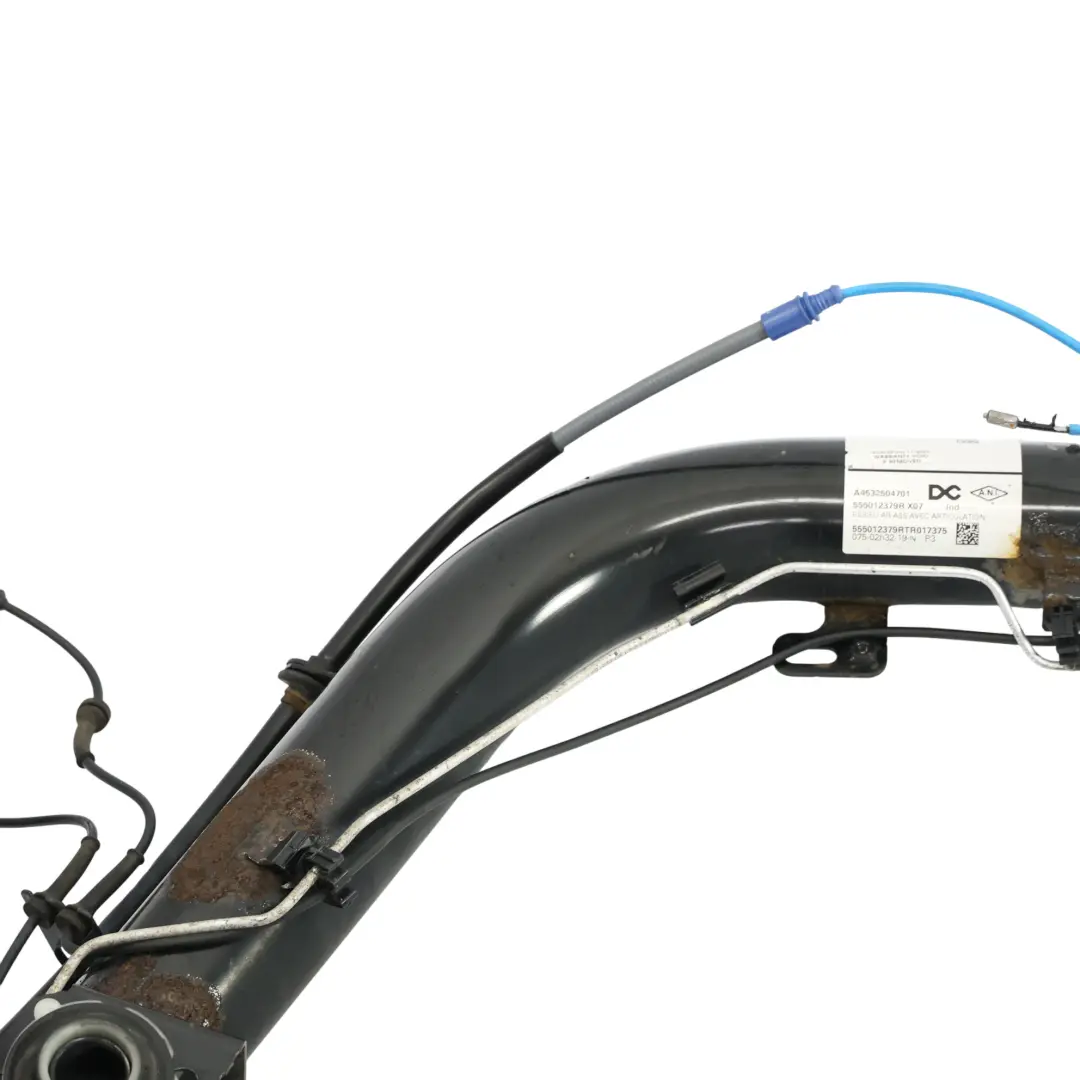

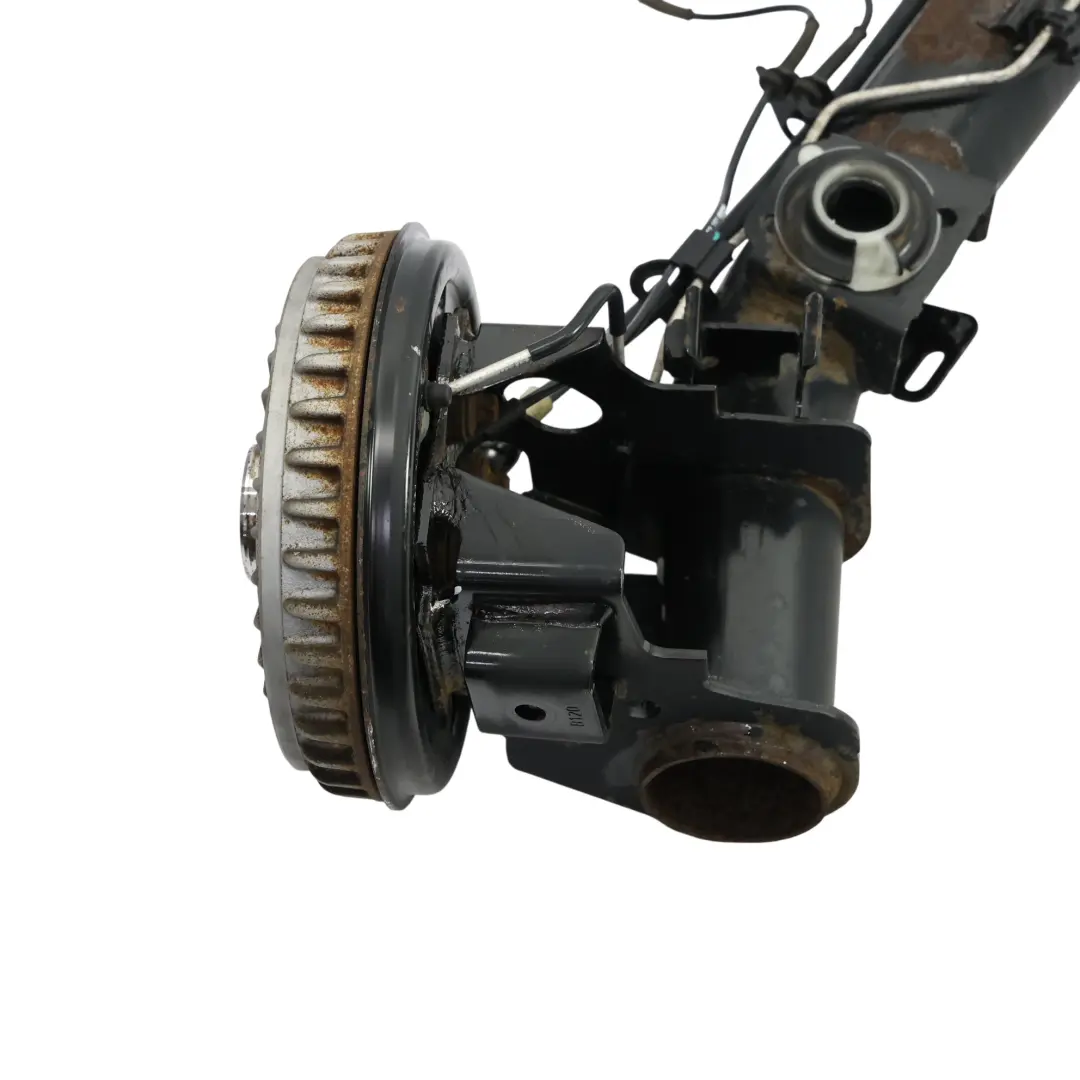

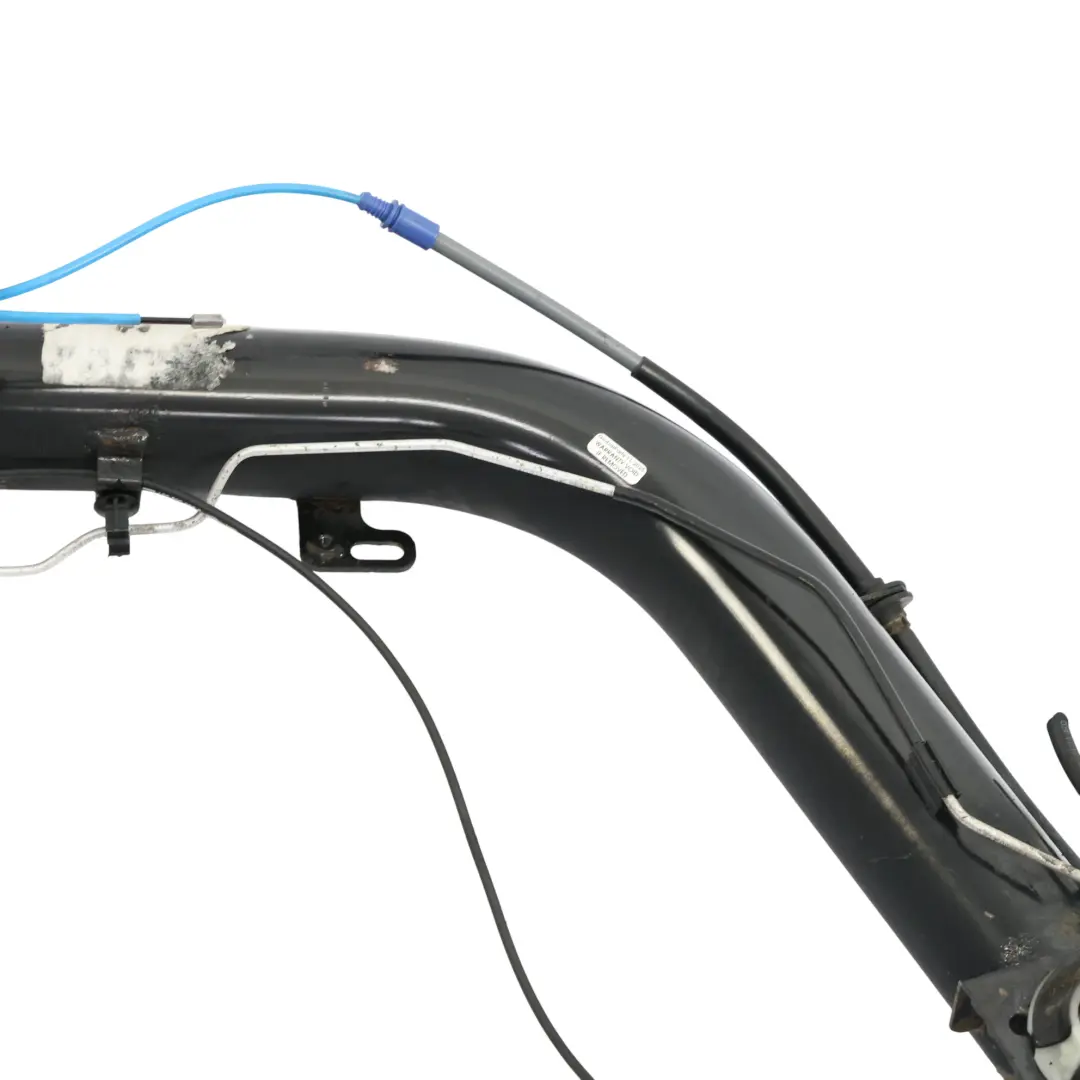

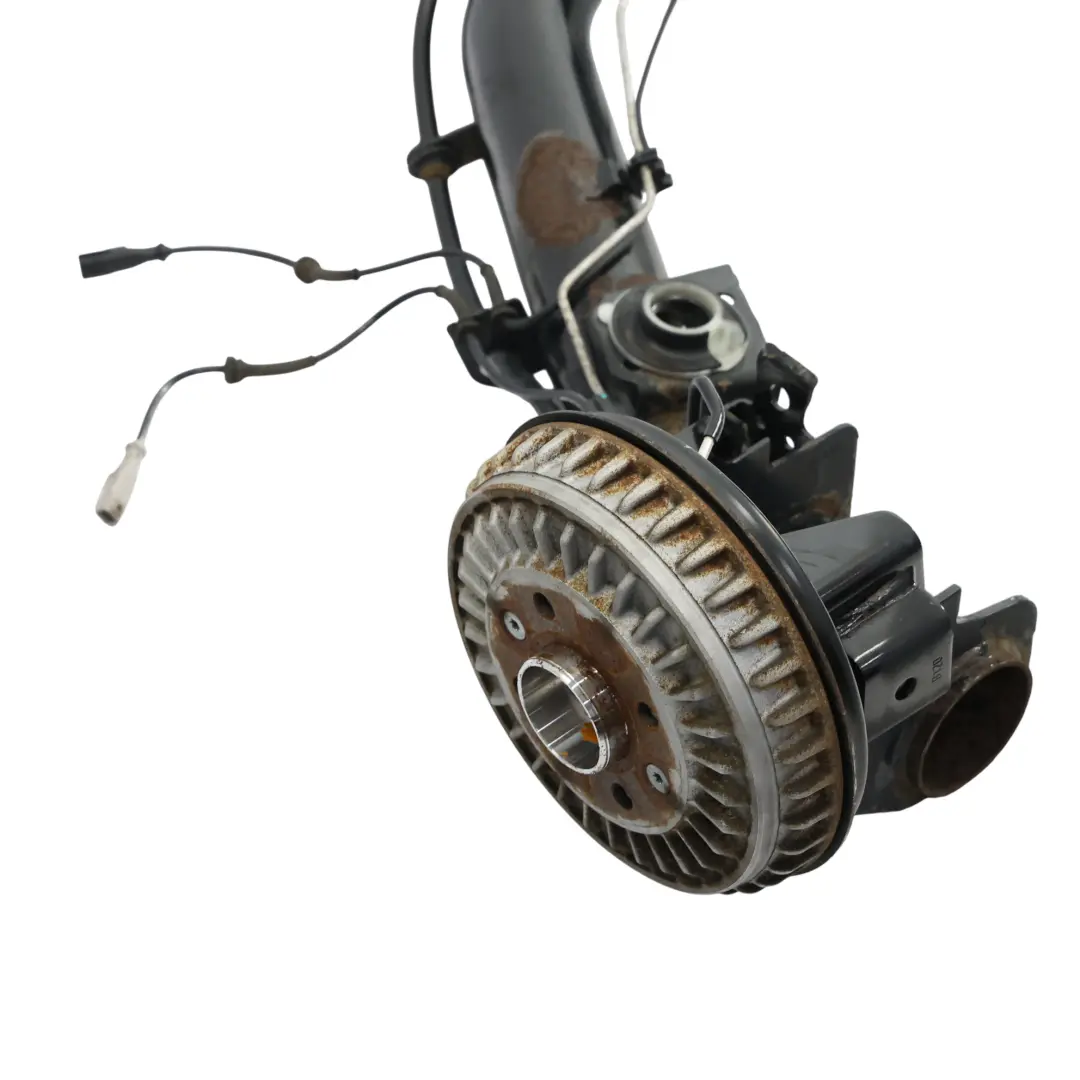

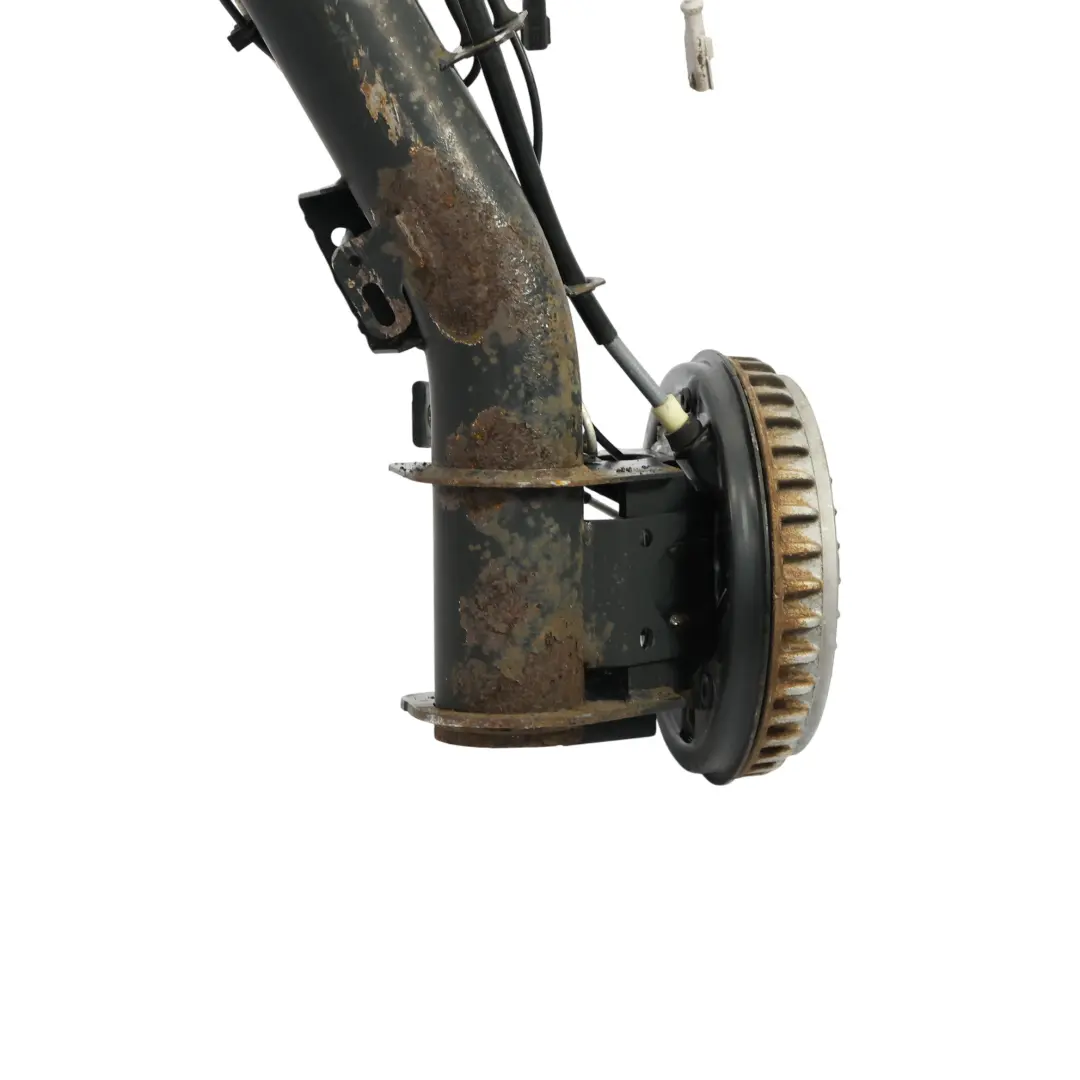

Visual condition of the part

The product shows signs of use visible in the photos.

Smart Fortwo C453 Electric Rear Axle Subframe Beam Cradle Mounting is an original structural component of the chassis, designed for the rear suspension of the electric Smart Fortwo C453 model. The robust rear frame ensures stable mounting of suspension components, which translates into predictable vehicle handling and safe operation. This is a solution for users looking for factory-fit quality and consistency with the original body geometry.

Specifications and technical data

• SKU: A4533500101
• Mark: Smart
• Condition: Used

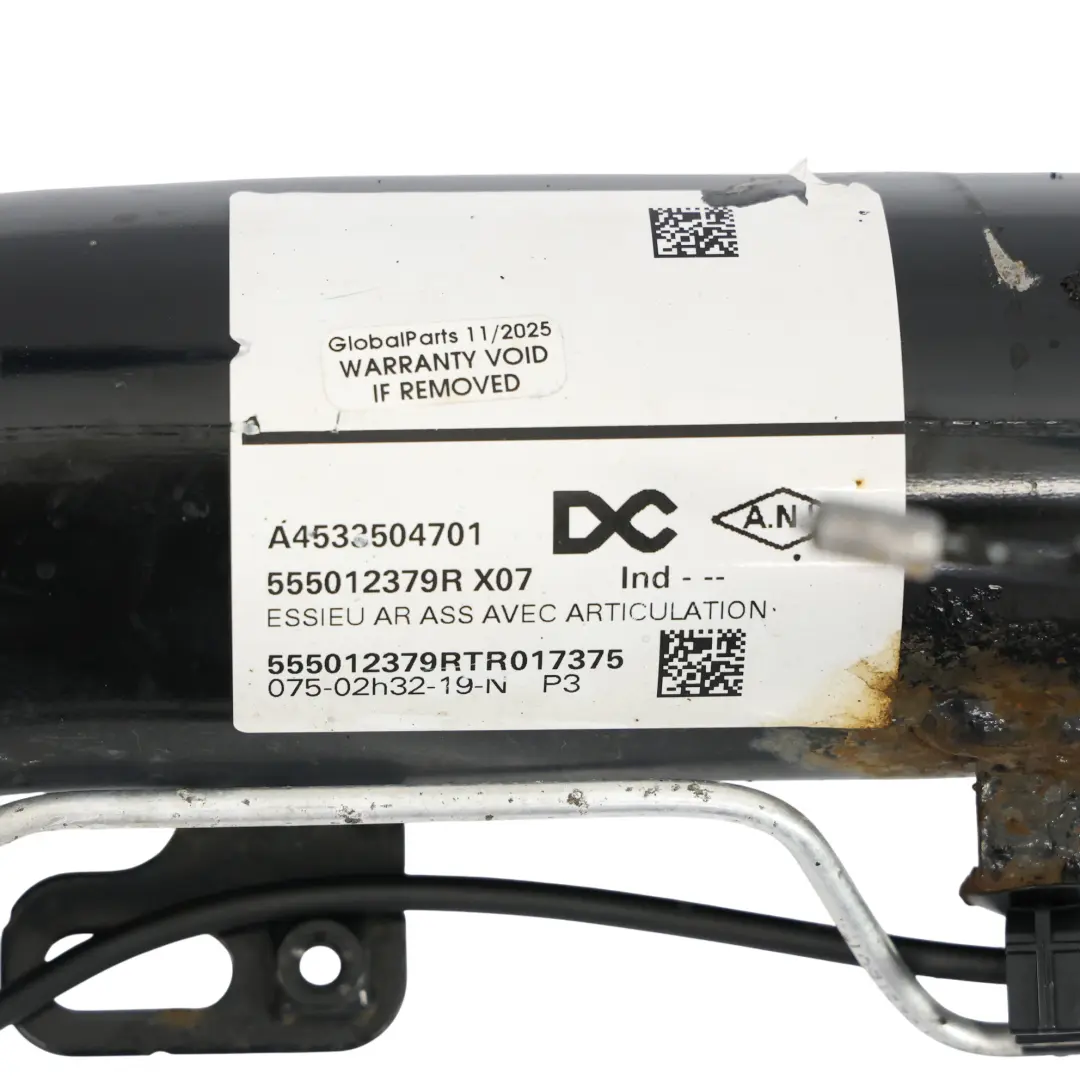

• OEM Part Number: A4533500101
• Substitutable numbers: A4533500101, A 453 350 01 01
• Location on the vehicle: Rear
• Part type: Axle
• Category: Axles

Purpose and function in the vehicle

The described cradle, i.e., the rear beam – suspension frame, operates in the rear axle area and serves as the base for mounting suspension elements and parts cooperating with the chassis. Its placement in the rear zone of the body allows for maintaining proper wheel geometry, which is crucial for:

• maintaining driving stability at various speeds,
• even load distribution to the body,
• proper operation of shock absorbers and other suspension components.

Thanks to a design tailored to the electric version of the Smart Fortwo C453, the frame works with the weight characteristics and load distribution typical for electric vehicles, which promotes consistent and predictable vehicle reactions to road irregularities.

Benefits of using an original rear suspension frame

Choosing a rear cradle from the Axles group dedicated to the Smart Fortwo C453 allows for maintaining compliance with factory mounting points and body design parameters. In practice, this means:

• easier fitment during installation without the need for structural modifications,
• preservation of the rear body stiffness designed by the manufacturer,
• better compatibility with stock suspension and chassis components.

A properly selected rear frame reduces the risk of incorrect geometry settings, which can affect tire wear, driving comfort, and the effectiveness of driver assistance systems. This is particularly important in city cars, where the suspension often operates in demanding conditions – over speed bumps, irregularities, and in urban traffic.

Product characteristics and installation

The component is designed for installation in the rear of the vehicle, in the zone responsible for transferring loads from the axle to the body. The frame construction enables proper positioning of suspension mounting points, which facilitates service and future replacement of other components. The product is offered as a used original part, which allows for maintaining consistency with the vehicle's factory specifications while optimizing repair costs.

Before installation, it is recommended to perform a standard verification of the mounting surface condition and check the geometry after the work is completed to fully utilize the structural potential of the rear beam and ensure proper vehicle handling across the entire load range.

Application in service practice

The rear cradle – beam, suspension frame in the electric Smart Fortwo C453 is suitable for both post-accident repairs and the replacement of worn-out components. Replacing the complete rear frame is often a more predictable solution than spot repairs, as it restores the structural integrity of the entire rear zone. This is especially important in vehicles where precise handling and even weight distribution in the rear axle area are essential.

If you are planning a comprehensive repair or upgrade of the rear axle zone in your Smart and need other elements from the same group, such as beams, frames, or complete axle assemblies, check the available parts in the Smart Axles category.
