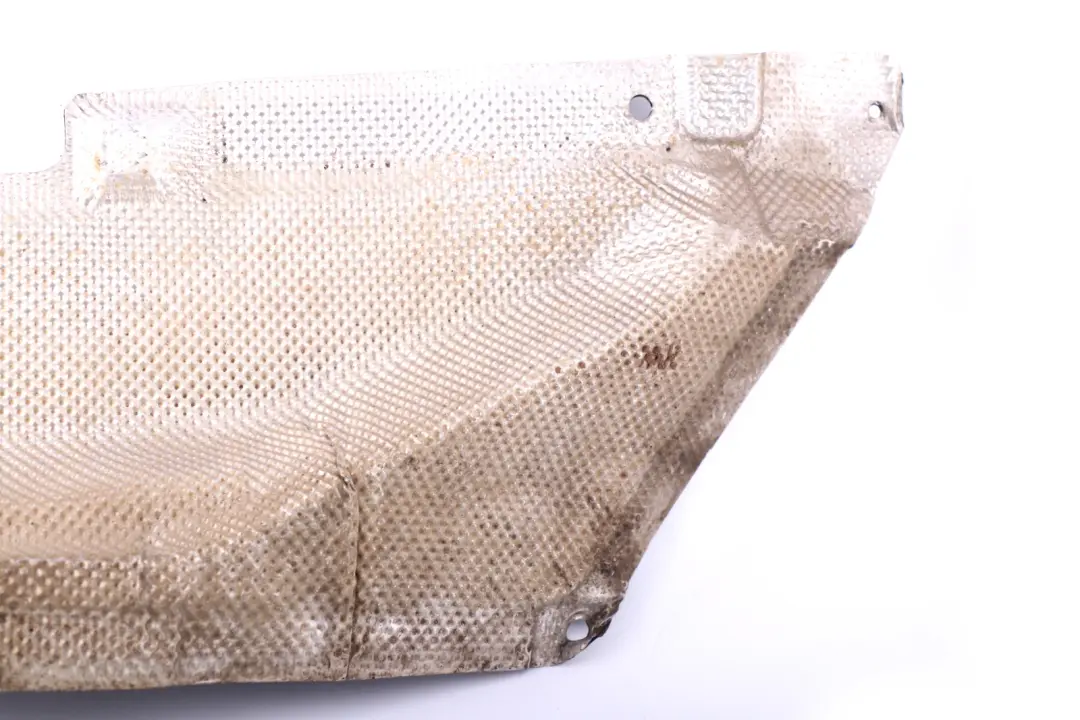

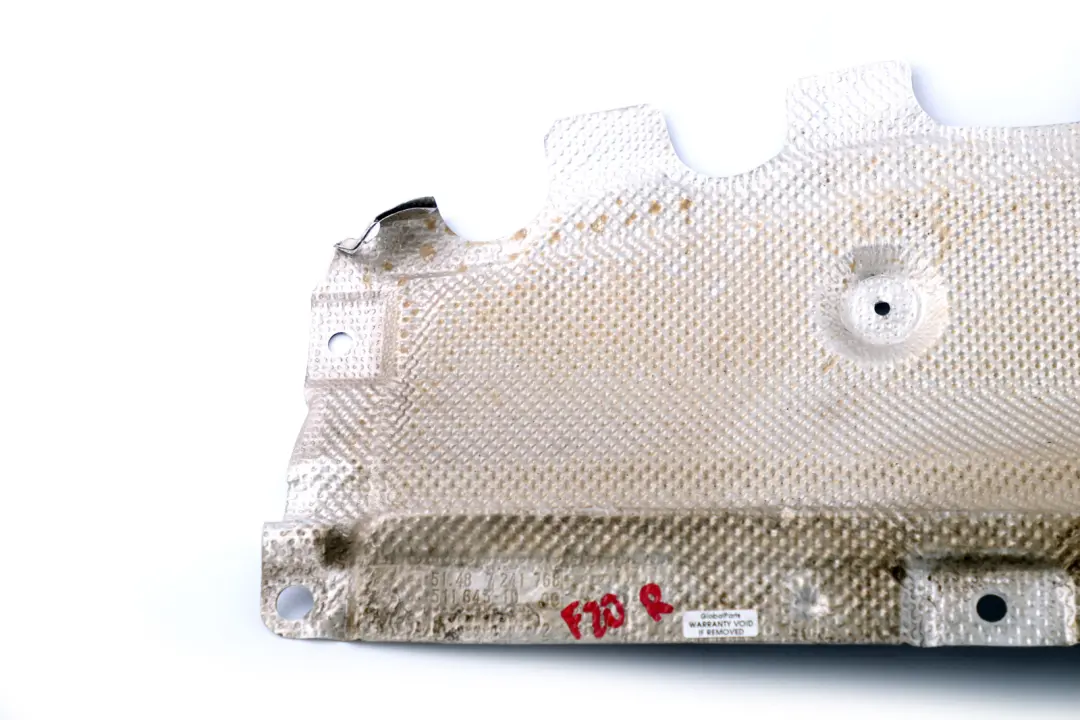

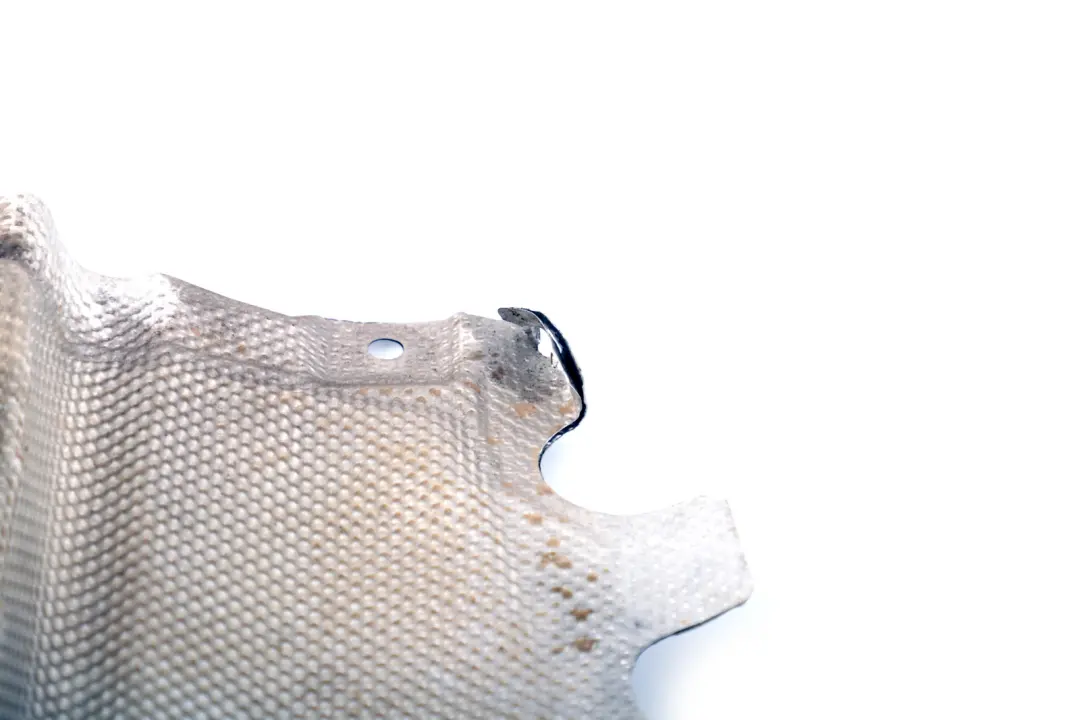

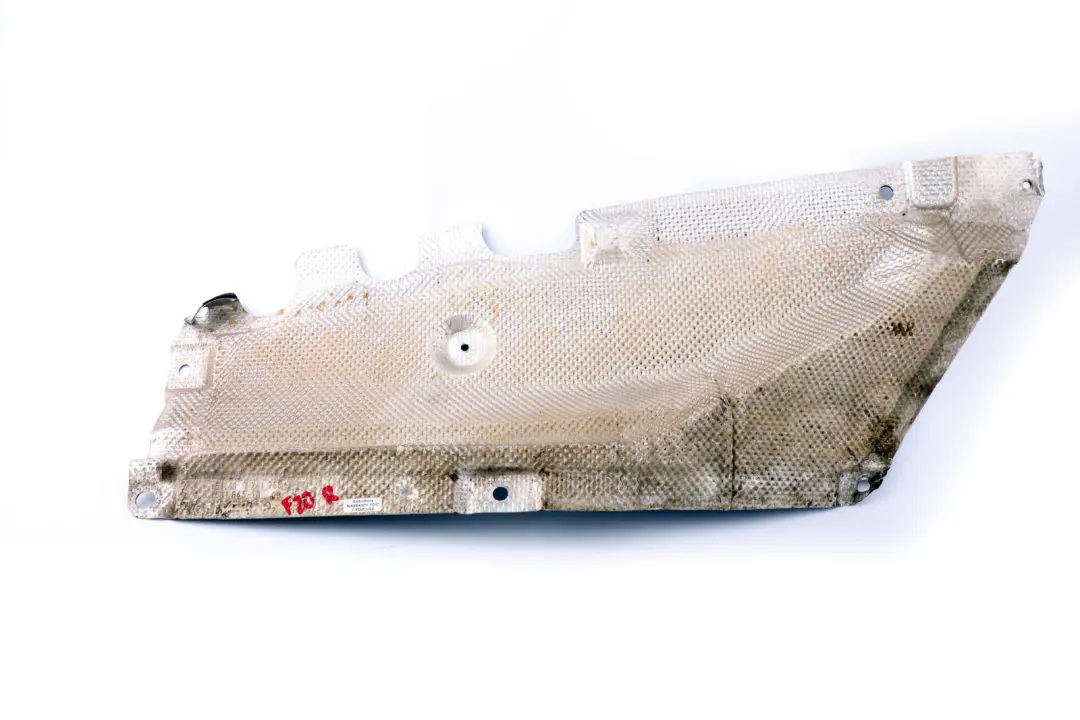

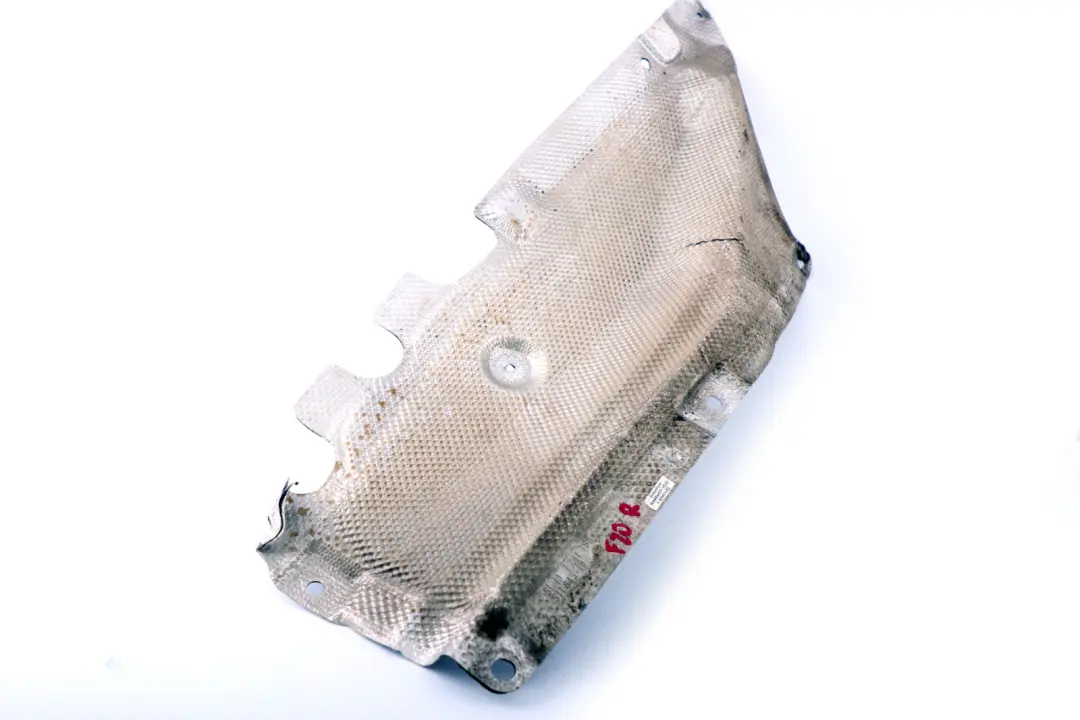

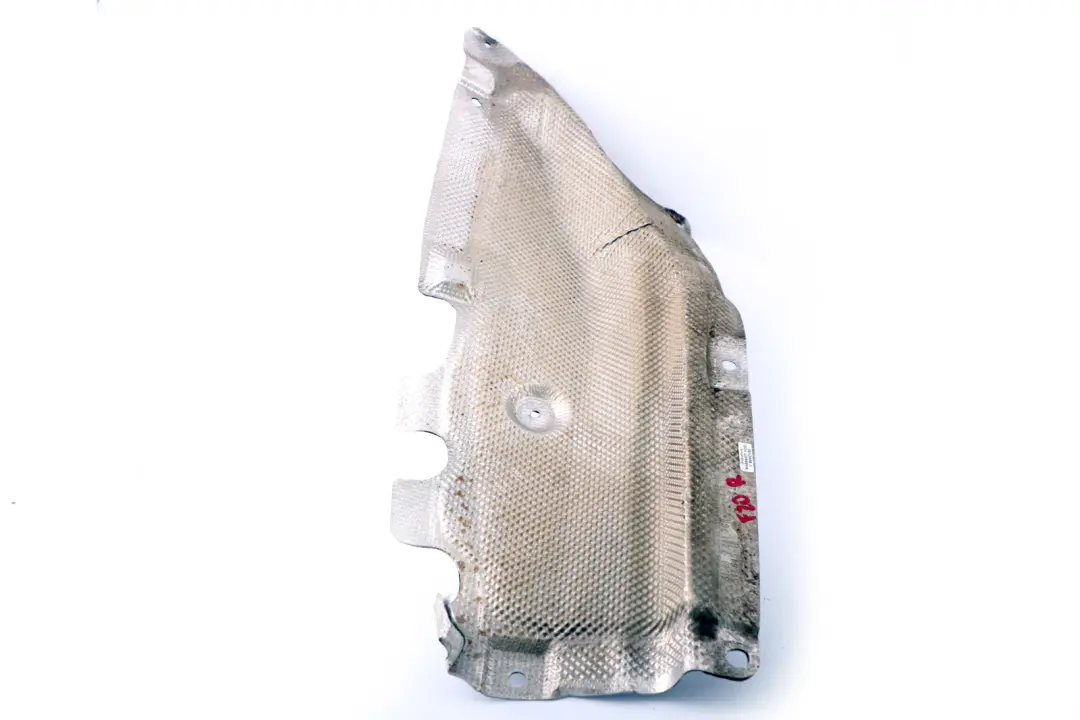

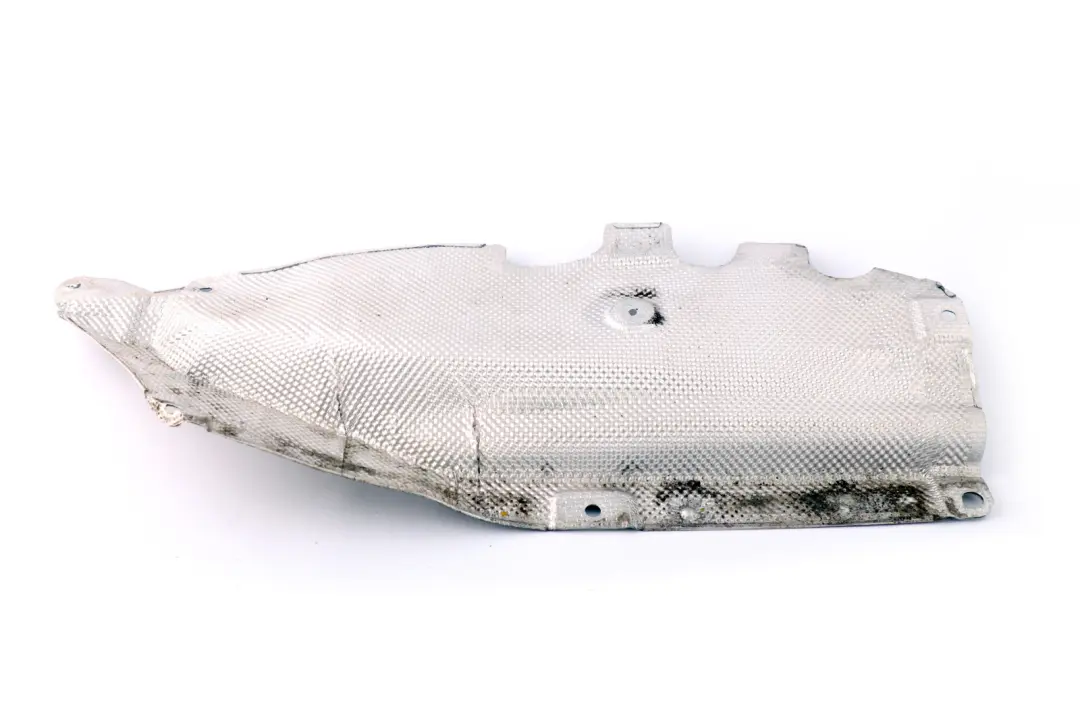

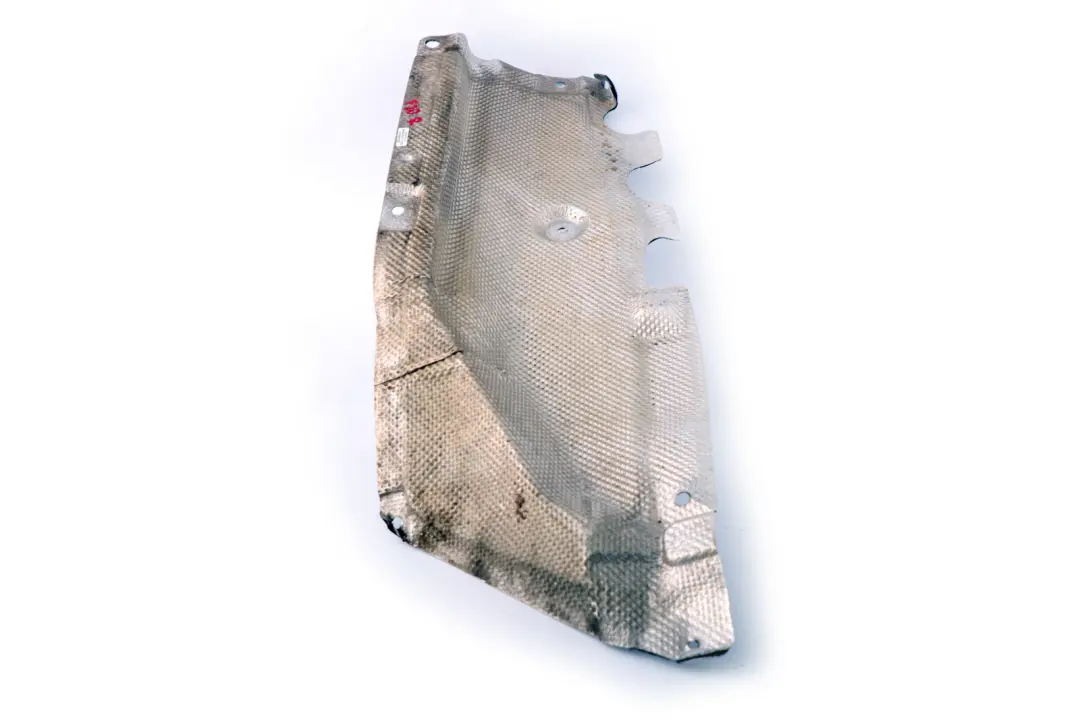

BMW F20 F22 F30 F32 Heat Insulation Side Right O/S 7241768

The BMW F20 F21 F30 Heat Shield Cover Insulation is a component from the heat shields, connectors, and sleeves category, designed for installation on the right side of BMW F-series vehicles. Engineered as an OEM part, it provides stable thermal protection to adjacent components and supports efficient heat dissipation within the engine bay.

Specifications and technical data

• SKU: 7241768
• Mark: BMW (Genuine OE)
• Condition: Used

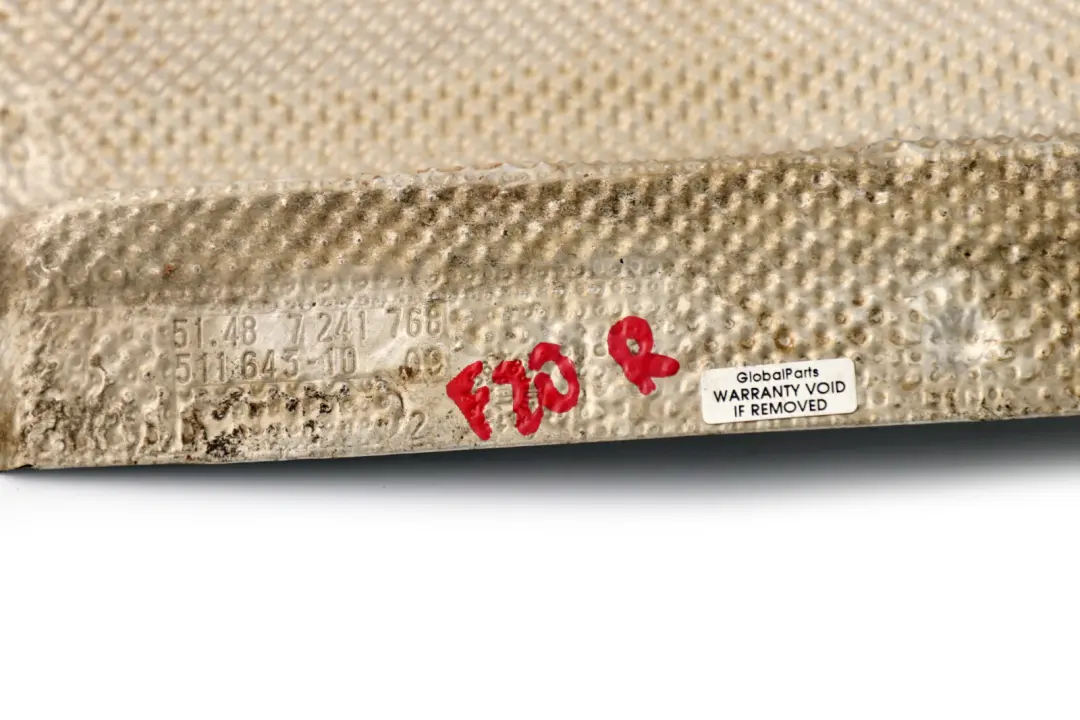

• OEM Part Number: 7241768
• Substitutable numbers: 51487241768, 7241768
• Location on the vehicle: Right
• Part type: Heat Shield
• Category: Heat Shields, Wraps & Sleeves

Purpose and Function of the BMW Heat Shield

The BMW F20 F21 F30 Heat Shield Cover Insulation is constructed for operation in high-temperature zones, typically near the exhaust system or engine components. Its purpose is to:

• Limit heat transfer to neighboring mechanical and electrical components.
• Stabilize operating conditions for wires, connectors, and sleeves located near heat sources.
• Reduce the risk of overheating for temperature-sensitive elements, such as electrical harnesses or plastic parts.
• Maintain predictable vehicle performance under high thermal load conditions.

Its placement on the right side of the vehicle allows for precise fitting to the factory mounting points in the body and drivetrain.

Construction and Fitment for BMW F20 F21 F30

As a part of the heat shields, connectors, and sleeves group, this insulation cover is profiled for specific BMW F-series body types, ensuring proper adherence to the bodywork and adjacent parts. The appropriately shaped surface of the shield:

• Optimizes hot air flow within the engine bay or undercarriage.
• Minimizes thermal contact with components that should not be directly heated.
• Facilitates installation thanks to the factory layout of holes and clips.

Being an original BMW OE part means its geometry conforms to factory technical documentation, promoting a seamless replacement for a worn or damaged component.

Condition, Service Application, and Benefits of Installation

The offered shield is a used OEM part, which in service practice often represents a sensible compromise between cost and fitment quality. Replacing worn thermal insulation with a functional part of this type allows for:

• Restoring the factory level of thermal protection in the specific vehicle zone.
• Limiting the risk of thermal damage to wires, connectors, and sleeves near the exhaust system.
• Maintaining stable operating conditions for temperature-sensitive components, contributing to their longevity.
• Reducing the likelihood of unwanted noises resulting from the deformation of overheated plastic elements.

This solution is particularly useful for post-accident repairs, exhaust system servicing, or restoring the full thermal efficiency of a vehicle operated in demanding conditions.

Selection and Integration with Other BMW Heat Shields

When selecting this shield for a BMW F-series, it is advisable to consider:

• Compatibility with the specific body version (F20, F21, F30) and installation side.
• Consistency with other heat shields in the vehicle to ensure continuous thermal protection.
• The condition of mounting points and contact areas in the bodywork, which facilitates proper seating of the component.

In BMW vehicles where the exhaust and drivetrain operate under heavy load, complete and sealed heat shields are crucial for long-term, stable operation.
